In April 2021, Apple revealed the second-generation Apple TV 4K, bringing high framerate HDR with Dolby Vision to the Apple TV for the first time and the A12 chip for improved performance, alongside a redesigned Siri Remote. The Apple TV HD was first released in 2015 and has remained in Apple's lineup since then as an entry-level option, and now it comes with the upgraded Siri Remote.


Should you consider purchasing the Apple TV HD to save money, or do you need the Apple TV 4K? Our guide answers the question of how to decide which of these two Apple TV set-top boxes is best for you.

Comparing the Apple TV HD and the Apple TV 4K

The Apple TV HD and Apple TV 4K share the same design and a number of basic features such as HDMI and the redesigned Siri Remote:

Similarities

  • Design, dimensions, and weight
  • Support for SDR
  • HDMI port
  • Ethernet port
  • Infrared receiver
  • HDMI-CEC, AirPlay, and Bluetooth
  • Second-generation Siri Remote


There are a large number of meaningful differences between the Apple TV HD and Apple TV 4K that are worth highlighting, including their supported resolutions and processors.

Differences


Apple TV HD
  • Support for up to 1080p resolution
  • Support for SDR
  • Support for audio output with 7.1 channels
  • HDMI 1.4
  • 1.5 GHz dual-core Apple A8 chip
  • 2GB RAM
  • 32GB storage only
  • 10/100 Ethernet
  • Wi-Fi 5
  • Bluetooth 4.0
  • $149

Apple TV 4K (Second-Generation)
  • Supports for up to 2160p (4K) resolution
  • Support for SDR, HDR10, and Dolby Vision
  • High framerate HDR up to 60-fps.
  • Support for audio output with 7.1.4 channels with Dolby Atmos
  • HDMI 2.1
  • 2.49 GHz hexa-core Apple A12 Bionic chip
  • 3GB RAM*
  • 32GB or 64GB storage
  • Gigabit Ethernet
  • Wi-Fi 6
  • Bluetooth 5.0
  • Thread support
  • $179 for 32GB model, $199 for 64GB model
*to be confirmed.



Read on for a closer look at each of these aspects, and see what exactly both of the available Apple TV models have to offer.

Video

The main difference between the Apple TV HD and the Apple TV 4K is the resolutions that they support. The Apple TV HD supports resolutions up to Full HD at 1080p, while the Apple TV 4K supports resolutions up to Ultra HD at 2160p.

Both models support standard dynamic range, but only the Apple TV 4K supports HDR10 and Dolby Vision, for richer colors and deeper blacks. The Apple TV 4K also supports high framerate HDR up to 60-fps. High frame rate HDR video enables fast-moving action at 60 frames per second to play more smoothly and appear more lifelike.


With high frame rate support in AirPlay, videos shot on the iPhone 12 Pro can be displayed in full 60-fps Dolby Vision on the Apple TV 4K. Apple is also working with video providers around the world, including FOX Sports, NBCUniversal, Paramount+, Red Bull TV, and Canal+, as they begin to stream in high frame rate HDR.

In order to make the most of the Apple TV 4K's better video capabilities, you will need to have an accompanying 4K TV with HDR. The video specifications of the Apple TV HD are sufficient for most older or lower-cost TVs, but for the best possible visual experience using technologies like 4K, HDR, and Dolby Vision, the Apple TV 4K is the better option, providing you have a relevant TV.

Audio

The Apple TV 4K also features more recent audio specifications with support for audio output with 7.1.4 channel surround sound with Dolby Atmos. The Apple TV HD, on the other hand, only supports audio output up to 7.1 channel surround sound.


Much like the differing video specifications of the two Apple TV models, the extent to which you can take advantage of the different audio specifications depends on your proprietary hardware. Basic home cinema setups will work well with the Apple TV HD, but for more advanced audio setups with Dolby Atmos, the Apple TV 4K is the better option.

A8 vs. A12

The second-generation Apple TV 4K features the A12 Bionic chip. The A12 Bionic chip powered the iPhone XS, XS Max, and XR in 2018, as well as the 2019 versions of the iPad Air and iPad Mini, and the 2020 entry-level iPad.


The A8 chip is considerably older and was first introduced with the iPhone 6 and iPhone 6 Plus in 2014. The A12 is a 2.49 GHz hexa-core chip and is markedly more powerful than the A8, which is a 1.5 GHz dual-core chip.

While processing power is not an absolute priority with a set-top box, the Apple TV 4K's more recent A12 chip will be much more capable than the A8. Whether it comes to playing games, app launch speeds, or simply general responsiveness, the A12 is likely to be much more snappy.

The Apple TV HD also pairs the A8 with 2GB of memory, while the Apple TV 4K likely pairs the A12 with 3GB of memory.

Through progressive updates to tvOS, the A12 will guarantee better performance over time, and the Apple TV 4K's A12 will be much more future-proof than the A8 in the Apple TV HD.

Storage

While there was originally a 64GB storage configuration for the Apple TV HD, there is now only a 32GB option available. The Apple TV 4K is available in both 32GB and 64GB configurations.

If you plan on downloading a large number of applications or storing lots of content on the Apple TV itself, then the Apple TV 4K with 64GB of storage will be the best option.

As most media content on the Apple TV is streamed and not stored on the device itself, the amount of storage will not be particularly important to most buyers.

Connectivity

Wired Connectivity
The Apple TV 4K features the most recent version of HDMI with version 2.1, while the Apple TV HD uses the much older HDMI 1.4. HDMI 2.1 facilitates many of the Apple TV 4K's added video capabilities like high-framerate HDR.

The Apple TV 4K also has a gigabit ethernet port, which is able to reach much faster speeds than the Apple TV HD's 10/100 ethernet port.



Wireless Connectivity
The Apple TV HD features Wi-Fi 5 and Bluetooth 4.0, but the Apple TV 4K raises these specifications to the more recent Wi-Fi 6 and Bluetooth 5.0. The Apple TV 4K also supports the Thread open standard, like the HomePod mini, for improved integration into smart home setups.

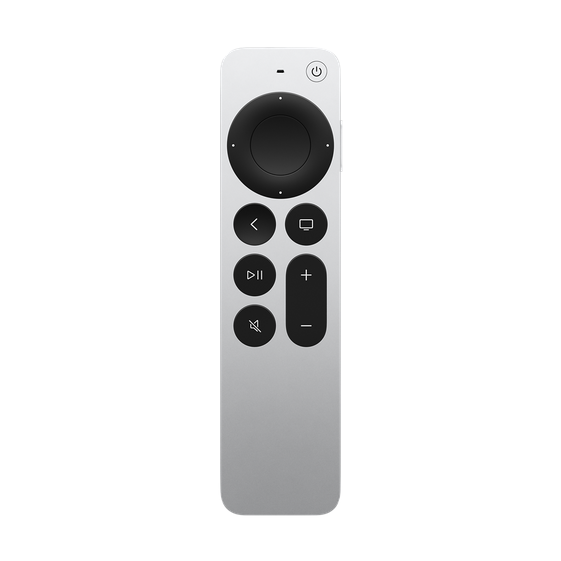

Siri Remote

Alongside the second-generation Apple TV 4K, Apple introduced a completely redesigned Siri Remote. With a thicker, one-piece aluminum design, the new Siri Remote fits more comfortably in a user's hand.

The new Siri Remote features a clickpad control that offers five-way navigation for better accuracy and is also touch-enabled for fast directional swipes. The outer ring of the clickpad supports an intuitive circular gesture that turns it into a jog control.

The new Siri Remote also has a power button that controls a TV's power directly, and another for mute. The Siri button has also been relocated to the side of the remote for convenience.


Although the new Siri Remote was introduced with the second-generation Apple TV 4K, Apple includes it with both of the current Apple TV 4K and Apple TV HD models, so users need not choose one model over the other to get the better remote.

Final Thoughts

Most customers should buy the Apple TV 4K. There is only a $30 price difference between the Apple TV HD and Apple TV 4K. Even for customers for whom the Apple TV HD would be adequate, the $30 upgrade to the Apple TV 4K is excellent value and worth it in almost all circumstances due to the plethora of small but significant upgrades it has across the board.



Even if you cannot take advantage of the Apple TV 4K's better video and audio capabilities, you will receive a faster processor, more RAM, and faster connectivity. Likewise, users with an HD TV and a basic audio set-up may upgrade their devices in the future, in which case the Apple TV 4K would be able to remain and make use of any upgraded hardware.

Since the second-generation Apple TV 4K is a 2021 model, it is six years newer than 2015's Apple TV HD and will be much more long-lasting, especially due to its faster processor and added memory.

The only people who should consider the Apple TV HD are individuals on a strict budget, those with no intention of upgrading their setups, and those with no interest in technologies like Ultra-HD 4K, HDR, or Dolby Atmos.

For standard HD, SDR TVs and basic audio setups, the Apple TV 4K is greatly limited by the video and audio specifications of the hardware connected to it. The Apple TV HD may also appear to be a good option for existing Apple TV users looking to buy an additional Apple TV for another room for activities such as Apple Fitness+.

Article Link: Apple TV HD vs. Apple TV 4K Buyer's Guide


citysnaps

macrumors 604
Oct 10, 2011
7,470
13,054
San Francisco
Seriously, I don’t see why anyone should buy these things if you already own a high-end TV.

Maybe they should add Safari to tvOS. This will probably attract a lot of buyers.

My android-based Sony TV not having a direct connection to my home network/internet is worth the price of admission, alone. I won't even use Sony's built-in AirPlay.

Just not going to let that happen, even though it is certainly possible.

Last edited:
Comment

centauratlas

macrumors 65816
Jan 29, 2003
1,390
2,339
Florida
For an extra $30 it is a no brainer to get the current one. If you have the TV to use with either of them, the extra money is a minor one-time cost.

If the old version was $49 or $39 then maybe, but it should just be discontinued or used as a loss leader at a super low price.

Last edited:
Comment

whirldy

macrumors 6502
Dec 20, 2011
325
155
Within
I am honestly in it for the remote. Just send me the remote...
Your, and my, dream has come true!! 🤗
Siri Remote


Comment

arkhanjel

macrumors regular
Nov 3, 2003
161
165
My android-based Sony TV not having a direct connection to my home network/internet is worth the price of admission, alone. Not even for its built-in AirPlay.

Just not going to let that happen, even though it is certainly possible.
Not to mention a lot of the TVs have a slow and clunky OS. Not saying tvOS is perfect but it's better than what's on most smart TVs.

Comment

redscull

macrumors 6502a
Jul 1, 2010
824
796
Texas
I still use the old old model for the optical port. I know that HDMI is better, but my ancient $4k surround system still sounds awesome and doesn't have HDMI. I wish it still got updates though because it lacks apps for Disney+ and HBOmax. And while Disney will airplay well enough, HBO fails to send any audio over airplay.

The built in smartness of my tv is a plague. It's a vizio with roku maybe? Regardless, I prefer the interface on Apple tv by a wide margin.

Comment

KittyKatta

macrumors 6502a
Feb 24, 2011
943
940
SoCal
Seriously, I don’t see why anyone should buy these things if you already own a high-end TV.
The SmartTV has definitely gotten better and competing boxes have gotten cheaper, so I agree. But I think there’s still a few good of reasons to get one:

Apple Fitness+ (Airplay from phone doesnt show watch HUD)
Siri
HomeKit (Doorbell/security cam. Home control)
Apple Arcade
iCloud Photos
Remote.app
AirPlay
Nice screensavers


Its a solid device, but still I find this release to be a bit lacking considering how long we’ve been waiting for an update. Overpriced, no “FindMy Remote”, no new features, no spatial audio and not much of an upgrade over last gen. I really wish they integrated more stuff into this like But I’m buying one anyway because I prefer it over any other box/smartTV.

Comment

stevehaney

macrumors newbie
May 11, 2021
1
5
The specs are incomplete on the "Differences" section: the new 2021 ATV supports two additional HDR specs: HDR10+ and HLG. Seems like every reviewer has been missing this, and these additions are a big deal. Live action sports broadcasts use the HLG standard, so the fact that Apple is supporting this is a big deal for sports broadcasters. And supporting it in 60FPS is going to deliver some amazing events for sports fans.

Comment

mazz0

macrumors 68030
Mar 23, 2011
2,757
2,528
Leeds, UK
Maybe they should add Safari to tvOS. This will probably attract a lot of buyers.
I don’t think many people would want that, and even fewer would use it. Why would you want to try navigating the web on your TV when you could just use your iPhone or iPad instead (and airplay if you want to)? Games consoles and Steam’s Big Picture mode have tried making a TV friendly web browser - it just doesn’t work.

Comment

MacKid

macrumors 6502
Jan 1, 2003
392
32
A8’s performance in this is so janky -- search takes forever, the UI drops frames, menu buttons respond on a delay when trying to toggle between app “home” and the overloaded Apple TV view.

I’ll be upgrading for the user experience but the HD shouldn’t cost more than $59 considering this is iPhone 6 hardware, yeesh.

Comment

Cosmosent

macrumors 68000
Apr 20, 2016
1,849
2,016
La Jolla, CA
I've never had an Apple TV, but am planning to get their first that supports Wi-Fi 6E, which "could" be out late this year.

Comment

vipergts2207

macrumors 68030
Apr 7, 2009
2,610
5,470
Columbus, OH
The ATV HD still being $150 is embarrassing. It's a ripoff and nobody should pay that much for it. This was a chance for Apple to have a lower cost streamer on the market at $99.

Seriously, I don’t see why anyone should buy these things if you already own a high-end TV.

Maybe they should add Safari to tvOS. This will probably attract a lot of buyers.
TV software usually isn't that great and it's going to go unsupported long before an ATV. Plus it's nice to have everything go directly through the receiver rather than rely on ARC or eARC for audio.

Comment

vipergts2207

macrumors 68030
Apr 7, 2009
2,610
5,470
Columbus, OH
I still use the old old model for the optical port. I know that HDMI is better, but my ancient $4k surround system still sounds awesome and doesn't have HDMI. I wish it still got updates though because it lacks apps for Disney+ and HBOmax. And while Disney will airplay well enough, HBO fails to send any audio over airplay.

The built in smartness of my tv is a plague. It's a vizio with roku maybe? Regardless, I prefer the interface on Apple tv by a wide margin.
This is why buying an HTiB or sound bar is usually ill-advised. The tech components are usually outdated far sooner than the speakers. If you use a receiver-based setup, you can replace a single component and have all of the latest tech. Meanwhile, quality speakers will last you decades.
