AppleScript : Postion of File

Discussion in 'Mac Programming' started by SDDave2007, Nov 9, 2008.

  1. SDDave2007 macrumors regular

    Joined:
    Apr 12, 2007
    #1
    I have the following script that customizes a DMG....
    The problem is ... contrary to what the script says.... The icons are NOT located at the coordinates specified. The ones that would be along the top
    are "close".. the lower/right icons are way off. I also notice that if I change the X/Y of the window in the script the position of the icons change.

    What am I doing wrong/missing here? I need to have the icons appear at the specified coordinates relative to the top left corner of the window

    Code:
    tell application "Finder"
    tell disk "test_test.dmg"
       open
       tell container window
          set current view to icon view
          set toolbar visible to false
          set statusbar visible to false
          set x to 251
          set y to 220
          set w to 1009
          set h to 612
          set bounds to {x, y, x + w, y + h}
       end tell
       set opts to icon view options of container window
       tell opts
          set shows icon preview to false
          set shows item info to false
          set icon size to 128
          set text size to 16
          set arrangement to not arranged
          set label position to bottom
          set background color to {32639,0,32639}
       end tell
       set position of file "aaa_test01.app" to {25,96}
       set position of file "aaa_test02.app" to {803,213}
       set position of file "aaa_test03.app" to {585,68}
       set position of file "aaa_test04.app" to {485,388}
       set position of file "aaa_test05.app" to {52,295}
       set position of file "aaa_test06.app" to {792,30}
       set position of file "aaa_test07.app" to {211,51}
       set position of file "aaa_test08.app" to {439,207}
       set position of file "aaa_test09.app" to {823,406}
       set position of file "aaa_test10.app" to {293,391}
       set position of file "aaa_test11.app" to {381,13}
       set position of file "aaa_test12.app" to {214,226}
       set position of file "aaa_test13.app" to {649,443}
       update without registering applications
       delay 5
    end tell
    end tell

  2. lee1210 macrumors 68040

    lee1210

    Joined:
    Jan 10, 2005
    Location:
    Dallas, TX
    #2
  3. SDDave2007 thread starter macrumors regular

    Joined:
    Apr 12, 2007
    #3
    Thanks... but I need to create the whole thing via a script. I have everything I need working perfectly... EXCEPT... that the icons do not appear where I tell them to.

    The DMG is created... the background color/image is set, the files are all copied in.. .every thing is perfect.... but for that ONE last critical item.

  4. lee1210 macrumors 68040

    lee1210

    Joined:
    Jan 10, 2005
    Location:
    Dallas, TX
    #4

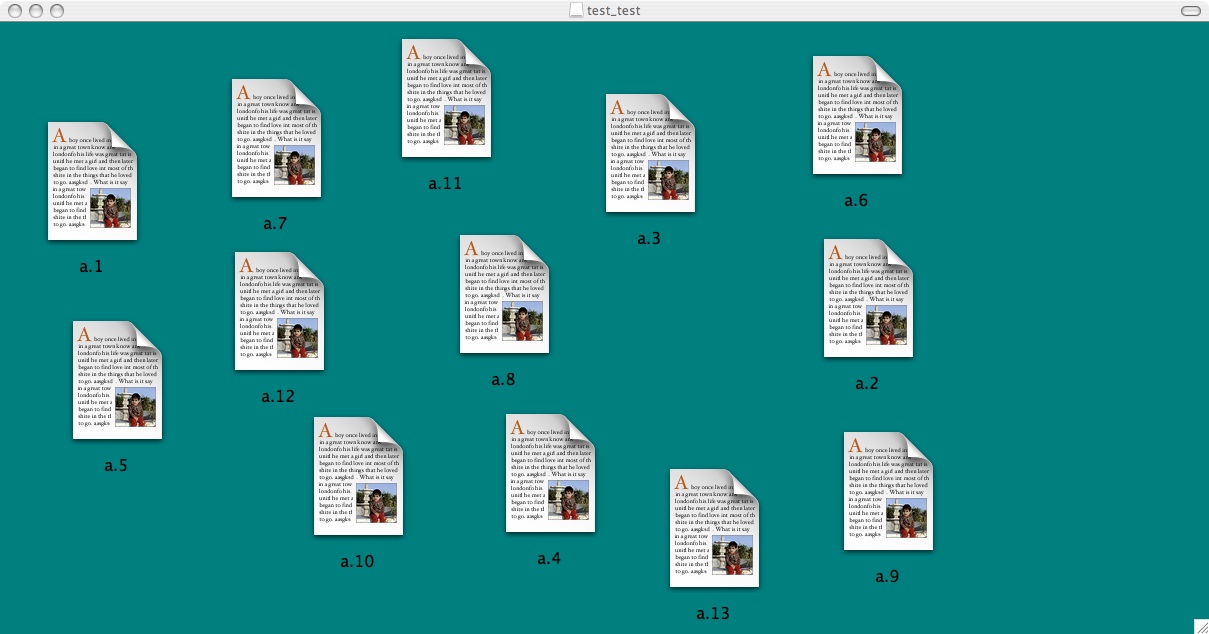

    It seems to work OK to me, but I may be misunderstanding the intention. I attached an image, at full resolution, of what I get on my system. It seemed to be what the script was asking for.

    -Lee

    n/m: I see some issues now... just wasn't sure what it was "supposed" to look like.


    Attached Files:

  5. lee1210 macrumors 68040

    lee1210

    Joined:
    Jan 10, 2005
    Location:
    Dallas, TX
    #5
    OK, no solution yet, BUT...
    I put delay 2 between each positioning... and it seems that it thinks the objects are being positioned "off" the window... and when that happens, it adjusts the position of the "working area" of the window, so the coordinates are not relative to each other, only relative to the position of the "working area" when they're particular set position is run. I'll poke at it a bit more, really not familiar with this stuff.

    -Lee

  6. SDDave2007 thread starter macrumors regular

    Joined:
    Apr 12, 2007
    #6
    I did seem to notice that all the icons would flash towards the upper left hand corner and then "bounce" back into the window ending up at the wrong locations....

    I wonder if the positioning is absolute and not relative..... as in you have to add the windows top and left coordinates....

    What the heck..... at this point I'll try anything

  7. lee1210 macrumors 68040

    lee1210

    Joined:
    Jan 10, 2005
    Location:
    Dallas, TX
    #7
    I tried adding x and y, no dice. that was even worse. I'll poke at it a bit more later. I'm not sure if the coordinate you give is the center of the icon, or the top right, or the top left, or what. If it's the center... you shouldn't position anything within 64 pixels of the sides, since you have the icons set to 128x128.

    -Lee

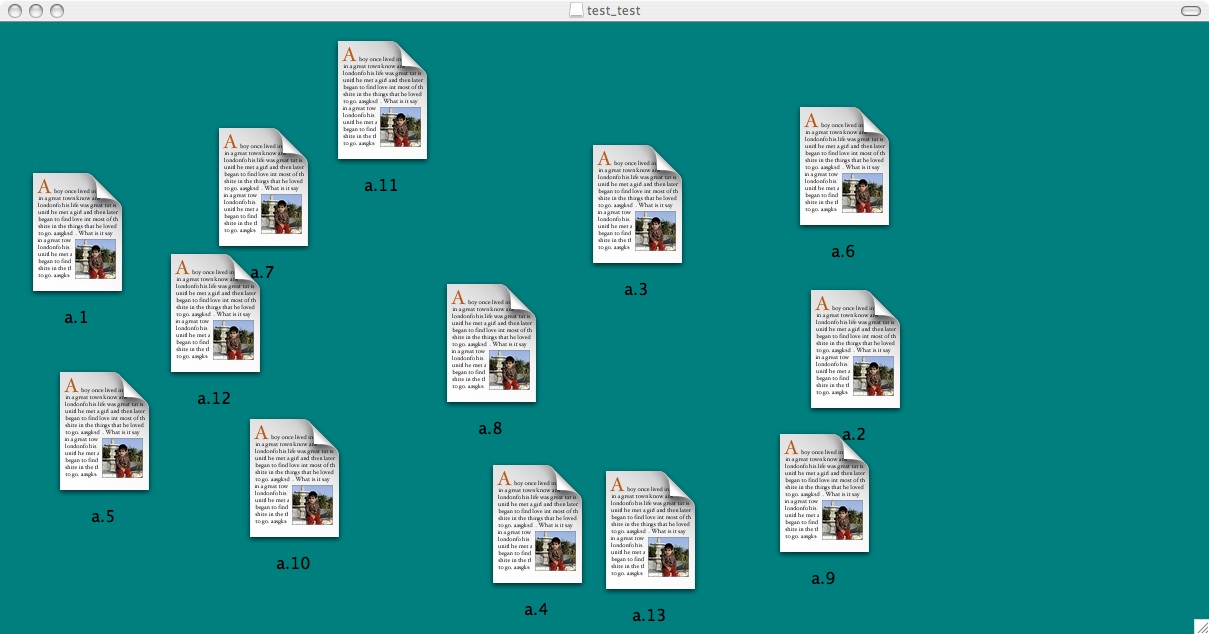

    p.s. I don't know what it should look like, but adding 64 to each value in each coordinate seemed to be better than the way they were before. i attached the resulting window with that change.


    Attached Files:

  8. SDDave2007 thread starter macrumors regular

    Joined:
    Apr 12, 2007
    #8
    I FOUND IT!!!!

    A) you have to add 1/2 the icon size to both the X and Y coordinates

    B) the Left edge of the Icon (or its label) cannot be less than 13 pixels from the left edge

    C) the Top of the Icon cannot be less than 10 pixels from the top of the window

    Do all of those things.... and it lines up PERFECT... at all icon sizes

    B & C are both After you have done "A"
