Apricorn Velocity Duo x2 will cover GTX660 Fan - Mac Pro 3,1 raid 0 options?

Discussion in 'Mac Pro' started by oksnr, Feb 5, 2015.

  1. oksnr macrumors newbie

    Joined:
    Jan 23, 2015
    #1
    As the title says, I have a Mac Pro 3,1. Here is my dilemma:

    Currently running Samsung 850 Pro on Apricorn Solo x1 card (runs great, really like it).

    I want to add a second Samsung 850 Pro and setup with raid 0, so I figure this is a good time to get a faster PCIe card for the drives.

    I need to use the second PCIe slot because that is 2.0. The higher ups are 1.0.

    The Velocity Duo x2 will cover the top fan in the GTX660.

    Can I go with a Solo x2 and just use a cable off it for the 2nd SSD?

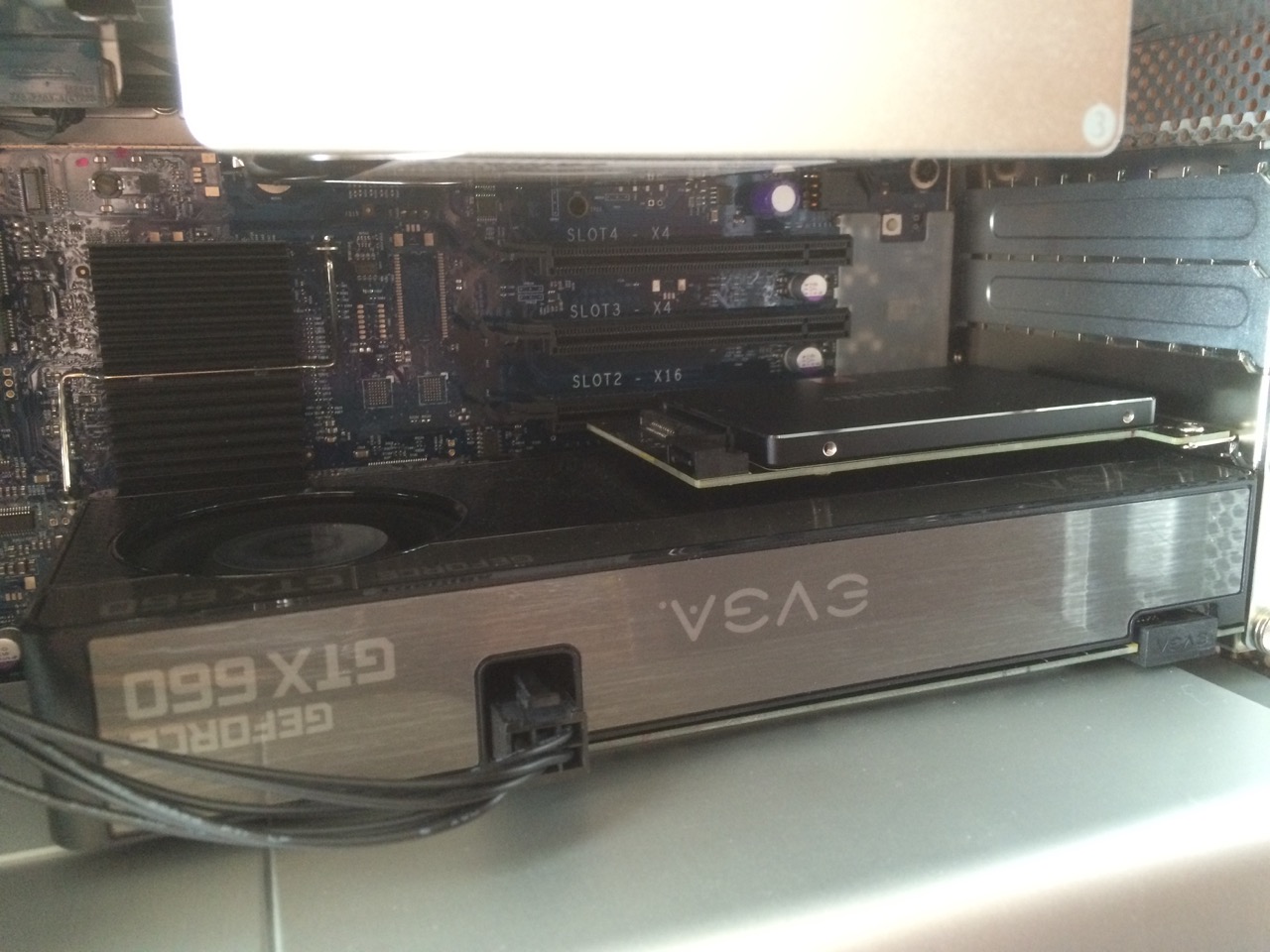

    Attached Files:

  2. flowrider macrumors 601

    flowrider

    Joined:
    Nov 23, 2012
    #2
    I'm running two Duo x2s in my Mac Pro 5,1 with a GTX 780, and I do not have any cooling issues. One of them is in slot 2, just above the card. I must mention though, that my card is a 3 fan Gigabyte.

    Lou

  3. oksnr thread starter macrumors newbie

    Joined:
    Jan 23, 2015
    #3
    Thank you for the information Lou.

    Do you know if the speed would be the same with two SSDs on a solo x2 (cable off the end method) as compared to a duo x2?

    Just worried about covering the only fan on my graphics card. However if you are covering all 3 and still running cool, that is good to know.

  4. scottsjack macrumors 68000

    Joined:
    Aug 25, 2010
    Location:
    Arizona
    #4
    I put mine in slot 3 because it covered the fan on my HD5770. One of the things I am going to look for in a GPU replacement is one where the fan is placed past the end of the Vel Duo. May even an HD5870.

  5. Game64 macrumors member

    Joined:
    Jan 21, 2011
    Location:
    Las Vegas, NV
    #5
    Wait, The Top 2 PCIe Slots are PCIe 1.0? In a 2009+?

  6. oksnr thread starter macrumors newbie

    Joined:
    Jan 23, 2015
    #6
    I should have been more specific and accurate with my wording.

    2008 Mac Pro (3,1): Slot 1 & 2 are 2.0 and slot 3 & 4 are 1.0 (as far as I know)


  7. flowrider macrumors 601

    flowrider

    Joined:
    Nov 23, 2012
    #7
    And just to add, if the OP is concerned about GPU temps. He can always mount the GPU in slot 2, leave slot 3 open and mount the Duo in slot 1. And yes, my Duo covers all three fans in my GTX 780.

    Lou

  8. oksnr thread starter macrumors newbie

    Joined:
    Jan 23, 2015
    #8
    Wow, I feel like a complete moron. It didn't even hit me to put the GPU in slot 2 and the duo in slot 1.

    Ok, last thing I hope - Is there any downside to having the GPU in slot 2? I know they are both 2.0 spec so I would think not.

    Thanks again for the help.

  9. Macsonic macrumors 65816

    Macsonic

    Joined:
    Sep 6, 2009
    Location:
    Earth
    #9
    When I had my 2008 3,1 Mac Pro, there was a time I place my Nvidia 680 gtx on slot 2 as I had a GT120 on slot 1. Everything ran fine with no problems.

  10. crjackson2134 macrumors 68020

    crjackson2134

    Joined:
    Mar 6, 2013
    Location:
    Charlotte, NC
    #10
    I could be wrong (not unusual for me) but the design of fans draw air instead of pushing at the fan openings. It doesn't require that much space and since its a dual fan configuration it probably makes very little difference. From looking at your photo, I believe there's enough space for adequate draw to take place.

  11. flowrider macrumors 601

    flowrider

    Joined:
    Nov 23, 2012
    #11
    None whatsoever, both slot 1 and slot 2 have the same specifications.

    Lou
