Auto Eject Windows Volume?

Discussion in 'macOS' started by koesherbacon, Jun 5, 2009.

  1. koesherbacon macrumors member

    Joined:
    Jun 5, 2009
    #1
    Hi everyone,

    I'm new here, and could not find an answer to this question anywhere. If it has already been addressed, please point me in the right direction.

    Anyways, I'm wondering if it is possible to automatically eject my Windows volume I created using Boot Camp upon logging into OS X 10.5.7? Its not a huge deal, but a little tiresome always having to do this when I log in. If it is, how do I go about setting this up?

    Thanks!

  2. Peace macrumors Core

    Peace

    Joined:
    Apr 1, 2005
    Location:
    Space--The ONLY Frontier
    #2
    Why do you always have to eject the windows partition ?

  3. koesherbacon thread starter macrumors member

    Joined:
    Jun 5, 2009
    #3
    I don't always *have* to eject it; I just don't like having a volume mounted that I never use.

  4. The General macrumors 601

    Joined:
    Jul 7, 2006
    #4
    No problem. Step by step instructions:

    Fire up the terminal (/Applications/Utilities/Terminal) and run this command:
    Code:
    diskutil list
    It should show you something like this:
    Code:
    Tardis:~ Ted$ diskutil list
    /dev/disk0
       #:                       TYPE NAME                    SIZE       IDENTIFIER
       0:      GUID_partition_scheme                        *465.8 Gi   disk0
       1:                        EFI                         200.0 Mi   disk0s1
       2:                  Apple_HFS Macintosh HD            250.0 Gi   disk0s2
       3:       Microsoft Basic Data BOOTCAMP                215.3 Gi   disk0s3
    /dev/disk1
       #:                       TYPE NAME                    SIZE       IDENTIFIER
       0:      GUID_partition_scheme                        *465.8 Gi   disk1
       1:                        EFI                         200.0 Mi   disk1s1
       2:                  Apple_HFS Storage                 465.4 Gi   disk1s2
    /dev/disk2
       #:                       TYPE NAME                    SIZE       IDENTIFIER
       0:      GUID_partition_scheme                        *465.8 Gi   disk2
       1:                        EFI                         200.0 Mi   disk2s1
       2:                  Apple_HFS My Passport             465.4 Gi   disk2s2
    Tardis:~ Ted$

    Now, look for the Microsoft Basic Data drive, in my case its #3 on /dev/disk0. That means that the disk identifier is disk0s3.

    Now, go back to the terminal and run this command:
    Code:
    diskutil info disk0s3
    Please note that you'll have to put the disk identifier of YOUR drive. It might be different than mine, but chances are it's the same. It should show you something like this:
    Code:
    Tardis:~ Ted$ diskutil info disk0s3
       Device Identifier:        disk0s3
       Device Node:              /dev/disk0s3
       Part Of Whole:            disk0
       Device / Media Name:      DOS_FAT_32_Untitled_2

       Volume Name:              BOOTCAMP
       Mount Point:
       File System:              NTFS

       Partition Type:           Microsoft Basic Data
       Bootable:                 Is bootable
       Media Type:               Generic
       Protocol:                 SATA
       SMART Status:             Verified
       Volume UUID:              1AED6166-2505-4FEE-BFCB-CB3C7D3AC1E6

       Total Size:               215.3 Gi (231188844544 B) (451540712 512-byte blocks)
       Free Space:               0.0 B (0 B) (0 512-byte blocks)

       Read Only:                No
       Ejectable:                No
       Whole:                    No
       Internal:                 Yes

    Tardis:~ Ted$
    Note the section "Volume UUID" ... this is the UUID of your Windows partition. Select the UUID and copy it with CMD+C. The UUID is the "1AED6166-2505-4FEE-BFCB-CB3C7D3AC1E6" part.

    Now, we're going to write to the file system table, and tell it NOT to mount that partition upon login. To do that, we're going to use vim, a fantastic command line text editor.

    Run this command to create and open the file /etc/fstab so that you can add some text to it:
    Code:
    sudo vim /etc/fstab
    You will have to type your password to continue. This is normal, we need super user privileges to write to /etc/fstab ... please note that as you type your password, asterisks will NOT show for the letters that you type.

    Do exactly what I tell you to do from this point on, and all will be well. I can help you further if you're having trouble figuring it out.

    Press "i" ... this will put you into "insert mode" in vim, so that you may type some stuff. Now, type this:
    Code:
    UUID=XXX none ntfs rw,noauto 0 0
    Remember to replace XXX with your UUID. You can press CMD+V to paste it.

    Now we need to save the file. The easiest way to do that is to hit escape, and the hold SHIFT, and press Z twice. So SHIFT+ZZ. That will save the file and close vim.

    Now restart your computer and your bootcamp drive should not be mounted. If you want to mount it, you can open Disk Utility and mount it.

  5. The General macrumors 601

    Joined:
    Jul 7, 2006
    #5
    Where did the OP go? I want to know if you got it working or not. :confused:

  6. PurrBall macrumors 6502a

    PurrBall

    Joined:
    Oct 25, 2007
    Location:
    Indianapolis
    #6
    In Windows you can add a period in front of the drive's name to make Finder not show it, not having to modify any system files. (it will still appear in the sidebar though, but you can right click and remove from there)

  7. koesherbacon thread starter macrumors member

    Joined:
    Jun 5, 2009
    #7
    Sorry I hadn't replied to the thread. Busy weekend.

    I'll try adding the period technique first. If that does not seem to cut it, then I'll give that terminal stuff a whirl.

    Thanks for the input =)

  8. The General macrumors 601

    Joined:
    Jul 7, 2006
    #8

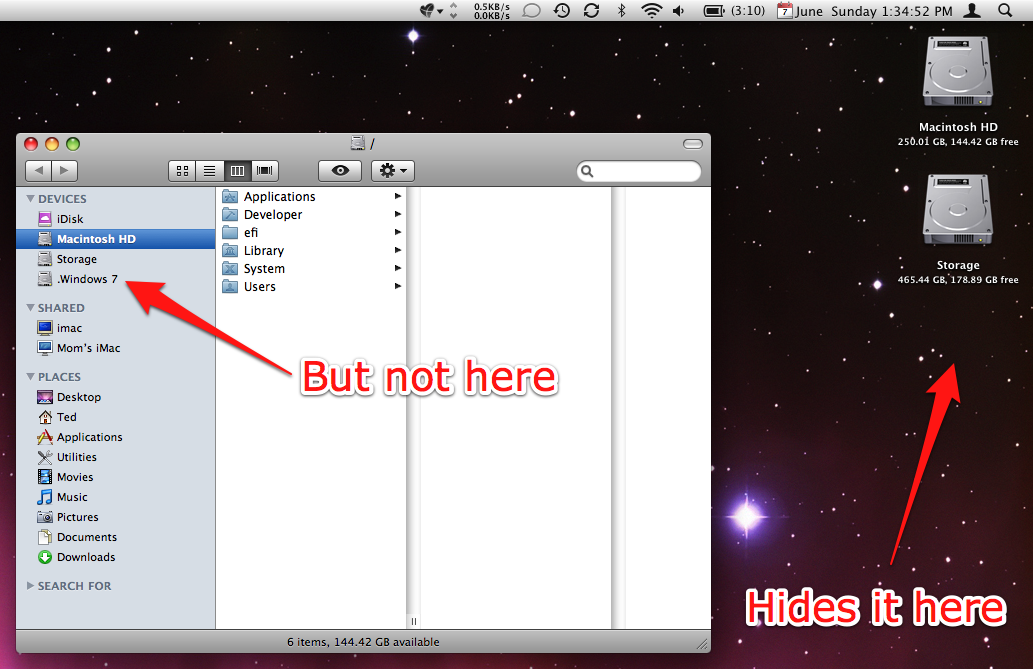

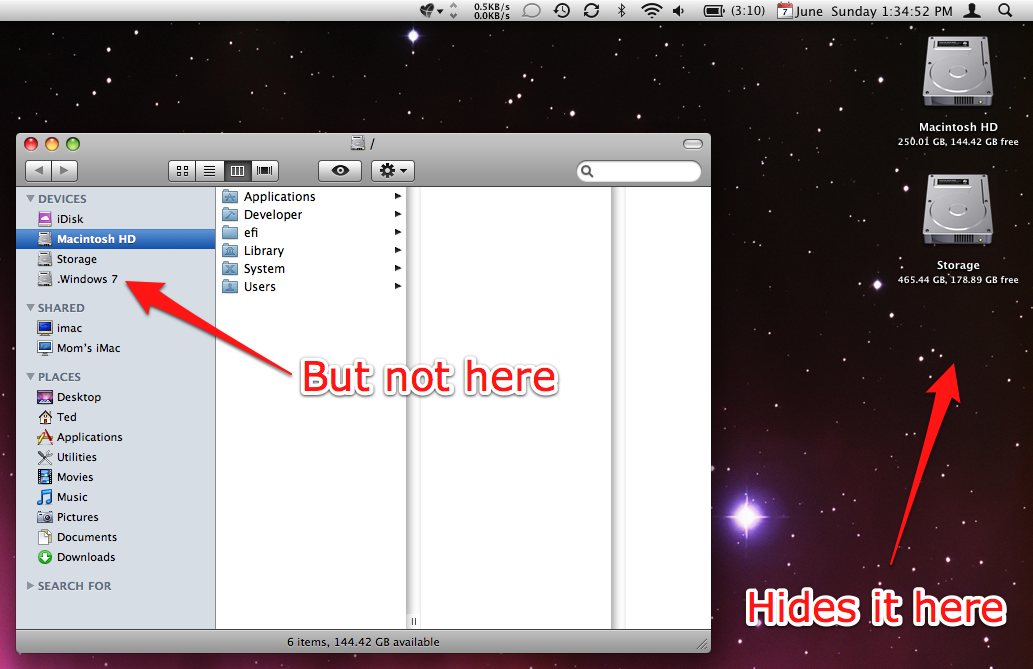

    I just tried it, results below. The proper way of doing it is adding it to the fstab and telling it just not to mount at login.

    It's better because you don't have to rename your Windows partition, and because if you want to mount it to the Desktop, you just open Disk Utility and mount it. With the period, you can't have it on the Desktop.


    Attached Files:

  9. koesherbacon thread starter macrumors member

    Joined:
    Jun 5, 2009
    #9
    Hey there, thanks for posting this. I have the same disk set up as you do, which makes it easier.

    But, I'm having a little difficulty.

    I get to this part just fine:
    Code:
    UUID=disk0s3 none ntfs rw,noauto 0 0
    in that Insert Mode.

    Now, what I have a question about is how to save and exit the insert mode. I tried your SHIFT+ZZ routine... which gave me two capitol Zs and neither saved nor exited from insert mode!

    So... little help? Thanks!

  10. koesherbacon thread starter macrumors member

    Joined:
    Jun 5, 2009
    #10
    Wait, I might've got it to work. Will reset and tell you how it goes.

  11. The General macrumors 601

    Joined:
    Jul 7, 2006
    #11
    You are putting the volume identifier in that line instead of the UUID. It shouldn't be "disk0s3" it should be the volume UUID.

    So it should look like this:
    Code:
    UUID=1AED6166-2505-4FEE-BFCB-CB3C7D3AC1E6 none ntfs rw,noauto 0 0
    But your UUID will be different than mine.

    Also, my bad on the vim part. You need to hit escape before pressing shift+ZZ.

  12. koesherbacon thread starter macrumors member

    Joined:
    Jun 5, 2009
    #12
    Okay, gotcha. Yeah, I'm obviously a newbie with this Terminal stuff. Thanks for bearing with me.

    Okay, now that I've understood how to save, I'm having a difficulty at an above step. Particularly, I'm not seeing my UUID.
    Here's the code I'm getting:
    Code:
    Ev:~ Ev$ diskutil info disk0s3
       Device Identifier:        disk0s3
       Device Node:              /dev/disk0s3
       Part Of Whole:            disk0
       Device / Media Name:      Untitled

       Volume Name:              Windows HD
       Mount Point:              /Volumes/Windows HD
       File System:              NTFS-3G

       Partition Type:           Microsoft Basic Data
       Bootable:                 Is bootable
       Media Type:               Generic
       Protocol:                 SATA
       SMART Status:             Verified

       Total Size:               16.9 Gi (18096320512 B) (35344376 512-byte blocks)
       Free Space:               10.9 Gi (11686764544 B) (22825712 512-byte blocks)

       Read Only:                No
       Ejectable:                No
       Whole:                    No
       Internal:                 Yes

    Any idea why its not showing up there? Thanks!

  13. The General macrumors 601

    Joined:
    Jul 7, 2006
    #13
    That's really weird. I'm guessing it's not showing up because you're using NTFS-3G.

    Try opening Disk Utility, right clicking on your windows partition and going to Information. Does it show your Universal Unique Identifier there?

    Mine looks like this:
    [​IMG]

  14. koesherbacon thread starter macrumors member

    Joined:
    Jun 5, 2009
    #14

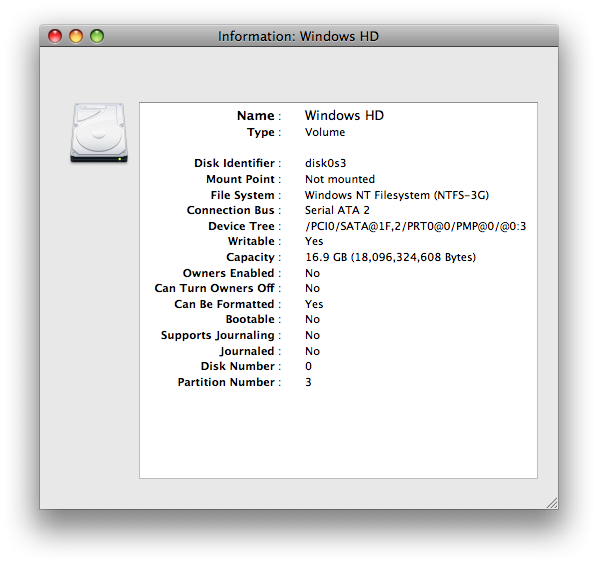

    Tried that as well. Got the attached pic now.

    What on earth is going on here? Thanks for all the help!


    Attached Files:

  15. koesherbacon thread starter macrumors member

    Joined:
    Jun 5, 2009
    #15
    Note: I disabled NTFS-3G and tried again and still am not getting the UUID:
    Code:
    Ev:~ Ev$ diskutil info disk0s3

       Device Identifier:        disk0s3
       Device Node:              /dev/disk0s3
       Part Of Whole:            disk0
       Device / Media Name:      Untitled

       Volume Name:              Windows HD
       Mount Point:              /Volumes/Windows HD
       File System:              NTFS-3G

       Partition Type:           Microsoft Basic Data
       Bootable:                 Is bootable
       Media Type:               Generic
       Protocol:                 SATA
       SMART Status:             Verified

       Total Size:               16.9 Gi (18096320512 B) (35344376 512-byte blocks)
       Free Space:               10.9 Gi (11686645760 B) (22825480 512-byte blocks)

       Read Only:                No
       Ejectable:                No
       Whole:                    No
       Internal:                 Yes

    Weird... :confused:

  16. The General macrumors 601

    Joined:
    Jul 7, 2006
    #16
    NTFS-3G is still enabled if it says

    File System: NTFS-3G

    Are you sure you disabled it?

  17. VirtualRain macrumors 603

    VirtualRain

    Joined:
    Aug 1, 2008
    Location:
    Vancouver, BC
    #17

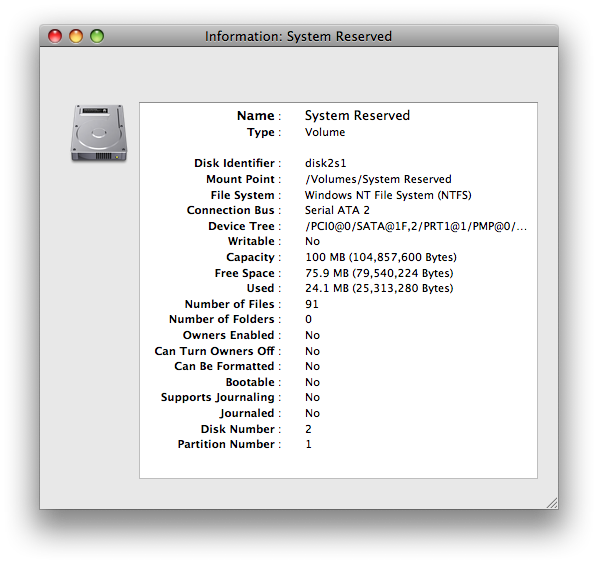

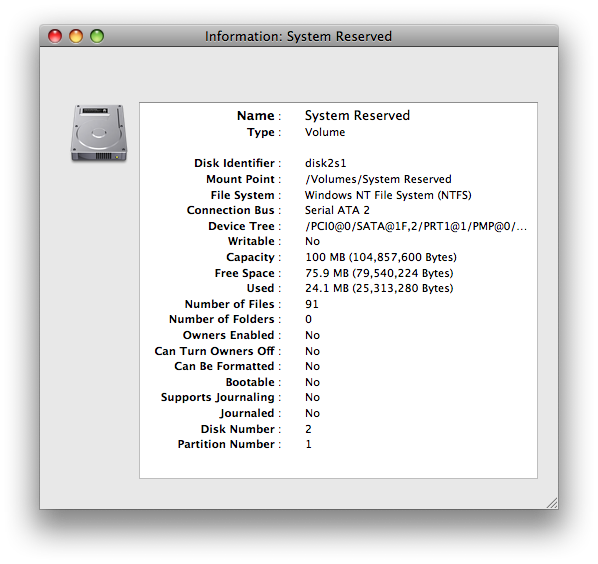

    I have a Win7 installed on a separate drive and it has created two partitions that automount in OSX that I want to remove... "BOOTCAMP" and "System Reserved". The former has a UUID I can add to fstab... but "System Reserved" doesn't have a UUID and it has a space so I suspect I can't refer to it by volume name. I also can't rename the volume (I get an error - not allowed).

    WTF can I do to stop this stupid partition from mounting in OSX?

    Info on this partition...


    Attached Files:

  18. VirtualRain macrumors 603

    VirtualRain

    Joined:
    Aug 1, 2008
    Location:
    Vancouver, BC
    #18
    Can anyone help with my issue above... Is there anything I can do to stop a partition from auto mounting that doesn't have a UUID?
