Backlit Quality

Discussion in 'MacBook' started by dilinger, Jul 15, 2016.

  1. dilinger macrumors newbie

    Joined:
    Mar 21, 2016
    #1
    Guys,

    Just bought a new Macbook M5, as i could not wait anymore for the MBP 2016..
    I remember reading, that one of the new features the new keyboard introduced (which i love by the way), is the consistency of the backlit feature.

    What i find strange though, and i don't know if its natural, or defective, is that some keys, like option,command, do not appear to backlit evenly.

    I thought that the new keyboard featured a 100% even backlit function..

    Does your Macbook backlit 100% perfectly within these bigger buttons?

  2. Ovedius macrumors 6502

    Ovedius

    Joined:
    Aug 2, 2012
    Location:
    Norway
    #2

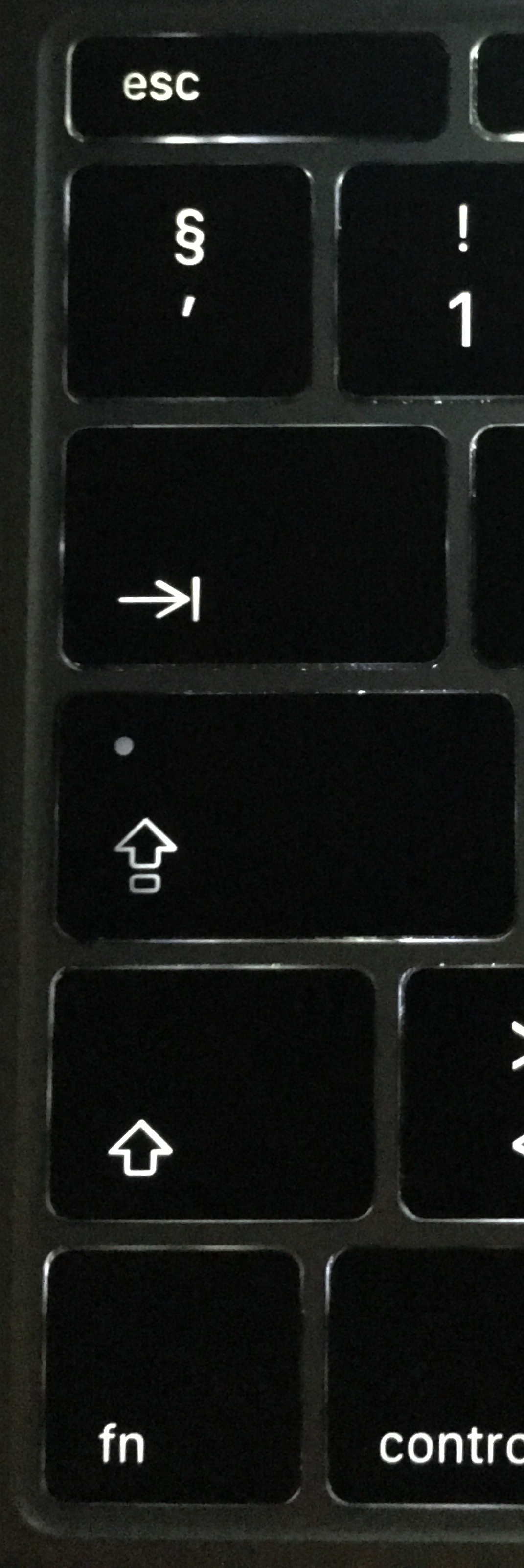

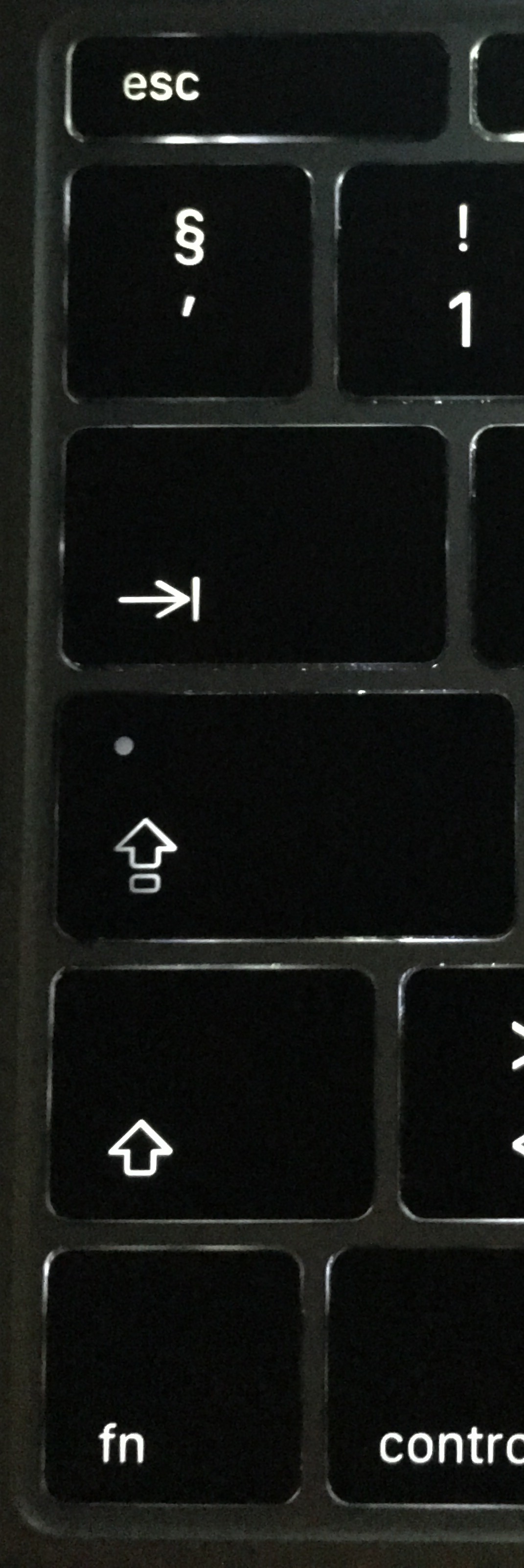

    My capslock and escape keys are kind of unevenly lit.
    -the escape key looks fine here, in real life the "e" is a little dimmer than the other letters.
    But I think they're just supposed to be like this.

  3. dilinger thread starter macrumors newbie

    Joined:
    Mar 21, 2016
  4. Queen6 macrumors 603

    Queen6

    Joined:
    Dec 11, 2008
    Location:
    Enjoying Better Things
    #4
    I have a 2015 1.2 rMB, same here some keys are more evenly lit than others - A-Z & 1-0 are fine, some of the others are unevenly illuminated, not by very much, however visible to the eye. Keys that are most obvious are the larger ones at the extreme left & right of the keyboard. To be honest all the rMB`s I have seen are the same, some people pickup on it some don't notice anything.

    Q-6

  5. rrm998 macrumors regular

    rrm998

    Joined:
    Jun 15, 2012
    Location:
    Houston, TX USA
    #5
    I've had three Macbook keyboards -- two for my 2015 and now the m7 2016. All had the same lighting issues with Escape and Caps lock. The end letters of the command key aren't perfect either. I've always assumed that the LED doesn't reach the edges of wider keys.

  6. neo_cs193p macrumors newbie

    neo_cs193p

    Joined:
    May 17, 2016
    #6
    Unevenly lit keys for me too. But I still think the new backlighting looks better than the old MBP, MBA keyboards (much smaller light leaks around the keys).

  7. evec macrumors regular

    Joined:
    Jun 8, 2016
    #7
    It normally, for the thickness the keyboard don't use backlit sheet as other MACBOOK,
    instead it use one LED for every key with a transparent light spreader in center for even purpose.
    However, the light spreader can't too big, it will affect keying and spread extra light from the gap, so some of key such as esc, cap lock will not even on the edge.

    Some Asus High end use two or three led for every key without use any light spreader, the gap between housing and keycap with too much lighting that mac and it also not even for every key. I thing Macbook better the Asus.
