Hi, I tried scouring the forums for threads that were identical to this one but couldn't find anything exactly like what I'm facing. Here are the details:
-2 wks ago: spilled water on my 13-inch, Mid 2012 mountain lion MBP while it was plugged in (yea, I know... dumb..)
-Whole machine was dead at first. Nothing powered on.
-Took machine apart, dried it forever, accidentally murdered the battery indicator cable while pulling the Logic Board out. (FML; comedy of errors)
-Pieced everything back together. It all works fine except for:
1) It doesn't sleep when I close it.
2) It doesn't wake up when I open it.
3) It recognizes battery, says it's charging, but can't actually charge the battery and won't run off of battery power.
4) Magsafe cord LED starts out green for a second, then turns amber and stays Amber. Like it thinks it's charging.
Here's where it gets odd:
Battery icon says 0% with a lightning bolt
Says "Calculating time until full...
Power source: power adaptor"
Battery Information:
Model Information:
Serial Number: W02395D0ED3LC
Manufacturer: SMP
Device Name: bq20z451
Pack Lot Code: 0
PCB Lot Code: 0
Firmware Version: 201
Hardware Revision: 000a
Cell Revision: 165
Charge Information:
Charge Remaining (mAh): 0
Fully Charged: No
Charging: Yes
Full Charge Capacity (mAh): 4427
Health Information:
Cycle Count: 506
Condition: Normal
Battery Installed: Yes
Amperage (mA): 0
Voltage (mV): 10760
System Power Settings:
AC Power:
System Sleep Timer (Minutes): 10
Disk Sleep Timer (Minutes): 0
Display Sleep Timer (Minutes): 10
Wake on AC Change: No
Wake on Clamshell Open: Yes
Wake on LAN: Yes
AutoPowerOff Delay: 14400
AutoPowerOff Enabled: 1
Current Power Source: Yes
Display Sleep Uses Dim: Yes
PrioritizeNetworkReachabilityOverSleep: 0
Standby Delay: 4200
Standby Enabled: 0
Battery Power:
System Sleep Timer (Minutes): 10
Disk Sleep Timer (Minutes): 10
Display Sleep Timer (Minutes): 2
Wake on AC Change: No
Wake on Clamshell Open: Yes
AutoPowerOff Delay: 14400
AutoPowerOff Enabled: 1
Display Sleep Uses Dim: Yes
Reduce Brightness: Yes
Standby Delay: 4200
Standby Enabled: 0
Hardware Configuration:
UPS Installed: No
AC Charger Information:
Connected: Yes
ID: 0x0100
Wattage (W): 60
Revision: 0x0000
Family: 0x0085
Serial Number: 0x00077389
Charging: Yes
-------------------------------------
I preformed an SMC reset; ( SMC Version (system): 2.2f44),
but everything stayed the same.
So I'm wondering:

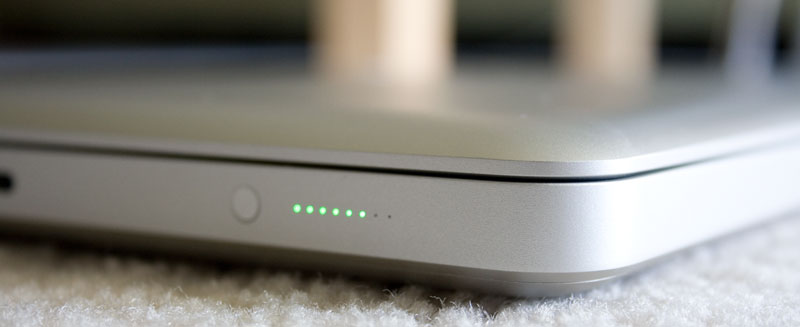

Does the battery indicator light actually relay charging info to the logic board?
Can I charge the MBP without the indicator?
Is it a necessary part or is my problem way bigger?
Either way I ordered that part off of ebay and will install it once it arrives but am trying to figure out if perhaps I fried a leg on the SMC chipset or the Hot3 thingy...?
Side note: I live in the middle of nowhere and there are no apple stores around here + I need this computer for law exams-- so letting go of it for a while would royally screw me up.
Also, red submergence indicators = I'm probably screwed on applecare despite the fact that I paid my 349 for the whole 3 years.
In other words: If I can solve this alone (solder it, whatever) I absolutely will. Here's where you guys come in: Please help me :-( Any advice/ideas/experience? Whatever you throw my way will be greatly appreciated.
Thank you!
-T
