amp829

macrumors member
Oct 11, 2019
61
1
Only had issues when use that player? If yes, better stop using it. Just a player anyway. IINA or VLC usually can do better.
Yes only with this player which is the only one capable of smooth H265 high end quality videos from my camera ....


tsialex

Contributor
Jun 13, 2016
12,967
13,202
i use as a playback media player the ELMEDIA Video player and it plays H265 4K 10bit 4:2:2 videos as a butter but my mac
restarted 2 times and the report is below
** Panic Report ***
mp_kdp_enter() timed-out on cpu 14, NMI-ing
mp_kdp_enter() NMI pending on cpus: 0 10 11
mp_kdp_enter() timed-out during locked wait after NMI;expected 16 acks but received 14 after 15545452 loops in 1130499855 ticks
panic(cpu 14 caller 0xffffff801a6b6ead): "IPI timeout, unresponsive CPU bitmap: 0x400, NMIPI acks: 0x0, now: 0x0, deadline: 2559483544622, pre-NMIPI time: 0x253ed1b8635, current: 0x2540ae8ee6a, global: 0"@/BuildRoot/Library/Caches/com.apple.xbs/Sources/xnu/xnu-4903.278.12/osfmk/x86_64/pmap.c:3038
Backtrace (CPU 14), Frame : Return Address
0xffffffa3df2b3860 : 0xffffff801a5af57d
0xffffffa3df2b38b0 : 0xffffff801a6eb065
0xffffffa3df2b38f0 : 0xffffff801a6dc79a
0xffffffa3df2b3960 : 0xffffff801a55c9d0
0xffffffa3df2b3980 : 0xffffff801a5aef97
0xffffffa3df2b3aa0 : 0xffffff801a5aede3
0xffffffa3df2b3b10 : 0xffffff801a6b6ead
0xffffffa3df2b3bd0 : 0xffffff801a6bd576
0xffffffa3df2b3cb0 : 0xffffff801a6be226
0xffffffa3df2b3d20 : 0xffffff801a647949
0xffffffa3df2b3e80 : 0xffffff801a64f545
0xffffffa3df2b3ec0 : 0xffffff801a5a24fe
0xffffffa3df2b3ef0 : 0xffffff801a6c26d7
0xffffffa3df2b3fa0 : 0xffffff801a55d1b6

BSD process name corresponding to current thread: Elmedia Video Pl

Mac OS version:
18G1012

Kernel version:
Darwin Kernel Version 18.7.0: Sat Oct 12 00:02:19 PDT 2019; root:xnu-4903.278.12~1/RELEASE_X86_64
Kernel UUID: DFB5D0E2-3B41-3647-A48B-D704AFCC06B4
Kernel slide: 0x000000001a200000
Kernel text base: 0xffffff801a400000
__HIB text base: 0xffffff801a300000
System model name: MacPro5,1 (Mac-F221BEC8)

System uptime in nanoseconds: 2560985269243
last loaded kext at 267417747493: com.apple.filesystems.msdosfs 1.10 (addr 0xffffff7f9eb3f000, size 69632)
loaded kexts:
com.apple.filesystems.msdosfs 1.10
com.apple.filesystems.exfat 1.4
com.apple.fileutil 20.036.15
com.apple.driver.AppleBluetoothMultitouch 96
com.apple.driver.AppleUpstreamUserClient 3.6.5
com.apple.driver.AppleMCCSControl 1.5.9
com.apple.kext.AMDFramebuffer 2.1.1
com.apple.filesystems.autofs 3.0
com.apple.driver.AGPM 110.25.11
com.apple.driver.AppleMikeyHIDDriver 131
com.apple.kext.AMDRadeonX4000 2.1.1
com.apple.driver.AppleGraphicsDevicePolicy 3.50.14
com.apple.driver.AppleHDAHardwareConfigDriver 282.54
com.apple.AGDCPluginDisplayMetrics 3.50.14
com.apple.driver.AppleHDA 282.54
com.apple.driver.AppleMikeyDriver 282.54
com.apple.driver.AppleHV 1
com.apple.iokit.IOUserEthernet 1.0.1
com.apple.iokit.IOBluetoothSerialManager 6.0.14d3
com.apple.driver.pmtelemetry 1
com.apple.Dont_Steal_Mac_OS_X 7.0.0
com.apple.kext.AMD9500Controller 2.1.1
com.apple.driver.AppleGFXHDA 100.1.414
com.apple.driver.AppleLPC 3.1
com.apple.driver.AppleIntelSlowAdaptiveClocking 4.0.0
com.apple.driver.ACPI_SMC_PlatformPlugin 1.0.0
com.apple.driver.AppleFIVRDriver 4.1.0
com.apple.driver.AudioAUUC 1.70
com.apple.driver.AppleOSXWatchdog 1
com.apple.iokit.IOBluetoothUSBDFU 6.0.14d3
com.apple.driver.AppleRAID 5.1.0
com.apple.filesystems.apfs 945.275.8
com.apple.driver.MaxTranserSizeOverrideDriver 456.260.3
com.apple.driver.AppleFileSystemDriver 3.0.1
com.apple.driver.AppleVirtIO 2.1.3
com.apple.filesystems.hfs.kext 407.200.4
com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
com.apple.BootCache 40
com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0
com.apple.AppleSystemPolicy 1.0
com.apple.iokit.SCSITaskUserClient 408.250.3
com.apple.driver.AppleFWOHCI 5.6.0
com.apple.driver.Intel82574LEthernet 2.7.2
com.apple.driver.AppleAHCIPort 329.260.5
com.apple.private.KextAudit 1.0
com.apple.driver.AppleHPET 1.8
com.apple.driver.AppleRTC 2.0
com.apple.driver.AppleACPIButtons 6.1
com.apple.driver.AppleSMBIOS 2.1
com.apple.driver.AppleACPIEC 6.1
com.apple.driver.AppleAPIC 1.7
com.apple.driver.AppleIntelCPUPowerManagementClient 220.0.0
com.apple.nke.applicationfirewall 202
com.apple.security.TMSafetyNet 8
com.apple.driver.AppleIntelCPUPowerManagement 220.0.0
com.apple.driver.AppleMultitouchDriver 2450.1
com.apple.driver.AppleInputDeviceSupport 2440.2
com.apple.driver.AppleBluetoothHIDKeyboard 208
com.apple.driver.IOBluetoothHIDDriver 6.0.14d3
com.apple.driver.AppleHIDKeyboard 208
com.apple.kext.triggers 1.0
com.apple.kext.AMDRadeonX4000HWLibs 1.0
com.apple.iokit.IOAcceleratorFamily2 404.14
com.apple.kext.AMDRadeonX4000HWServices 2.1.1
com.apple.driver.AppleGraphicsControl 3.50.14
com.apple.driver.DspFuncLib 282.54
com.apple.kext.OSvKernDSPLib 528
com.apple.iokit.IOAVBFamily 760.6
com.apple.plugin.IOgPTPPlugin 740.2
com.apple.iokit.IOEthernetAVBController 1.1.0
com.apple.iokit.IOSkywalkFamily 1
com.apple.driver.AppleSSE 1.0
com.apple.iokit.IOSurface 255.6.1
com.apple.driver.AppleSMBusController 1.0.18d1
com.apple.AppleGPUWrangler 3.50.14
com.apple.driver.AppleHDAController 282.54
com.apple.iokit.IOHDAFamily 282.54
com.apple.iokit.IONDRVSupport 530.51
com.apple.driver.AppleSMBusPCI 1.0.14d1
com.apple.kext.AMDSupport 2.1.1
com.apple.AppleGraphicsDeviceControl 3.50.14
com.apple.iokit.IOSlowAdaptiveClockingFamily 1.0.0
com.apple.iokit.IOFireWireIP 2.3.0
com.apple.driver.IOPlatformPluginLegacy 1.0.0
com.apple.driver.IOPlatformPluginFamily 6.0.0d8
com.apple.iokit.IOGraphicsFamily 530.67
com.apple.iokit.BroadcomBluetoothHostControllerUSBTransport 6.0.14d3
com.apple.iokit.IOBluetoothHostControllerUSBTransport 6.0.14d3
com.apple.iokit.IOBluetoothHostControllerTransport 6.0.14d3
com.apple.iokit.IOBluetoothFamily 6.0.14d3
com.apple.driver.AppleXsanScheme 3
com.apple.iokit.IOAHCIBlockStorage 301.270.1
com.apple.driver.usb.AppleUSBHub 1.2
com.apple.driver.AppleUSBAudio 315.6
com.apple.driver.usb.IOUSBHostHIDDevice 1.2
com.apple.iokit.IOAudioFamily 206.5
com.apple.vecLib.kext 1.2.0
com.apple.driver.usb.cdc 5.0.0
com.apple.driver.usb.networking 5.0.0
com.apple.driver.usb.AppleUSBHostCompositeDevice 1.2
com.apple.iokit.IOSerialFamily 11
com.apple.filesystems.hfs.encodings.kext 1
com.apple.iokit.IOSCSIMultimediaCommandsDevice 408.250.3
com.apple.iokit.IOBDStorageFamily 1.8
com.apple.iokit.IODVDStorageFamily 1.8
com.apple.iokit.IOCDStorageFamily 1.8
com.apple.iokit.IOAHCISerialATAPI 267.50.1
com.apple.iokit.IOFireWireFamily 4.7.3
com.apple.driver.AppleUSBMergeNub 900.4.2
com.apple.iokit.IOAHCIFamily 288
com.apple.driver.usb.AppleUSBEHCIPCI 1.2
com.apple.driver.usb.AppleUSBUHCIPCI 1.2
com.apple.driver.usb.AppleUSBUHCI 1.2
com.apple.driver.usb.AppleUSBEHCI 1.2
com.apple.driver.usb.AppleUSBHostPacketFilter 1.0
com.apple.iokit.IOUSBFamily 900.4.2
com.apple.driver.AppleUSBHostMergeProperties 1.2
com.apple.driver.AppleEFINVRAM 2.1
com.apple.driver.AppleEFIRuntime 2.1
com.apple.iokit.IOSMBusFamily 1.1
com.apple.iokit.IOHIDFamily 2.0.0
com.apple.security.quarantine 3
com.apple.security.sandbox 300.0
com.apple.kext.AppleMatch 1.0.0d1
com.apple.driver.DiskImages 493.0.0
com.apple.driver.AppleFDEKeyStore 28.30
com.apple.driver.AppleEffaceableStorage 1.0
com.apple.driver.AppleKeyStore 2
com.apple.driver.AppleUSBTDM 456.260.3
com.apple.driver.AppleMobileFileIntegrity 1.0.5
com.apple.iokit.IOUSBMassStorageDriver 145.200.2
com.apple.iokit.IOSCSIBlockCommandsDevice 408.250.3
com.apple.iokit.IOSCSIArchitectureModelFamily 408.250.3
com.apple.iokit.IOStorageFamily 2.1
com.apple.kext.CoreTrust 1
com.apple.driver.AppleCredentialManager 1.0
com.apple.driver.KernelRelayHost 1
com.apple.iokit.IOUSBHostFamily 1.2
com.apple.driver.usb.AppleUSBCommon 1.0
com.apple.driver.AppleBusPowerController 1.0
com.apple.driver.AppleSEPManager 1.0.1
com.apple.driver.IOSlaveProcessor 1
com.apple.iokit.IOReportFamily 47
com.apple.iokit.IOTimeSyncFamily 740.2
com.apple.iokit.IONetworkingFamily 3.4
com.apple.driver.AppleACPIPlatform 6.1
com.apple.driver.AppleSMC 3.1.9
com.apple.iokit.IOPCIFamily 2.9
com.apple.iokit.IOACPIFamily 1.4
com.apple.kec.pthread 1
com.apple.kec.Libm 1
com.apple.kec.corecrypto 1.0

EOF
Model: MacPro5,1, BootROM 144.0.0.0.0, 8 processors, Quad-Core Intel Xeon, 2,26 GHz, 32 GB, SMC 1.39f5
Graphics: Radeon RX 580, Radeon RX 580, spdisplays_pcie_device, 8 GB
Memory Module: DIMM 1, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3030372E4130304C4620
Memory Module: DIMM 2, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3030372E4130304C4620
Memory Module: DIMM 3, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3030372E4130304C4620
Memory Module: DIMM 4, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3030372E4130304C4620
Memory Module: DIMM 5, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3031322E4130304C4620
Memory Module: DIMM 6, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3031322E4130304C4620
Memory Module: DIMM 7, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3031322E4130304C4620
Memory Module: DIMM 8, 4 GB, DDR3 ECC, 1066 MHz, 0x0198, 0x393936353532352D3031322E4130304C4620
Bluetooth: Version 6.0.14d3, 3 services, 27 devices, 1 incoming serial ports
Network Service: Ethernet 1, Ethernet, en0
Network Service: Ethernet 2, Ethernet, en1
PCI Card: Radeon RX 580, Display Controller, Slot-1
PCI Card: pci1002,aaf0, Audio Device, Slot-1
Serial ATA Device: HL-DT-ST DVD-RW GH41N
Serial ATA Device: WDC WD3000FYYZ-01UL1B2, 3 TB
Serial ATA Device: Samsung SSD 850 EVO 500GB, 500,11 GB
Serial ATA Device: WDC WD30EZRX-00MMMB0, 3 TB
Serial ATA Device: WDC WD30EURS-63SPKY0, 3 TB
USB Device: USB 2.0 Bus
USB Device: Transcend
USB Device: USB 2.0 Bus
USB Device: Miscellaneous Device
USB Device: USB Bus
USB Device: USB Bus
USB Device: USB Bus
USB Device: BRCM2046 Hub
USB Device: Bluetooth USB Host Controller
USB Device: USB Bus
USB Device: USB Bus
USB Device: USB Bus
FireWire Device: built-in_hub, Up to 800 Mb/sec
Thunderbolt Bus:
You have two different problems here.

First is that you still have the original 2.26GHz x55xx Gainestown Xeons, these processors are not supported anymore after 10.14.3. With 10.14.4-6, you have audio stuttering and video playback problems. Your only option is to upgrade to Westmere Xeons. There is an enormous thread about this, use the search.

The second one is the lack of HEVC support for Polaris/VEGA/VII GPUs.

  • Like
Reactions: amp829 and h9826790

h9826790

macrumors P6
Apr 3, 2014
16,614
8,546
Hong Kong
Yes only with this player which is the only one capable of smooth H265 high end quality videos from my camera ....

Then something is wrong. With HWAccel, VLC should able to pay almost any high quality HEVC video easily. At least that’s what happened on my Mac so far.

If in doubt, you can send me some sample videos from your camera, then I can tell you if I can play that smoothly with other player.


amp829

macrumors member
Oct 11, 2019
61
1
You have two different problems here.

First is that you still have the original 2.26GHz x55xx Gainestown Xeons, these processors are not supported anymore after 10.14.3. With 10.14.4-6, you have audio stuttering and video playback problems. Your only option is to upgrade to Westmere Xeons. There is an enormous thread about this, use the search.

The second one is the lack of HEVC support for Polaris/VEGA/VII GPUs.
can you give me specific option of Westmere Xeons ?


tsialex

Contributor
Jun 13, 2016
12,967
13,202
can you give me specific option of Westmere Xeons ?
Since you have a dual CPU MP4,1 that uses dual socket Xeons without a lid, you have to delid yourself or buy already delided Xeons. eBay has sellers that sell kits of already delided Xeons with everything ready.

X5677, X5680, X5690 are the most commonly bought.


  • Like
Reactions: wallah and amp829

h9826790

macrumors P6
Apr 3, 2014
16,614
8,546
Hong Kong
Hello i found the video proc as a hardware acceleration does anybody have experience with this program?
So if it worths to try it ...

IMO, this software has nothing special.

HWAccel is a system wide function, either all software can use it, or all software can't use it.

VideoProc is handy to confirm if HWAccel is working on a Mac, but it won't provide any HWAccel to any Mac (including cMP regardless which GPU you installed)

  • Like
Reactions: zedex and amp829

amp829

macrumors member
Oct 11, 2019
61
1
You have two different problems here.

First is that you still have the original 2.26GHz x55xx Gainestown Xeons, these processors are not supported anymore after 10.14.3. With 10.14.4-6, you have audio stuttering and video playback problems. Your only option is to upgrade to Westmere Xeons. There is an enormous thread about this, use the search.

The second one is the lack of HEVC support for Polaris/VEGA/VII GPUs.
So it is not needed the hardware acceleration after all to playback and edit high quality videos , because when i updated at Mojave as first every video was running like a butter at FCP X but after the update( without knowing what was wrong ) the video at FCPX is so sluggish like never was with high sierra and radeon 5870 ... so the only solution is to buy another CPU and not hardware acceleration ...?
Also what is delighted CPU ?

Last edited:

amp829

macrumors member
Oct 11, 2019
61
1
i did the upgrade and now i have a 2 x6-core 3,46Ghz mac pro and the problems with stuttering videos and problem with sound also gone . So it was that apple decided from a point to create problems to the basic cpu series of mac pros .... fortunately there is MacRumors and the community to help the owners , at any other situation i would have my mac pro for sale ...
[automerge]1579379676[/automerge]
[automerge]1579379775[/automerge]


h9826790

macrumors P6
Apr 3, 2014
16,614
8,546
Hong Kong
i did the upgrade and now i have a 2 x6-core 3,46Ghz mac pro and the problems with stuttering videos and problem with sound also gone . So it was that apple decided from a point to create problems to the basic cpu series of mac pros .... fortunately there is MacRumors and the community to help the owners , at any other situation i would have my mac pro for sale ...

Apple can't expect you flash a 4,1 to 5,1.

So, we can't say that they intentionally make your original config 4,1 doesn't work well in an unsupported macOS (Mojave).

  • Like
Reactions: kohlson

amp829

macrumors member
Oct 11, 2019
61
1
i have upgraded my CPU and i believe now i can use from 1066 ram to 1333 . I had 8x4gb rams but after the update i inserted only 6 of them . is it better for performance to use the 6 slots and also will it worth to upgrade the rams from 1066 to 1333 ?


bsbeamer

macrumors 601
Sep 19, 2012
4,307
2,703
Benchmark almost always gets better scores with 6 modules.
Real world for RAM intensive operations almost always performs better with 8 modules.

This is really venturing off topic at this point. Please move further RAM discussions to the RAM threads.

  • Like
Reactions: amp829 and h9826790

zedex

macrumors 6502
Oct 21, 2018
312
134
Perth, WA
It needs to be said (emphasised?) that @h9826790 has done some granular feature analysis of Video Proc and each of his observations are correct (basically - it's the little things that lie to you). As it stands now, users think it's safe to rely on the software for basic GPU diagnostic information. In essence, they have exaggerated GPU detection and usability for Mac owners. Incomplete or lazy coding will report 'default' detection profiles where user hacks have been implemented to force GPU hardware accel features.
Digiarty does not fall in to my blacklist of incompetent or untrustworthy publishers - maybe they will improve on the integrity of this module in future releases. Fingers crossed.


snoopyonline78

macrumors newbie
Jan 28, 2011
18
0
Best first-party (Apple) supported card:
Apple HD5870

Best cards supported by third party companies:
Sapphire HD7950 Mac Edition
EVGA GTX680 Mac Edition

Some of the other recommendations in this thread are the exact opposite of what you are asking for. They may be "luckily compatible" but that's where you already are. They are not at all "supported" and in at least one case it doesn't have boot screens either.

Note - "Supported" won't guarantee a glitch-free experience. Supported cards, even the Apple one, can cause the fan glitch. Also I seem to remember a thread recently that Apple's High Sierra 680 drivers were broken--don't know if it's been fixed yet.
Finally i boght a 680 mac edition second hand, that brokens after 1 month of use :(


MIKX

macrumors 68000
Dec 16, 2004
1,815
691
Japan
Strange, I was not able to come up with that product in my searches. So I just connect the existing PCIe power cables to that, and that to the video card right?

Thanks!

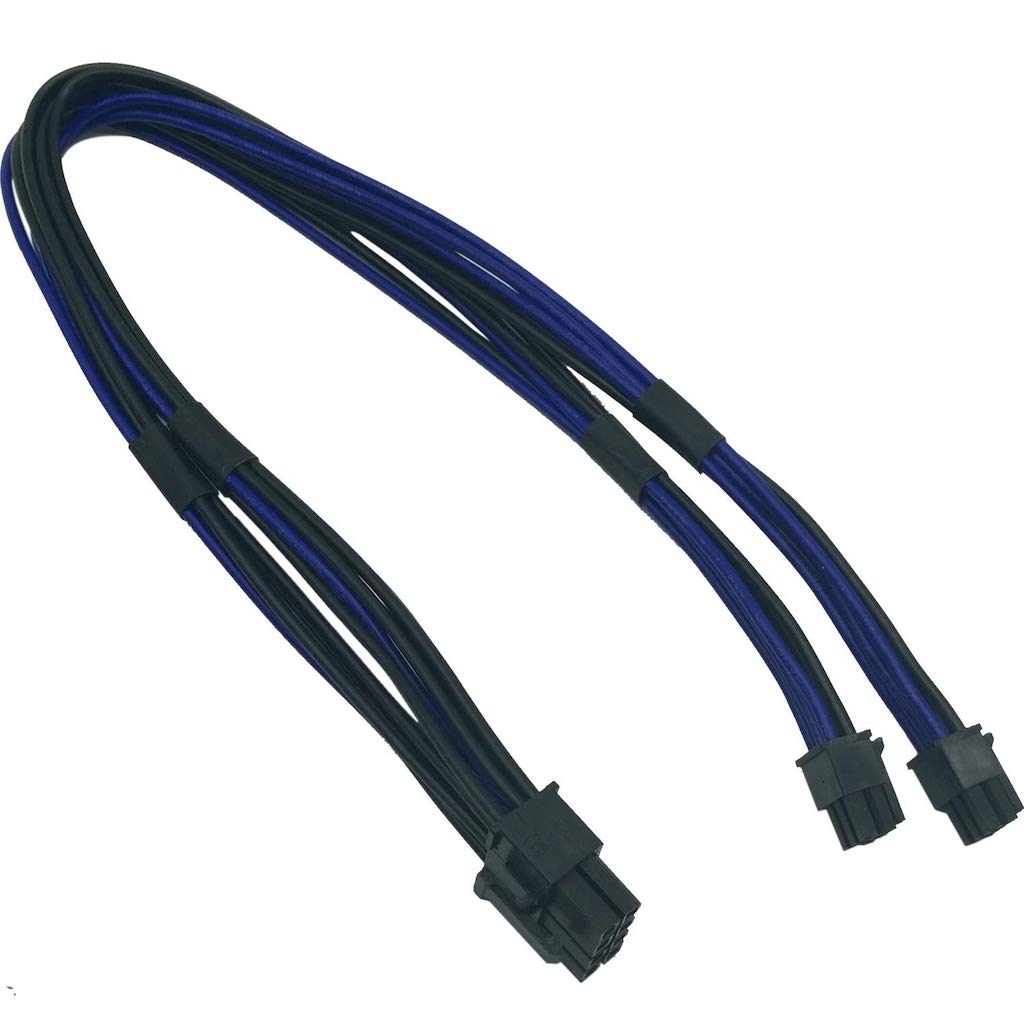

Took me 5 seconds to find the correct cable.


DUAL Mini 6 pin to ONE 8 pin..jpg

  • Like
Reactions: h9826790

snoopyonline78

macrumors newbie
Jan 28, 2011
18
0
Thank you all for the important information‘s and your experiences with updating and upgrading your Mac pros! I very liked it! After i bougt a secondhand 680 GTX and it’s broken it’s after three months of use, I decided to buy a new rx 580 suggested by Apple.but I don’t want to have problems by installing and fail valult, so my question: can I let the default graphic card ati 5770 inside and add additionaly the new rx 580? Will the power supply in the system Allow it?

Kind regards to all


MIKX

macrumors 68000
Dec 16, 2004
1,815
691
Japan
You would have to power the rX580 8gb with the TWO x Mini 6pin to ONE x 8pin

You can power the HD5770 with a DUAL SATA to ONE 6 pin = conect this cable to one of your INTERNAL SATA bays.

This may be informative :

  • Like
Reactions: snoopyonline78

snoopyonline78

macrumors newbie
Jan 28, 2011
18
0
The OP doesn't mention what applications they are using but if they are better suited to Nvidia & CUDA rather than ATI Radeon then flashing a GTX680 is simple & it then becomes a GTX680 Mac Edition card with boot screen full support & no need for installing drivers.
Imovie, 3D Blender with Cycles renderer, gimp,

thx
[automerge]1591985857[/automerge]
I bought a RX 580 and it worked out of the box. It was a Powercolor Red Dragon with 8 GB.

Running Sierra , 10.12.6.

With Bootscreen?


MarkC426

macrumors 68040
May 14, 2008
3,556
1,987
UK
Thank you all for the important information‘s and your experiences with updating and upgrading your Mac pros! I very liked it! After i bougt a secondhand 680 GTX and it’s broken it’s after three months of use, I decided to buy a new rx 580 suggested by Apple.but I don’t want to have problems by installing and fail valult, so my question: can I let the default graphic card ati 5770 inside and add additionaly the new rx 580? Will the power supply in the system Allow it?

Kind regards to all
Are you referring to file vault above?
You cannot use file vault without an efi card.

Register on MacRumors! This sidebar will go away, and you'll see fewer ads.
