Black magic speed test on nMP

Discussion in 'Mac Pro' started by raw911, Jan 27, 2014.

  1. raw911 macrumors regular

    Joined:
    Mar 24, 2003
    #1
    I ran 3 speed test
    1- internal 1TB HD
    2- pegasus 2
    3- lacie rugged SSD
    Here are my results. Not really sure what they all mean but so if someone likes to chime in and point out something's please feel free.

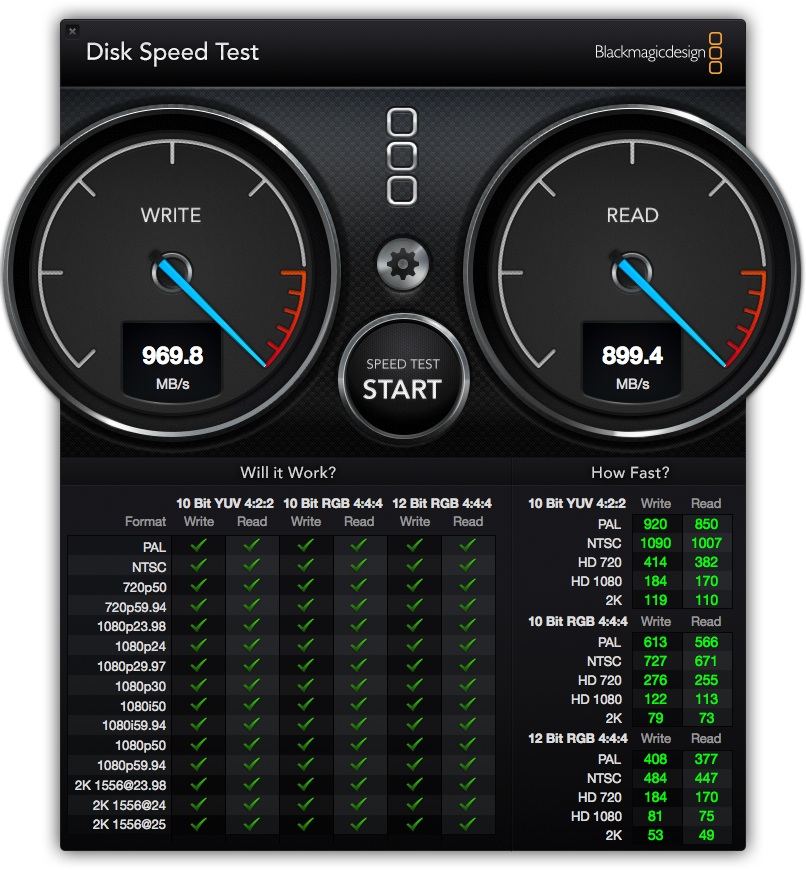

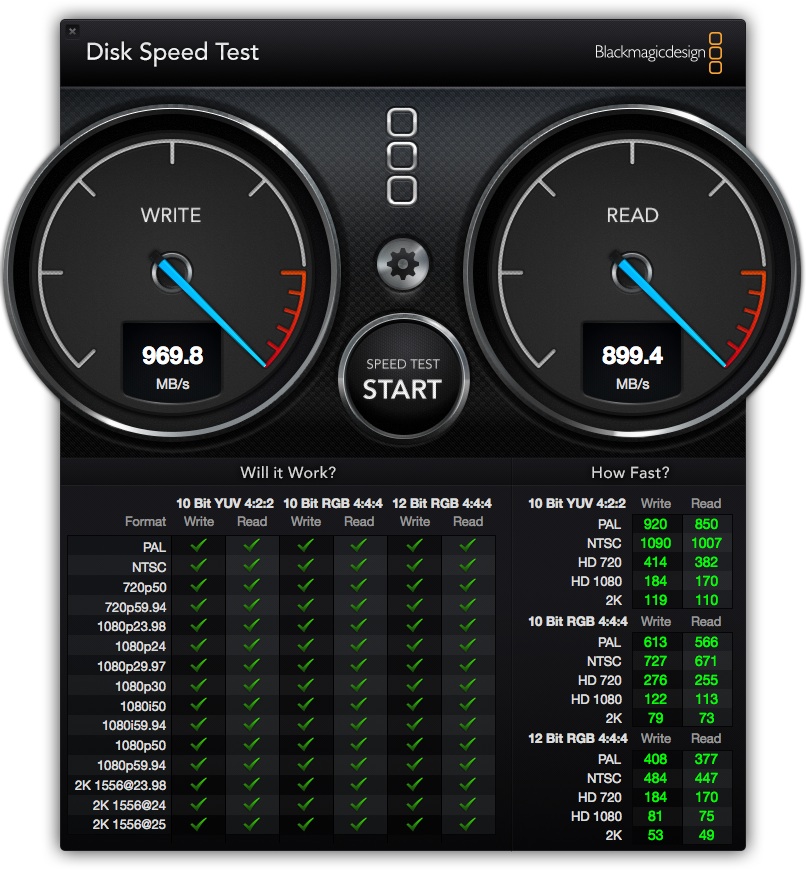

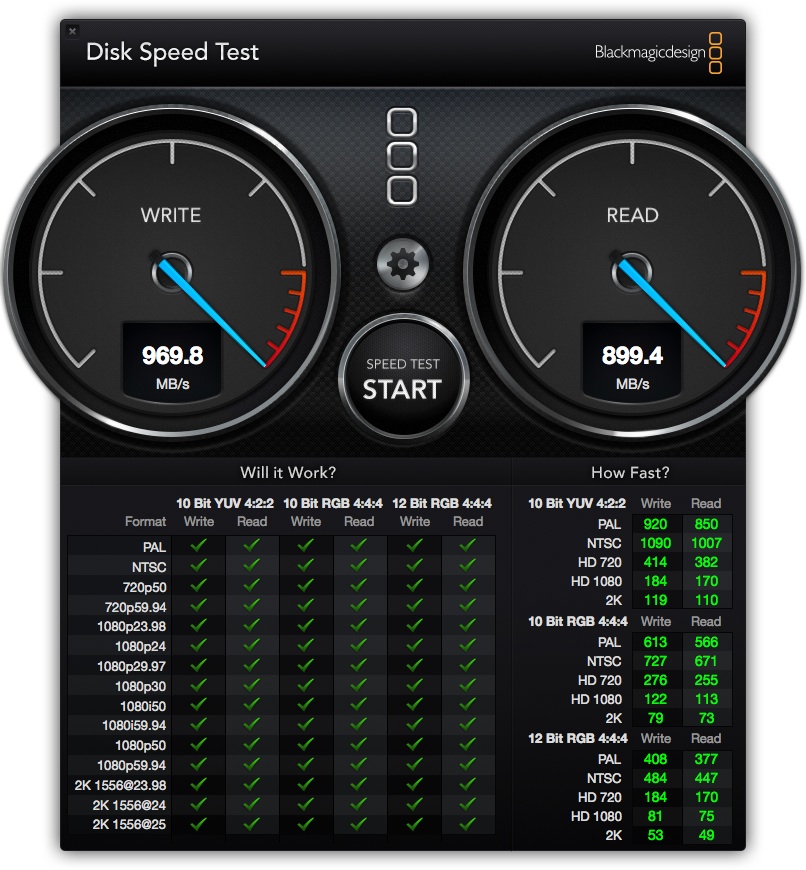

    Sorry this is the internal can't get the other 2 to load

  2. VirtualRain macrumors 603

    VirtualRain

    Joined:
    Aug 1, 2008
    Location:
    Vancouver, BC
    #2
    That's consistent with what others have reported. How about a more thorough examination of the Pegasus2? What's your setup? Performance?

  3. analog guy macrumors 6502

    Joined:
    Mar 6, 2009
    #3
    i posted some #s from an r4 (diskless, but with 2-SSD RAID0) vs the iMac internal SSD and Sonnet enclosure in the Peripherals forum.

    the r4's performance with a software RAID was...disappointing. would be curious as to what others find.

  4. VirtualRain macrumors 603

    VirtualRain

    Joined:
    Aug 1, 2008
    Location:
    Vancouver, BC
    #4
    Sorry, I either missed that or forgot about it... I'll look it up. Thanks.

  5. analog guy macrumors 6502

    Joined:
    Mar 6, 2009
    #5
  6. VirtualRain macrumors 603

    VirtualRain

    Joined:
    Aug 1, 2008
    Location:
    Vancouver, BC
    #6
    Thanks... Good read. It would be great to see someone with a pair of EVOs and a Pegasus2 R4 post some similar results with the nMP. However, people, please ditch BlackMagic... That's not a very useful or reliable disk benchmarking tool.

  7. k-hawinkler macrumors member

    k-hawinkler

    Joined:
    Sep 14, 2011
    #7
    Can you please prove your last statement? TIA.

  8. VirtualRain macrumors 603

    VirtualRain

    Joined:
    Aug 1, 2008
    Location:
    Vancouver, BC
    #8
    Nope. My assertion is Just based on my observations using it in a variety of situations. For example (recently)... on my new WD Velociraptor Thunderbolt Duo it was sputtering nonsense on the read out and was erratic - QuickBench worked perfectly fine. On the nMP SSD it said 900MB/s when QuickBench said 1250MB/s and more similar results in the past. If you're happy with it, by all means continue using it. Without any doubt though, it is a sequential I/O test only (at a single block size as far as I know) which only tells a small part of the story.

  9. k-hawinkler macrumors member

    k-hawinkler

    Joined:
    Sep 14, 2011
    #9

    Thanks for your reply. I have no opinion on the matter.
    My old dual G5 died and I ordered a 6-core nMP, 64GB, 1TB PCIe SSD, D700s.
    It's scheduled for delivery in March. I have several Firmtek eSATA enclosures.
    I already got two Firmtek Thundertek eSATA to Thunderbolt converters for them.
    That will give me 8 eSATA links from 2 Thunderbolt ports.
    I have a 4-way Crucial SSD Raid in an enclosure that takes 4 eSATA cables.
    It will be interesting to see what bandwidth that will sustain on the nMP.

  10. joema2 macrumors 65816

    joema2

    Joined:
    Sep 3, 2013
    #10
    I agree with that. Blackmagic is free and widely used, however it is designed as a pass/fail test for video. Typically video is dominated by sequential I/O and large transfer sizes. It appears Blackmagic is doing about 1 megabyte I/Os.

    Another problem is Blackmagic is a highly fluctuating indicator. It provides no averaged output. So you can run it repetitively on the same machine and get varying numbers.

    At least QuickBench provides averaged output and more control over the test parameters. It's also available in Windows, enabling cross-platform comparisons: https://www.speedtools2.com/QuickBench.html

    My favorite I/O testing tool is DiskTester. It is an entire suite of test tools with a high degree of control and customization. http://diglloydtools.com/disktester.html

  11. raw911, Jan 28, 2014
    Last edited: Jan 28, 2014

    raw911 thread starter macrumors regular

    Joined:
    Mar 24, 2003
    #11

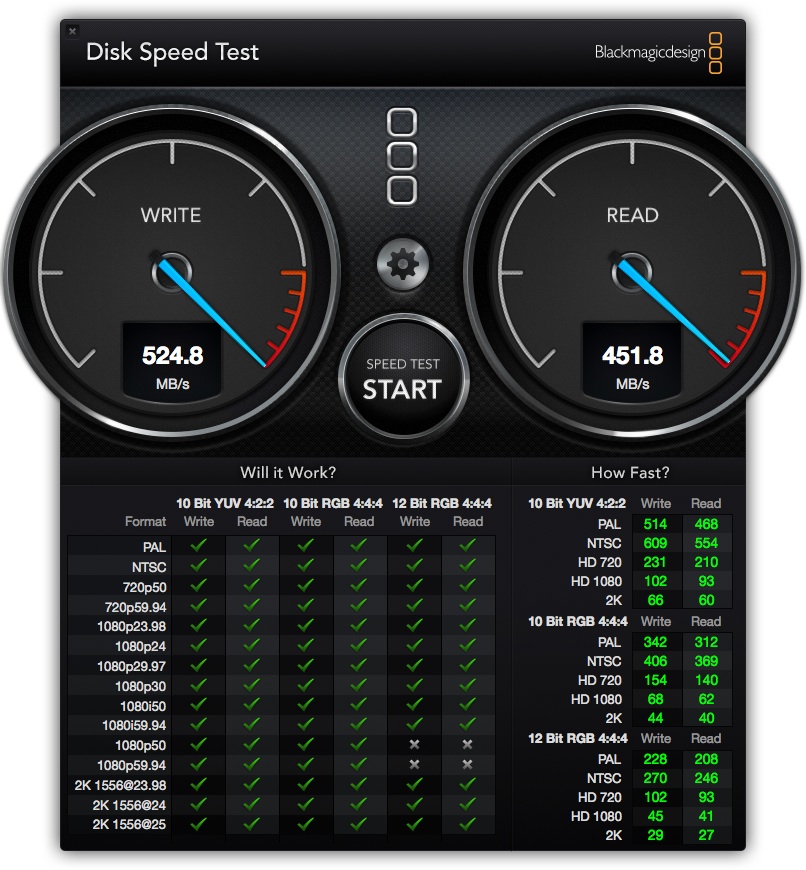

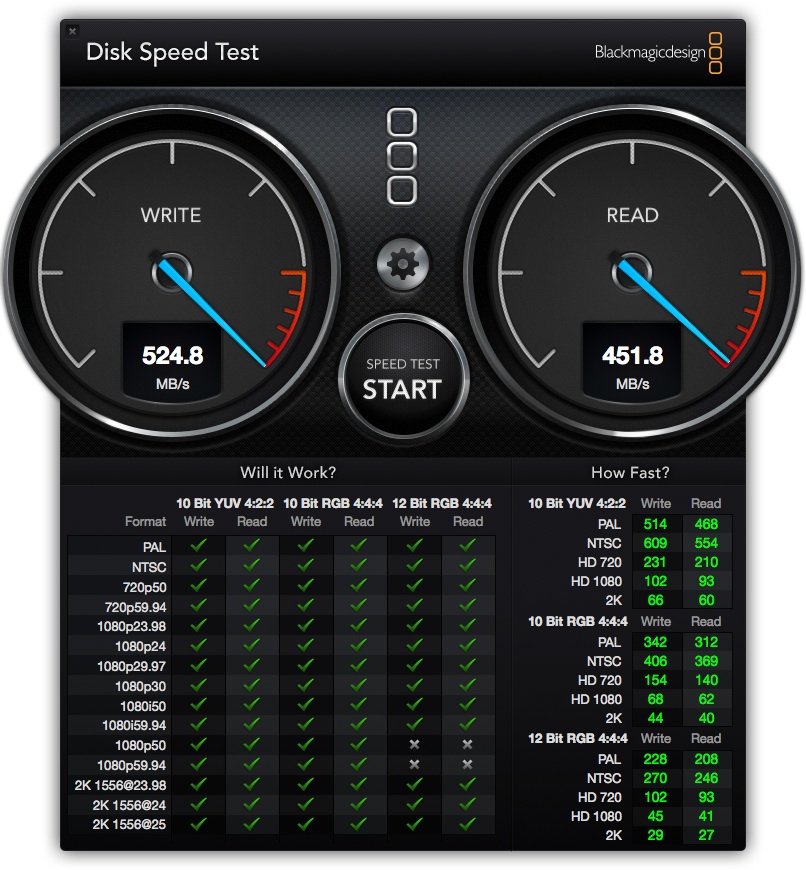

    this is the pegasus2 with nMP results


    Just nMP > pegasus2 > 2-30in apple cinema displays

    I'd love it if I can get an real good meaning to what it is I'm looking at AND looking for.
    Not really well knowledged on these results. Sorry

  12. SvK macrumors 6502

    SvK

    Joined:
    Jan 12, 2005
    Location:
    San Diego
    #12
    Im a composer...so for me its all about orchestral mockups which require a huge amount of samples to be streamed ultra fast from an SSD (reads)

    890s are through the roof.....

    absolutely awesome

  13. analog guy macrumors 6502

    Joined:
    Mar 6, 2009
    #13
    which drives? 4x2TB or SSDs?

  14. raw911 thread starter macrumors regular

    Joined:
    Mar 24, 2003
    #14
    I'm using the pegasus2 4x2TB setup.....in a raid 5 array

  15. raw911 thread starter macrumors regular

    Joined:
    Mar 24, 2003
  16. PicnicTutorials macrumors 6502a

    PicnicTutorials

    Joined:
    Dec 29, 2013
    #16
    That 200 faster on both fronts than I have ever seen. I and any other test I've seen with a late 2013 model with ssd is in the low 700's. Hick up or did you do something dif?

    EDIT. Oh ignore me that's a Mac Pro. I read it as MacBook Pro

  17. HDFan macrumors 6502

    Joined:
    Jun 30, 2007
    #17

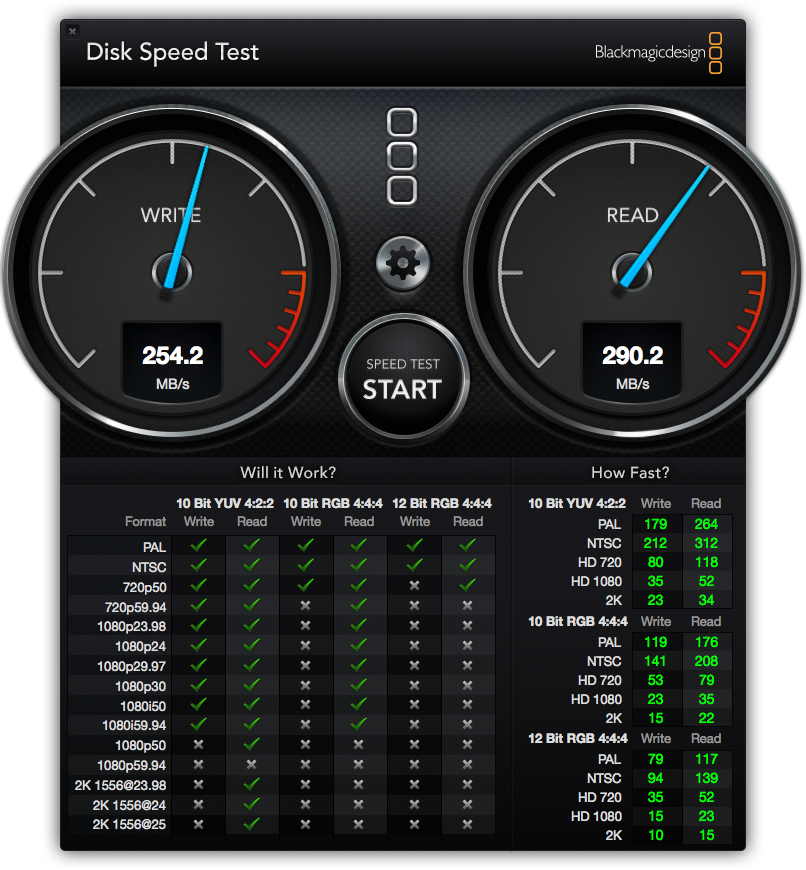

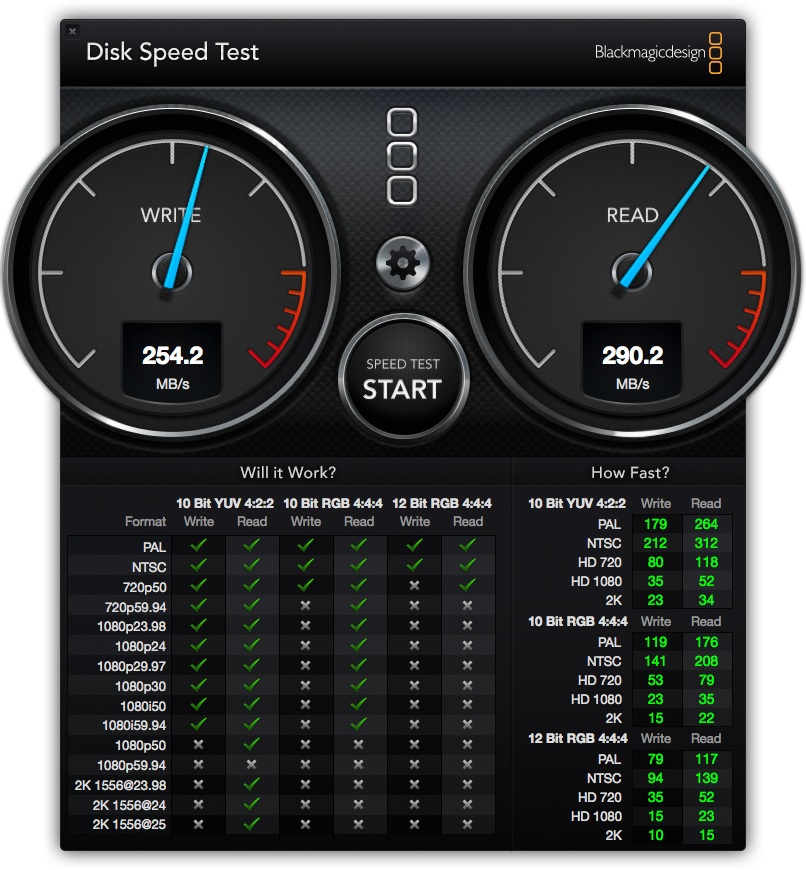

    Drobo 5D BlackMagic results

    Slower than the Pegasus as RAID done in software rather than hardware. On one run I saw a read result of 324.2 MB/s.


    Attached Files:

  18. HDFan macrumors 6502

    Joined:
    Jun 30, 2007
    #18

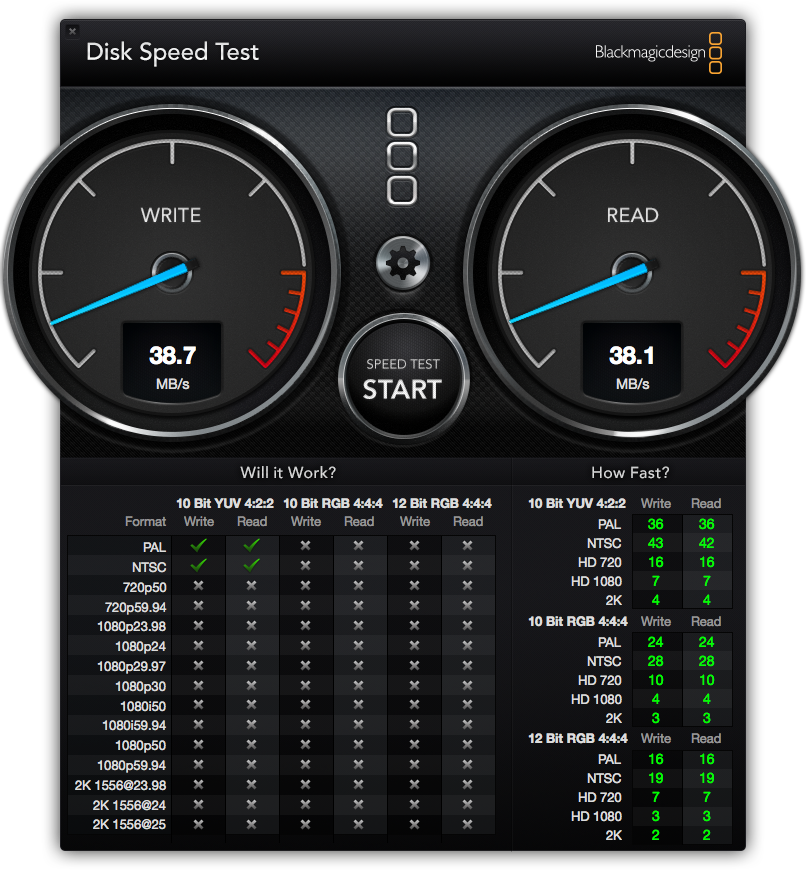

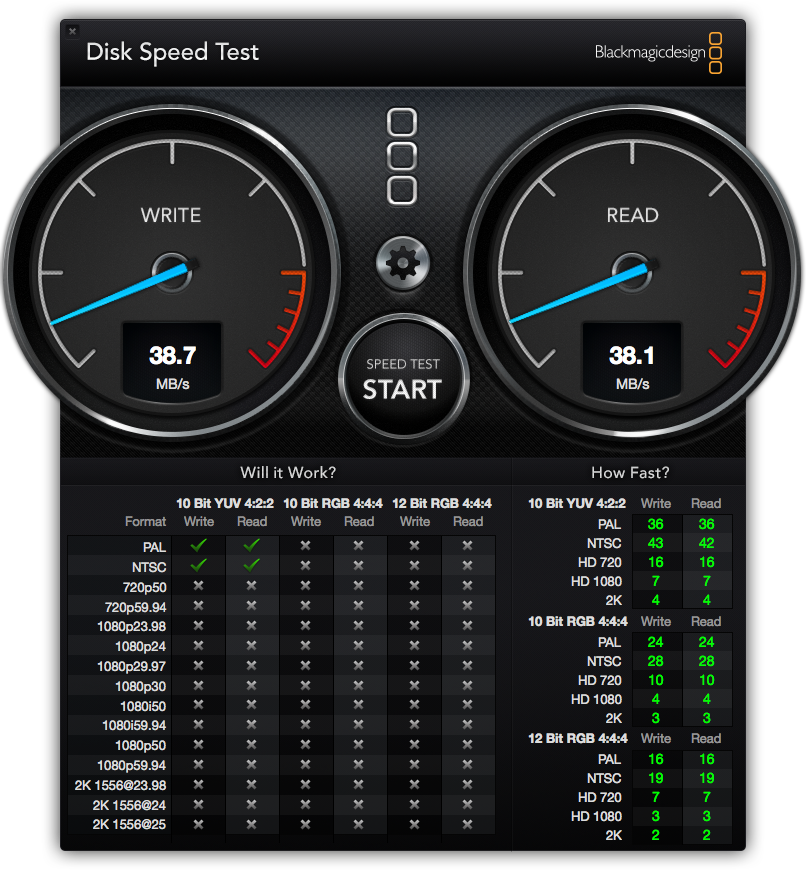

    Seagate Backup Plus BlackMagic Results

    I just picked up a 3 TB Backup Plus USB 3.0 drive from Costco as it was so cheap ($99). What is interesting about the results is that they are so slow - firewire 800 rather than USB 3.0 speeds. Went to the Seagate site and, lo and behold, they don't list any transfer rates even in the tech specs or the data sheet! That's fine, however, as just using for backups.


    Attached Files:

  19. Einz macrumors regular

    Einz

    Joined:
    Feb 14, 2008
    Location:
    Miami
  20. cbm macrumors member

    Joined:
    Jul 22, 2002
    #20
    Those are close to FW 400 speeds! With a reasonably fast drive you should see FW 800 speeds in the low to mid 80s. Did you reformat the disk? Sometimes that helps.

  21. jerryrock macrumors 6502

    jerryrock

    Joined:
    Sep 11, 2007
    Location:
    Amsterdam, NY
    #21
    BlackMagic Speed Disk Test was developed to measure video transfer rates. Reading the test should not be accomplished from the dials but instead the average rates listed in green on the lower right side of the test screen. There is a variable stress that can be set from 1-5 Gigabytes with 5 being the most accurate average scores. The test are done in an 8 second loop and continue until you manually stop them. The 1 GB stress setting will produce the fastest but not the most accurate result.
