Bluetooth mac keyboard on iMac G4

s¡juandelarocha

macrumors newbie
Original poster
Oct 14, 2017
26
3
Would it work a bluetooth mac keyboard on an iMac G4 with Airport card? -which I have always thought enables 802.11b and also bluetooth.

Thanks!

Last edited:

weckart

macrumors 601
Nov 7, 2004
4,665
1,652
Depends. On both of mine the Airport card (one 802.11b and one 802.11g) is separate from Bluetooth. Bluetooth was an optional extra with the iMac G4.


CooperBox

macrumors 65816
Nov 28, 2010
1,050
1,041
France - between Ricard & Absinthe
The Bluetooth card and especially the extension cable for the iMac G4 is very difficult to find, and not the easiest thing to install once you've found one. You have to remove the logic board as it's located underneath. I've removed/reinstalled one, and will link to some photos.

......the card pt/no is 922-5661. Here's a related link with a photo of the card itself:
https://forums.macrumors.com/threads/mac-pro-bluetooth-2-0-edr-modul-in-an-imac-g4.2028116/#post-24206418

Just realised how poor those reworked photos were of the bluetooth card. I'll see if I can find the originals and repost.

Last edited:

mode11

macrumors regular
Jul 14, 2015
215
92
London
There’s an ancient D-Link USB BT adapter that was ‘blessed’ by Apple with an official firmware replacement. It keeps it live when asleep, so a connected keyboard / mouse can wake the computer up. A normal BT adapter can’t do this. This is the easiest / cheapest solution (about £10).


CooperBox

macrumors 65816
Nov 28, 2010
1,050
1,041
France - between Ricard & Absinthe
There’s an ancient D-Link USB BT adapter that was ‘blessed’ by Apple with an official firmware replacement. It keeps it live when asleep, so a connected keyboard / mouse can wake the computer up. A normal BT adapter can’t do this. This is the easiest / cheapest solution (about £10).
Yep, this one I believe.

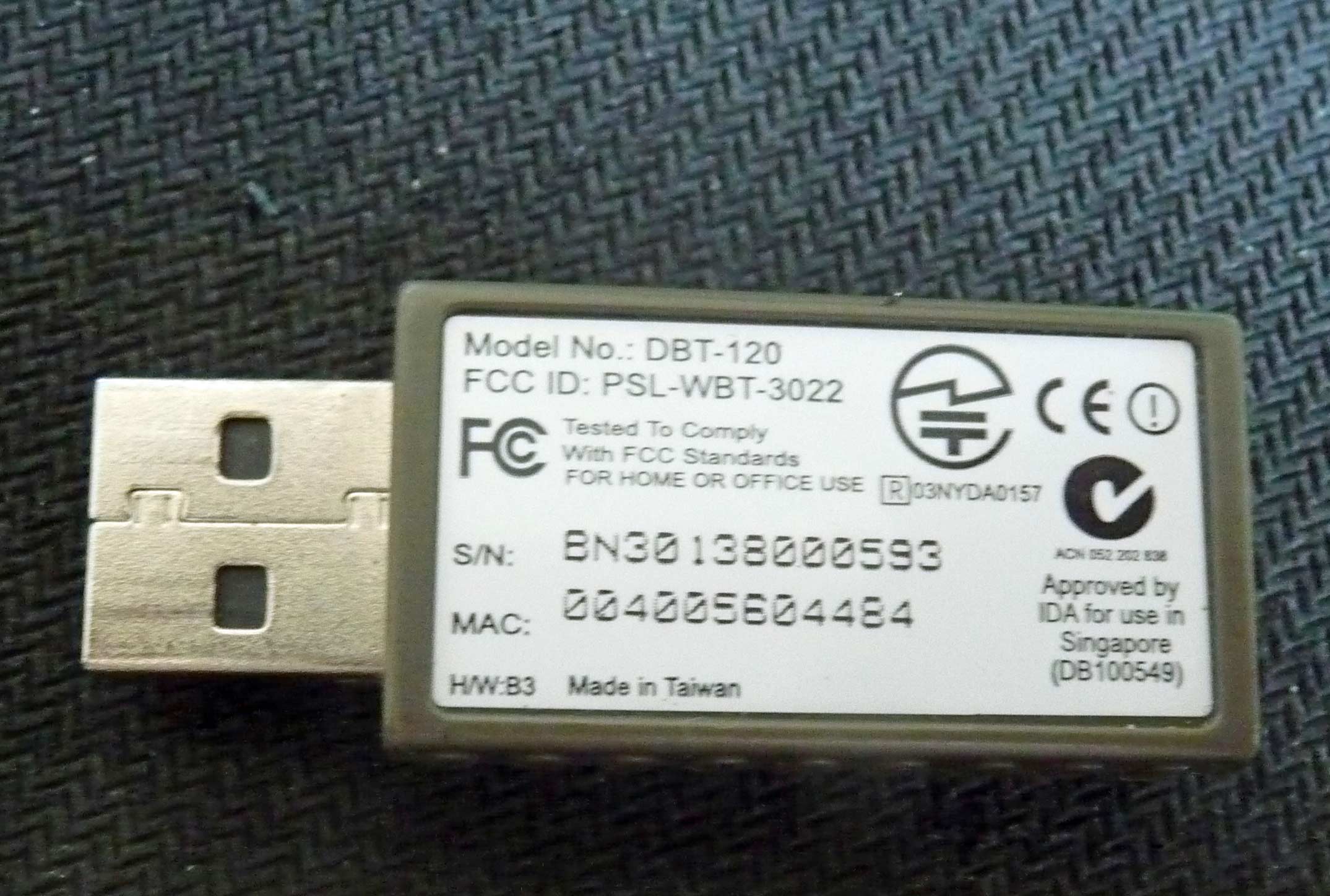

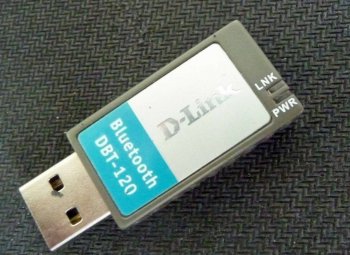

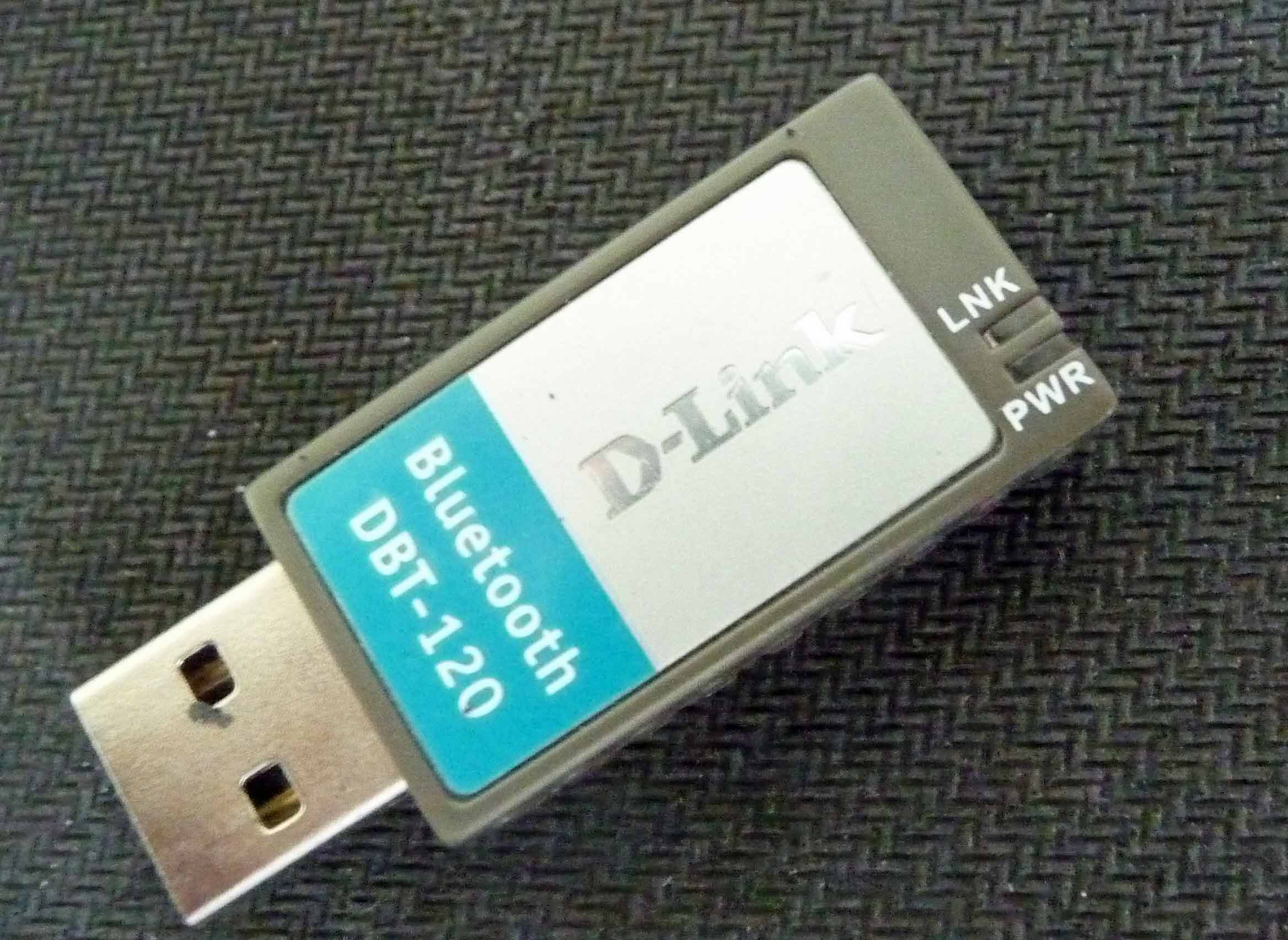

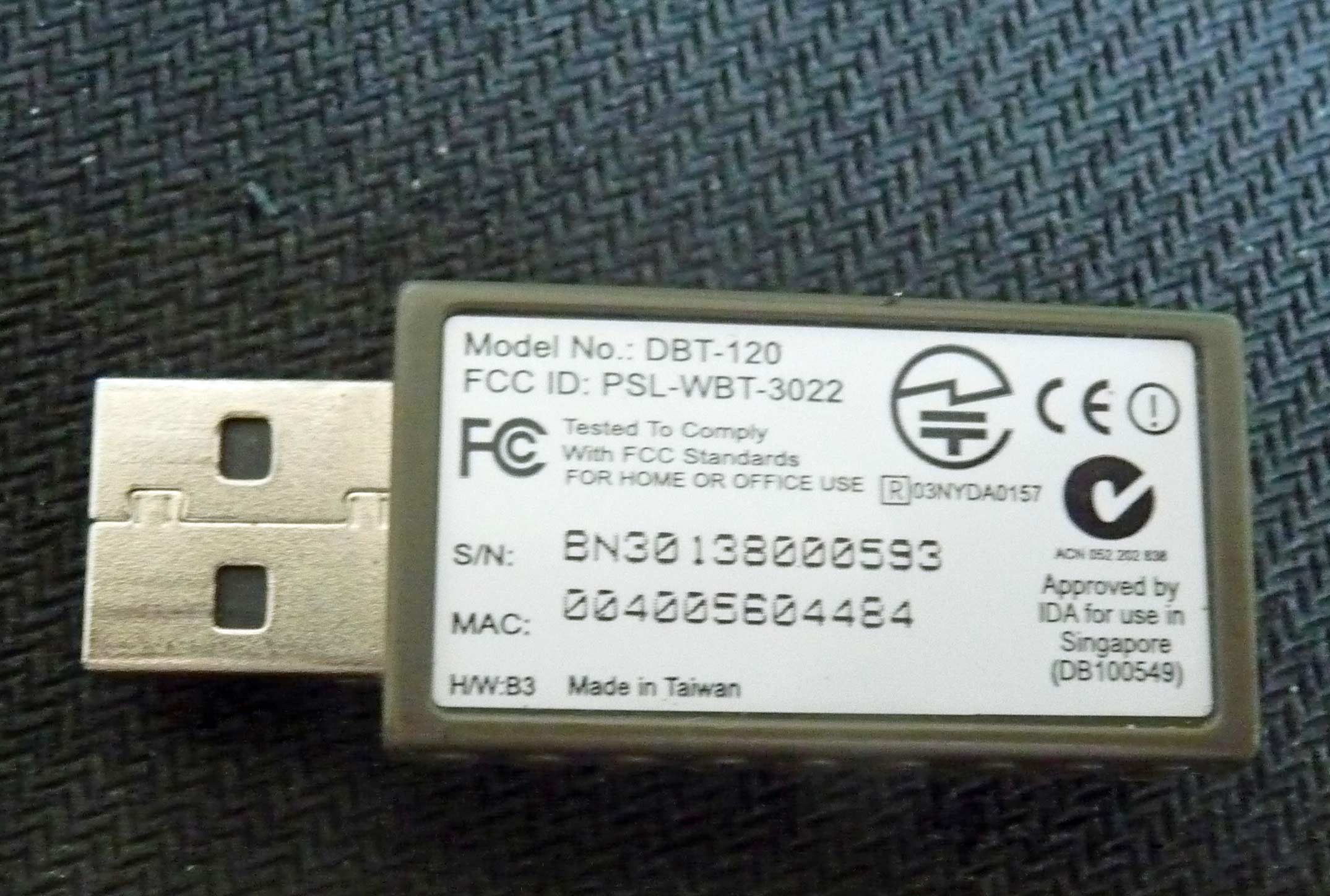

DLink-BT1.jpg DLink-BT2.jpg

There's also another almost identical marked DBT-122 which may be ok, perhaps someone could confirm if so.
