Bonjour not working in Wifi/Ethernet

el.pescado

macrumors newbie
Original poster
Oct 10, 2012
13
3
Hi,

I have a MacBook Pro with Mountain Lion installed, a Linux PC that serves as file server (using Netatalk), and a D-Link DIR-300 router. When all devices are connected via Ethernet, everything works fine.

Hoverver, when i connect MacBook using WiFi, is cannot detect any services hosted by Linux box. I can connect by manually entering IP address in "Connect to server" window, though.

The moment I plug ethernet cable, remote shares instantly show in Finder.

However connected, both devices are in same network, ping each other etc.

Can anyone help?


jared_kipe

macrumors 68030
Dec 8, 2003
2,967
1
Seattle
Hi,

I have a MacBook Pro with Mountain Lion installed, a Linux PC that serves as file server (using Netatalk), and a D-Link DIR-300 router. When all devices are connected via Ethernet, everything works fine.

Hoverver, when i connect MacBook using WiFi, is cannot detect any services hosted by Linux box. I can connect by manually entering IP address in "Connect to server" window, though.

The moment I plug ethernet cable, remote shares instantly show in Finder.

However connected, both devices are in same network, ping each other etc.

Can anyone help?
mDNS stuff needs to be delivered at a minimum rate, for 2.4GHz network it is 12Mbps (so Cicso says). Ensure your connection is at least this fast. Also ensure that when on wifi you're not on a different network segment or netmask.


Sayer

macrumors 6502a
Jan 4, 2002
981
0
Austin, TX
Bonjour only works between all machines on the same subnet.

WiFi can be on a different IP subnet range from a wired connection, leaving your WiFi Mac in a different subnet and thus unable to "see" the subnet where Bonjour is.

Code:
Maybe Ethernet is: 192.168.1.xxx

Maybe WiFi is:     192.168.2.xxx
Different subnet means no Bonjour across both WiFi and Ethernet.


jmcgeejr

macrumors 6502
Oct 7, 2010
461
7
Seattle, WA
Bonjour only works between all machines on the same subnet.

WiFi can be on a different IP subnet range from a wired connection, leaving your WiFi Mac in a different subnet and thus unable to "see" the subnet where Bonjour is.

Code:
Maybe Ethernet is: 192.168.1.xxx

Maybe WiFi is:     192.168.2.xxx
Different subnet means no Bonjour across both WiFi and Ethernet.
it may not even be that, some routers now are blocking wifi from talking to ethernet for security sake, it's a setting called something like wifi segmentation or something like that :)


jared_kipe

macrumors 68030
Dec 8, 2003
2,967
1
Seattle
it may not even be that, some routers now are blocking wifi from talking to ethernet for security sake, it's a setting called something like wifi segmentation or something like that :)
OP did say he could communicate directly through IP address, so it would have to be something more like blocking port 5353.


el.pescado

macrumors newbie
Original poster
Oct 10, 2012
13
3
Bonjour only works between all machines on the same subnet.

WiFi can be on a different IP subnet range from a wired connection, leaving your WiFi Mac in a different subnet and thus unable to "see" the subnet where Bonjour is.

Code:
Maybe Ethernet is: 192.168.1.xxx

Maybe WiFi is:     192.168.2.xxx
Different subnet means no Bonjour across both WiFi and Ethernet.
Both WiFi and Ethernet are on the same subnet:
Code:
en0: flags=8863<UP,BROADCAST,SMART,RUNNING,SIMPLEX,MULTICAST> mtu 1500
	options=2b<RXCSUM,TXCSUM,VLAN_HWTAGGING,TSO4>
	ether xx:xx:xx:xx:xx:xx
	inet 192.168.0.130 netmask 0xffffff00 broadcast 192.168.0.255
	media: autoselect (100baseTX <full-duplex,flow-control>)
	status: active
en1: flags=8863<UP,BROADCAST,SMART,RUNNING,SIMPLEX,MULTICAST> mtu 1500
	ether xx:xx:xx:xx:xx:xx
	inet 192.168.0.102 netmask 0xffffff00 broadcast 192.168.0.255
	media: autoselect
	status: active


assembled

macrumors regular
Jan 12, 2009
116
0
London
and as I said, your "router" is probably blocking multicast to/from WiFi

with no multicast, there is no mDNS, the m in mDNS being multicast...

with no mDNS there is no Bonjour...


el.pescado

macrumors newbie
Original poster
Oct 10, 2012
13
3

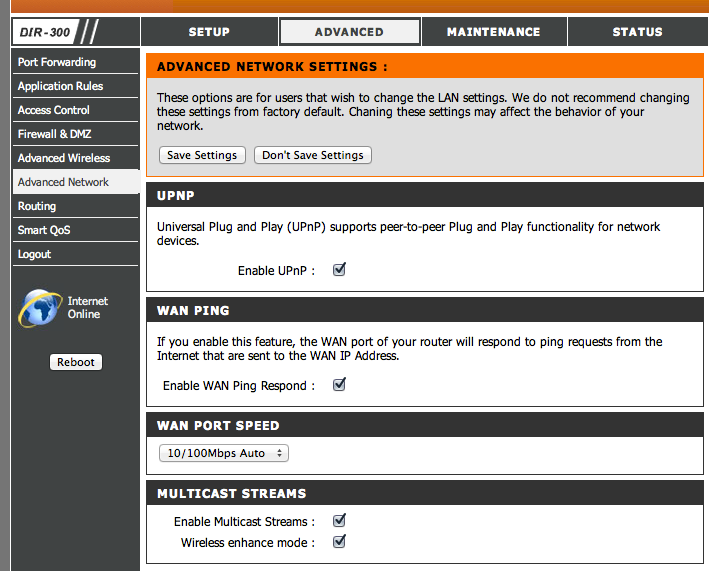

I have checked my router (DLink DIR-300) configuration, and in "Advanced Network" screen there is "Multicast Streams" section, with two options checked: "Enable Multicast Streams" and "Wireless enhance mode". Strange.

EDIT:

Last edited:

tjmarques

macrumors newbie
Aug 22, 2008
2
0
Hi,

I'm sorry for bumping this old(ish) thread, but I'm having the exact same problem with my MacBook Pro running Mountain Lion, only with the wired connection, not the wireless: when connected through WiFi all network devices show immediately in Finder, when connected through Ethernet cable, nothing is shown.
All devices are on the same subnetwork (192.168.1.x) and I've ruled out router configuration as the problem as a PPC Mac Mini running Leopard connected to the exact same Ethernet port in the router works as expected.

Were you able to solve your problem?
Any other suggestions?
Ethernet device configuration?

Thank you for any help you can provide


MareoRaft

macrumors newbie
Oct 20, 2005
16
1
Renew DHCP Lease

I had this problem and the fix was this:

Network > Airport > Advanced > TCP/IP, and then click "Renew DHCP Lease" button.

It was clear my issue had only to do with my wi-fi connection, because when I plugged an ethernet cable to the router, bonjour worked.

  • Like
Reactions: dan1us

dcyb

macrumors newbie
Jun 11, 2013
2
0
Bonjour cannot be routed

I am having the same problem and found more information here.

Each query or advertisement is sent to the Bonjour multicast address for delivery to all clients on the subnet. Apple’s Bonjour protocol relies on Multicast DNS (mDNS) operating at UDP port 5353 and sends to these reserved group addresses:

IPv4 Group Address - 224.0.0.251
IPv6 Group Address - FF02::FB

The addresses used by the Bonjour protocol are link-local multicast addresses and thus are only forwarded on the local L2 domain. Routers cannot use multicast routing to redirect the traffic because the time to live (TTL) is set to one, and link-local multicast is meant to stay local by design.
I wished that sort of info was provided by Apple at least. So far I don't have a solution though. Cisco's article suggests a dedicater router is required :eek:

Really sucks.


dcyb

macrumors newbie
Jun 11, 2013
2
0
mDNS can be repeated!

After more research...

Some solutions are proposed on this post to route mDNS from the wifi subnet to the other one:
http://forum.pfsense.org/index.php?topic=59693.msg321412#msg321412

There Darell Tan wrote a mdns repeater for *WRT here:
mdns-repeater: mDNS across subnets

Joel Knight wrote something about this as well, specifically using AVAHI.
AirPlay, VLANs, and an Open Source Solution

And lastly, there are applications for windows and osx that can help you, as detailed here:
Bonjour/ZeroConf/Rendezvous/mDNS across multiple subnets
such as running an mDNS-repeater daemon on the Wifi router... cool but not so straight-forward.. :cool:

Last edited:
