Bose SoundDock II In-depth Review

Discussion in 'iPhone Accessories' started by ouimetnick, Dec 27, 2012.

  1. ouimetnick, Dec 27, 2012
    Last edited: Dec 27, 2012

    ouimetnick macrumors 68020


    Aug 28, 2008
    Beverly, Massachusetts
    If anyone is considering a Bose SoundDock, or something, I made a review, and I thought I would share it here.

    Let me start off by saying I'm not a fan of Bose, and this isn't mine. I picked this out for my brother, as he needed something for college. We payed $225 for it. Anyways, I find Bose overpriced and underperforming. Their Wave systems, and pretty much everything else they offer is overpriced. Their headphones and SoundDock are fine. But this is about the SoundDock, not their other products. I listened to Green Day's ¡Uno!, ¡Tré!, John Denver's WildLife Concert, Harbor Life Concert, and some others. They were played from an iPhone 4, and they are .aiff (full CD quality) not .mp3! Bose puts in a little paper saying how they strive to get natural sound, and all that jargon. I'm an audiophile (I guess) and I have a real Stereo. A modded Hafler DH-200, modded DH-101, and Boston Acoustics Micro90x for the front. This thing can't stand a chance, but I wasn't expecting it to.

    This product really overdoes it with the mids. In fact it sounds rather tinny due to this. The highs are there, and it has some of the low frequencies, but drops off at around 80Hz. But like I said, the mids are too strong. It doesn't sound natural to my ears. My reference iPod dock is Apple's own iPod HiFi (made from 2006-2007) ($349 USD) The iPod HiFi also doesn't have much ground to stand on compared to my reference setup, it has more ground than the SoundDock. Thats the review regarding the sound. Now it's time to talk about the specs that I found by taking it apart. Bose doesn't talk specs, as they say its the sound that matters, and specs aren't important if it sounds good. True, very true. But the problem is that it doesn't sound so good, and me being a person who builds amps, restores vintage amps, repairs amps, and always tinkers, I couldn't leave this alone.

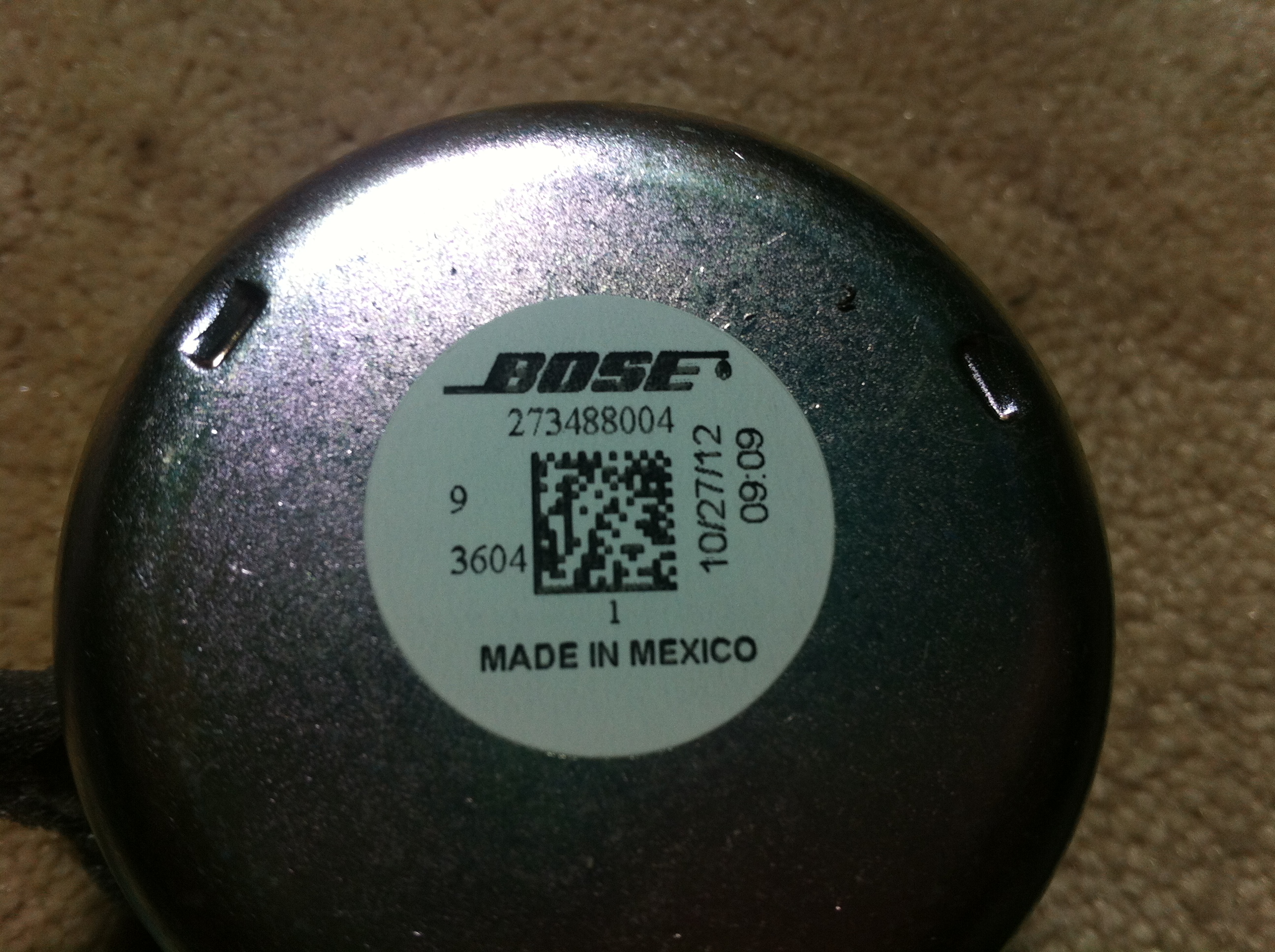

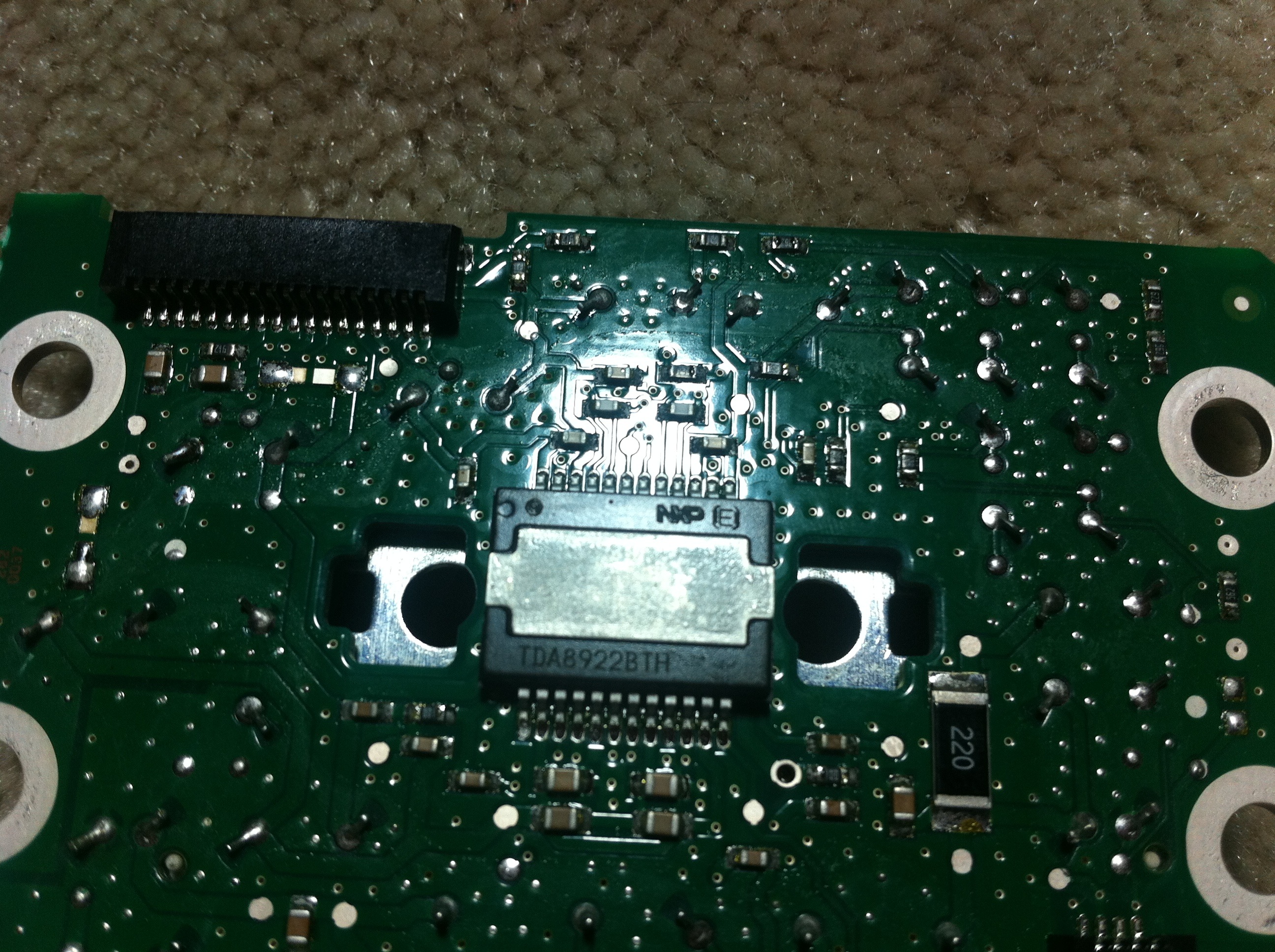

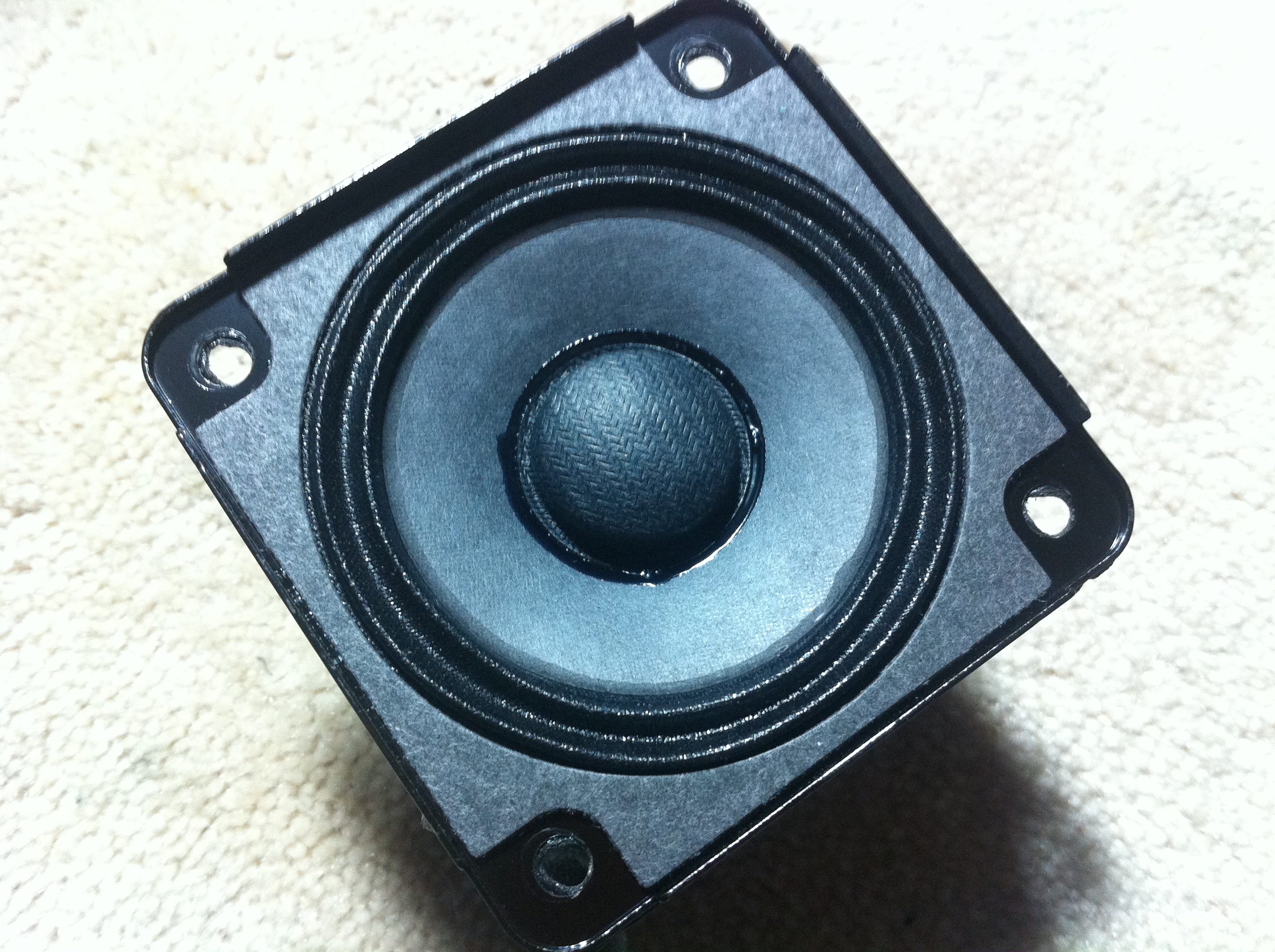

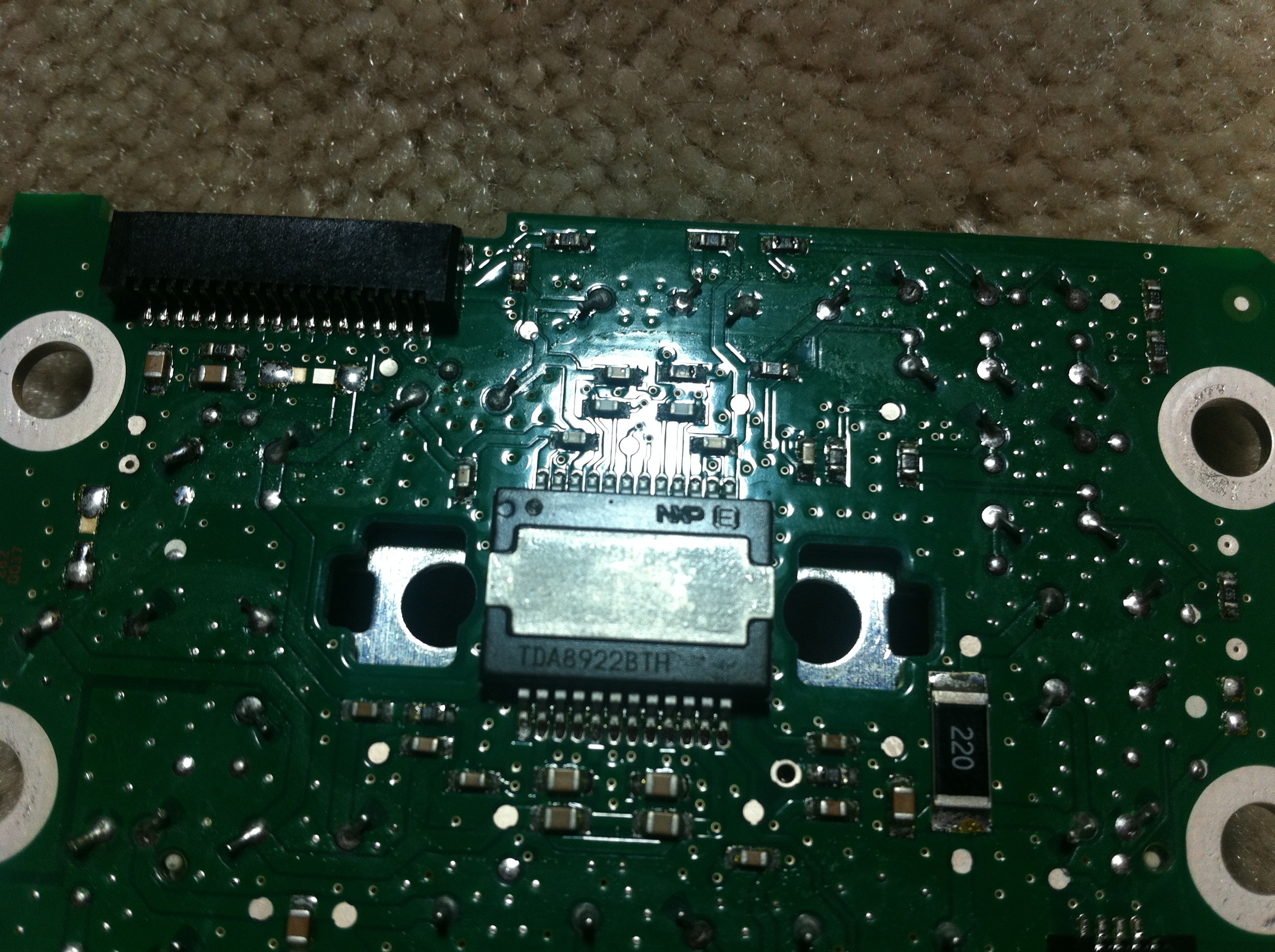

    The heart of the SoundDock is a TDA8922BTH. This little amplifier IC is a SMD component. The spec sheet claims it is a 2x50W Stereo amp IC (50W per channel) The SoundDock's power brick spits out a ±18V. This isn't enough to get the full output of the IC. The IC's data sheet says "Operating supply voltage from ±12.5 V to ±30 V, and you would need the full ±30V to get 50WPC into 6Ω The service manual says this thing consumes 36 Watts Maximum". So with So at full distorting volume it only is taking 36W from your wall socket. Add the iPod charging, other components, the fact that the IC isn't 100% efficient, and you get less than 18W per channel at full. I'm guessing 8-10W per channel. I don't have an oscilloscope to check the wattage (service manual doesn't say), so we at least know i is well under 18WPC. The amplifier IC drives two 2.25" woofers that Bose calls Full Range Twiddler speakers. These tiny speakers aren't the highest quality. The speaker's diaphragm is made of paper, and it has a paper ridged surround. Bose used to call this "Space Aged Paper" Not exciting or anything. You can find similar drivers with these specs for about $10 each. That said, these ones appear to be made BY Bose themselves, and not a 3rd party. Paper made speakers aren't a bad thing. They can sound pretty good, and are commonly found in high quality, but vintage speakers (1960-1980s) but in this day in age when technology and speaker material has improved, and other materials allow for more accurate reproduction of sound, it is a sign of cheapness.

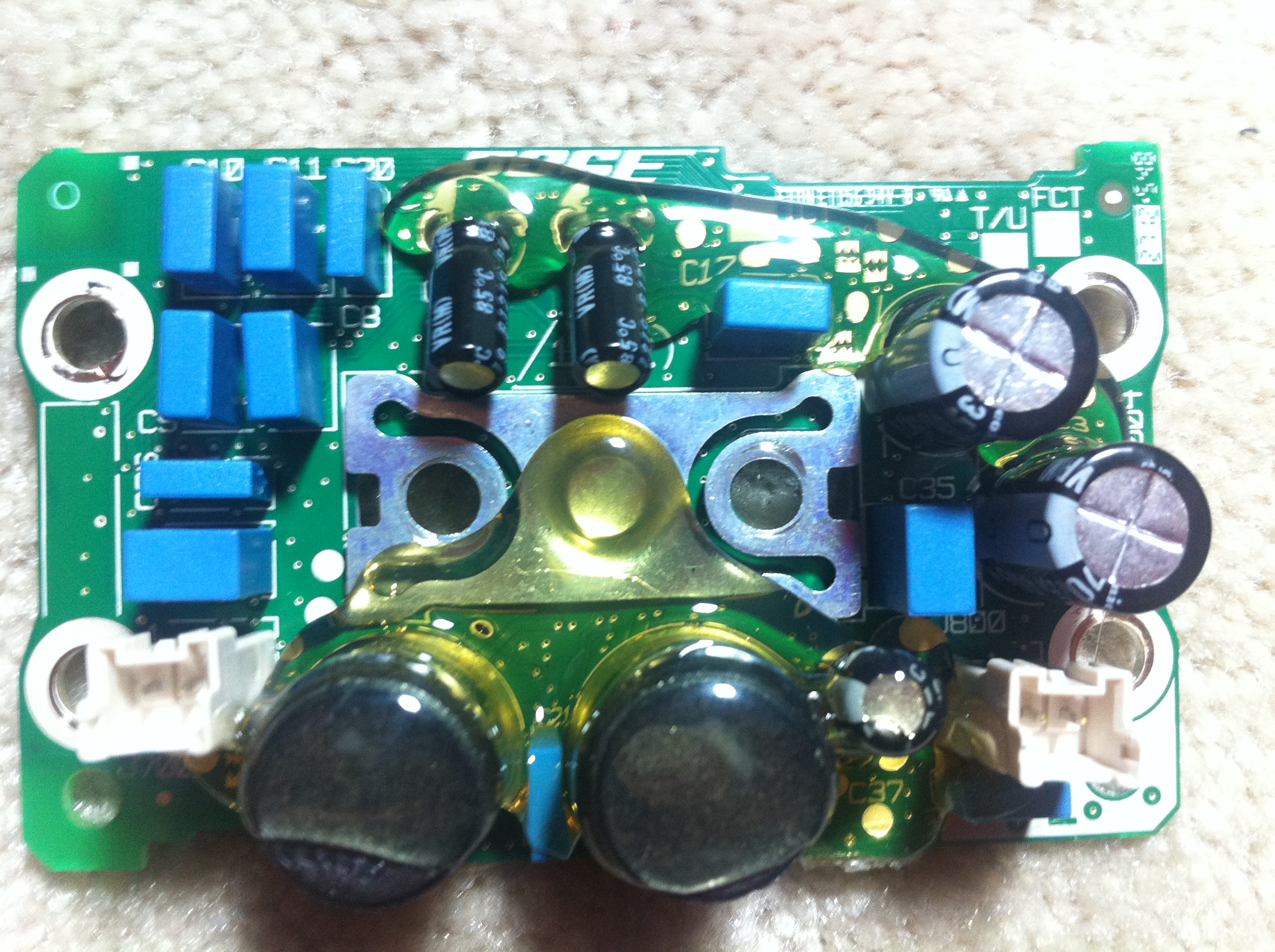

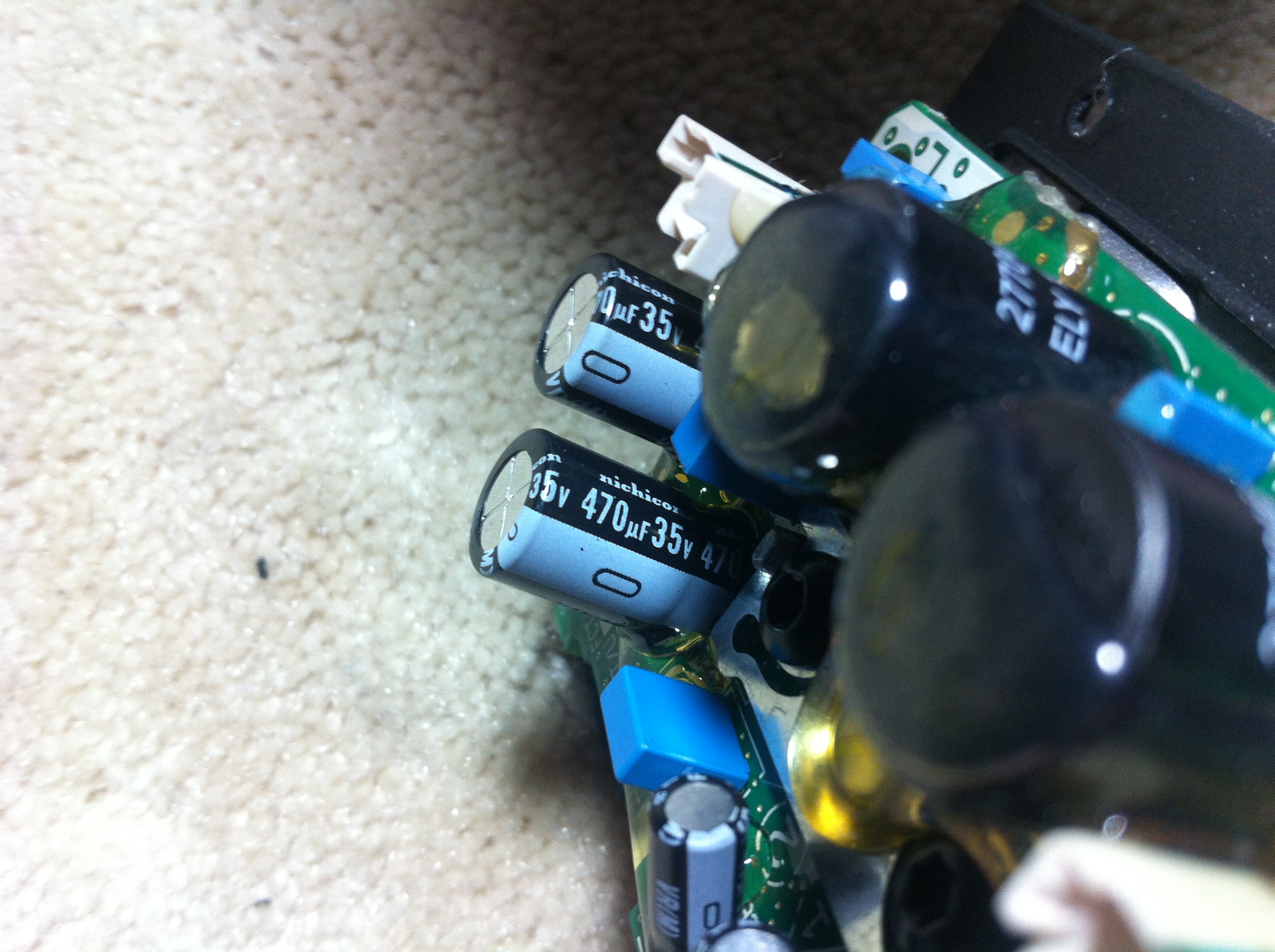

    Circuit boards... Inside the unit, the pcbs are made of quality fiberglass, and are double sided through hole plated. Yay for quality here. It gets better, because many modern electronics (especially TVs and computers) use cheap crummy no name electrolytic capacitors. These caps last for several years before bulging and/or leaking. As you guessed, the equipment doesn't work after that. Quality brands such as Nichicon, Rubycon, Elna, Nippon Chemi Con (aka United Chemi Con), and even Jamicon.. They are used in quality electronics and are high quality Japanese caps that almost never fail. Nichicon and UCC/NCC did have some bad batches around 2003, but that has been resolved. Well Bose decided to use Nichicon, so in terms of reliability, GOOD choice!! The plastics are ultrasonically welded PC/ABS plastics, and that is a decent material. In terms of build quality, and part quality, they did good here. Yes they could have used higher quality drivers, but they aren't bad, and they are in a properly tuned enclosure.

    Lastly I'm going to discuss performance and value. While this thing probably has no more than $40 worth or parts inside, the other iPod speaker docks aren't any more expensive in terms of components. $250 (MSRP) might seem like a lot, and it is. With that said, look at Apple's online store. They have a lot of goofy small little speakers, and Bluetooth seems all the rage. The bluetooth speakers I've heard sound like trash. Partially do to the actual product, but also due to the fact that they use bluetooth. Bluetooth compresses the file, and isn't good for audio (well music) Some of these tiny speakers are $300. And that is absurd. You then look at what is in the $200-$250 dollar range, and after hearing them all, you realize the SoundDock is the best of the bunch. Altec Lansing used to have some SoundDock killers. The Altec Lansing M602 and the T612 (the T612 was the iPhone GSM shielded version of the M602) were $199, and sounded a bit better than the SoundDock (Still can't beat the iPod HiFi or come close to a real stereo)

    Now even though I'm not a huge fan of the SoundDock's sound, turning on Bass Booster rolls back some of the midrange to a more natural level... not perfect, but better. For $250 you get a decent sounding iPod/iPhone dock, the convenience on an all in one system, and yes, you are paying for the name. But compared to the other options out there, they are all priced high, so when you add the SoundDock to the mix, it isn't overpriced. The super expensive choices like the SoundDock 10, Bowers & Wilkins Zeppelin series, and the other options, they are a poor choice. Keep in mind, most folks have MP3 files on their iPod or the ACC files from the iTunes Store. Even if these things sound great, the format and bit rate are so low, they will be the bottleneck. And once you lift that, the DAC in your iPod or iPhone isn't the world's best either. If the best sound is your goal, an iPod dock (even the absurdly expensive ones) aren't the answer. Build a stereo from quality components. As for the SoundDock, my rating is the following

    Sound: 3 out of 5
    Build Quality: 4 out of 5
    Component Quality: 5 out of 5
    Cosmetics: 4 out of 5 (finger print magnet)
    Value & Performance: 5 out of 5 (Decent iPod docks are getting rarer)

    4.2 stars average

    FYI: A great reading on Bose: (No affiliation)

    Attached Files:

  2. cutienoua macrumors member

    Sep 30, 2012
    I have the Bose Soundlink and use BT . Bass really depends how far away is placed from the wall.
    Also have the Apple speaker which I use connected to the airport express.
    Sound is better mostly because wifi has better frequency spread than BT.
    Nice pics !
    I did open a pair a Bose computer media mate and the the sub from Bose companion 3 and liked the solid built!
  3. Megalobyte macrumors 6502a

    Dec 30, 2007
    I've been afflicted with Audiophilia, a rare and debilitating disease for many years. :) I have an Aragon 4004 Mk2 amp, Aragon 18k pre. Decent pair of Epos speakers, used to have ML SL3's.

    Anyway, a full system is nice, but something like a Sound Dock has its place, it's pretty good for what it is.
  4. golu14 macrumors regular

    Jun 17, 2012
    Delhi, India
    my sister has it, sound really good but causes headache after a while..
    my 25$ logitech speakers sound 10x better
  5. ouimetnick thread starter macrumors 68020


    Aug 28, 2008
    Beverly, Massachusetts
    nice setup. I'm still annoyed and a bit curious as to why these iPod docks cost so much. No expensive components, no proprietary design. Does getting the "Designed for iPod" "Works with iPhone" approval cost so much or something? Same for the cases. $34 for a piece of silicone.. a small piece of silicone to go on my iPhone.:eek:

    But yeah, if portability isn't an concern, a better setup is a lot less. Granted my reference system is way more than the SoundDock, a SoundDock killer could be had for less.
  6. StuMacRumors macrumors newbie

    Jun 26, 2013
    irf chip

    Hello, I have a sounddock II with a burnt out international rectifiers chip (8 pin under the metal screen of the control board). I'm trying to find the correct part number of the ic and possibly the transistor closest to it if anyone can help please.
  7. koze666 macrumors newbie

    Aug 13, 2013
    i have same problem

    Do you find the number of IRC?
  8. StuMacRumors macrumors newbie

    Jun 26, 2013
