Broken LCD pins on logic board

Discussion in 'iMac' started by jeffk13, Jul 18, 2011.

  1. jeffk13 macrumors newbie

    Joined:
    Jul 18, 2011
    #1
    While replacing the hard drive in my 27" iMac I damaged the pins that connect the LCD to the logic board. Is it possible the repair or replace the pins without having to replace the logic board?

    Thanks!

  2. senseless macrumors 68000

    senseless

    Joined:
    Apr 23, 2008
    Location:
    Pennsylvania, USA
    #3
    Another casualty. An external monitor is the unfortunate answer. You probably followed an EZ, do it yourself web guide that left out a minor detail like the extreme fragility of this connector.

  3. bajkonyr macrumors newbie

    Joined:
    Feb 9, 2014
    #4
    Please help

    Hi everyone. Would appreciate if someone could tell me if my problem fixable looking at the attached pics?
    Thank you.

  4. bajkonyr macrumors newbie

    Joined:
    Feb 9, 2014
    #5

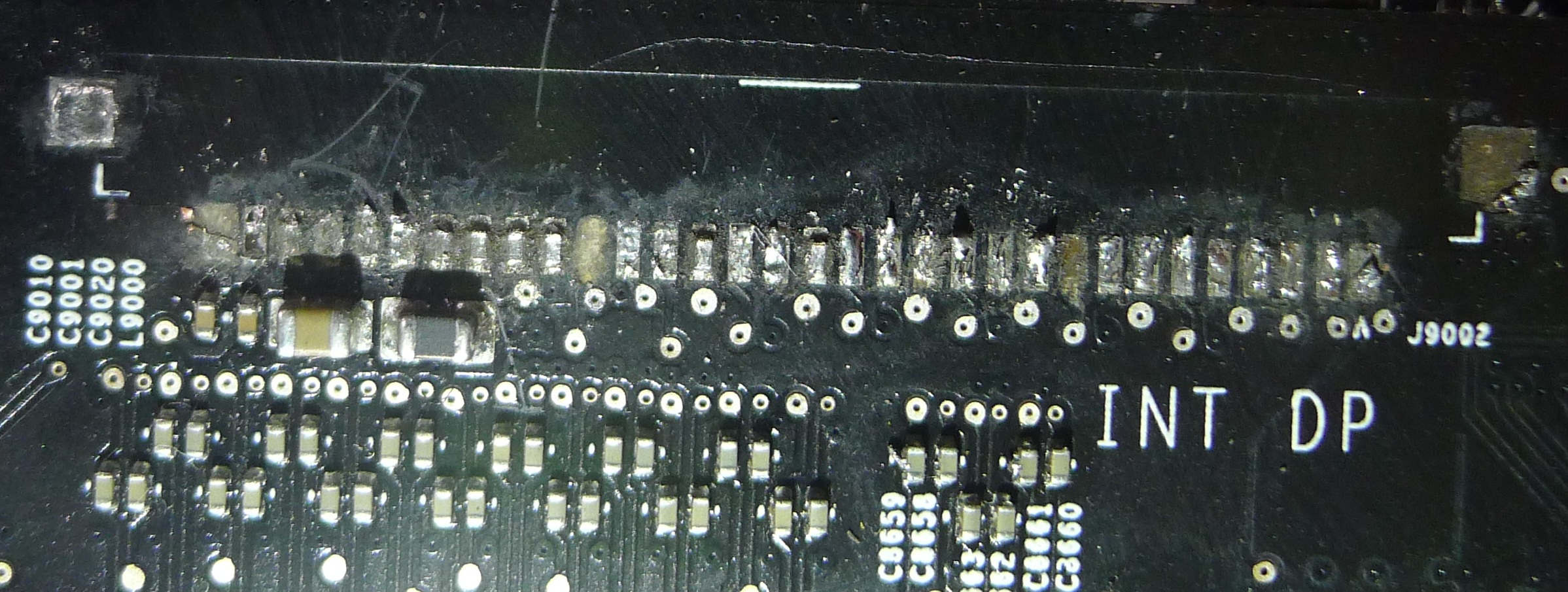

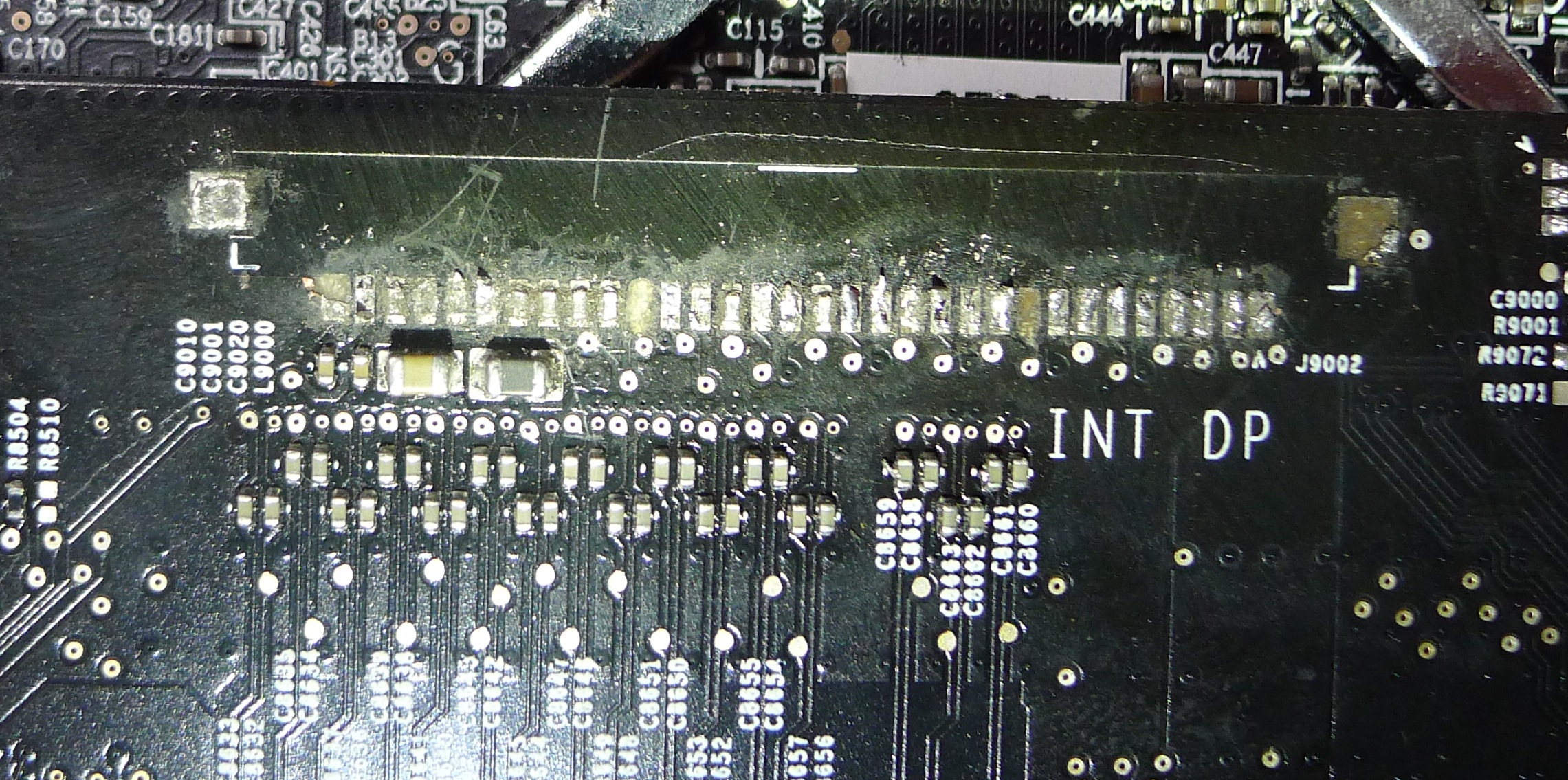

    the pics


    Attached Files:

  5. bajkonyr, Feb 9, 2014
    Last edited: Feb 9, 2014

    bajkonyr macrumors newbie

    Joined:
    Feb 9, 2014
    #6

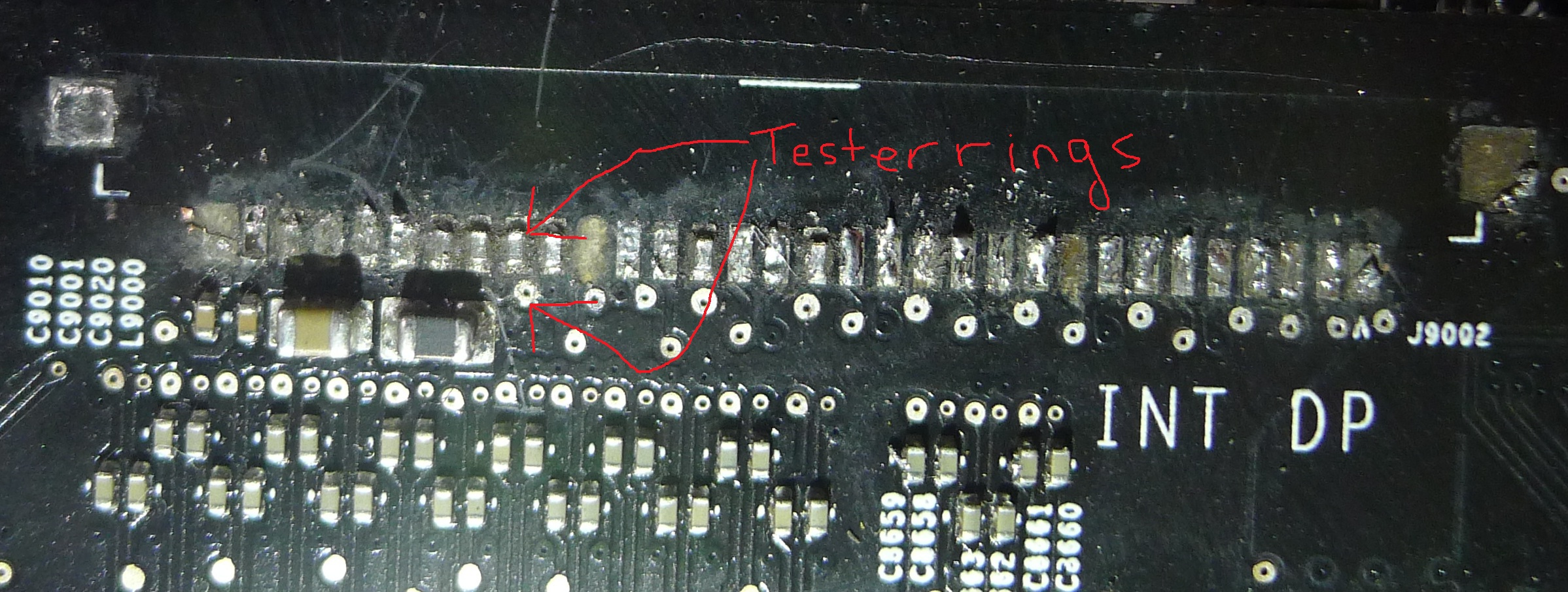

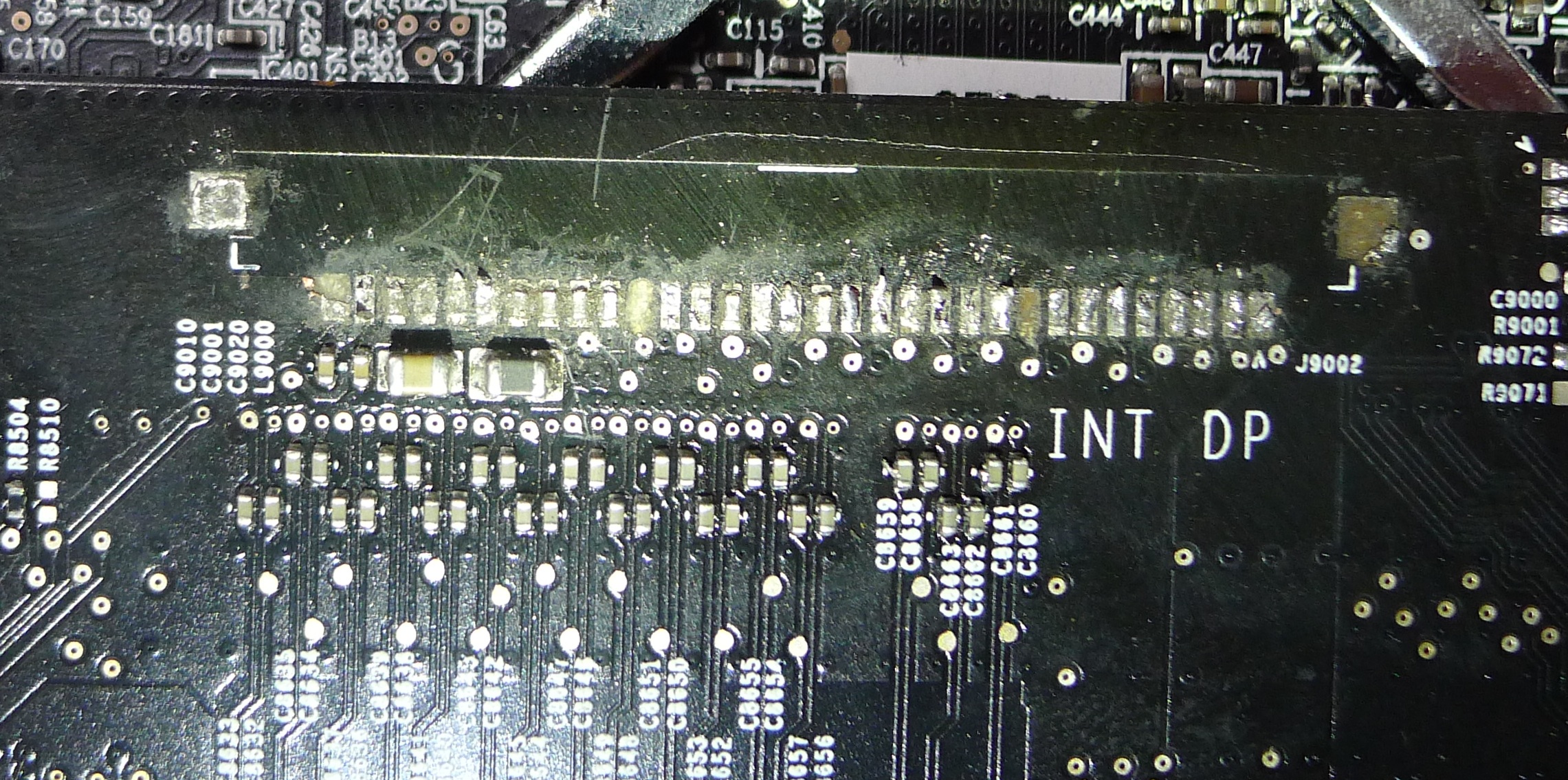

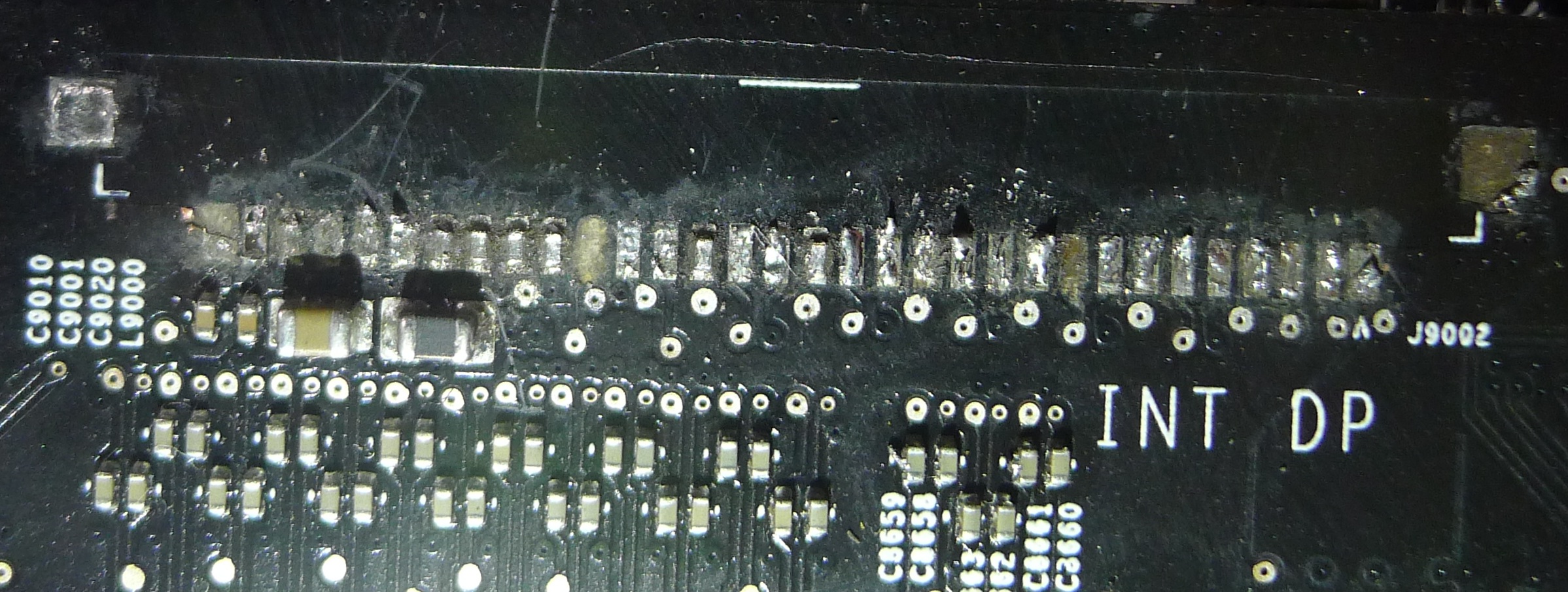

    Two more questions that I would like to make clear. Are those round lead circles, right beneath rectangular connectors, can be used to restore the lost contacts? I tried to ring the ones that are still in tact with a tester, and in fact, they are connected.


    And the other one is why the tester rings when I put one tip on, let's say 2nd rectangular contact, and the other one on 7th. Should not they be different traces?

    Thank you.


    Attached Files:
