Broken Powerbook Latch

Discussion in 'PowerPC Macs' started by SawyerTHEBEST, Feb 22, 2013.

  1. SawyerTHEBEST macrumors member

    SawyerTHEBEST

    Joined:
    Feb 5, 2013
    #1
    SO my powerbook can't close all the way, it goes to sleep when I close it, but when I pick it up you can clearly see that it is not latched down. AND its not the latch thats broken its the metal piece it hangs on to (below the touchpad), it's beyond me how to fix this one :( if therererers a way I'd love to know, or other ways to keep it closed like a universal Lock idk maine apples:apple::apple::apple::apple::apple::apple::apple:

  2. eyoungren macrumors P6

    eyoungren

    Joined:
    Aug 31, 2011
    Location:
    Phoenix • 85037
    #2
    It's more likely it's the hooks. If you store your PB a certain way over time (believe it or not) the lid can shift slightly (these Macs are aluminum after all). That can cause the latch hooks not to catch.

    Get a magnet. Place it over the holes in the top of the lid where the hooks come out. Slowly lift the magnet away from the lid. This will draw the hooks out. Once you have the hooks out you can grab them with your other hand.

    Carefully and slowly bend them either forward or backwards then let them spring back into the holes. Do NOT overforce them or do this quicky. You could damage them. Now try to close the lid and see if it latches.

    Sometimes if you get the lid close to the base you can see the hooks spring out. Based on what they are doing you can see if they will catch underneath or not. Use the instructions above again to bend them until you get it so that they catch.

    I had to do this with my 1Ghz Mac because the lid shifted ever so slightly. I adjusted the hooks using needlenose pliers very slowly and carefully. I haven't had a problem since.

  3. lucasfer899 macrumors 6502

    lucasfer899

    Joined:
    Sep 23, 2012
    Location:
    London
    #3
    Any chance of a picture for further analysis of your issue?

  4. g4manimac macrumors 6502

    Joined:
    Jan 22, 2013
    Location:
    Arkansas
    #4
    Eyoungren I would have NEVER thought of that lol...sometimes I overlook the simplest things I have been having this problem off and on and this worked perfect,mine sat on one of those slanted stands with a fan for a long time which I assume was the root of the problem.

  5. SawyerTHEBEST thread starter macrumors member

    SawyerTHEBEST

    Joined:
    Feb 5, 2013
    #5

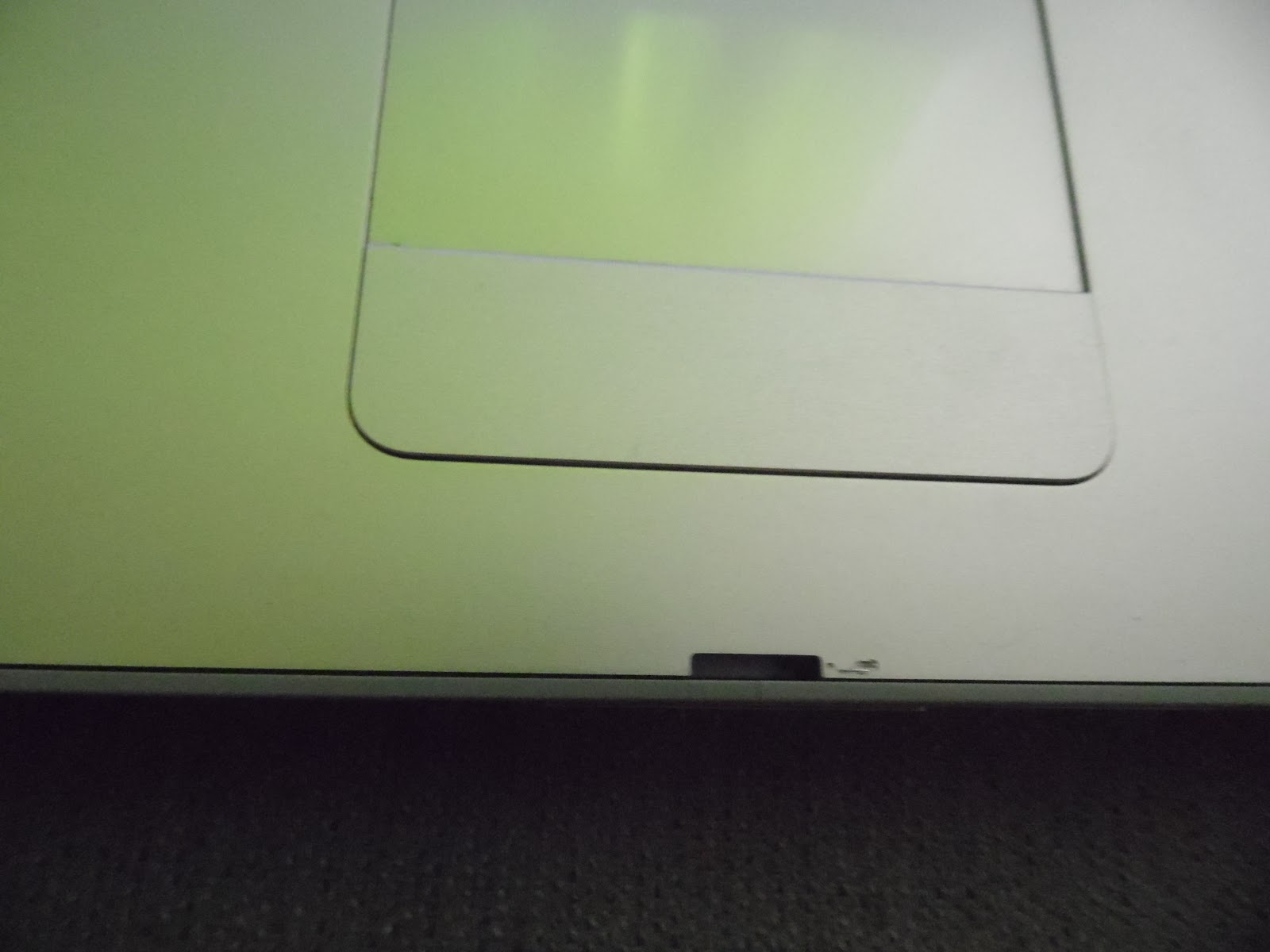

    A Picture is worth a thousand words

    [​IMG]

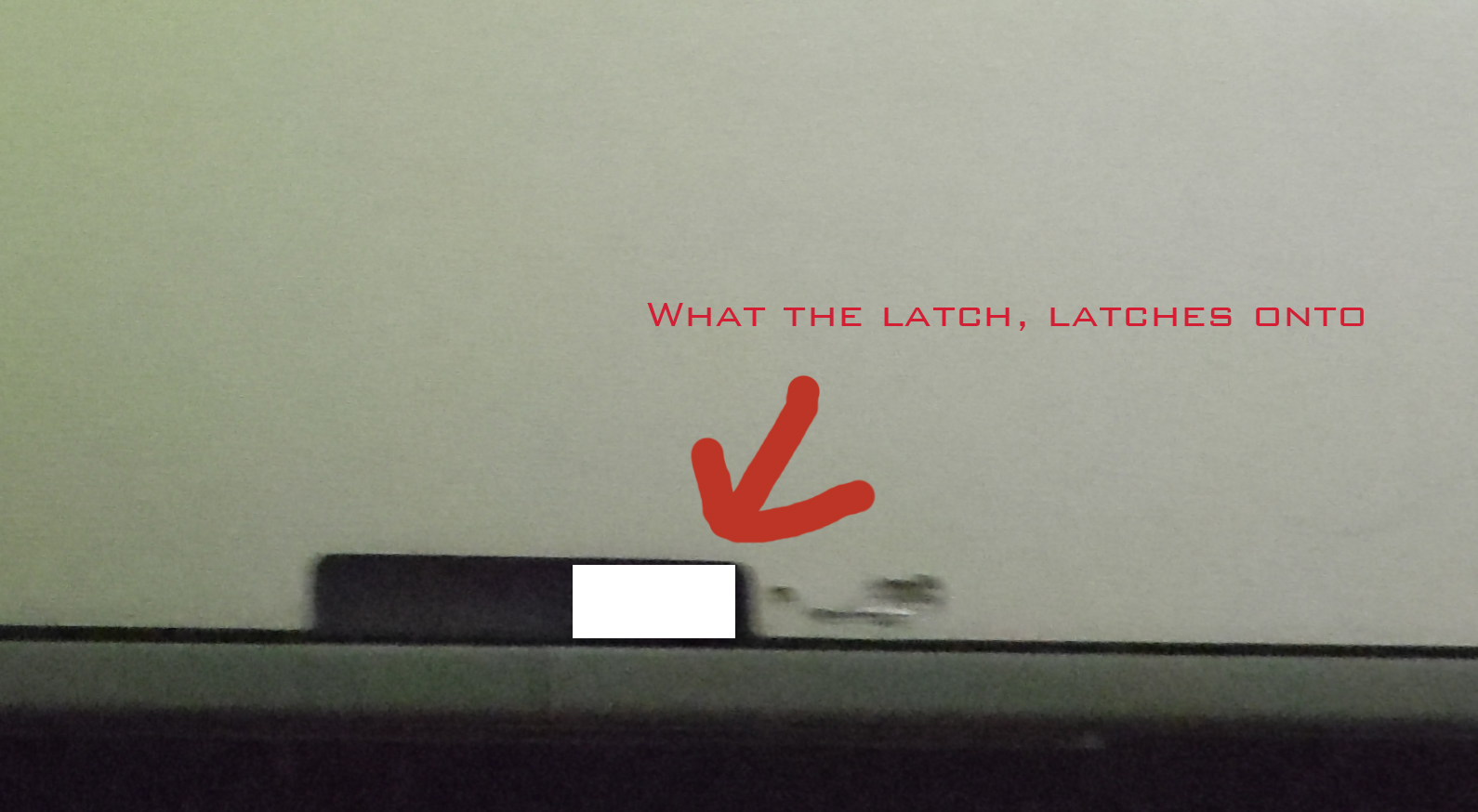

    SO as you see it should look like this:

    [​IMG]

    Thanks in advance for the photoshop complements, SO it has nothing to latch onto, I've tried glueing the broken off part back on , but its impossible. and the button to push it back is not being pressed in the picture. halp :confused:

  6. g4manimac, Feb 23, 2013
    Last edited: Feb 23, 2013

    g4manimac macrumors 6502

    Joined:
    Jan 22, 2013
    Location:
    Arkansas
    #6

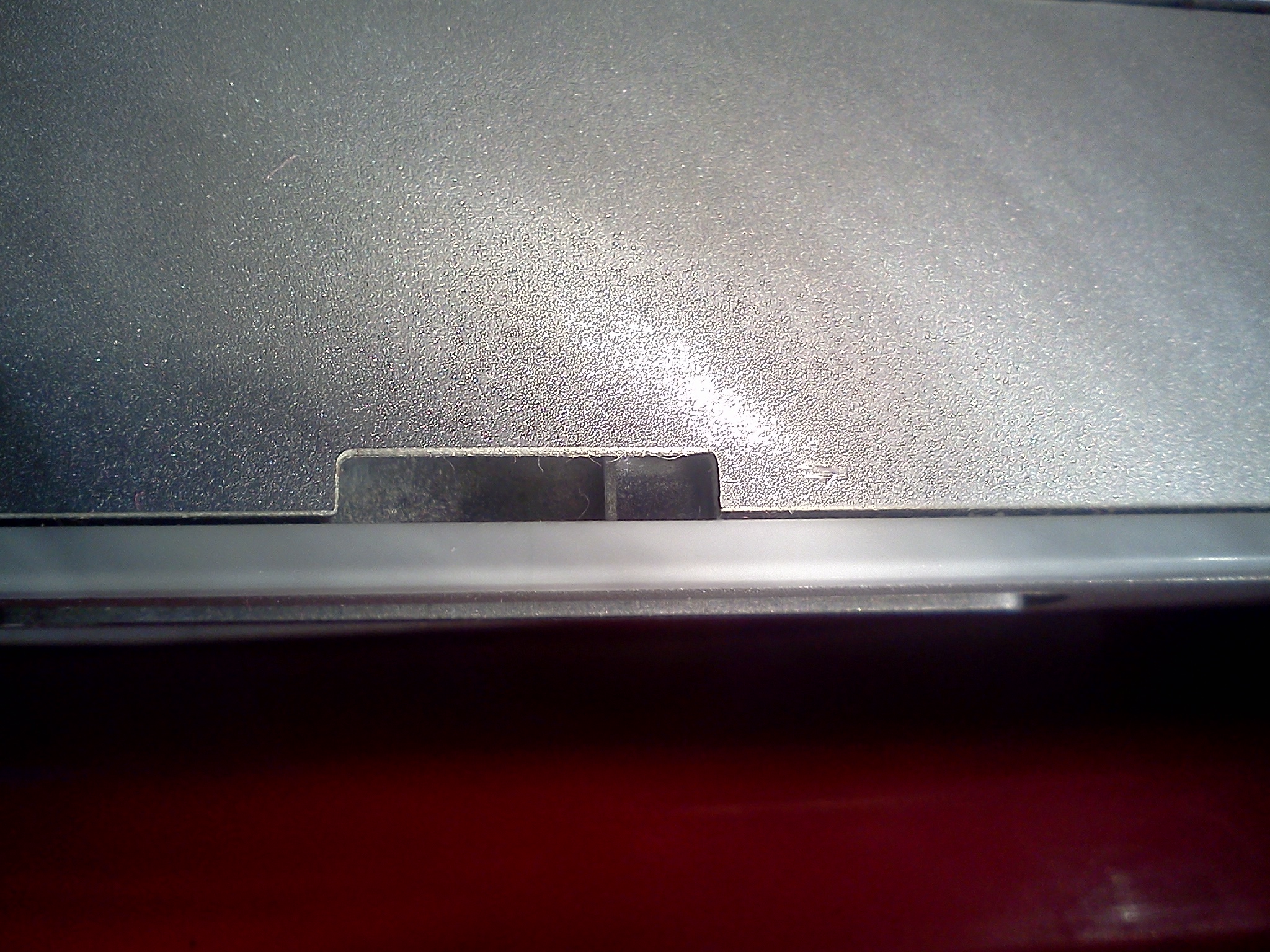

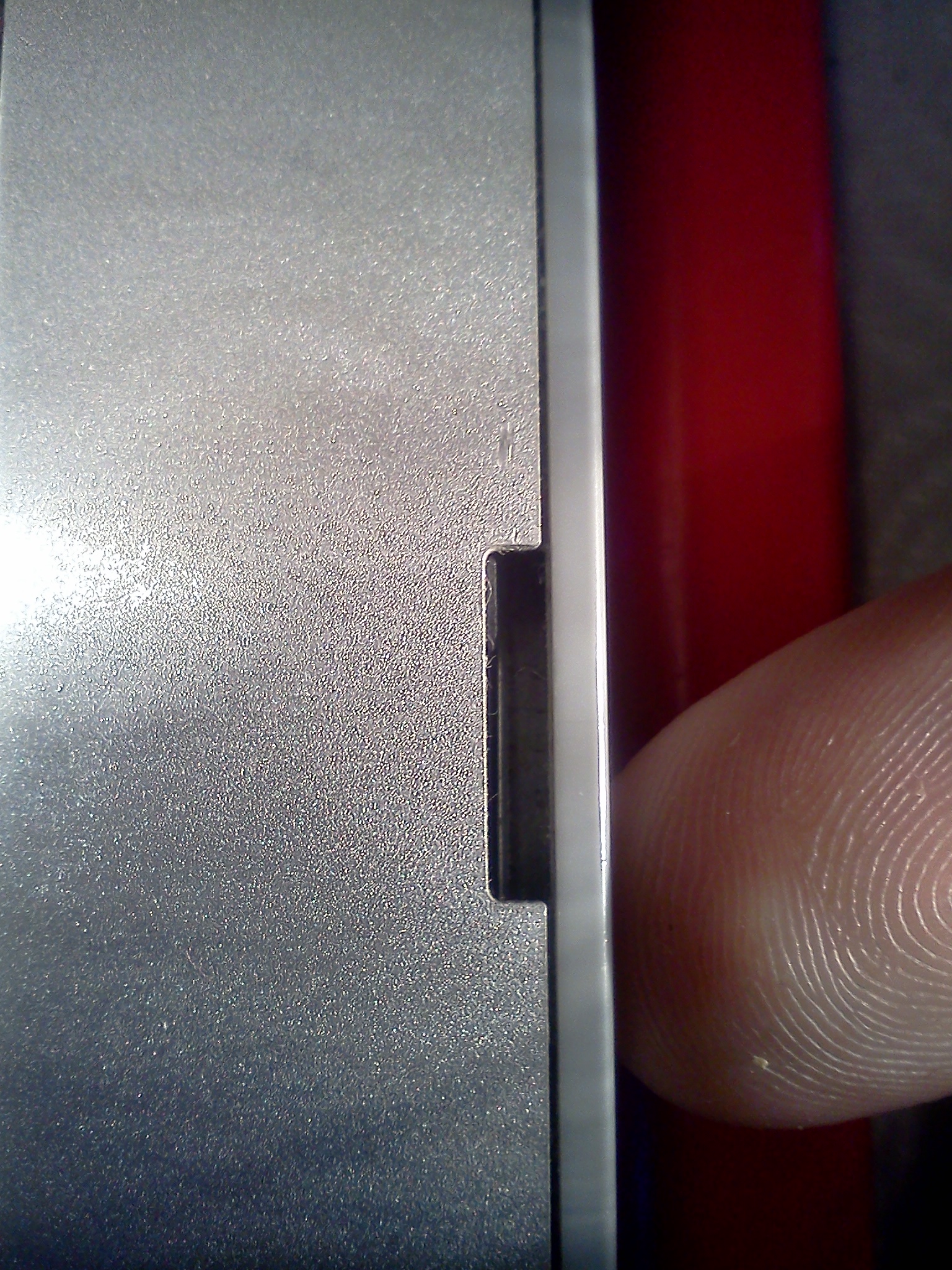

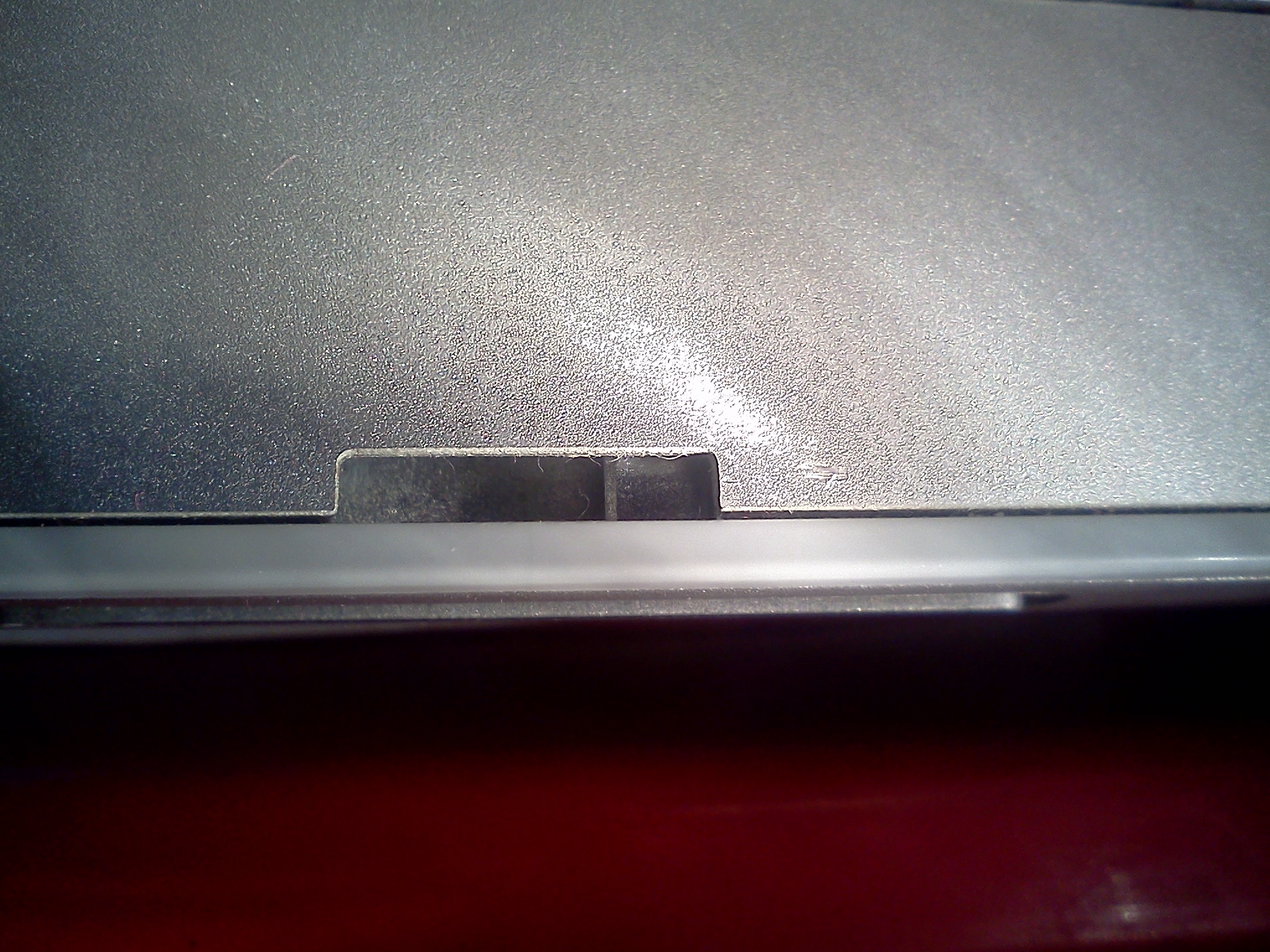

    I uploaded some pics of mine,it looks to be all one peice so more than likely you'll have to do surgery.I havent even paid much attention to this when I have the front cover off but you might be able to just lift the keyboard to fix it,somebody will know.


    Attached Files:

  7. eyoungren, Feb 23, 2013
    Last edited: Feb 23, 2013

    eyoungren macrumors P6

    eyoungren

    Joined:
    Aug 31, 2011
    Location:
    Phoenix • 85037
    #7
    Yeah, the thought of taking needlenose pliers to a Mac that use to cost $2000+ was a bit unnerving, but at the time I'd already replaced the screen on this Mac and a few other parts. So, I looked it up as to why this was not latching and there was someone out there who explained about the hooks. Made perfect sense. Had to mess with it a few times and wasn't too surprised because this was a new LCD for the Mac back then.

    Of course it's easier for me a little bit, because the 17" Mac is the only one that has two holes for the hooks. The 15" and 12" models have just one. Only one hook was not catching and that was causing the other to slip and release.

    Based on the photos I am seeing here, I'm guessing this isn't the issue in this case. Perhaps, if someone runs across this though that has the issue I had they'll be able to use that.

  8. SawyerTHEBEST thread starter macrumors member

    SawyerTHEBEST

    Joined:
    Feb 5, 2013
    #8
    WELP i just took it apart, thought why not clean the fans while its open, and I bought it used, never had opened it up, it being 6 years old, and there was barely any dust in the fans macs are amazing.

    AND tried to super glue a chopped toothpick in place of the metal part, but it wasen't good enough to hold the hook in place :( also I don't own pliers so shaky hands and all that doesn't help lol I was thinking though.

    there could be a universal like suction cut that you could put on the top of the monitor were it would suck to the place around the trackpad, then when opened it would just release. Does it exists? or did I just give away a good idea?

  9. eyoungren macrumors P6

    eyoungren

    Joined:
    Aug 31, 2011
    Location:
    Phoenix • 85037
    #9
    I don't know if this is feasible or not, but there's a product called JBWeld that bonds metal to metal. If you can find a scrap of metal, maybe you can use JBWeld to bond it to the part. Don't know if it will work on aluminum, but it's worth a shot. You have to let it cure though.

    The original JBWeld was intended for automotive purposes (I've used it on my car). It can withstand 500º and once cured the only way to get a part unbonded is by grinding it down.

  10. SawyerTHEBEST thread starter macrumors member

    SawyerTHEBEST

    Joined:
    Feb 5, 2013
    #10
    this is a real mind ****. It should be way simpler than this, I am a human, my mind is based around fixing problems. GAWD :apple::apple::apple::apple:

  11. g4manimac macrumors 6502

    Joined:
    Jan 22, 2013
    Location:
    Arkansas
    #11
    The problem with this is that the area to be bonded is just so so small and too much of anything would crowd it up.Jb weld is a good idea if you had some laying around get a good smooth layer around it and use a dremel or something to grind smooth but if you had to go BUY some the stuff has got high and a latch lock on ebay will be no more than $2-3 more than a new tube of pretty much any good bonding agent (besides superglue)...................................and trust me I am all for modification and I've looked at it and looked at it and I got nothing so if you do get it through sheer ingenuity I wanna know what u did.

  12. elammm macrumors newbie

    Joined:
    May 4, 2013
    #12
    I am in the exact same boat, same part missing for my latch, need a fix ASAP, will try to investigate how to fix this and keep you all updated, if anyone is even interested

  13. SawyerTHEBEST thread starter macrumors member

    SawyerTHEBEST

    Joined:
    Feb 5, 2013
    #13
    lol necro post but mine is still broken :p

  14. jbarley macrumors 68030

    jbarley

    Joined:
    Jul 1, 2006
    Location:
    Vancouver Island
    #14
    a bit of velcro rather then a suction cup might at least keep it closed.
