MP 1,1-5,1 Caldigit Fasta 6gu3 USB Plus 3.1 Not Working

[Phazemonster]

Hi I recently installed OC and uninstalled it on my 5,1 MP and I am currently running Mohave now, and my issue now is my pci Caldigit Esata, USB 3.1 card is only seeing the Esata connection on the card and the USB 3.1 ports are missing? Is there anything I can do?

Thank you very much

Caldigit Fasta 6gu3
2 Esata ports - working
2 USB 3,1 ports- Not Working



[Phazemonster]

only the 6gu3 PRO is supported


View attachment 1959671

I am pretty sure this is the Pro as well
Thank you



[joevt]

What PCI devices does your PCIe card have? That will tell us what card you have.



[Phazemonster]

Hi

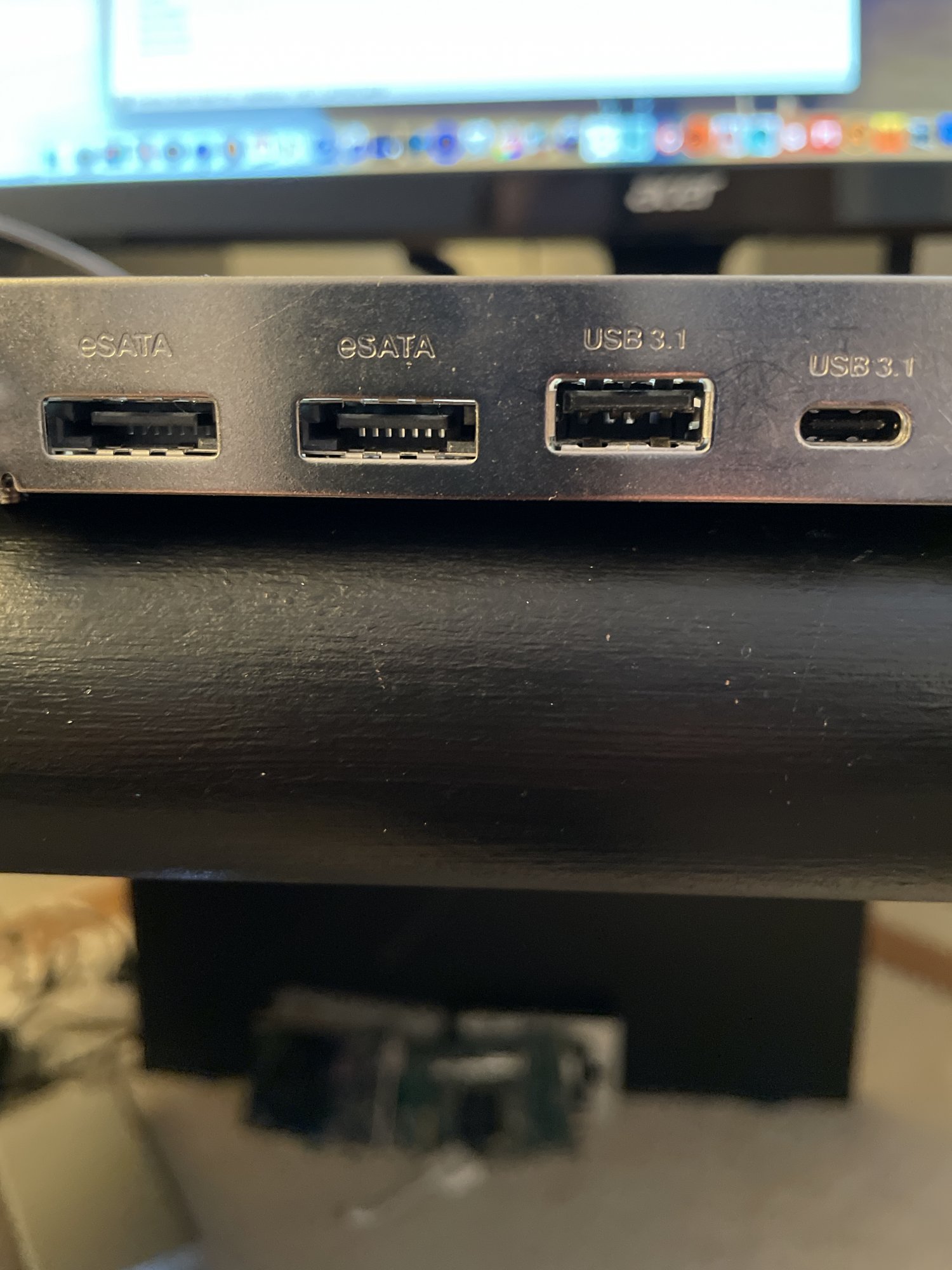

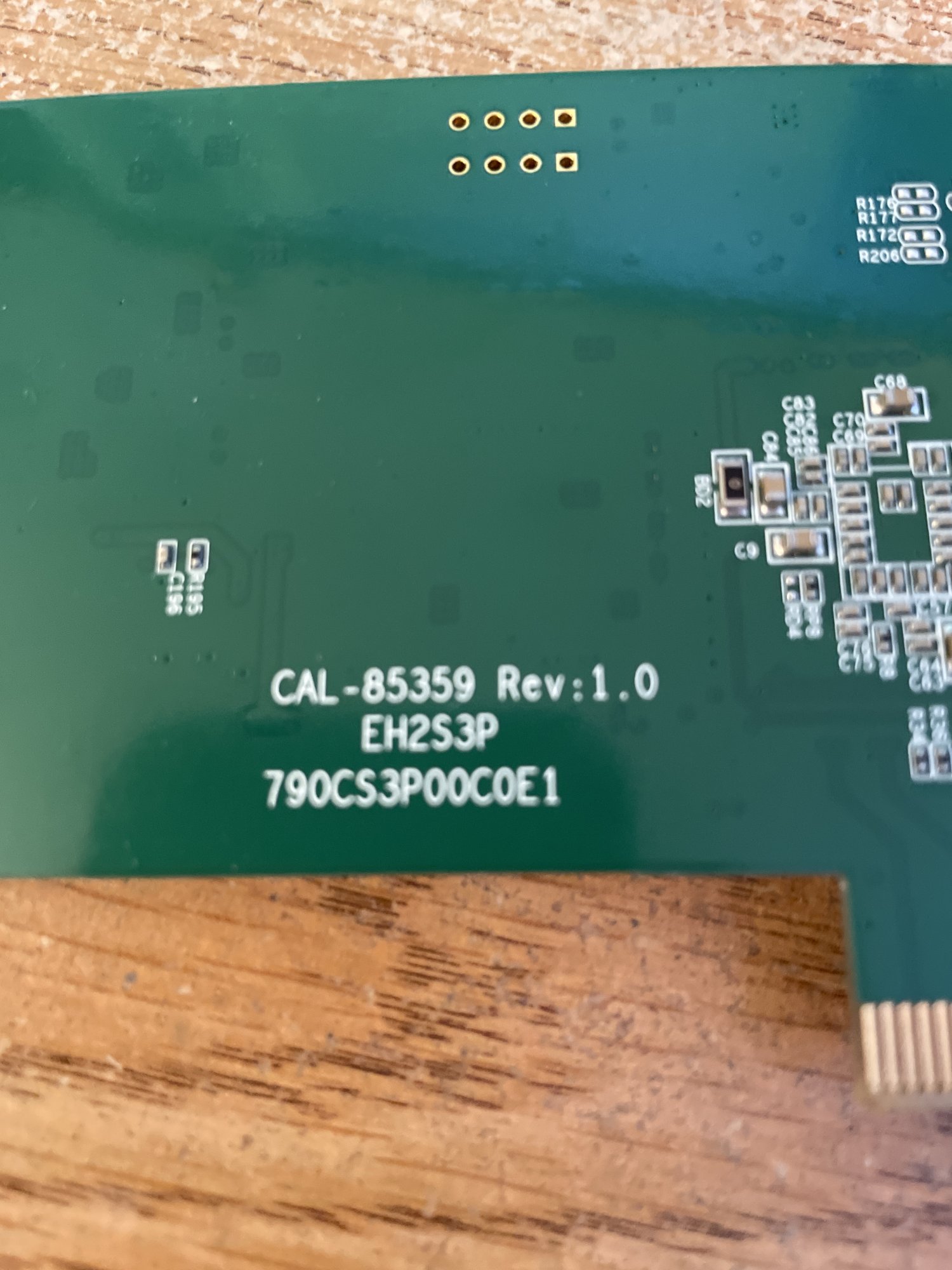

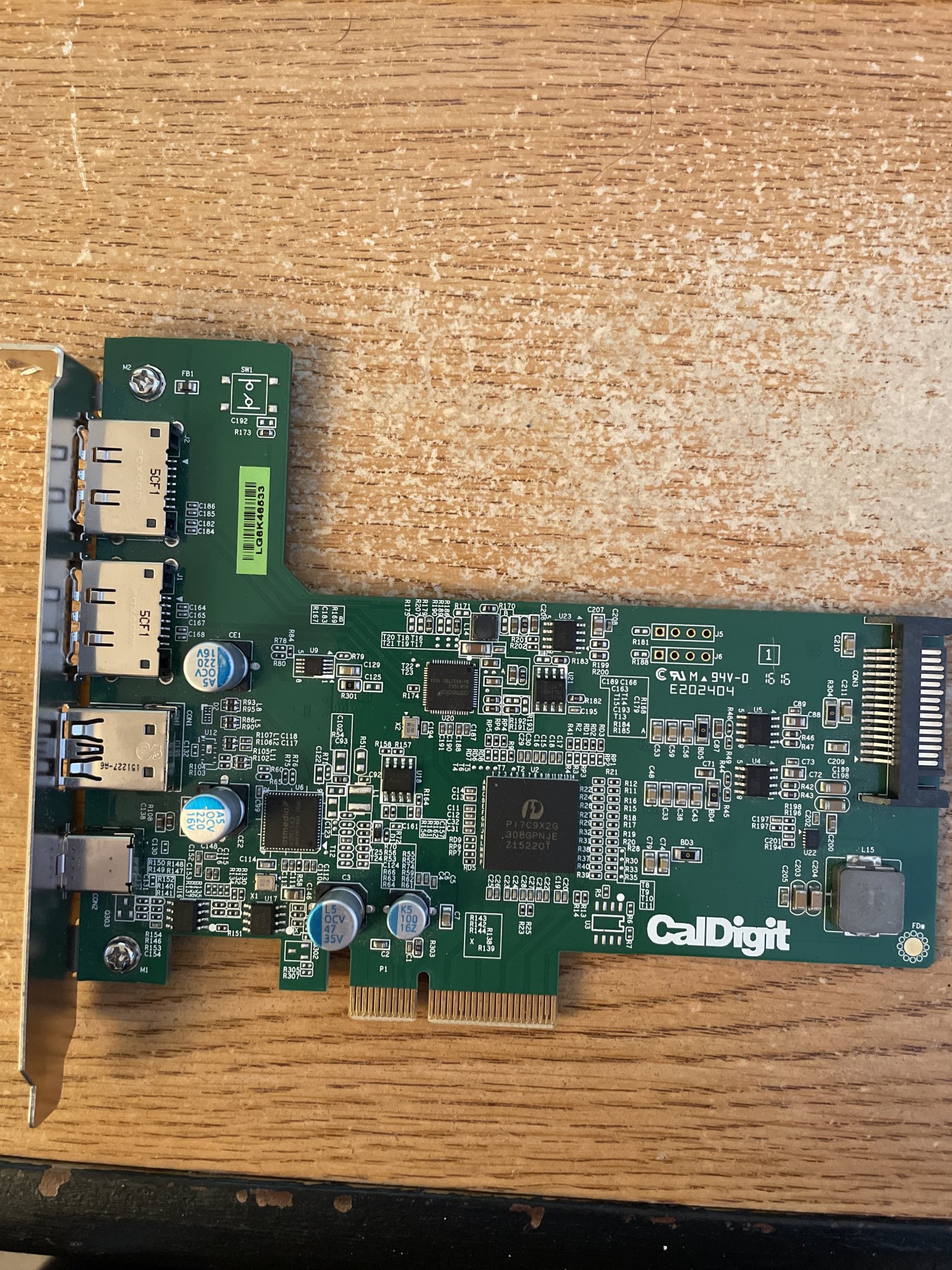

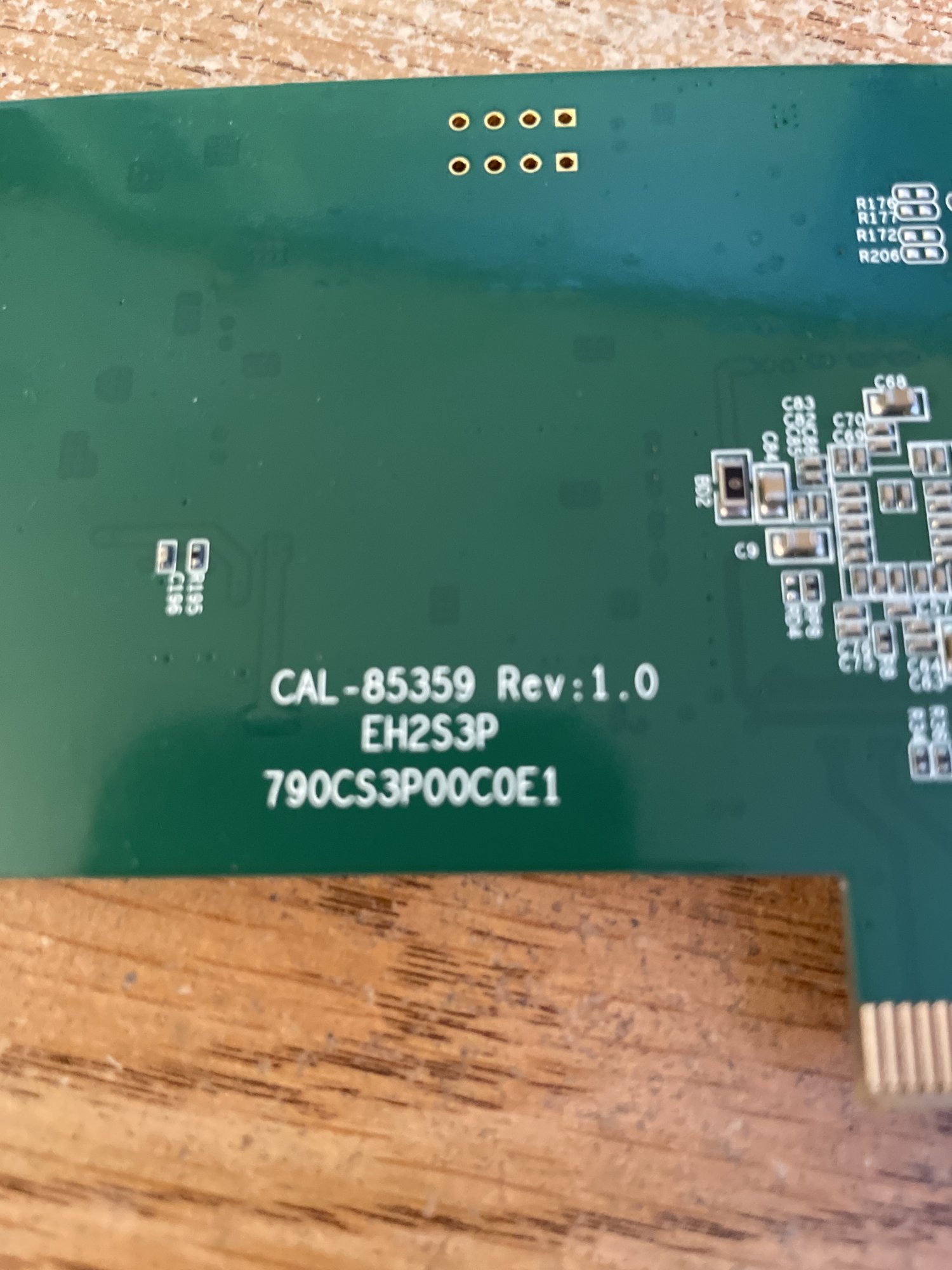

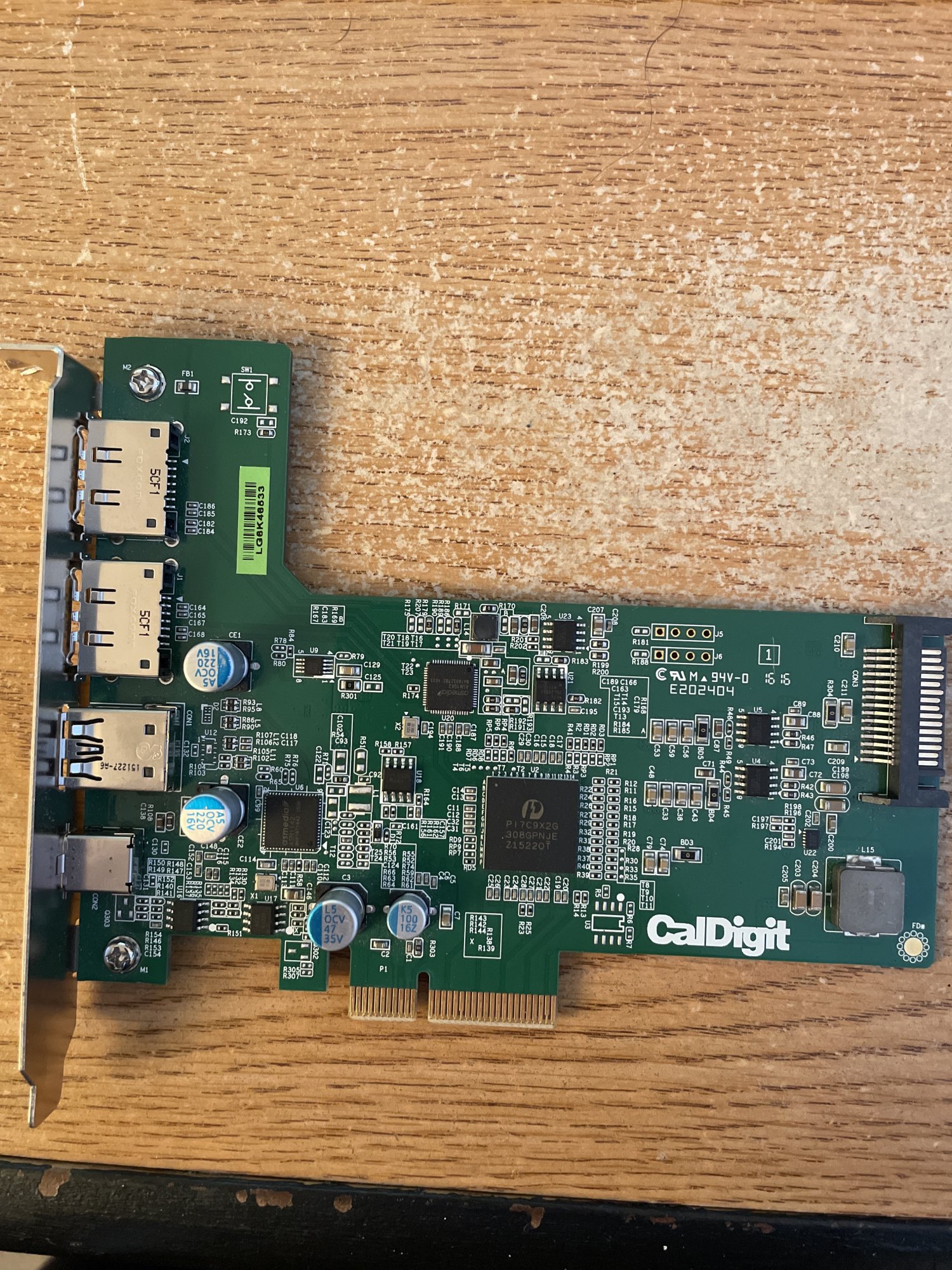

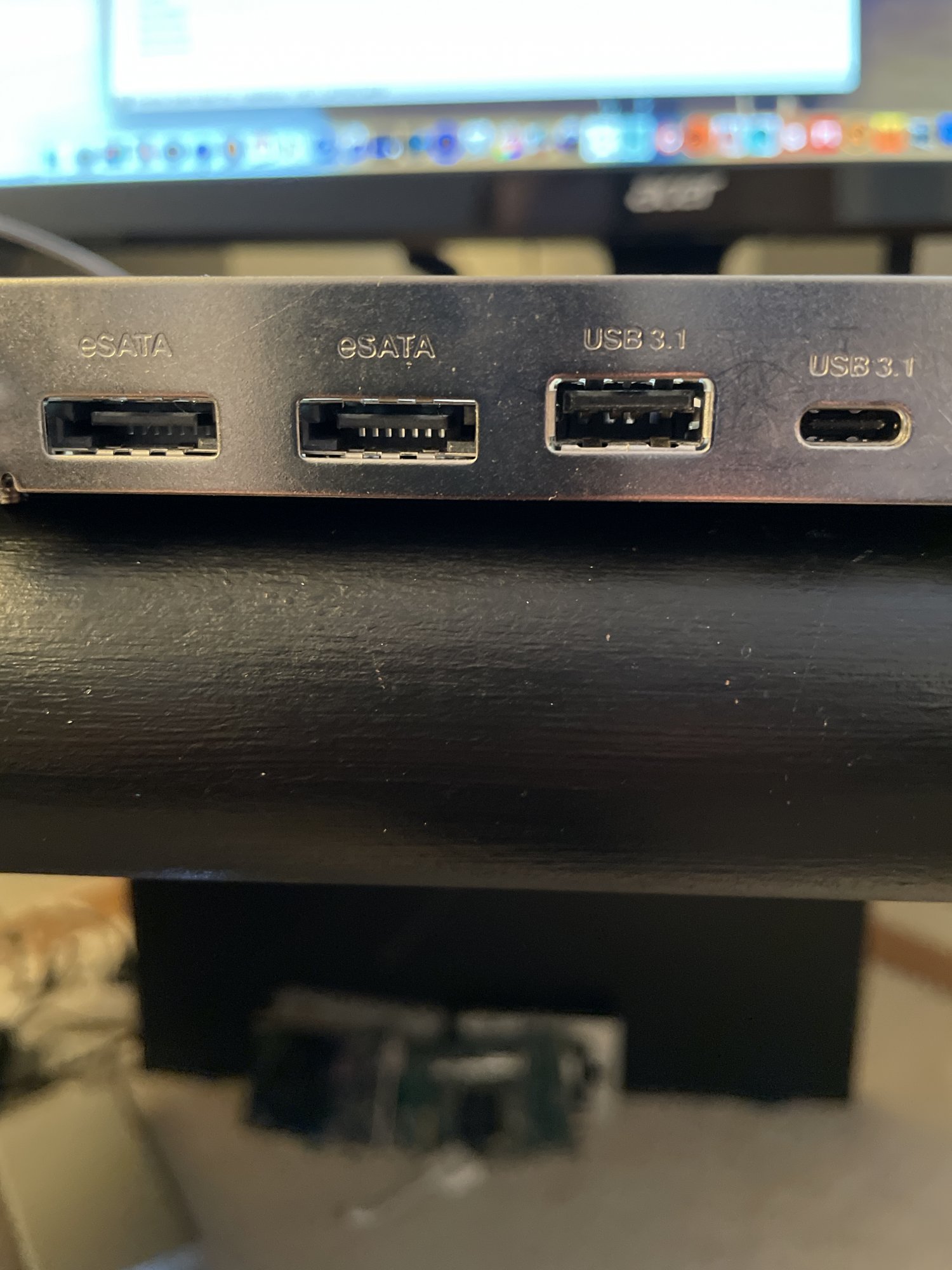

Here are a few pictures of my card of which worked be I installed Mohave from High Sierra and like I said I had OpenCore 7.7 running and uninstalled it not needed now, but now only the ESata ports are working properly and the two USB 3.1 ports are not working at all



[joevt]

CalDigit FASTA-6GU3
- PLX PEX 8608 8-lane, 8-Port PCI Express Gen 2 (5.0 GT/s) Switch. 4 PCIe 2.0 lanes to the computer, 1 PCIe 2.0 lane to the USB controller, 1 PCIe 2.0 lane to the SATA controller.
- Marvell 88SE9123 PCIe SATA 6.0 Gb/s controller - 2 SATA ports, 1 PCIe 2.0 lane to the switch chip.
- NEC uPD720200 USB 3.0 Host Controller - 2 USB 3.0 ports, 1 PCIe 2.0 lane to the switch chip.

CalDigit FASTA-6GU3 Pro
- FL1100 USB 3.0 controller (more compatible than NEC)

CalDigit FASTA-6GU3 Plus
- ASMedia ASM1142 USB 3.1 gen 2 controller
- ASMedia ASM1062 SATA controller

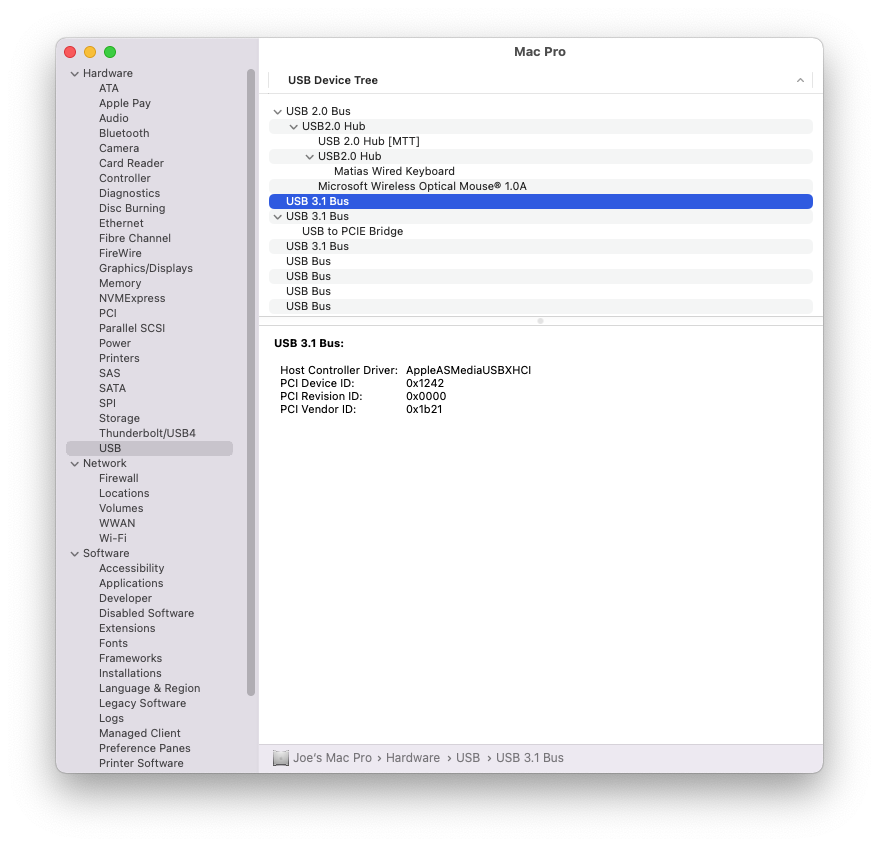

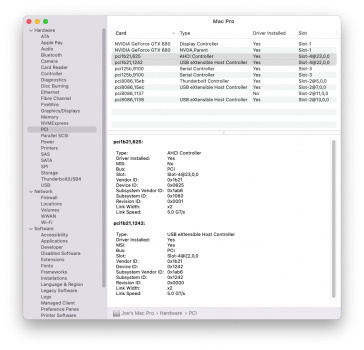

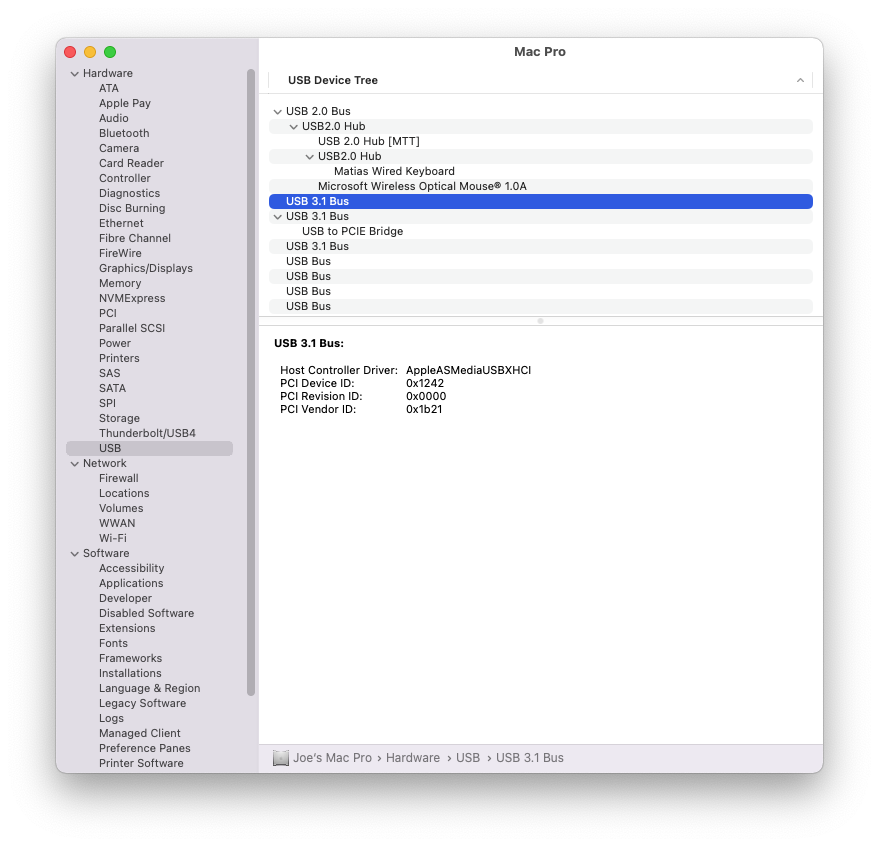

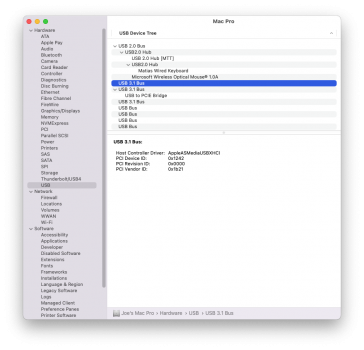

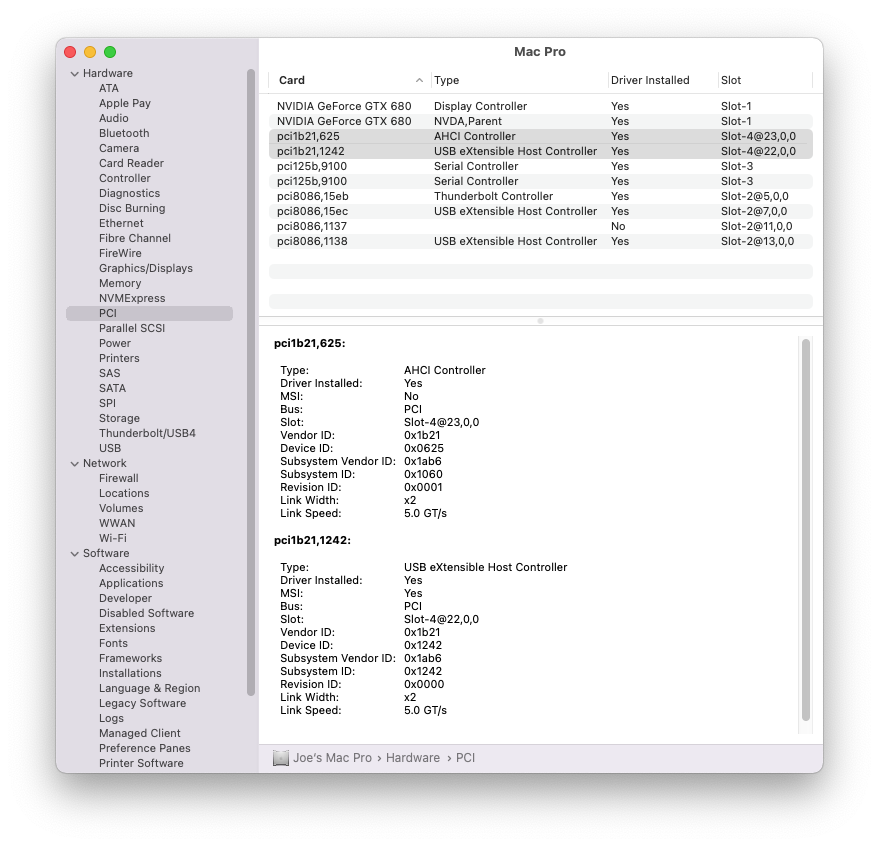

Check the PCI and USB tabs in System Information.app.



Do you have any third party USB drivers installed? Does the card work in any other version of macOS?



[Phazemonster]

Hi cool thank you very much I don’t have any 3rd party drivers installed and I worked with High Sierra before and only the ESata ports work on the card currently but not the usb 3.1 ports



[Phazemonster]

Good news the Inateck KU5211 works great with Mohave, it was the the Caldigit FASTA-6GU3 Plus that is incompatible with Mohave at least for my system, thank you very much for your help!
