iOS can not detect a touch for UIImageView, scrollView

Sort Posts by Likes
T

tranvutuan

macrumors member
Original poster
Dec 19, 2011
74
0
Hi everyone
I have just added 3 UIImageView in a scrollView but I cant detect a touch for each of UIImageView...

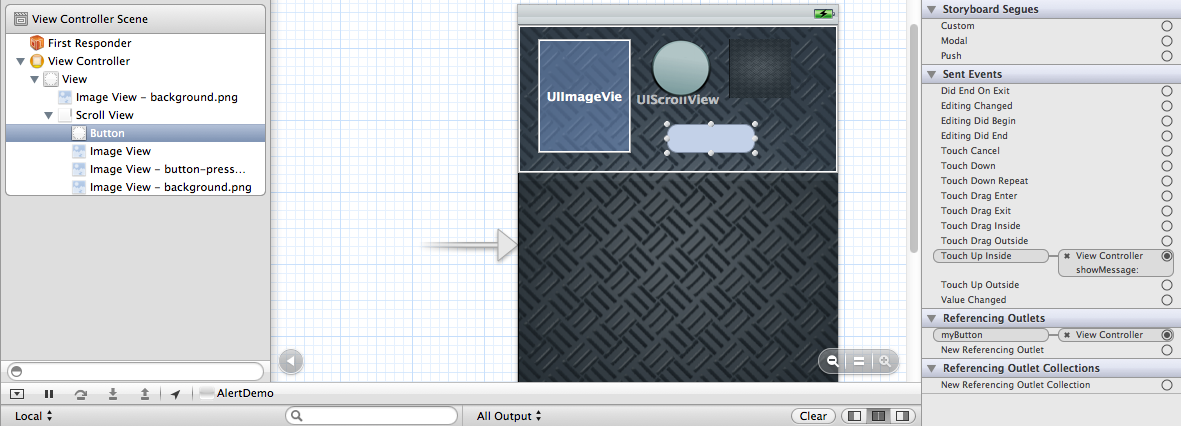

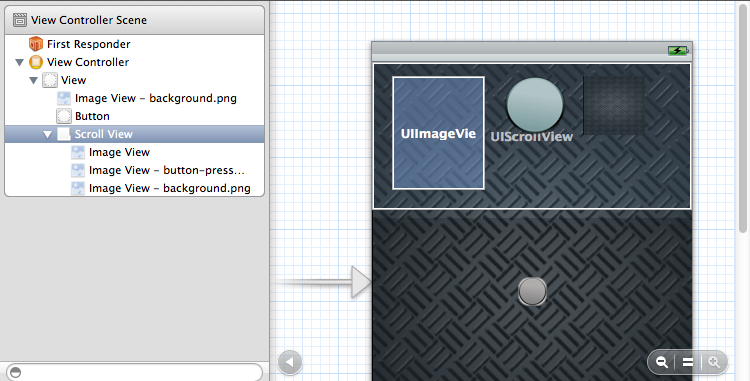

I have attached an img for my StoryBoard so that you can easily see my issue. Please help if you have any hints for this. Thanks


Attachments

ArtOfWarfare

ArtOfWarfare

macrumors G3
Nov 26, 2007
8,579
4,019
I can easily see you neglected to show us the right panel, namely the connections tab.

Edit:

Although wouldn't it be a lot easier to just use a UIButton? You can assign an image to a button so that visually it looks the same as a UIImageView, but it comes with the ability to detect touches "built-in", that is, without you having to write any code to have it detect touches.

T

tranvutuan

macrumors member
Original poster
Dec 19, 2011
74
0
ArtOfWarfare said:
I can easily see you neglected to show us the right panel, namely the connections tab.

Edit:

Although wouldn't it be a lot easier to just use a UIButton? You can assign an image to a button so that visually it looks the same as a UIImageView, but it comes with the ability to detect touches "built-in", that is, without you having to write any code to have it detect touches.
Click to expand...

Yeah you are rite.. just gave it a try and it is easier then.. However, i would like to try out with UIImageView after all.By the way, I did attach an img with connections tab


Attachments

Last edited:
ArtOfWarfare

ArtOfWarfare

macrumors G3
Nov 26, 2007
8,579
4,019
dejo said:
Well, you've shown the connections for a newly-added button. But what about your images?
Click to expand...
I think showing connections with your controller would be better... that way we'd see all the connections between it and your buttons and images.

T

tranvutuan

macrumors member
Original poster
Dec 19, 2011
74
0
dejo said:
Well, you've shown the connections for a newly-added button. But what about your images?
Click to expand...
Others are UIImageView and they are not supported for touch event.. Therefore, I have to add in the codes like below
Code:
- (void)viewDidLoad
{
    [super viewDidLoad];
	// Do any additional setup after loading the view, typically from a nib.
    myScrollView.contentSize = CGSizeMake(500,0);
    UITapGestureRecognizer *touch;
    touch = [[UITapGestureRecognizer alloc] initWithTarget:self action:@selector(test:)];
    [myImgView1 setUserInteractionEnabled:TRUE];
    [myImgView2 setUserInteractionEnabled:TRUE];
    touch.numberOfTapsRequired = 1;
    [myImgView2 addGestureRecognizer:touch];
    [myImgView1 addGestureRecognizer:touch];

    myImgView1.tag = 8 ;
    myImgView2.tag = 9 ;


    [myButton setImage:[UIImage imageNamed:@"dresses.png"] forState:UIControlStateNormal];
    [myButton setImage:[UIImage imageNamed:@"dresses.png"] forState:UIControlStateHighlighted];

}
- (void) test:(UIGestureRecognizer *)sender
{
    UIImageView *myImg  =   (UIImageView*)sender.view;
    if (myImg.tag == 8 ) {
    //NSLog(@"fdfdfdfdfdfdfdf %d",((UIImageView*)id).tag);
        NSLog(@"JUST TOUCHEDDDDDD MYIMGVIEW1");
        [myBigImgView setImage:[UIImage imageNamed:@"button"]];
    }
    else if (myImg.tag == 9 )
        NSLog(@"JUST TOUCHEDDDDDD MYIMGVIEW2");
    [myBigImgView setImage:[UIImage imageNamed:@"dresses"]];
}

T

tranvutuan

macrumors member
Original poster
Dec 19, 2011
74
0
tranvutuan said:
Others are UIImageView and they are not supported for touch event.. Therefore, I have to add in the codes like below
Code:
- (void)viewDidLoad
{
    [super viewDidLoad];
	// Do any additional setup after loading the view, typically from a nib.
    myScrollView.contentSize = CGSizeMake(500,0);
    UITapGestureRecognizer *touch;
    touch = [[UITapGestureRecognizer alloc] initWithTarget:self action:@selector(test:)];
    [myImgView1 setUserInteractionEnabled:TRUE];
    [myImgView2 setUserInteractionEnabled:TRUE];
    touch.numberOfTapsRequired = 1;
    [myImgView2 addGestureRecognizer:touch];
    [myImgView1 addGestureRecognizer:touch];

    myImgView1.tag = 8 ;
    myImgView2.tag = 9 ;


    [myButton setImage:[UIImage imageNamed:@"dresses.png"] forState:UIControlStateNormal];
    [myButton setImage:[UIImage imageNamed:@"dresses.png"] forState:UIControlStateHighlighted];

}
- (void) test:(UIGestureRecognizer *)sender
{
    UIImageView *myImg  =   (UIImageView*)sender.view;
    if (myImg.tag == 8 ) {
    //NSLog(@"fdfdfdfdfdfdfdf %d",((UIImageView*)id).tag);
        NSLog(@"JUST TOUCHEDDDDDD MYIMGVIEW1");
        [myBigImgView setImage:[UIImage imageNamed:@"button"]];
    }
    else if (myImg.tag == 9 )
        NSLog(@"JUST TOUCHEDDDDDD MYIMGVIEW2");
    [myBigImgView setImage:[UIImage imageNamed:@"dresses"]];
}
Click to expand...
But they dont work though

ArtOfWarfare

ArtOfWarfare

macrumors G3
Nov 26, 2007
8,579
4,019
Please use the "Edit" button at the bottom of your post to add something. Do not make two back to back posts.

Regarding why your code isn't being called, you don't appear to have a delegate set up for your gesture recognizer. I'm not sure if that'll fix it but that's something I'm noticing...

Edit: (See, you should edit like this?)
Nevermind, you don't need a delegate... still looking...

Found this in the class reference:

A gesture recognizer has one or more target-action pairs associated with it. If there are multiple target-action pairs, they are discrete, and not cumulative. Recognition of a gesture results in the dispatch of an action message to a target for each of those pairs. The action methods invoked must conform to one of the following signatures:

Code:
- (void)handleGesture;
- (void)handleGesture:(UIGestureRecognizer *)gestureRecognizer;
Click to expand...
So maybe your issue is that the method must be handleGesture: instead of test:?

Other thing, do you know whether test: is being called at all? It looks to me like if test: is called and the view's tag was neither 8 nor 9, it won't do anything at all. Either add an NSLog that lets you know it's being called, or set a breakpoint (a breakpoint would be quicker and easier.)

Last edited:
T

tranvutuan

macrumors member
Original poster
Dec 19, 2011
74
0
ArtOfWarfare said:
Please use the "Edit" button at the bottom of your post to add something. Do not make two back to back posts.

Regarding why your code isn't being called, you don't appear to have a delegate set up for your gesture recognizer. I'm not sure if that'll fix it but that's something I'm noticing...

Edit: (See, you should edit like this?)
Nevermind, you don't need a delegate... still looking...

Found this in the class reference:



So maybe your issue is that the method must be handleGesture: instead of test:?

Other thing, do you know whether test: is being called at all? It looks to me like if test: is called and the view's tag was neither 8 nor 9, it won't do anything at all. Either add an NSLog that lets you know it's being called, or set a breakpoint (a breakpoint would be quicker and easier.)
Click to expand...
test method is being called but only for the latest UIImageView which invokes test
Code:
    [myImgView2 addGestureRecognizer:touch];
    [myImgView1 addGestureRecognizer:touch];
this means test is being invoked for myImgView1 but myImgView2. It is odd, isn't it. When I do
Code:
    [myImgView1 addGestureRecognizer:touch];
    [myImgView2 addGestureRecognizer:touch];
myImgView2 is calling test, but myImgView1

T

tranvutuan

macrumors member
Original poster
Dec 19, 2011
74
0
dejo said:
Re-read this part that ArtOfWarfare quoted:
Click to expand...
Yeah thanks for pointing out then. So what should we do if right now we are having 20 UIImageViews and we have to tell which one has been invoked. Does it sound like we are going to have 20 touches and each of them is mapped to each UIImageView then..... ?

Last edited:
J

jonnymo5

macrumors 6502
Jan 21, 2008
279
0
Texas
Use UIButton.

If you really just hate buttons and everything they represent then at least make a subclass UIButtonImageHybrid rather than trying to beat down the UIImageView until it submits and acts like a button.

T

tranvutuan

macrumors member
Original poster
Dec 19, 2011
74
0
Alright, I think I have to go for a UIButton rather then UIImageView.Thanks for all your helps...
