Can somebody decipher Apple Hardware Test

Discussion in 'MacBook Pro' started by toke lahti, Apr 21, 2016.

  1. toke lahti macrumors 68000

    Joined:
    Apr 23, 2007
    Location:
    Helsinki, Finland
    #1

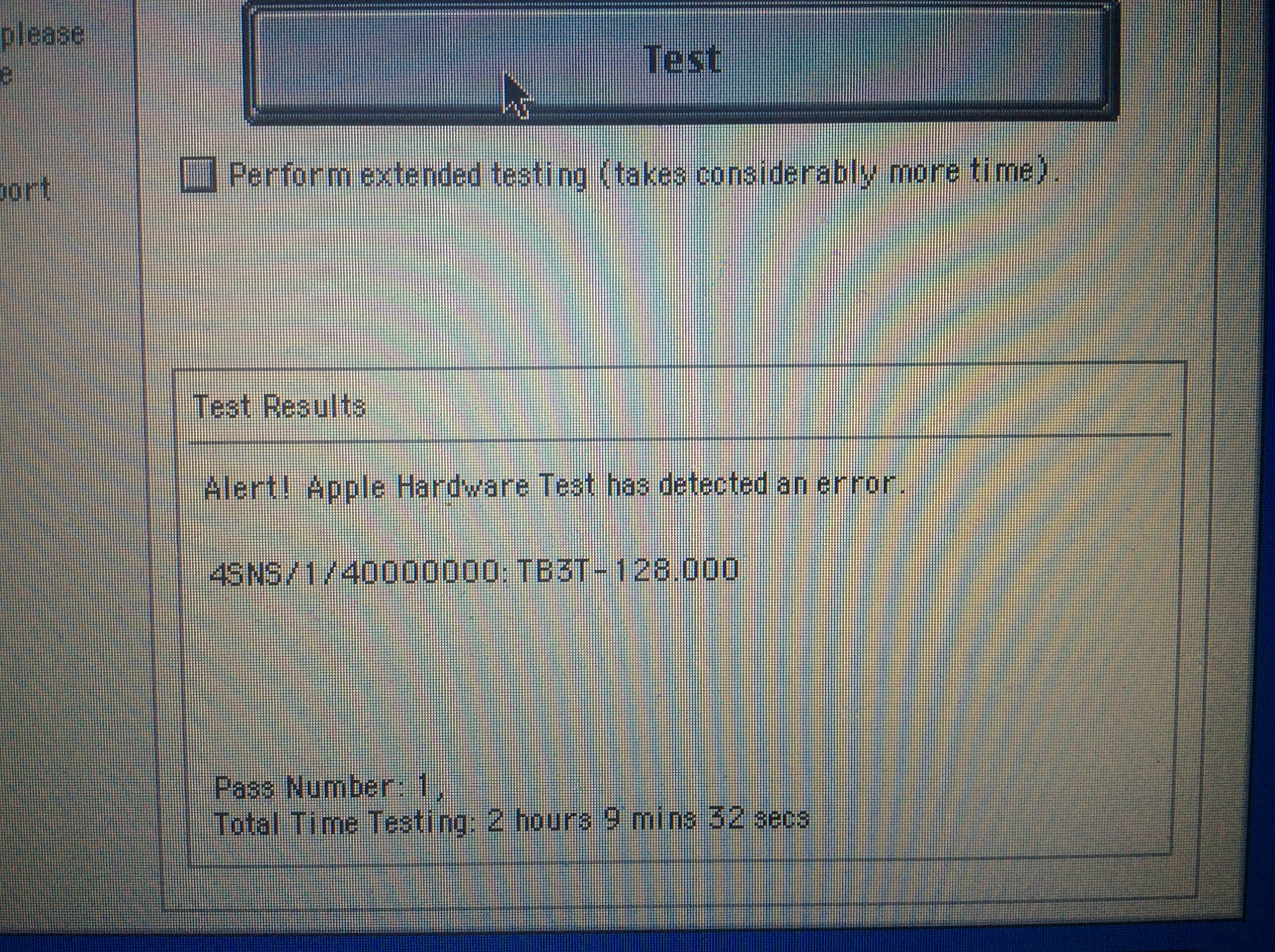

    from mbp5,5:
    (tried to install crucial bx200)
    --- Post Merged, Apr 21, 2016 ---
    Googled it a bit. Looks like OWC's batteries does not have same sensor than Apple's...

  2. Weaselboy Moderator

    Weaselboy

    Staff Member

    Joined:
    Jan 23, 2005
    Location:
    California
    #2
    If you decipher that code using this site, that looks like a bad battery sensor. Did you just replace the battery?

  3. DeltaMac, Apr 21, 2016
    Last edited: Apr 21, 2016

    DeltaMac macrumors 604

    DeltaMac

    Joined:
    Jul 30, 2003
    Location:
    Delaware
    #3
    Correct. The failure code indicates a battery thermal sensor error. The codes may not apply with non-Apple replacement parts. If you have replaced Apple's battery with a third-party battery, then that's what you have.
    If your battery appears to charge and work properly, and you don't have any other indications of other problems, then I think you can choose to ignore that error, as the hardware test will not support non-Apple parts.

    "tried to install Crucial BX200"
    Are you having a problem of some kind with your SSD? That would probably fail the hardware test, too. And would also be a hardware test error that you can ignore. Again, non-Apple hardware is not necessarily supported with any Apple test.

    You can complete the hardware test by leaving the battery out, and disconnecting your SSD.

  4. toke lahti thread starter macrumors 68000

    Joined:
    Apr 23, 2007
    Location:
    Helsinki, Finland
    #4
    I'm doing Apple hardware test to this mbp5,5 now without battery or ssd/hdd.
    The install disks most likely belong to a mbp7,1.
    I also have mbp5,2 (my 17"er) disks.
    Can you use other model's hardware test?

  5. DeltaMac macrumors 604

    DeltaMac

    Joined:
    Jul 30, 2003
    Location:
    Delaware
    #5
    The hardware test will tell you very quickly that it "won't run on this hardware" - or something similar.

  6. Weaselboy Moderator

    Weaselboy

    Staff Member

    Joined:
    Jan 23, 2005
    Location:
    California
    #6
    No... those grey OEM disks are model specific.

  7. DeltaMac macrumors 604

    DeltaMac

    Joined:
    Jul 30, 2003
    Location:
    Delaware
    #7
    True, but you can try anyway. There is SOME overlap, but you would need to be lucky enough to have two different Macs that both would run the same hardware test. You used to see that on the older PowerPC Macs.

  8. toke lahti thread starter macrumors 68000

    Joined:
    Apr 23, 2007
    Location:
    Helsinki, Finland
    #8
    Well, The Hardware test reported no errors without battery and storage.
    But I still suspect that sata controller or something deeper is broken, since I have tried to install 10.6 to
    #1 original internal disk
    #2 original hdd as external (via firewire & seagate adapter)
    #3 new ssd internal
    #4 new ssd external
    #5 fully working other hdd internal
    #6 fully working other hdd external

    How hardware test could test hdd/ssd functioning if there's no storage attached?
    I'll give this mbp5,5 one final try: Hardware test without battery, but WITH ssd/hdd.

  9. DeltaMac macrumors 604

    DeltaMac

    Joined:
    Jul 30, 2003
    Location:
    Delaware
    #9
    The Apple hardware test will test Apple hardware. Do not expect it to test anything non-Apple. SSDs in particular will usually show a failure code on most Macs, even though everything is good. You just move on, ignore failures that are related to third-party hardware. If your need to actually test that SSD, then you will need to use some other method.

    Test storage (hard drive, SSD, etc) by formatting, then installing OS X, then boot your Mac from that drive. If that all works, then you likely have a good unit.

    With all those different options that you tried, the best one would be to make sure you have a good drive, in a good external case. Install OS X on ANOTHER Mac to that external drive. Move that OS X boot drive to your MBPro5,5 and try to boot. It's not your SATA controller if it won't boot through USB or Firewire. If the drive won't work on ANY connection, external or internal - and you are sure it is good, then you have a problem with the MBPro logic board. It may not be worth fixing at this point, unless you can find a replacement logic board at a good price.

  10. Fishrrman macrumors G3

    Joined:
    Feb 20, 2009
    #10
    OP wrote:
    "But I still suspect that sata controller or something deeper is broken, since I have tried to install 10.6 to
    #1 original internal disk
    #2 original hdd as external (via firewire & seagate adapter)
    #3 new ssd internal
    #4 new ssd external
    #5 fully working other hdd internal
    #6 fully working other hdd external"


    You said you "have tried to install".
    Does that mean that none of the installs were successful?

    If that's the case, it would point to something wrong with the installer file or the install process, and NOT with all those drives.

  11. toke lahti thread starter macrumors 68000

    Joined:
    Apr 23, 2007
    Location:
    Helsinki, Finland
    #11
    Well, now I used 10.6 install cd with my 17"er and installed os to that ssd externally connected via fw.
    Then booted the mbp5,5 and it went fine. Then I tried to see if it could download and install update to 10.6. -> infinite beachball. I also forgot to tell that install #6 also got to the point of welcome video (those were the days...).
    Booting with 17" was fine, so I guess the install disc is okay...

  12. toke lahti thread starter macrumors 68000

    Joined:
    Apr 23, 2007
    Location:
    Helsinki, Finland
    #12
    If I try to find replacing motherboard, does is there any info anywhere, about if the connecting parts are identical in mbp5,5, 7,1, 8,1 and 9,2?
    So that I could buy motherboard from any of these models and fit it to this 5,5's chassis?
