Can the FW 800 on new Mini handle a FW Hub?

Discussion in 'Mac mini' started by HiFiGuy528, Mar 31, 2009.

  1. HiFiGuy528 macrumors 68000

    HiFiGuy528

    Joined:
    Jul 24, 2008
    #1
    I am planing to expand my media server. I now have a 2 TB FW 800 external hard drive with the Mini, but I need more FW drives. Has anyone tried a FW800 hub? Will I lose any performance?

    Belkin Firewire 800 hub:

    [​IMG]

  2. Migsy macrumors newbie

    Joined:
    Jan 19, 2009
    Location:
    London, UK
    #2
    Why not just daisy chain from the extra hard drive? Any decent FW device should have two FW ports on it to allow daisy chaining (I do this with 2 hard disks with no problems whatsoever).

  3. HiFiGuy528 thread starter macrumors 68000

    HiFiGuy528

    Joined:
    Jul 24, 2008
  4. jnc macrumors 68020

    jnc

    Joined:
    Jan 7, 2007
    Location:
    Nunya, Business TX
    #4
    I can attest to this! I have 2 x 500GB externals, and they run fine! Just make sure you chain them correctly :)

  5. HiFiGuy528 thread starter macrumors 68000

    HiFiGuy528

    Joined:
    Jul 24, 2008
    #5
    Is there something I have to do other than Mini to HD, HD to HD? Does both HD mount and unmount automatically when sleep or shut down?

  6. jnc macrumors 68020

    jnc

    Joined:
    Jan 7, 2007
    Location:
    Nunya, Business TX
    #6

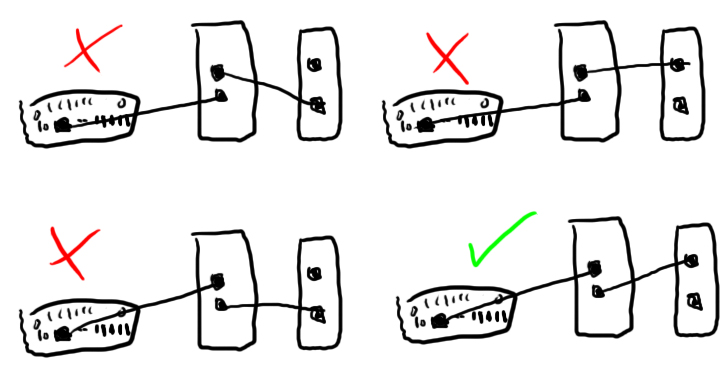

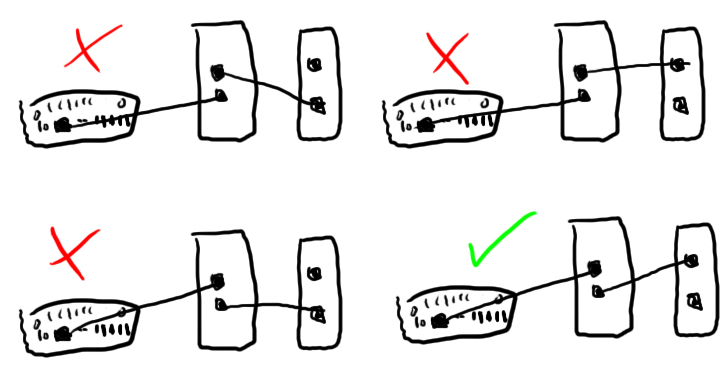

    Excuse my poor diagram!

    Couldn't tell ya, I never do that :)


    Attached Files:

  7. HiFiGuy528 thread starter macrumors 68000

    HiFiGuy528

    Joined:
    Jul 24, 2008
    #7
    Thank you for the diagram. I would have never thought it only works one way.

  8. jnc macrumors 68020

    jnc

    Joined:
    Jan 7, 2007
    Location:
    Nunya, Business TX
    #8
    It's for consistency chaining I imagine. Computer links to top port, bottom port connects to top port... rinse and repeat. :D

    And yes, the HDs automatically mount after restart as I just found out!

  9. batistuta macrumors regular

    Joined:
    Jan 15, 2008
    #9
    mixed 400 and 800?

    Do any of you guys know if it is possible to chain the following:
    a FW400 device - FireDTV (Digital Cable TV receiver) to
    a FW800 disk and then onwards to
    the FW800 port of the Mini? Does performance suffer (throttling back to 400-speed?)
    Could a FW hub handle the setup? If so, I could use the Western Digital Passport 2.5" 500GB external drive, but this has only one FW port, so no chaining.

  10. Sirmausalot macrumors 6502a

    Sirmausalot

    Joined:
    Sep 1, 2007
    #10
    From what I understand, if you attached an 800 and 400 to the same port, the entire chain drops to 400. You might want to test out some configurations, but perhaps use the FW port for the requisite FireDTV and then put the passport on a USB port (generally better not to daisy chain those sorts of things anyway I think). Devices and storage should be on totally separate chains/controllers. Try it and see how it works.
