iphonefreak450

macrumors 6502a
Original poster
Dec 14, 2014
848
158

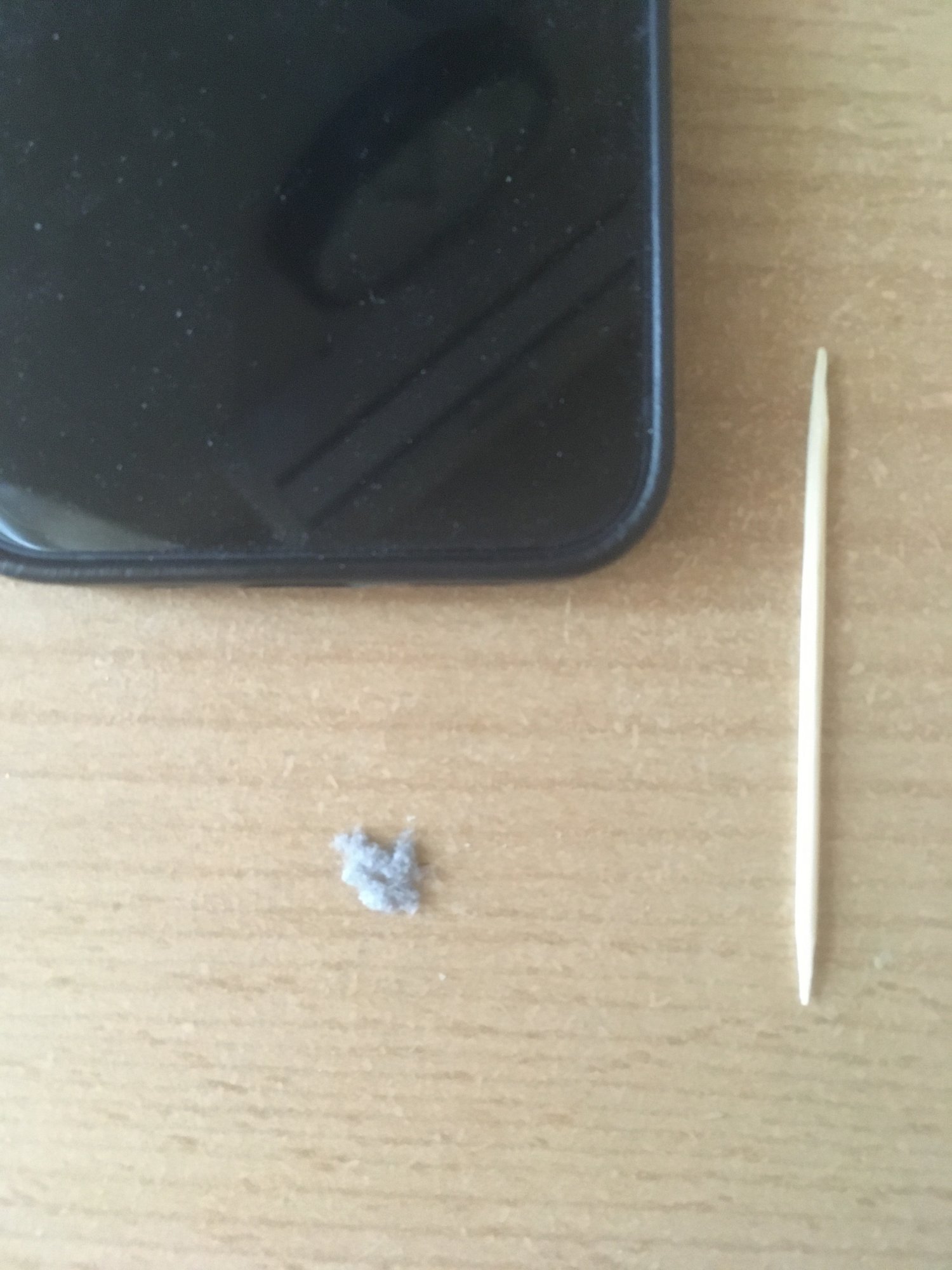

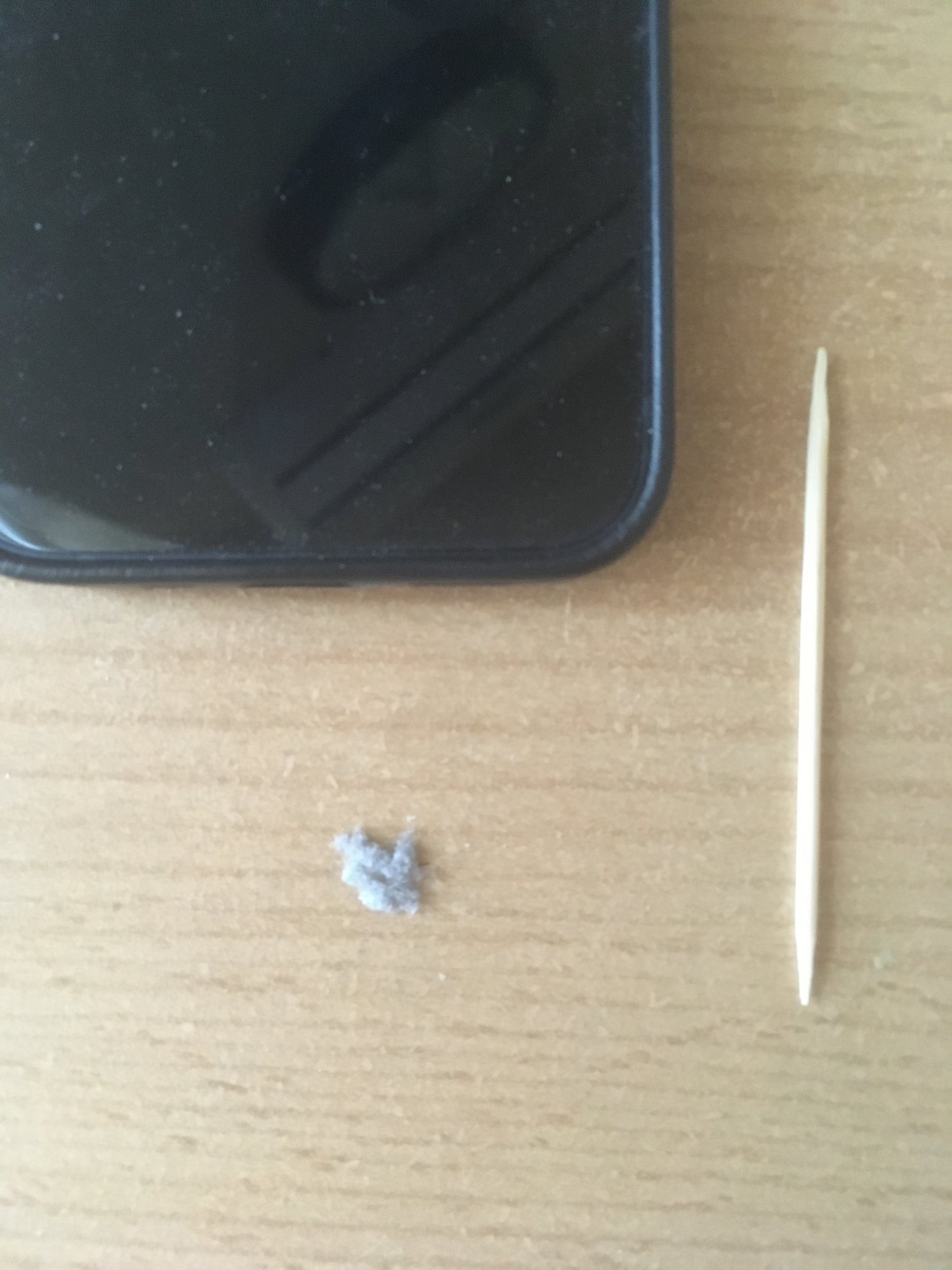

I managed to clean my iPhone 12 charging port using a wooden toothpick. First, I powered OFF the phone and then VERY GENTLY scraping inside the center of the port and came up with moderate dust and lint from the attached photo.

My question is, for future reference, once placing the toothpick inside the charging port, what exactly is the prefered movement of cleaning? Is it from right to left or from left to right? The way I've done it, is that my movment with the toohpick was from left to right keeping the toothpick in the cetner of the charging port. I do not know if the pins or springs are below or on top of the port assuming that the phone's screen is facing upwards. I did it with the phone screen facing upwards.

To avoid the pins from damage, how can I tell if the pins and springs are on top or below or on the sides of the port itself assuming that the phone is facing with the screen upwards?

I know for a fact that I did it keeping the toothpick at the center inside of the charging port and then GENTLY swiping it from the left to the right.

Please explain which would be the best tenchnique or movement when cleaning the dust out using a toothpick.


Attachments

  • IMG_0100[1].JPG
    295.3 KB · Views: 480
  • Like
Reactions: LFC2020
I know, that’s why my phone was not charging normally.

But once the toothpick is inside the connection port, which type of movement should be used? From left to right? From right to left? Or top to bottom when cleaning the connection port?

Just asking this because I’m afraid to damage the pins.

I did this as gently as possible under a light and using a magnifying glass but still couldn’t see where the pins or springs are.

Is there a diagram or a detailed picture on the layout of the pins inside the connection port?

Last edited:
Just hoover it with a mini hoover. 😉 Or blow some compressed air into it.
I've done this with my phones. That is a big piece of lint!! I've had ones that big too. I don't think direction matters as much as being gentle. I try to look into the port with a light to locate the lint and then gently probe that area with a wooden toothpick to delicately remove the problem. That way I'm not blindly swiping back and forth with the toothpick.

I've seen see examples of people using metal SIM ejectors to remove the lint. That scares me!! LOL

As long as you GENTLY remove the lint from the port it should not cause damage to the connection pins. And I also turned OFF my phone before doing all this.

Last edited:
There's a spring tab on each side of the port which are pretty strong. You won't damage them when carefully picking out lint with a toothpick.
The contact pins are on the top of the port. They're more like contact surfaces than actual pins. There's nothing on the bottom of the port. There's also nothing at the end of the port.
It's best to get a good magnifying glass and a flashlight to be able to actually see what's going on inside the port.
If you're careful and scared, you won't damage anything. Just be gentle.

  • Like
Reactions: !!!

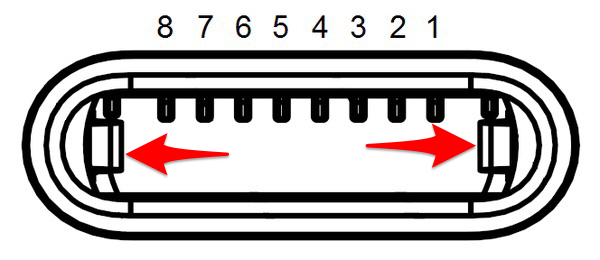

I found a diagram of how the insides of the connection port looks like. Based on your response and explanation, is this what your referring to?

Would this diagram of the port be the same for the iPhone 12 Mini?

And by looking at the port diagram, is this assuming that the phone is held screen up or screen down?


Attachments

  • C1C7D887-2B3A-4EFC-9D87-1AFC24F4E2CA.png
    117.2 KB · Views: 196
Last edited:
Look inside the port with a magnifying glass and flashlight. You'll see for yourself. You'll need it anyway to verify if the port is cleaned out or not

Checked with magnifying glass and it seems that the pins are on the top when the phone or connection port is viewed with the screen side facing down. The drawing looks misleading if that is the case.

Anyways, the most important thing to keep in mind when cleaning the port is just GENTLY picking out the lint.

Just out of curiosity, jhow many of you face this issue with lint building up over time?
I wear jeans, and the lint still becomes an issue even when I slide the phone in my pocket with the port connector facing upwards...

If lint accumulation in the port is a problem, there are little silicon port plugs available (ebay) that you can plug into the port to keep dirt out when not charging. I've never used one and they're really small so would likely be easy to lose -so purchasing several would be a good idea

Is it really necessary to turn OFF the phone before cleaning the lint out with a wooden toothpick?

OP, consider getting a port cover. It would save you from having to go through this kind of thing,

As an Amazon Associate, MacRumors earns a commission from qualifying purchases made through links in this post.
I will order these plugs, thanks!

But in the meantime, I can see some more lint in the port. So let me ask again to be on the safe side if I can leave the phone powered ON during the cleaning process with a wooden toothpick?

I used a paper clip on my iPhone 6 a few years ago. Lots of lint and no subsequent charging problems.

I get the comedy within all this. But if you have a phone that won’t charge correctly, it’s no ******* joke. Buncha comics in this thread should be ashamed.

Remove the lint. If that’s the issue. Enjoy the phone.

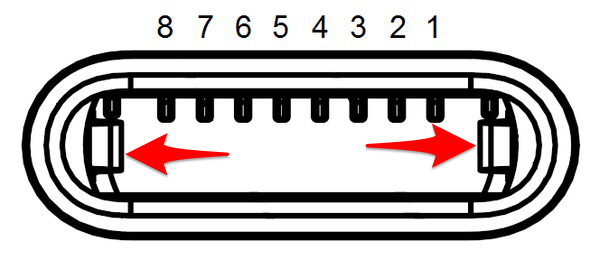

I found a diagram of how the insides of the connection port looks like. Based on your response and explanation, is this what your referring to?

Would this diagram of the port be the same for the iPhone 12 Mini?

And by looking at the port diagram, is this assuming that the phone is held screen up or screen down?
All ports since iPhone 5 are the same. Even the miserable USB 2 speed;)
