Connecting AirportExpress to router

I

int79

macrumors 6502a
Original poster
Sep 28, 2013
608
133
Hi all,

I was wondering if anyone could tell me if its possible to connect an AirportExpress to a router but not in bridge mode as I need the guest networking feature. Any help on this would be great as I keep getting double nat error messages. I'm using a D-Link router from TalkTalk.

Thanks everyone! :)

You can certainly use guest mode when you set up the AE as an AP (Bridge Mode). I know my latest-gen AE can.

Nt79 said:
Hi all,

I was wondering if anyone could tell me if its possible to connect an AirportExpress to a router but not in bridge mode as I need the guest networking feature. Any help on this would be great as I keep getting double nat error messages. I'm using a D-Link router from TalkTalk.

Thanks everyone! :)
Click to expand...

Why is double NAT a problem for you ? What do you need to connect to the DLink router ?

Nt79 said:
Hi all,

I was wondering if anyone could tell me if its possible to connect an AirportExpress to a router but not in bridge mode as I need the guest networking feature. Any help on this would be great as I keep getting double nat error messages. I'm using a D-Link router from TalkTalk.

Thanks everyone! :)
Click to expand...
Yes you can.

The double nat message is a warning message, not an error message.

It just let you know that you have a double nat setup, which is not a problem.

However, you must set the AE so that the IP addresses it assigns are not in the same range than the ones from the D-Link.

I mean if the D-Link routeur has a 192.168.1.x range, the AE must have a 192.168.2.x
range for instance. (or 10.0.1.x depending of your AE and Airport Utility version).

Last edited:
Double-NAT will prevent AirPlay from working if you have Apple TV or other AirPlay devices on the network. Also one benefit of Guest Wifi is that it allows you (on your main wifi) access to your network while guests only see Internet; if double-NATed you're giving both main and guest wifi networks the same level of access to your LAN.

Thanks for the help everyone, so far what I've attempted was to set the AE to connect to the internet using static IP and I put the d-link's ip in here then set the wifi as DHCP only and set the range as 192.168.1.100 it won't let me change it to 192.168.2.something. So as I see it now is the d-link is handling nat and the AE is doing DHCP, and at the moment all seems to he ok but I'm a networking noob so this could be totally wrong :)

----------
FreakinEurekan said:
Double-NAT will prevent AirPlay from working if you have Apple TV or other AirPlay devices on the network. Also one benefit of Guest Wifi is that it allows you (on your main wifi) access to your network while guests only see Internet; if double-NATed you're giving both main and guest wifi networks the same level of access to your LAN.
Click to expand...

When I had double nat airplay worked fine and guest network couldn't access it, all my network devices are connected to the AE if that makes a difference?

----------
Bruno09 said:
Yes you can.

The double nat message is a warning message, not an error message.

It just let you know that you have a double nat setup, which is not a problem.

However, you must set the AE so that the IP addresses it assigns are not in the same range than the ones from the D-Link.

I mean if the D-Link routeur has a 192.168.1.x range, the AE must have a 192.168.2.x
range for instance. (or 10.0.1.x depending of your AE and Airport Utility version).
Click to expand...

Thanks Brunon09
How do I do this? All of the IP address it greyed out except the bit after 192.168.1.

Nt79 said:
Thanks Brunon09
How do I do this? All of the IP address it greyed out except the bit after 192.168.1.
Click to expand...
Many things depend on your version of the AE and Airport utility.

If you are using a 7.6.4 AE and Airport utility 6.3, set up the AE as follows :

Internet : Connexion : via DHCP (you don't need a static IP here).

Wireless : Create a wireless network

Network : DHCP + NAT
The IP adresses will go from 10.0.1.2 to 10.0.1.200
(you no longer have the choice for 192.168.2.x as with previous versions of AE and/or AU).

Any device connecting to your D-Link network will get an IP adress in the 192.168.1.x range. (192.168.1.2 to 192.168.1.100 for instance).

Any device connecting to your AE network will get an IP adress in the 10.0.1.2 to 10.0.1.200 range

In previous versions of AE software and/or Airport utility, when choosing DHCP + NAT you could set a 192.168.2.x DHCP range.
This is no longer the case in 7.6.4AE and 6.3AU.

Last edited:
Bruno09 said:
Many things depend on your version of the AE and Airport utility.

If you are using a 7.6.4 AE and Airport utility 6.3, set up the AE as follows :

Internet : Connexion : via DHCP (you don't need a static IP here).

Wireless : Create a wireless network

Network : DHCP + NAT
The IP adresses will go from 10.0.1.2 to 10.0.1.200
(you no longer have the choice for 192.168.2.x as with previous versions of AE and/or AU).

Any device connecting to your D-Link network will get an IP adress in the 192.168.1.x range.

Any device connecting to your AE network will get an IP adress in the 10.0.1.2 to 10.0.1.200 range
Click to expand...

So what must go in the connect to the internet bit? :/ The address of the Dlink? And I need to have network as DHCP and NAT to set the ip addresses? And is changing the IPs set by the AE creating a subnet?

What versions of AE, AE software and AU are you using ?

Internet / Connect using : DHCP

Network / Router mode : DHCP + NAT

Just changed the language of my system to English and my AE setup (formerly in bridge mode) to that new setup, here is the result :



My computer connected to the new network gets a 10.0.1.x address :




The blinking orange led and the warning red dot are normal in double NAT with these versions of AE and AU.

Last edited:
Bruno09 said:
What versions of AE, AE software and AU are you using ?

Connect to the Internet : via DHCP

Router mode : DHCP + NAT
Click to expand...

The latest on my Mac and the latest App on iPad, I don't know the version number but I will check, I set connect to Internet as DHCP like you said and network as DHCP an NAT. I'm still getting double NAT message but all seems to be working fine, the Dlink is giving ips out 192.168.1.x and AE is giving out 192.168.2.x so the only device with 192.168.1.x is AE then all my network devices have 192.168.2.x

Thanks so much for you help!! :D

----------
Bruno09 said:
What versions of AE, AE software and AU are you using ?

Internet / Connect using : DHCP

Network / Router mode : DHCP + NAT

Just changed my AE setup (formerly in bridge mode) to that new setup, here is the result :

[url=http://fotoforum.fr/photos/2013/10/26.1.png]Image[/url]

My computer connected to the new network gets a 10.0.1.x address :
[url=http://fotoforum.fr/photos/2013/10/26.2.png]Image[/url]

[url=http://fotoforum.fr/photos/2013/10/26.3.png]Image[/url]

The blinking orange led and the warning red dot are normal in double NAT with these versions of AE and AU.
Click to expand...


So having double NAT is not necessarily a problem?

Good news !

So you probably have a 6.3 AE version, not 7.x, you can check here (7.6.4 in my case):



With DHCP + NAT you were able to set a 192.168.2.x range, that is ok.

The AE gets an IP address from the D-Link, so it is in the 192.168.1.x range.

Nt79 said:
So having double NAT is not necessarily a problem?
Click to expand...
It is not a problem, but you must be aware of it, that's why you get a warning message.

Bruno09 said:
Good news !

So you probably have a 6.3 AE version, not 7.x, you can check here (7.6.4 in my case):

[url=http://fotoforum.fr/photos/2013/10/26.4.png]Image[/url]

With DHCP + NAT you were able to set a 192.168.2.x range, that is ok.

The AE gets an IP address from the D-Link, so it is in the 192.168.1.x range.


It is not a problem, but you must be aware of it, that's why you get a warning message.
Click to expand...

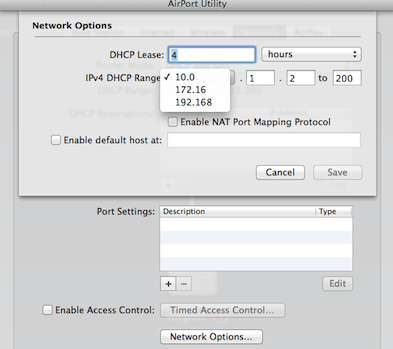

I have the newest one, same as you 7.6.4 I could only use 10. when setting things from my mac but from my iPad (device I'm on now) I could use the 192.168.2.x range in DHCP and NAT

So it depends on the AU version : in 5.6 on Mac you can create a 192.168.2.x range.

In 6.3 you only have 10.1. as you said. (EDIT : wrong, see below).

Nt79 said:
all my network devices have 192.168.2.x
Click to expand...
But you still can connect your devices to the D-Link network if you wish.

Remember that devices connected to one network can't see the devices connected to the other network.

This is one of the reasons you get a double NAT warning.

Last edited:
Bruno09 said:
So it depends on the AU version : in 5.6 on Mac you can create a 192.168.2.x range.

In 6.3 you only have 10.1. as you said.


But you still can connect your devices to the D-Link network if you wish.

Remember that devices connected to one network can't see the devices connected to the other network.

This is one of the reasons you get a double NAT warning.
Click to expand...

So you mean devices connected to Dlink can't see devices on AE? And it's odd how apple seem to take features out of AU in more recent versions

Nt79 said:
When I had double nat airplay worked fine and guest network couldn't access it, all my network devices are connected to the AE if that makes a difference?
Click to expand...

Yes, that would make a difference. All of your network devices were double-NATed together, so they could still talk to one another.
