Converting Questions

Discussion in 'Apple TV and Home Theater' started by johnryjr, Dec 22, 2010.

  1. johnryjr macrumors regular

    Joined:
    Oct 12, 2007
    #1
    Hey. I'm using the below settings to try to start converting my dvd library. I just had a couple questions. Under the picture settings, on the bottom, it says "Source: 720x480" and "Output: 640x480." Does this mean the video is shrinking or something. I don't really understand why the number would be smaller.

    Also, about adding the audio thing. Could you explain that more because I don't see where to do that. I don't have a surround system at the moment but I only want to do this once. And when I view the details of the video in itunes, it shows the bitrate (i assume audio) in the 100s while videos i've purchased are in the 200s.


    Thanks,
    John

  2. Icculus macrumors 6502

    Joined:
    Jun 2, 2007
    Location:
    Frisco, TX
    #2
    John,

    I use the same settings, and I have already done over 600 discs using this preset and I think it kicks ass! So as for the video format, and why its different...I got nothing on that. Are these blu-ray or standard discs? As for the audio once you get everything else set for this preset, click on audio tab and you should see at least 1 audio track, maybe 2. The way I have it setup is the first audio track is AAC (CoreAudio), mixdown is Stereo, Sample is Auto and bitrate is 160. The second track, which you might have to create, needs to be codec of AC3 PASSTHRU and mixdown as AC3 PASSTHRU. Then save the preset and be sure to use picture size custom and make sure picture filters are checked. You can always test your preset to make sure its right by loading a source file once, selecting your preset and then loading it again because it will reload the preset. The reason I say this is because I thought my preset was golden until about ~60 dvd's in and realized it was not saving the picture settings correctly. So always test. Any other questions please ask as I have been in handbrake hell/heaven depending on the day for the past several weeks as I was in your boat of re-encoding all my discs using this new preset.

  3. johnryjr thread starter macrumors regular

    Joined:
    Oct 12, 2007
    #3

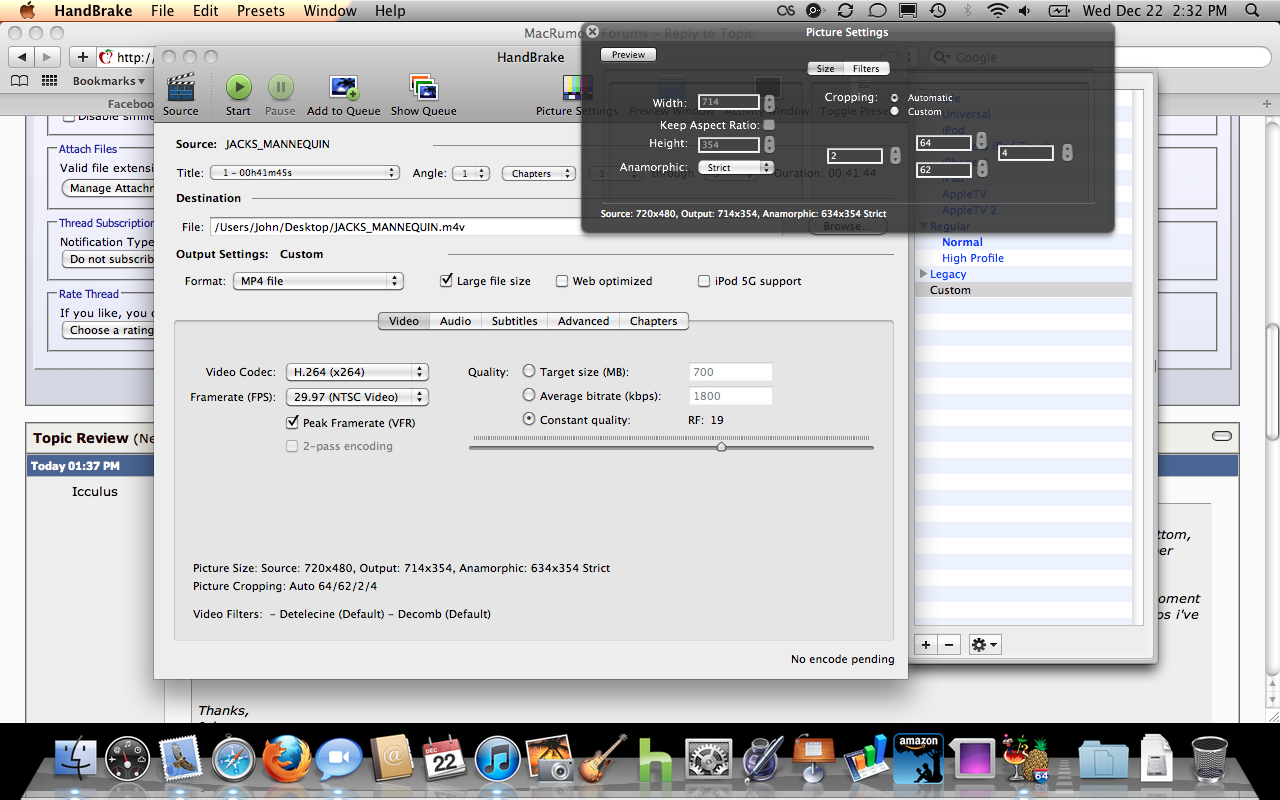

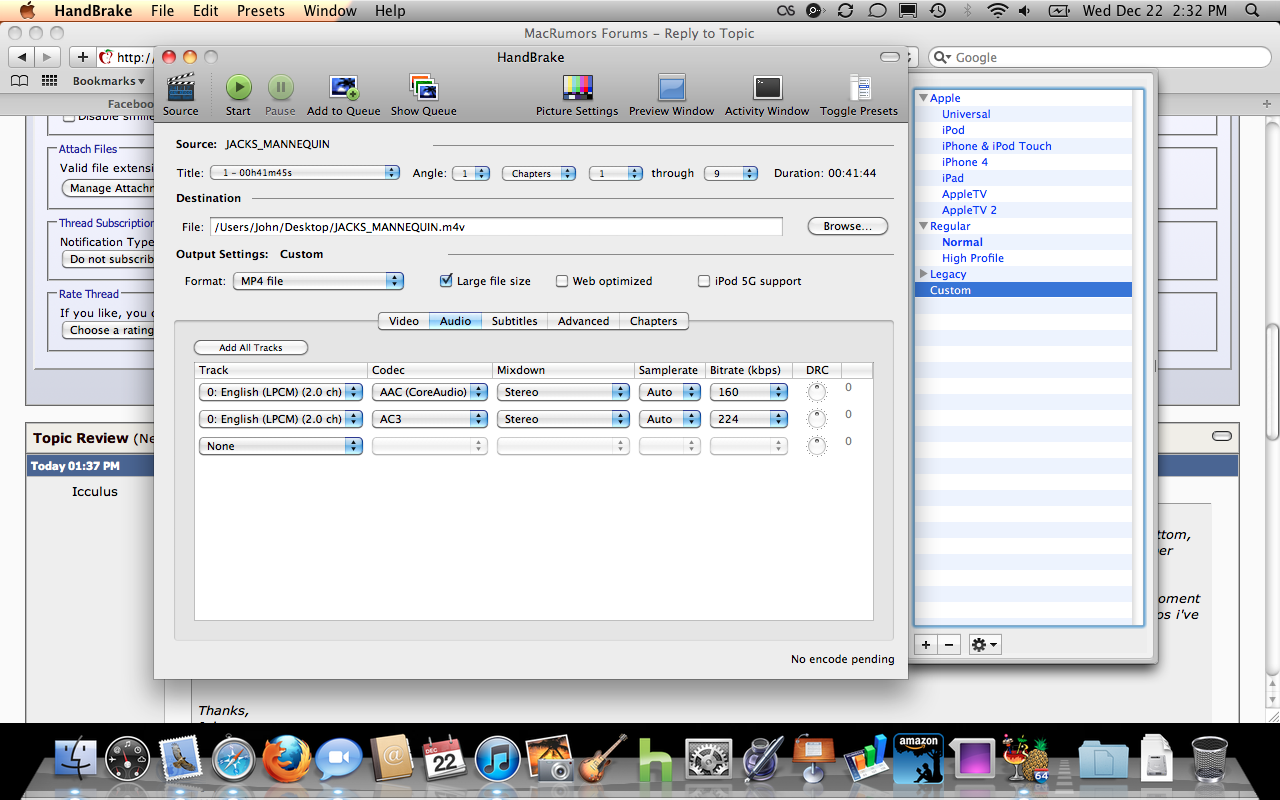

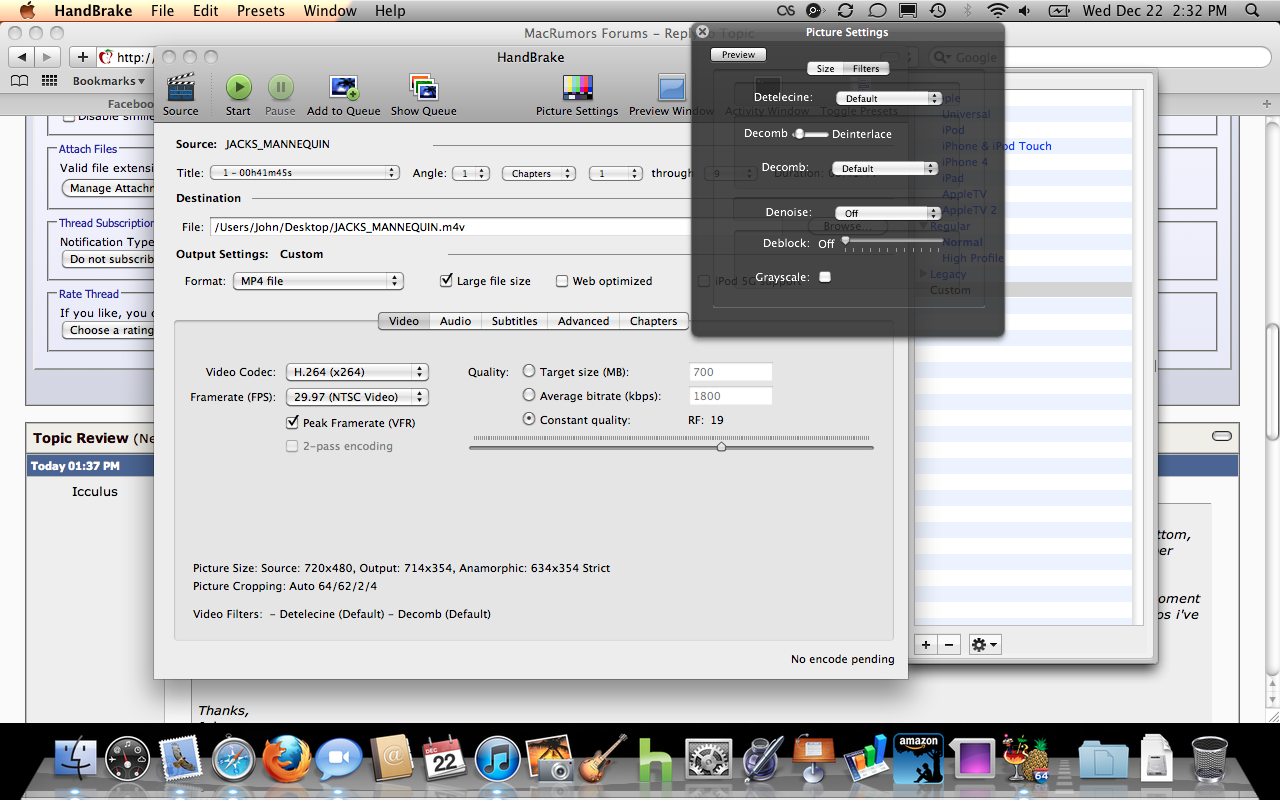

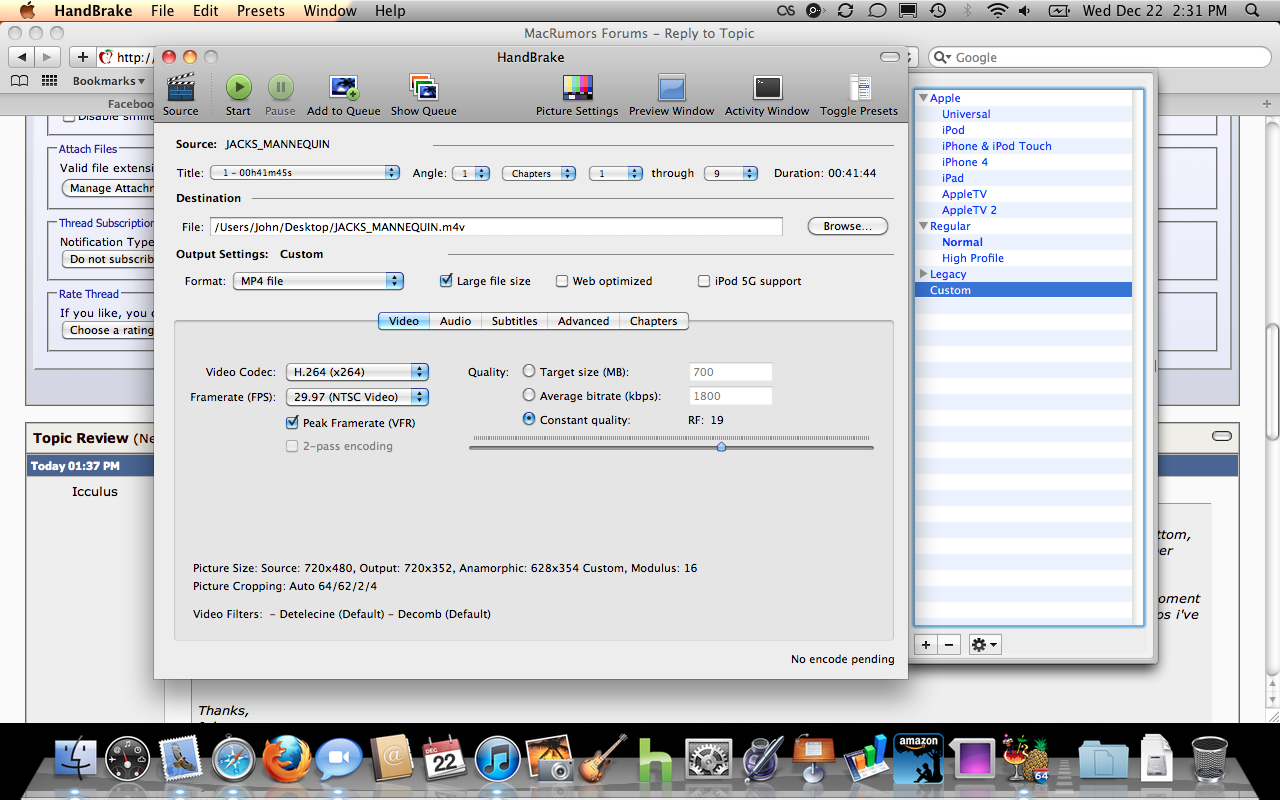

    Thank you for your help. I have attached screen shots of how I have my settings with a DVD in. I am only doing standard DVDs. I don't see that option in the audio drop down. Perhaps there are different options depending on the DVD? When the audio bitrate is at 160, is that the same as an audio file? I usually encode audio in 256. Hopefully the screenshots will help explain what I should change. (I am using last nights build.

    Thank You


    Attached Files:

  4. Icculus macrumors 6502

    Joined:
    Jun 2, 2007
    Location:
    Frisco, TX
    #4
    Well looking at the Audio settings, it looks like the DVD you are encoding does not offer an AC3 Passthru option, because the codec is set to AC3. I would try a few other discs and see if you can see the option for AC3 Passthru. When do you do make sure you set it correctly and save your preset again. This way all the discs that have Passthru w/AC3 will get it, others it will go to where your setting is currently.

    I do all my audio at 256kbps, but I am not sure how that translates into video. I just kind of figured since no other presets I have seen go above 160, I just leave it the way it is.

  5. ftaok macrumors 601

    ftaok

    Joined:
    Jan 23, 2002
    Location:
    East Coast
    #5
    OK, I'll try to explain ... but keep in mind, I'm not an expert.

    The resolution of standard TVs is 720x480 (NTSC). So DVDs are encoded in NTSC, so that's why your DVD is showing up as 720x480. Keep in mind, the pixels are not square with NTSC, they're actually rectangular.

    Now, depending on the movie/show on the DVD, the actual display resolution will depend on the aspect ratio. If the movie is 4:3, the player will decode the information and pinch the output to 640x480. If the movie is 16:9, the player will stretch it to 854x480.

    All of your devices need to be set-up correctly for this to work. In the old days when people had DVD players and CRT TVs, you needed to make sure the DVD player outputted 4:3. This way, widescreen movies played letterboxed and regular movies played full screen.

    There are variations on how DVDs are encoded, some older ones actually encoded the black bars.

    ft

  6. mike457, Dec 22, 2010
    Last edited: Dec 22, 2010

    mike457 macrumors 6502

    Joined:
    Sep 10, 2010
    Location:
    Ontario
    #6
    I do think you're making this hard on yourself. If you just choose the AppleTV2 preset, you will get results that are essentially the same as your custom settings, particularly as you are only doing standard DVDs. It will automatically create the necessary sound tracks both for surround sound and plain stereo. If I am correct about the dates, the person whose advice you have been following wrote his recommendations before Handbrake added the AppleTV2 preset. The only suggestion I would add is that if you are converting DVDs of TV programmes, you sometimes have to look out for interlacing in the original source. Those that are made from HD broadcasts are usually fine, but older TV show disks often have this issue.

    The AppleTV2 preset will give you files playable in all current ios devices.

  7. johnryjr thread starter macrumors regular

    Joined:
    Oct 12, 2007
    #7
    Thank you everyone for the help and advice. It is very much appreciated.

    John
