MP All Models Core X eGPU

fxps

macrumors member
Original poster
Feb 19, 2016
33
3
Hi everyone so I have a late 2013 Mac Pro aka trash can lol. I just got the razer core x with Vega 64. I was wondering if i can just connect it with thunderbolt 3 to 2.

Last edited:

StellarVixen

macrumors 68020
Mar 1, 2018
2,195
3,555
Earth
If you what? Mac Pro has PCIe support, why bother with eGPU???

Edit: forget it, I thought this was about cheese grater Mac Pro.


fxps

macrumors member
Original poster
Feb 19, 2016
33
3
If you what? Mac Pro has PCIe support, why bother with eGPU???
Weird it didnt post entire text sorry. I was told by Apple and a bunch of other sources in order to run my new 49” dell monitor at full resolution I would need the eGPU since the on board graphics card cant handle the 5120x1440 resolution


orph

macrumors 68000
Dec 12, 2005
1,880
391
UK
yep i cant see why it wont work, use a DP cable to the display and see if it works.

lot simpler than using an egpu


fxps

macrumors member
Original poster
Feb 19, 2016
33
3
yep i cant see why it wont work, use a DP cable to the display and see if it works.

lot simpler than using an egpu
I have tried everything :-( that’s why I went this route.

when I change it to the 5120x1440 setting it shows (low resolution)

Last edited:

orph

macrumors 68000
Dec 12, 2005
1,880
391
UK
what display is it? modle number

is it this one

blind gess as it was the first hit for dell 5120x1440

this may help

make sure your cable is DP1.2 or higher speck


edit ok not sure now after some google time you may need the EGPU if the display dose not suport dual DP inputs to drive it but not 100% as iv not used both the 2013 mp or a display like that

try this app and see what it shows

Last edited:

h9826790

macrumors G5
Apr 3, 2014
13,295
6,045
Hong Kong
when I change it to the 5120x1440 setting it shows (low resolution)
Isn't that exactly what you want.

"Low resolution" means no retina, that means exactly rendering and transmitting at 5120x1440.

That's the prefect resolution for a 49" 5120x1440 monitor.


fxps

macrumors member
Original poster
Feb 19, 2016
33
3
Isn't that exactly what you want.

"Low resolution" means no retina, that means exactly rendering and transmitting at 5120x1440.

That's the prefect resolution for a 49" 5120x1440 monitor.
it is what I want and need but the image is so stretched by menu bar doesn’t even show only 2 icons on the right of the screen.
what display is it? modle number

is it this one

blind gess as it was the first hit for dell 5120x1440

this may help

make sure your cable is DP1.2 or higher speck


edit ok not sure now after some google time you may need the EGPU if the display dose not suport dual DP inputs to drive it but not 100% as iv not used both the 2013 mp or a display like that

try this app and see what it shows
thank you for the help I will take a look but I did research for a good 3 weeks andkept getting same answers even Apple genius mentioned I would need the eGPU but I’ll for sure check out your suggestion as well


h9826790

macrumors G5
Apr 3, 2014
13,295
6,045
Hong Kong
it is what I want and need but the image is so stretched by menu bar doesn’t even show only 2 icons on the right of the screen.


thank you for the help I will take a look but I did research for a good 3 weeks andkept getting same answers even Apple genius mentioned I would need the eGPU but I’ll for sure check out your suggestion as well
Is there any screen capture / photos etc to illustrate how wrong the image is?

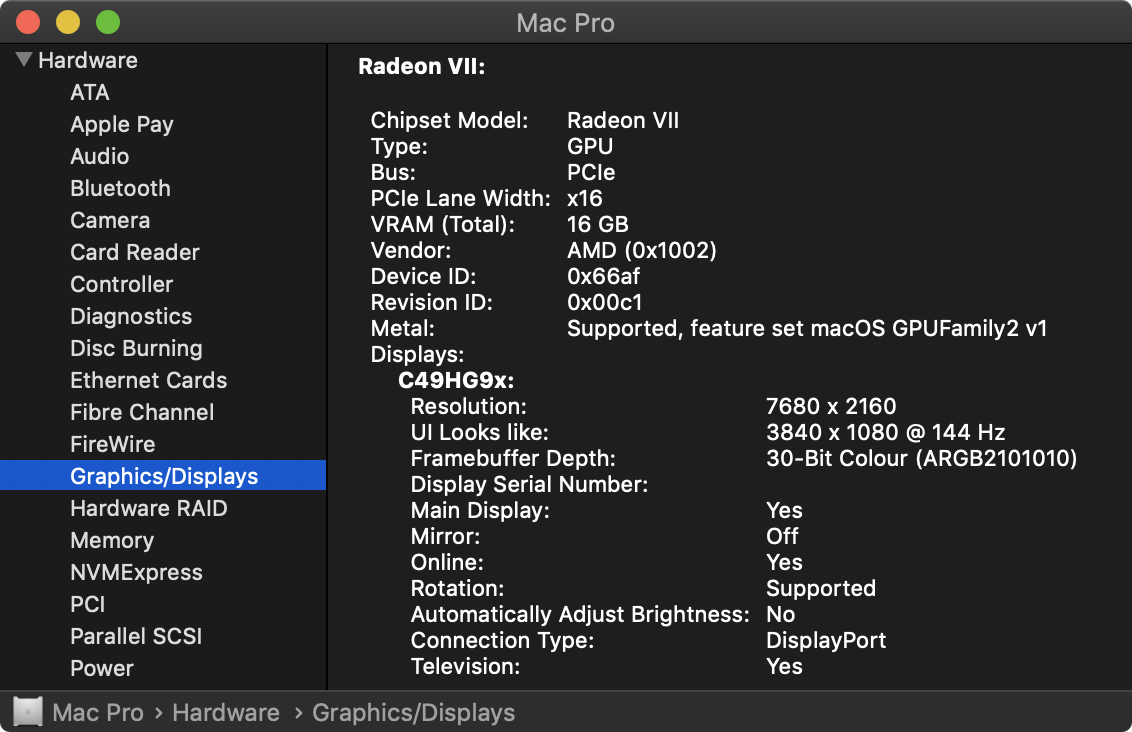

I am also using 32:9 monitor, but 3840x1080 @144Hz. So, you can see 5120x1440 @60Hz at here, right?
3840x1080 HiDPI.png

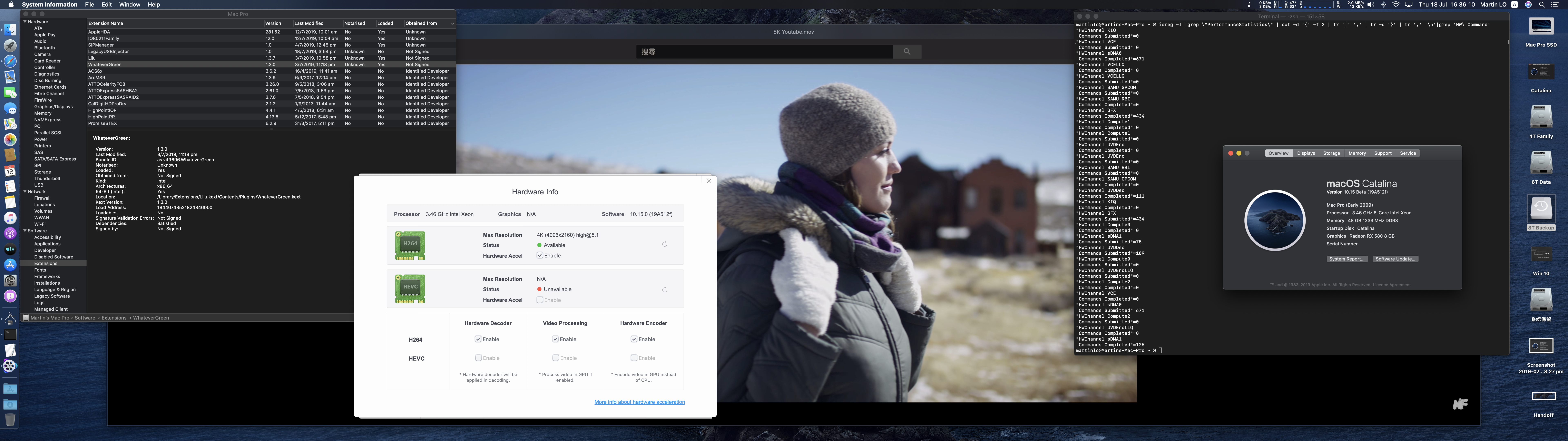

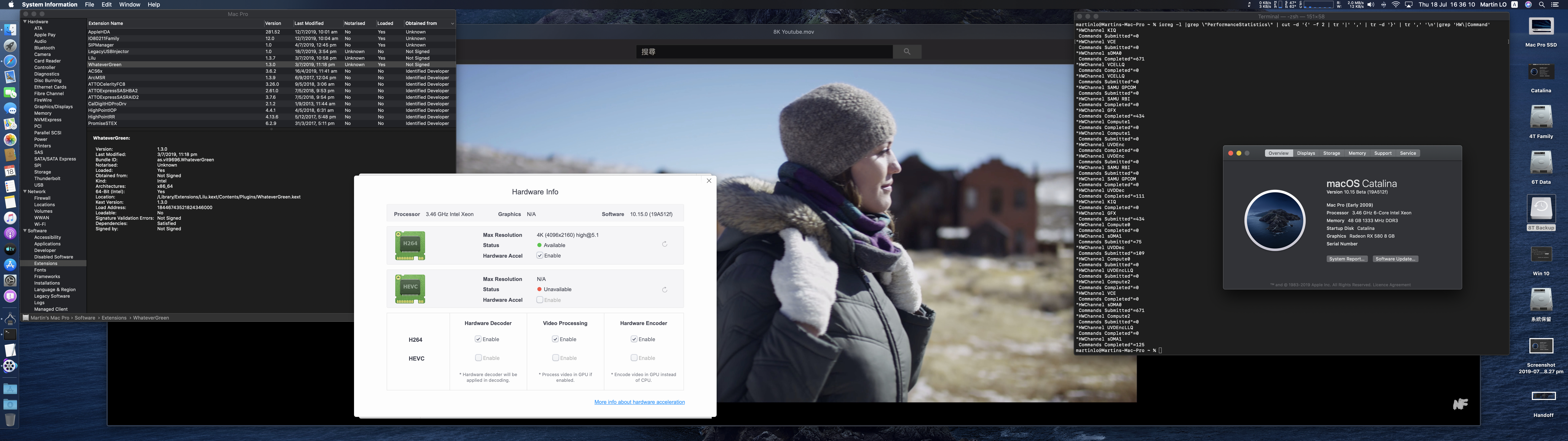

And the desktop looks like this.
HWAccel Catalina.jpg

  • Like
Reactions: orph

fxps

macrumors member
Original poster
Feb 19, 2016
33
3
So here is where I am at now.

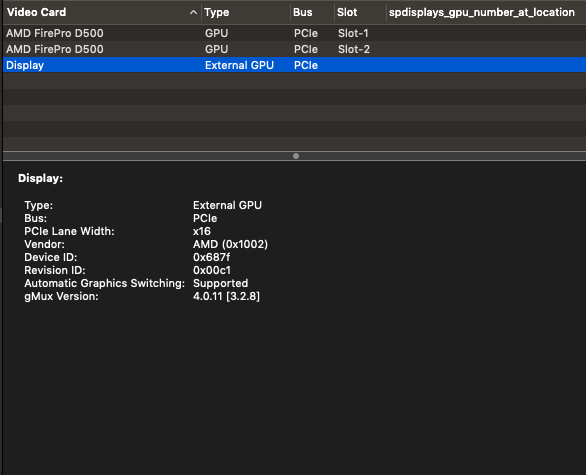

Got the Vega 64 in the Core X originally it showed up in the display as vega 64 but now only shows External GPU as shows below.


Screen Shot 2019-09-29 at 10.49.58 PM.png

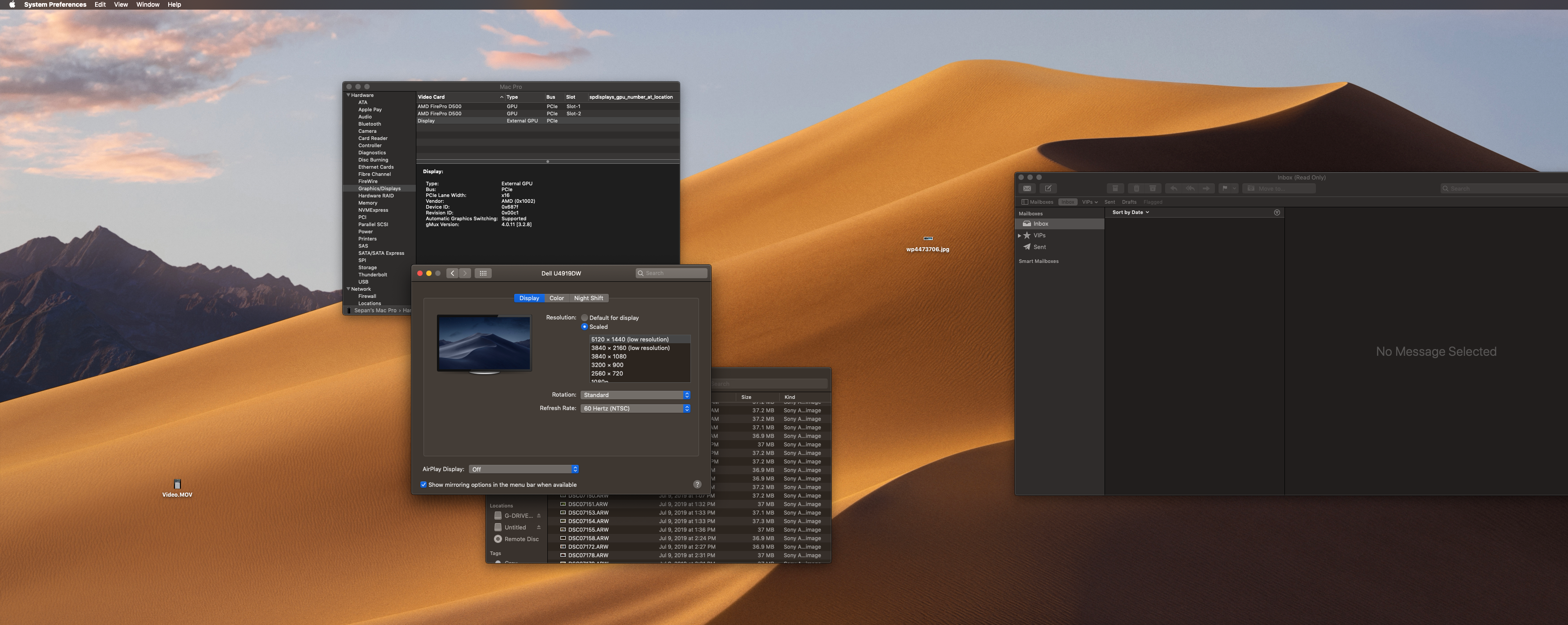

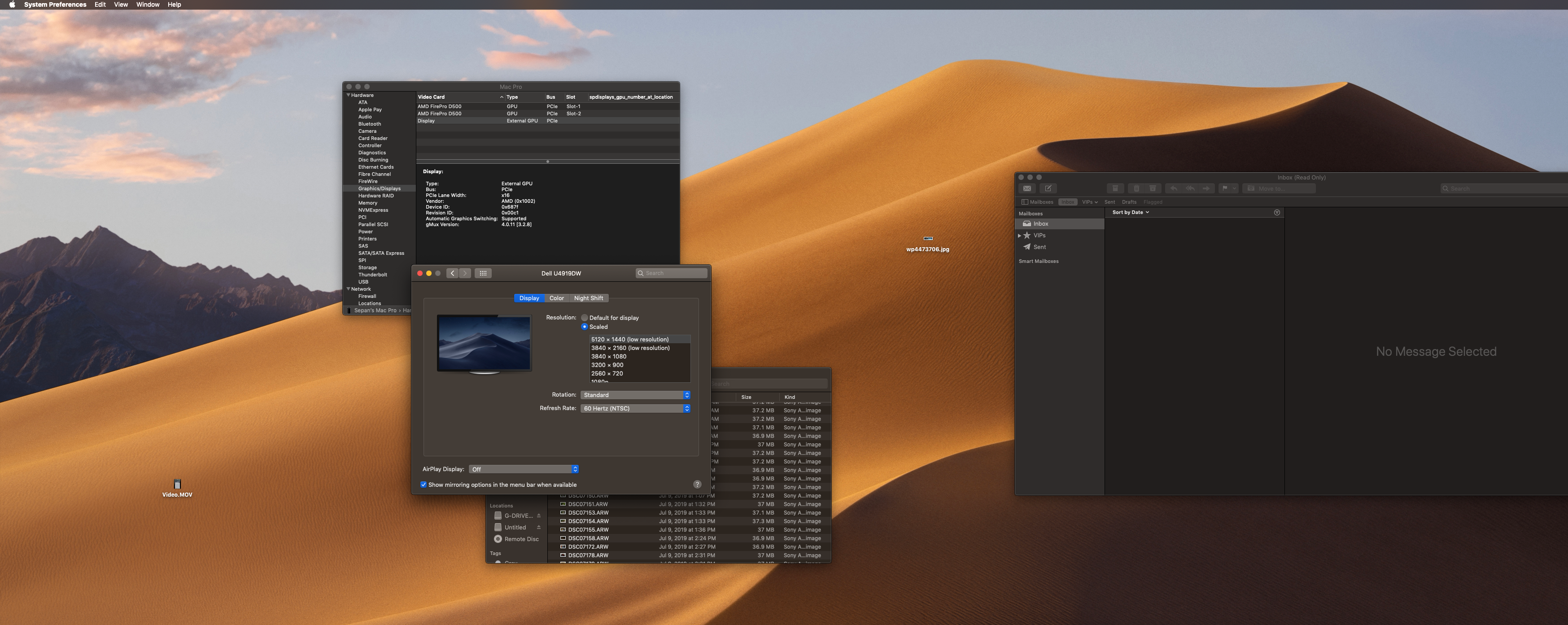

So when I try to take a screen shot of how bad the screen looks the screen shot shows perfect but everything is pixelized and stretched out. As you can see only shows half the screen and the menu bar is no where to be seen but the image is clean.

Screen Shot 2019-09-29 at 10.50.57 PM.png

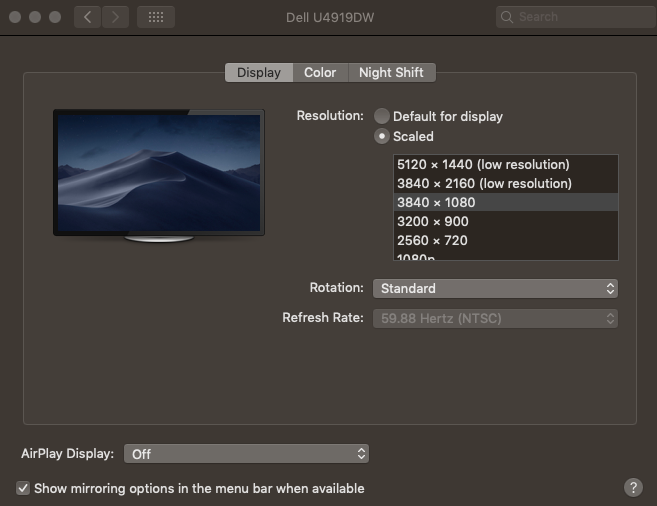

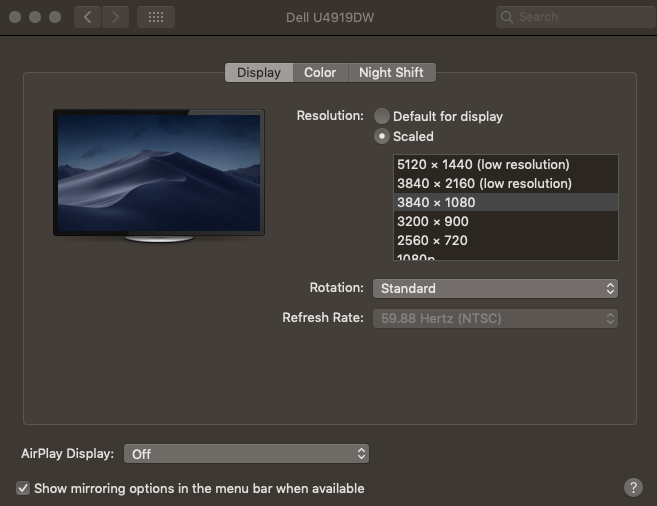

And this is what I mean where the options show "low resolution"


Screen Shot 2019-09-29 at 10.54.26 PM.png


orph

macrumors 68000
Dec 12, 2005
1,880
391
UK

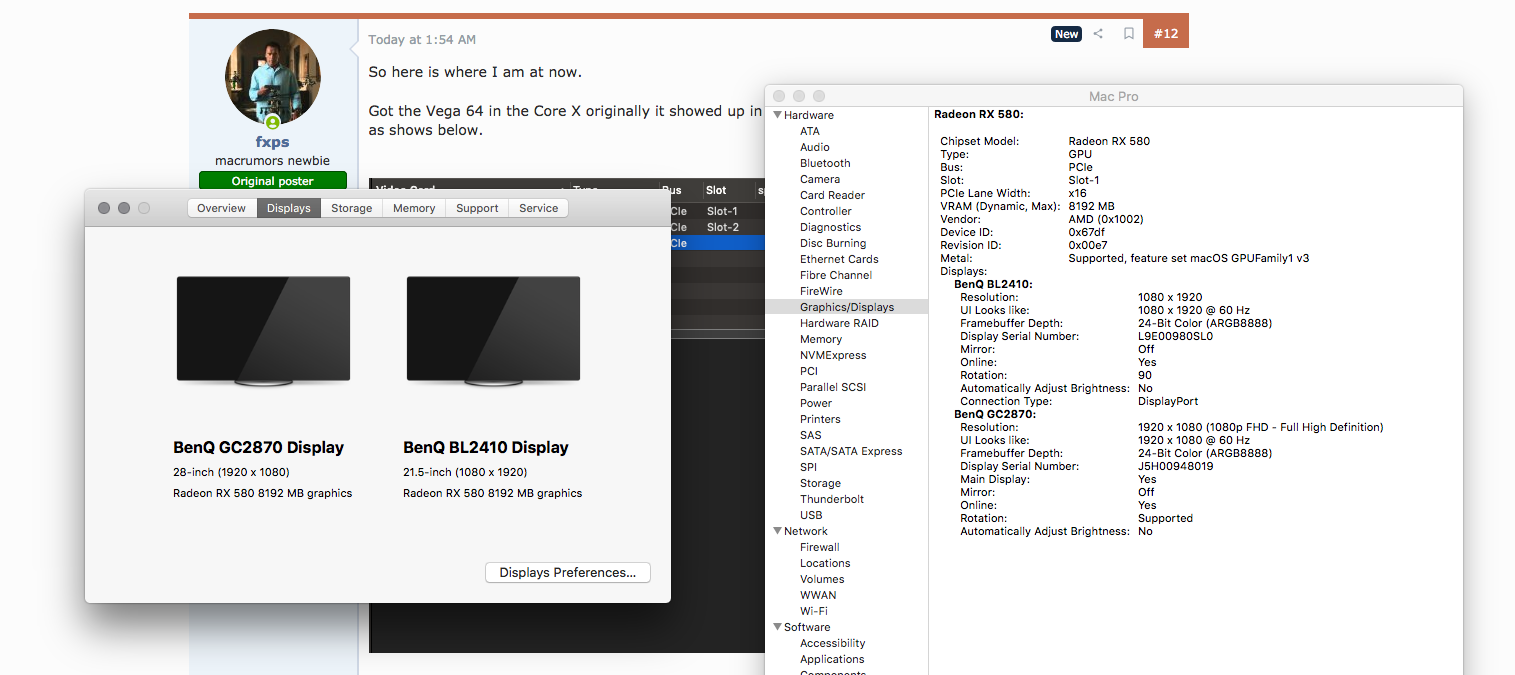

can you select 5120 x 1440 and take a screen shot?
it looks like you have the display set to a not native rez of 3840x1080, is that why it looks bad to you?

menu bar is no where to be seen
when you say you cant see the menu bar can you be more clear as i see it in the screen shot at the top of the screen, is it visible in the screen shot but not on the display?

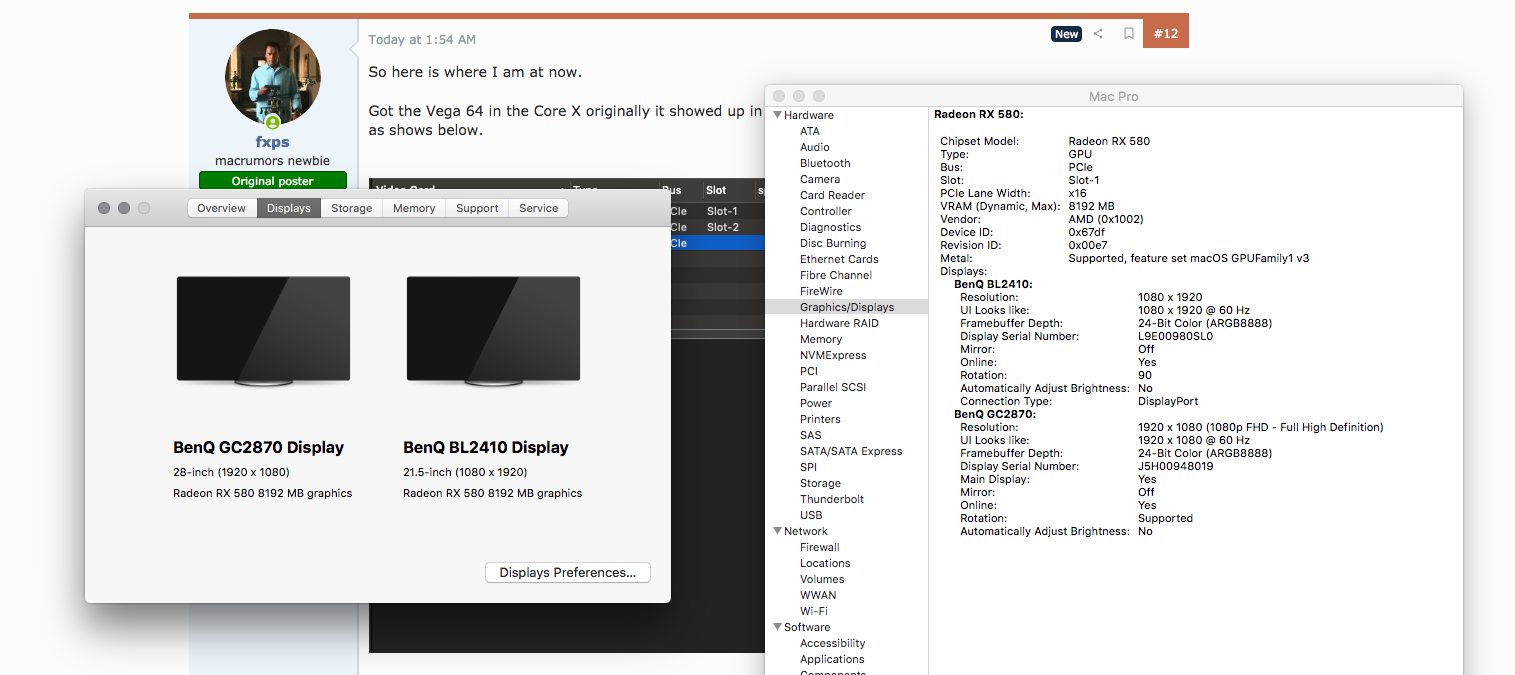

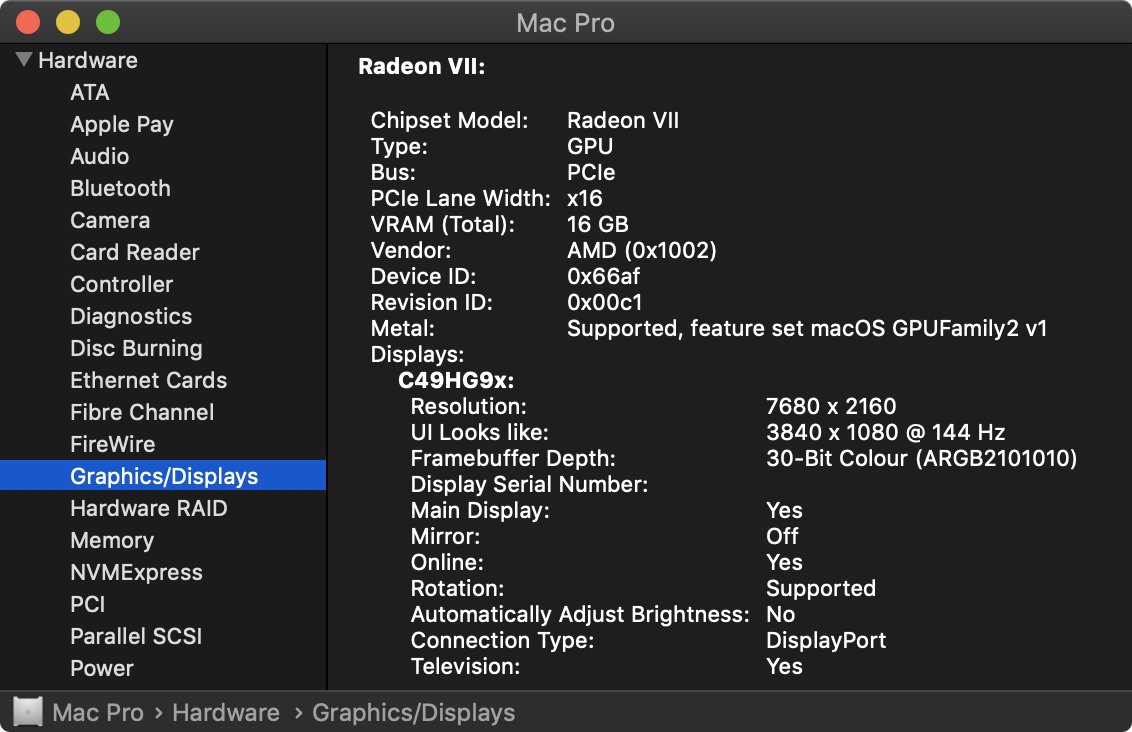

if you have time check what this part of system info says
Screen Shot 2019-09-30 at 8.31.24 am.png

edit i did notice the screenshot of the desktop you posted is 3495x1393 which is a odd size but im not sure if it's a full screen grab or if the forum has resized it?

o and ignore the bit where system prefes say low rez it may just be a bug or something, if you select that option and it makes the display show at native rezz than that's all you want.

may also be worth checking the displays OSD settings

  • Like
Reactions: fxps

h9826790

macrumors G5
Apr 3, 2014
13,295
6,045
Hong Kong
So here is where I am at now.

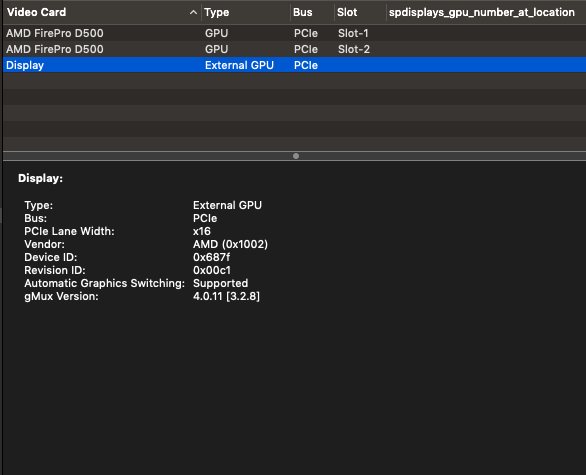

Got the Vega 64 in the Core X originally it showed up in the display as vega 64 but now only shows External GPU as shows below.


View attachment 865084

So when I try to take a screen shot of how bad the screen looks the screen shot shows perfect but everything is pixelized and stretched out. As you can see only shows half the screen and the menu bar is no where to be seen but the image is clean.

View attachment 865085


And this is what I mean where the options show "low resolution"


View attachment 865086
OK, now we mixed two things together.

How about we do it one by one?

First of all, remove the eGPU.

Then connect the monitor to the nMP directly. What do you get?

I understand that you’ve already try everything. But since we were not there, so, we need to know what will happen step by step in order to help.

Anyway, if your dell monitor has dual input, and can run two input side by side. You can actually connect two DP cables to the nMP, and make it like two 16:9 1440p monitor SBS with no gap.

Some item on the menu bar will be duplicated. But that may be a temporary solution.

Last edited:

h9826790

macrumors G5
Apr 3, 2014
13,295
6,045
Hong Kong

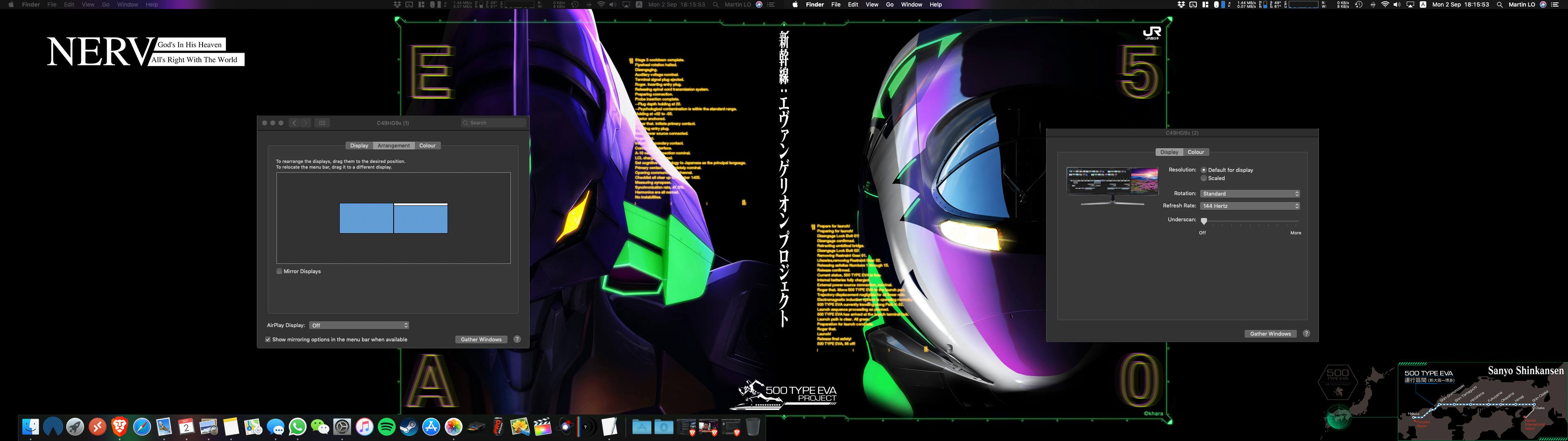

If I split my 32:9 monitor into two 16:9 input side by side, and also split my wallpaper to make them looks like from a single monitor, the Desktop will looks like this.

(P.S. the screen capture is photoshopped, because I am too lazy to mess up my real desktop icons / wallpaper. Therefore, the transparent part looks a bit wrong. But the menu bar, dock, system preferences are all real captures)

I actually put the dock on the LHS as per post #10 (the screen is so wide, IMO, better to keep this kind of permanent info on the left or right). But this screen capture can let you have better idea what will happen if you keep the dock at the bottom (with SBS input).

Last edited:
  • Like
Reactions: fxps

fxps

macrumors member
Original poster
Feb 19, 2016
33
3
can you select 5120 x 1440 and take a screen shot?
it looks like you have the display set to a not native rez of 3840x1080, is that why it looks bad to you?


when you say you cant see the menu bar can you be more clear as i see it in the screen shot at the top of the screen, is it visible in the screen shot but not on the display?

if you have time check what this part of system info says
View attachment 865096

edit i did notice the screenshot of the desktop you posted is 3495x1393 which is a odd size but im not sure if it's a full screen grab or if the forum has resized it?

o and ignore the bit where system prefes say low rez it may just be a bug or something, if you select that option and it makes the display show at native rezz than that's all you want.

may also be worth checking the displays OSD settings

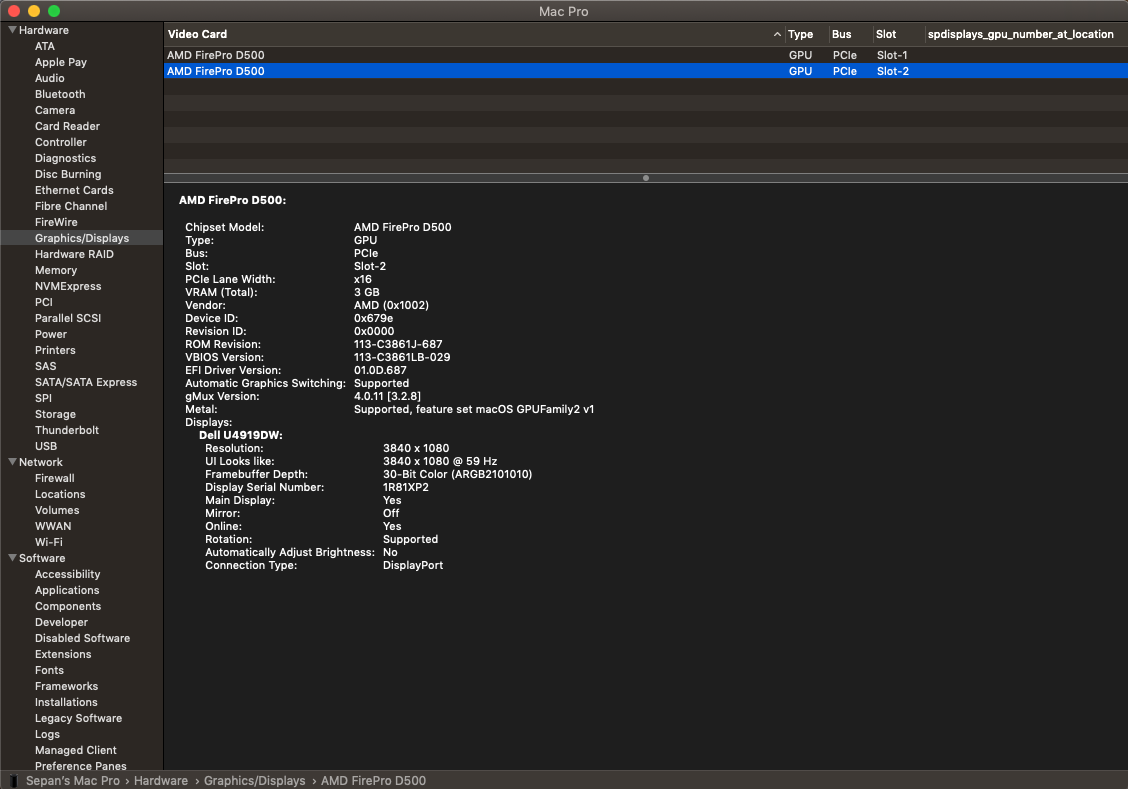

So the screen grab is not full screen grab because it does not show everything on the desktop. I will get all the information everyone mentioned above tonight and post them up here later today.

In regards to the menu bar mean the icons on the bottom it is not fully visible on the screen maybe 2-3 icons the rest are pushed off the screen.

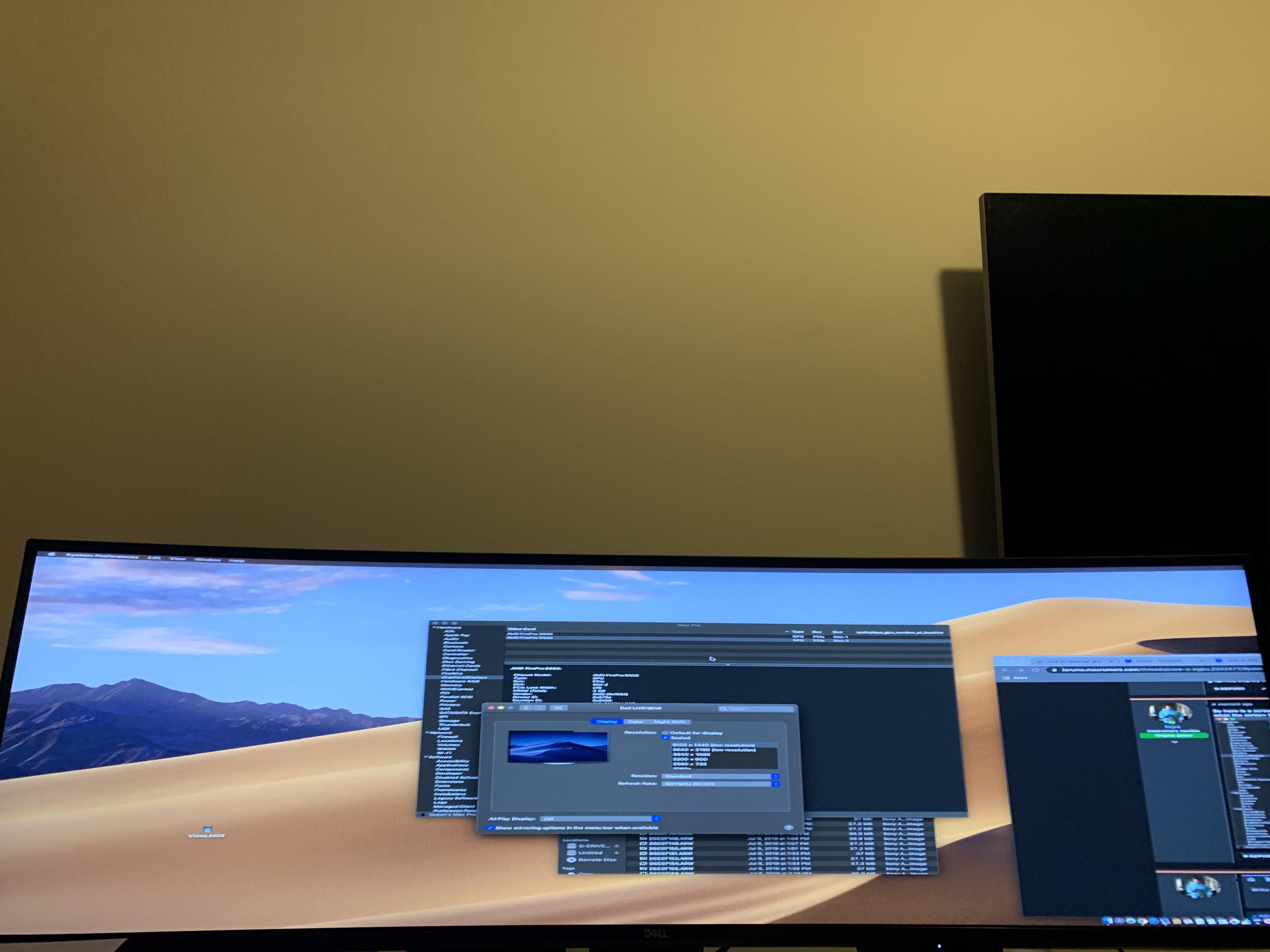

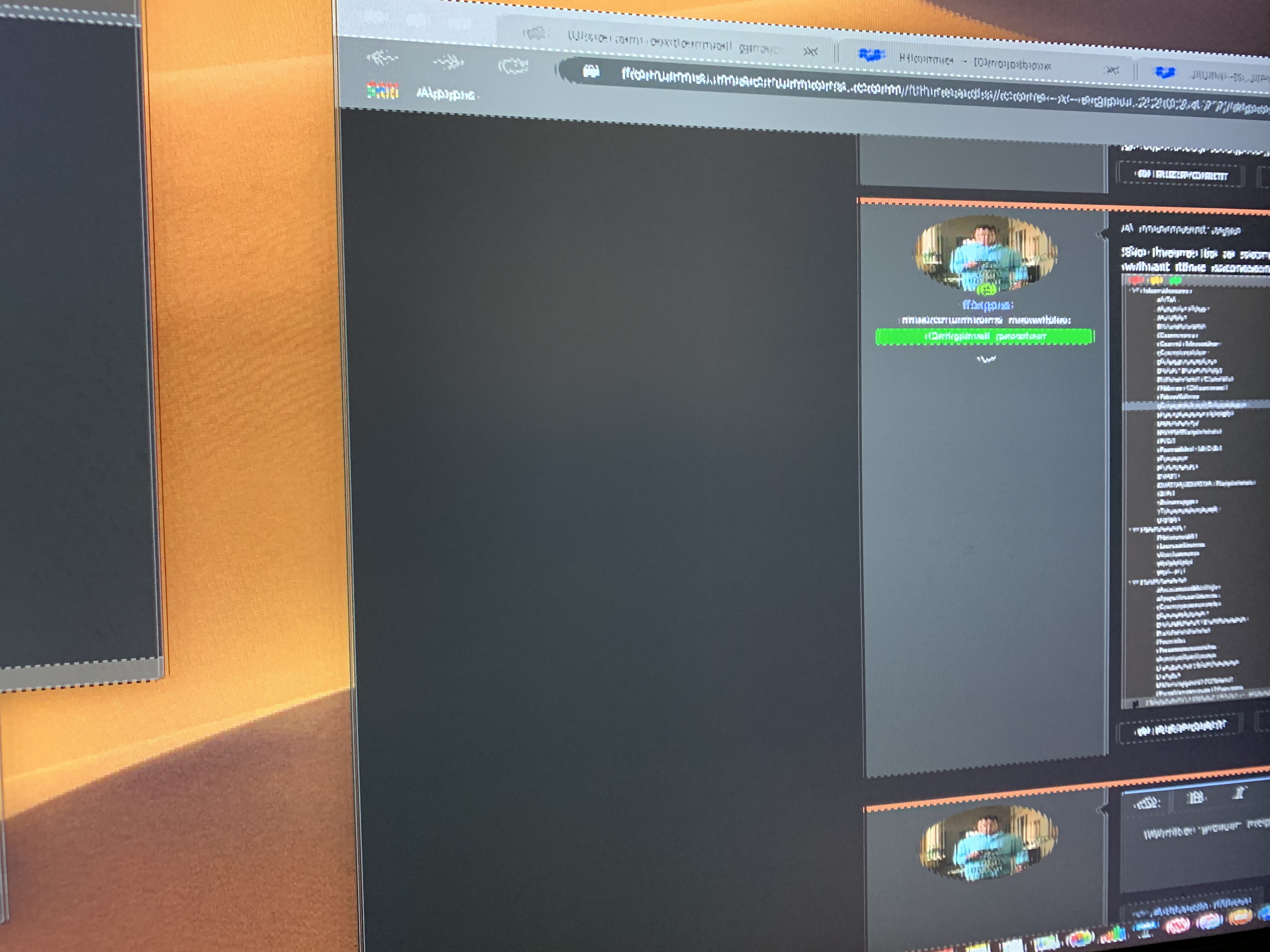

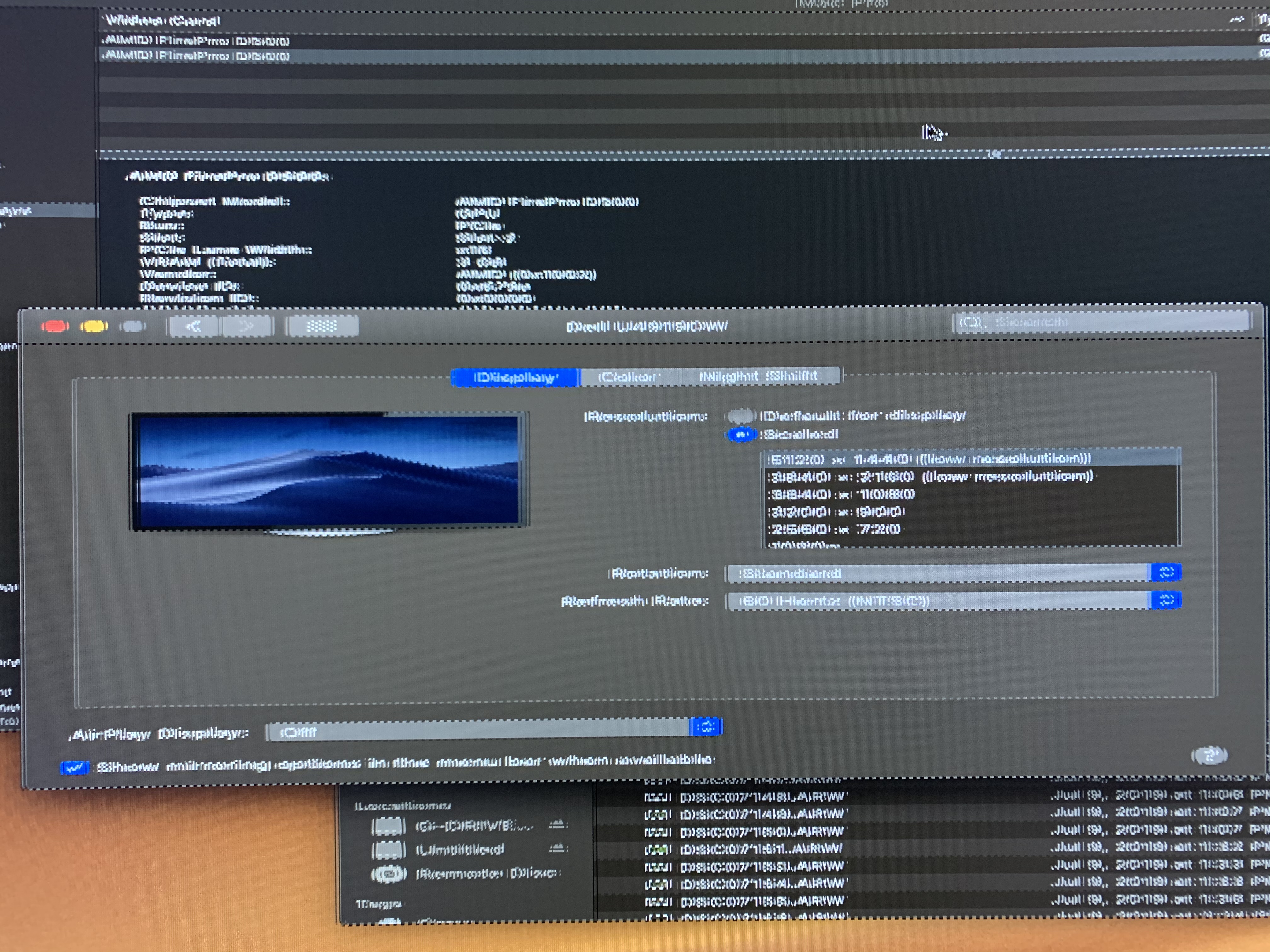

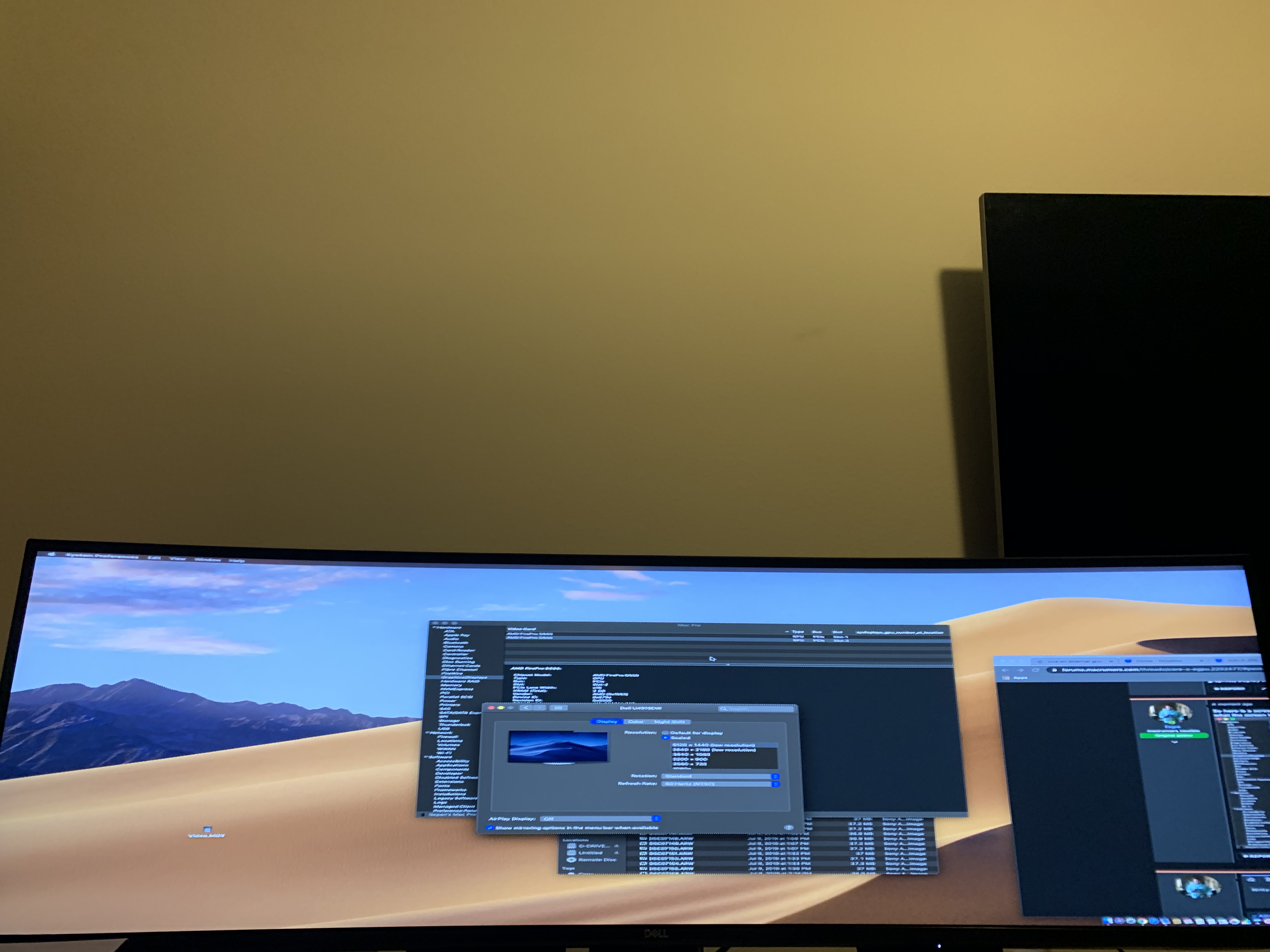

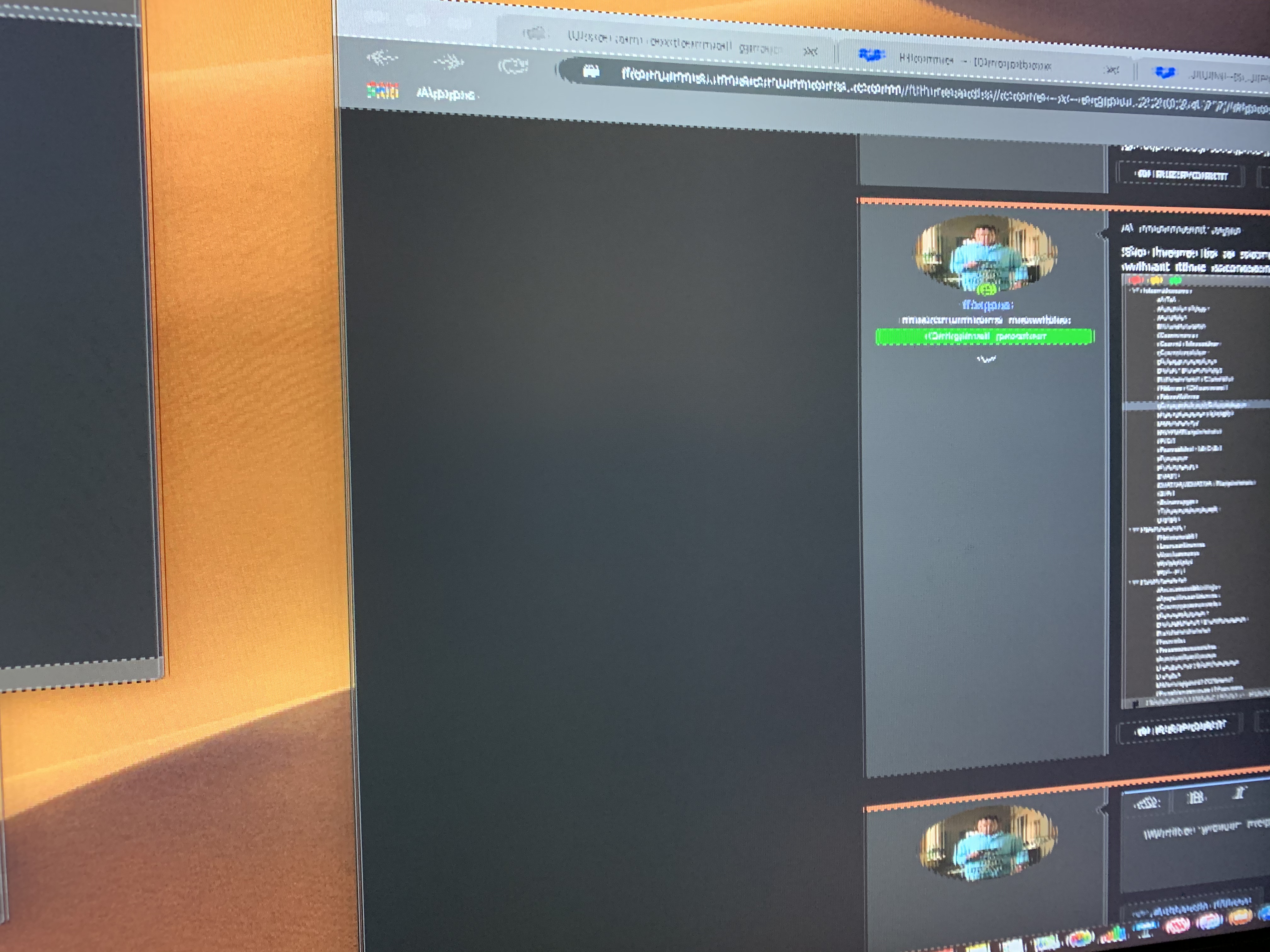

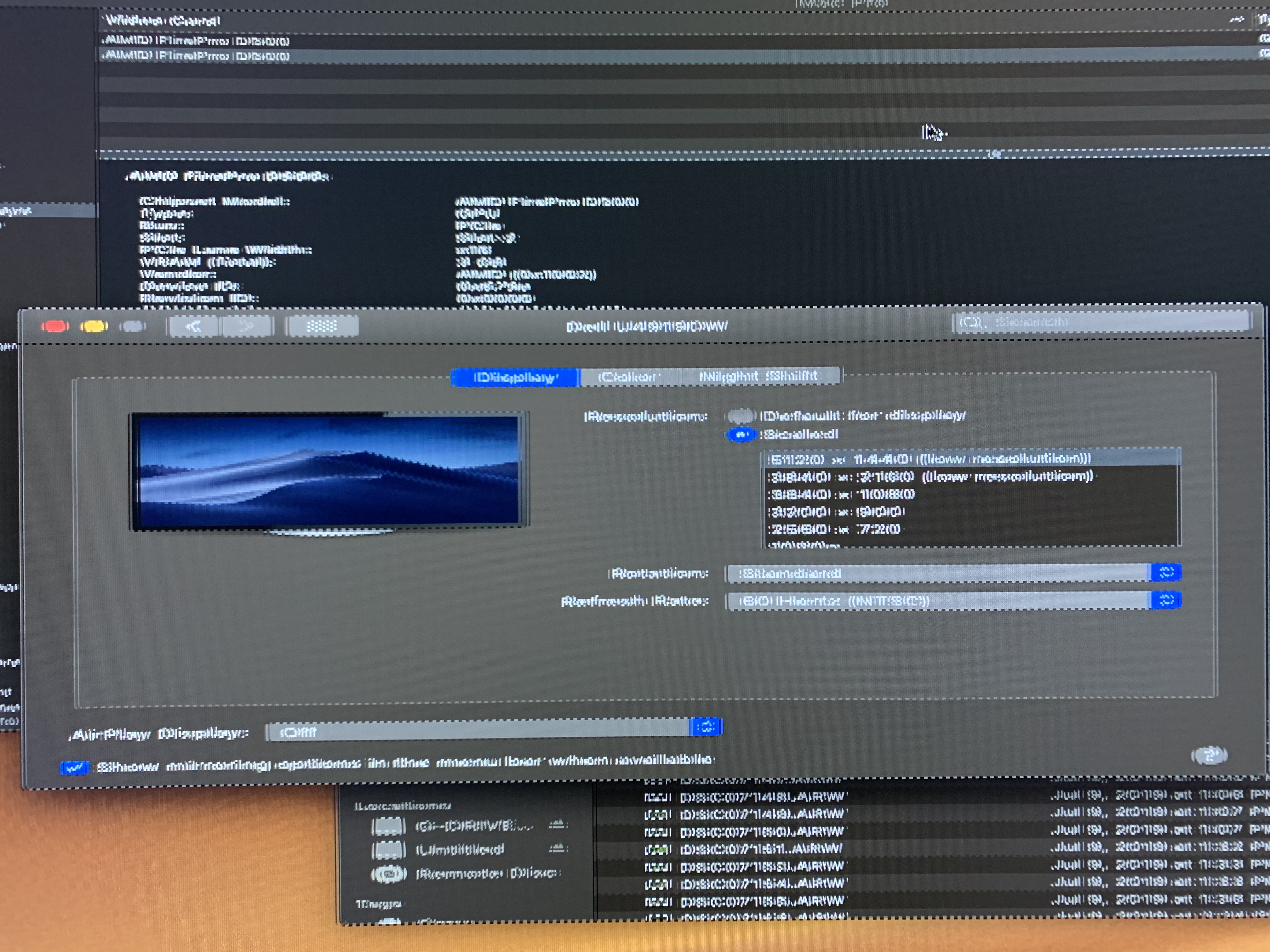

When selecting Low Res it does give me a clear image it stretches the image and everything gets blurry. I will take a phone picture of it since the screen grab does not show it and upload it.


h9826790

macrumors G5
Apr 3, 2014
13,295
6,045
Hong Kong

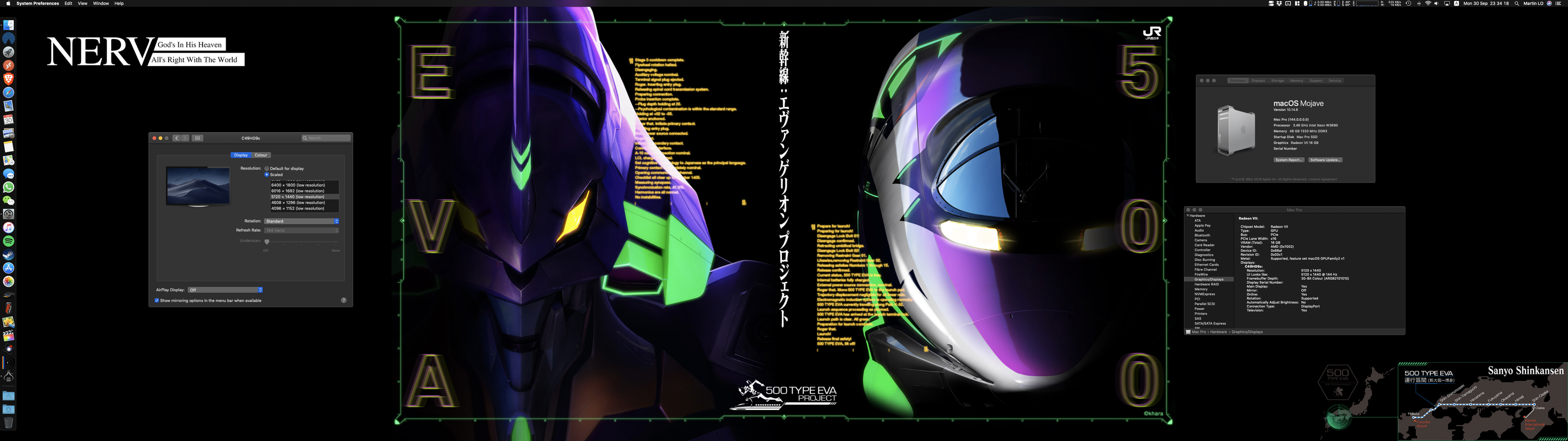

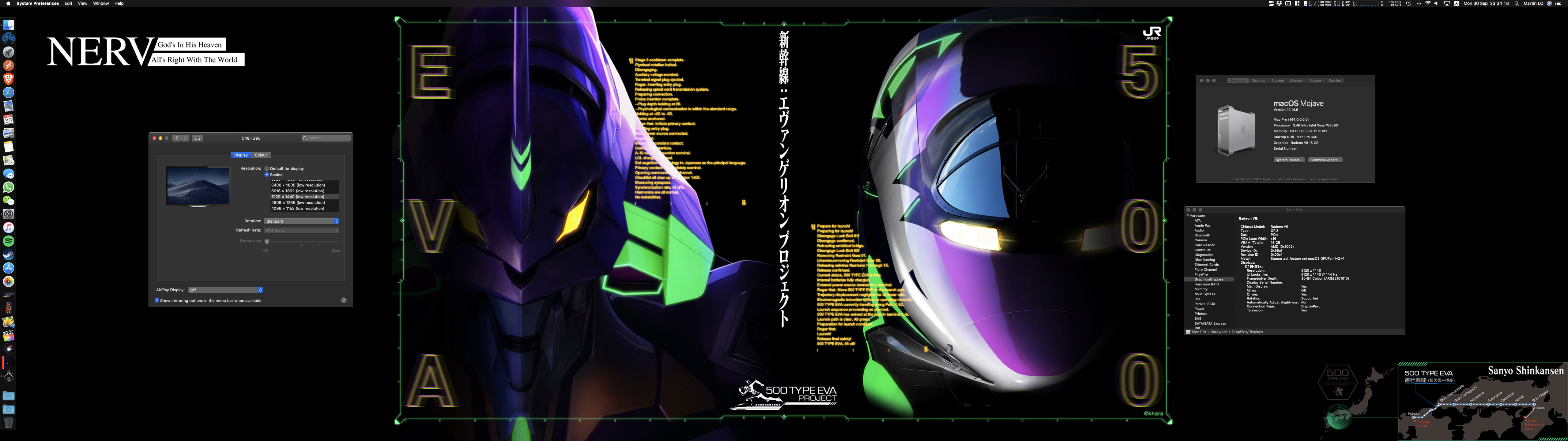

No problem, this is what it should looks like when you select 5120x1440 low resolution.
Screenshot 2019-09-30 at 11.34.18 PM.png


I can see that your screen capture isn't really at 32:9 ratio. So, I can understand why the top right icons are missing. However, don't know the reason yet.


fxps

macrumors member
Original poster
Feb 19, 2016
33
3
No problem, this is what it should looks like when you select 5120x1440 low resolution.
View attachment 865175

I can see that your screen capture isn't really at 32:9 ratio. So, I can understand why the top right icons are missing. However, don't know the reason yet.
Yah I wish I could get everything to look like that. I will disconnect the eGPU as well like the other person suggested go step by step. I was really excited to get this going and it really started bugging me last night I gave up hopefully I can resolve this tomorrow. The Graphics Card I have now is AMD fire pro 500 and in the graphics/display section it does not go high enough for the 5120x1440


fxps

macrumors member
Original poster
Feb 19, 2016
33
3
Anyone know where I can find AMD RX VEGA 64 drivers?


fxps

macrumors member
Original poster
Feb 19, 2016
33
3
Driver is included inside the OS.

Did you try Luxmark etc to check if the Vega64 can work in headless mode.
I talked to Razer they said that all I am missing is the drivers. Talked to AMD and they said I have to talk to Apple apple says I have to talk to AMD LOL. its been crazy day and yah I had a buddy of mine with me helping me with everything that is possible.


fxps

macrumors member
Original poster
Feb 19, 2016
33
3
Was able to fix the issue now it works with the HDMI gotta figure out why it does not look as good with the DP but special thank you to @mac_editor from egpu.io guy saved my life
