Cube Troubleshooting

Discussion in 'PowerPC Macs' started by bunnspecial, Dec 11, 2015.

  1. bunnspecial macrumors 603

    bunnspecial

    Joined:
    May 3, 2014
    Location:
    Kentucky
    #1
    One of my Cubes started giving me trouble the other day-specifically in that it's stone-cold dead.

    This particular one has Sonnet 800ghz Cube processor and a 2MX video card.

    In any case, plugging it in gives no LED on the VRM, and no response from pressing the power button. I've also tried powering it up via the display with the same response. I did do a PMU reset.

    I've ruled out a bad power brick(traded with another Cube-the dead one is still dead, while the working one continued to work). I also did the same with the VRM, and confirmed that the "dead" one has a good VRM(and also didn't boot one borrowed from a working Cube).

    I don't know where to go from here with trouble shooting. I think I've ruled out the common problems-can anyone suggest where to go next?

    I should also add that this Cube probably hasn't been used in a month, but it was working fine the last time I shut it down.

  2. gooser macrumors 6502a

    Joined:
    Jul 4, 2013
    #2
    temporarily forget what you know about computers and remember what you know about electronics. look carefully for a loose connection. an electrical test light may be useful. in other words make sure electricity is going where it's supposed to.

  3. Gamer9430 macrumors 68020

    Gamer9430

    Joined:
    Apr 22, 2014
    Location:
    Central New Jersey, USA
    #3
    Wow, you have somehow managed to find the most powerful cube in existence, let alone most powerful computer I've ever heard of! Rabidz7 would be proud :)

  4. jbarley macrumors 68030

    jbarley

    Joined:
    Jul 1, 2006
    Location:
    Vancouver Island
    #4
    Mmm! this processor sounds familiar.:)

  5. flyrod macrumors 6502

    flyrod

    Joined:
    Jan 12, 2015
    #5
    I don't have a cube close by to look at, but iirc there should be a LED on when it has 28v. Even if it's not turned on. So if there is no LED, I'd suspect the power brick, followed by the VRM.

  6. bunnspecial thread starter macrumors 603

    bunnspecial

    Joined:
    May 3, 2014
    Location:
    Kentucky
    #6
    As explained above, I have ruled both of these out through part swapping.

  7. flyrod macrumors 6502

    flyrod

    Joined:
    Jan 12, 2015
    #7
    So you are getting a LED lit up? Obviously you'd need the cube out of its case to see it...

  8. bunnspecial thread starter macrumors 603

    bunnspecial

    Joined:
    May 3, 2014
    Location:
    Kentucky
    #8
    No, no LED but both the VRM and brick are good

  9. flyrod macrumors 6502

    flyrod

    Joined:
    Jan 12, 2015
    #9
    It could be the power connector on the logic board then. If you have a volt meter, you could check the VRM to make sure it's getting 28v.

  10. MacCubed macrumors 68000

    MacCubed

    Joined:
    Apr 26, 2014
    Location:
    Florida
    #10
    I'm having some Cube issues of my own hopefully the update to 10.5.8 fixes it

  11. bunnspecial thread starter macrumors 603

    bunnspecial

    Joined:
    May 3, 2014
    Location:
    Kentucky
    #11

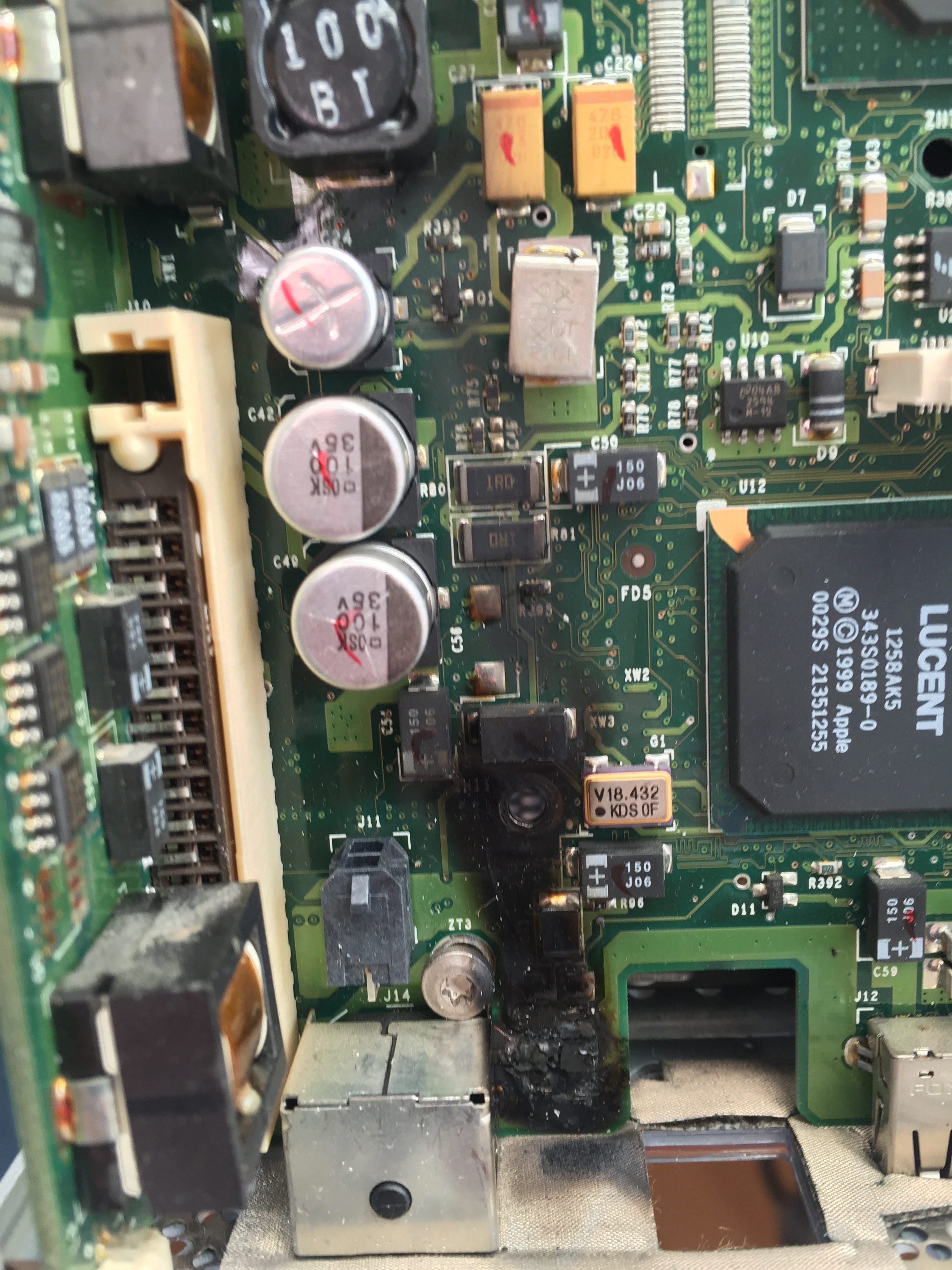

    I can't believe I didn't notice this earlier, but had another look at it this morning and had a "There's your problem" moment.


    I'm going to assess the damage on it, but I'm guessing this one is beyond repair and will need a new LB. I'm just hoping it didn't take out my Sonnet along with it.

    It would be nice if the Cube butchers(looking at one on here in particular) would save their logic boards, but I don't have high hopes on that. Looks like I'll be trolling the WTBs and Ebay.

  12. jbarley macrumors 68030

    jbarley

    Joined:
    Jul 1, 2006
    Location:
    Vancouver Island
    #12

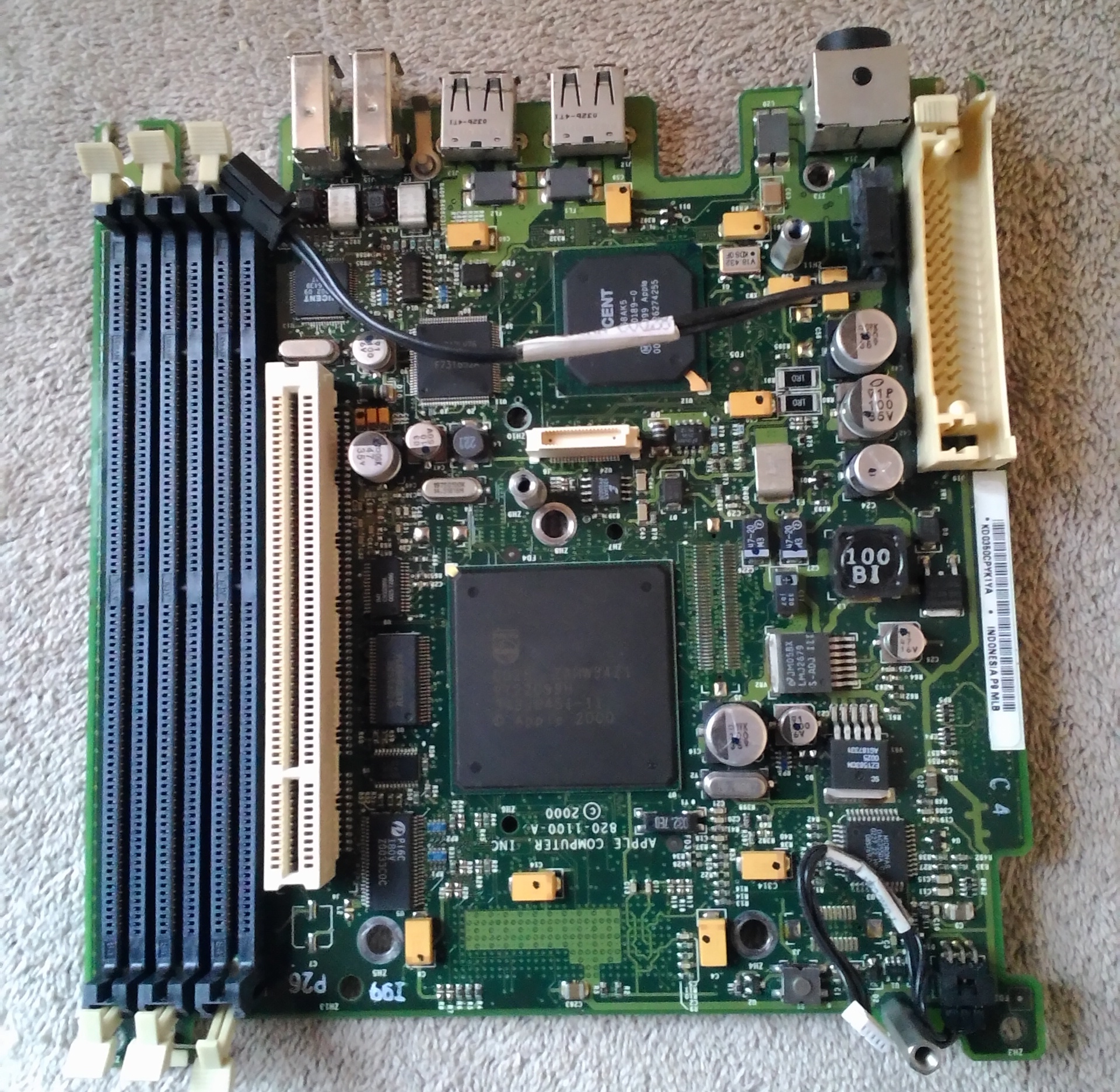

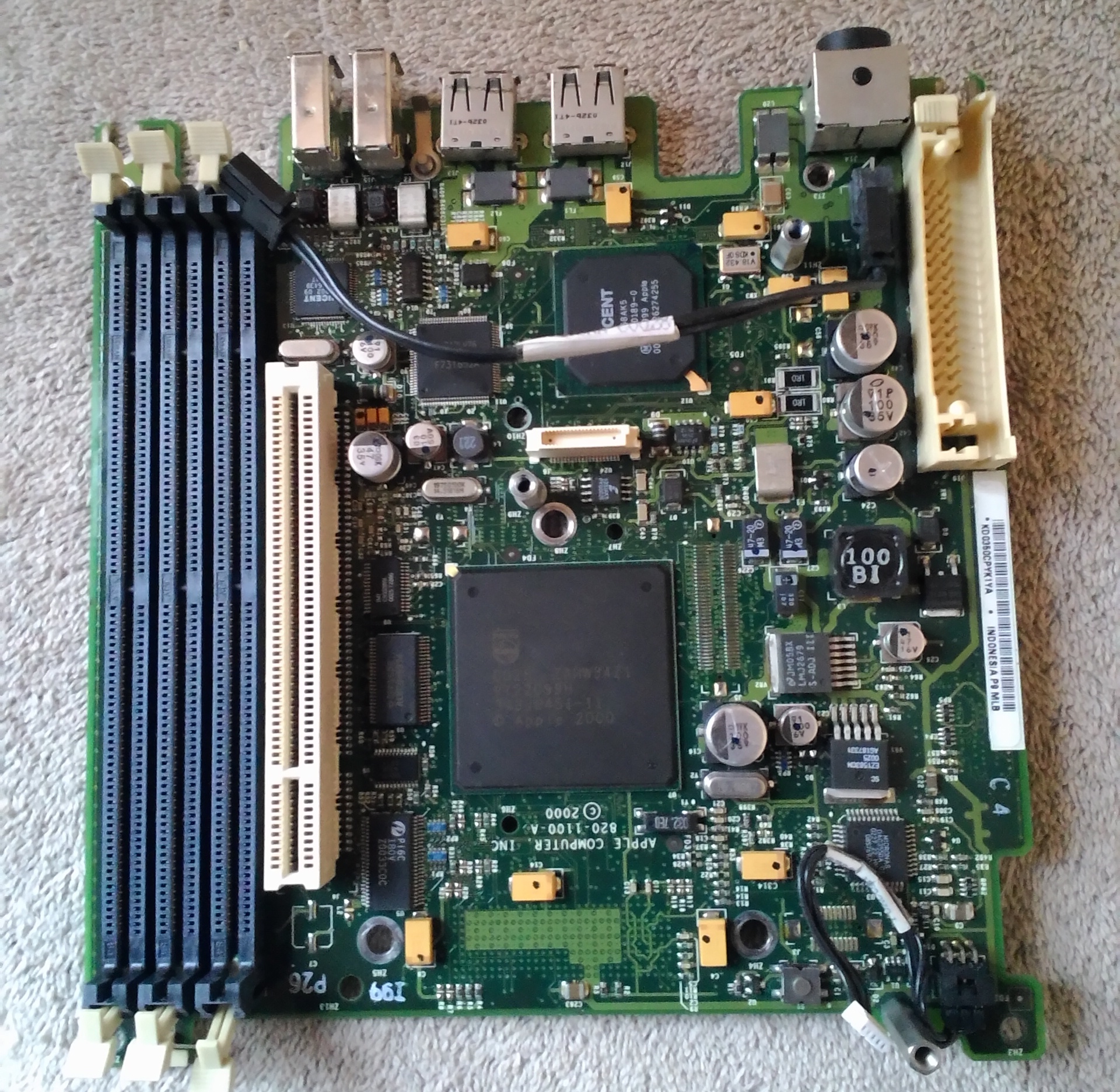

    Guess I qualify as one of your "Cube butchers", but more to the point, if the item in the photo enclosed is of interest to you, it could be had for the cost of shipping.
    PM me if interested.

    2016-01-07 10.31.06.jpg

  13. flyrod macrumors 6502

    flyrod

    Joined:
    Jan 12, 2015
    #13
    That explains why the VRM was not getting 28v. I'd be interested in that fried board if you're just going to toss it...

  14. bunnspecial thread starter macrumors 603

    bunnspecial

    Joined:
    May 3, 2014
    Location:
    Kentucky
    #14
    Definitely-let me get them swapped and I'll be in touch.

    No point in tossing it if someone else can get some use out of it.

  15. bunnspecial thread starter macrumors 603

    bunnspecial

    Joined:
    May 3, 2014
    Location:
    Kentucky
    #15

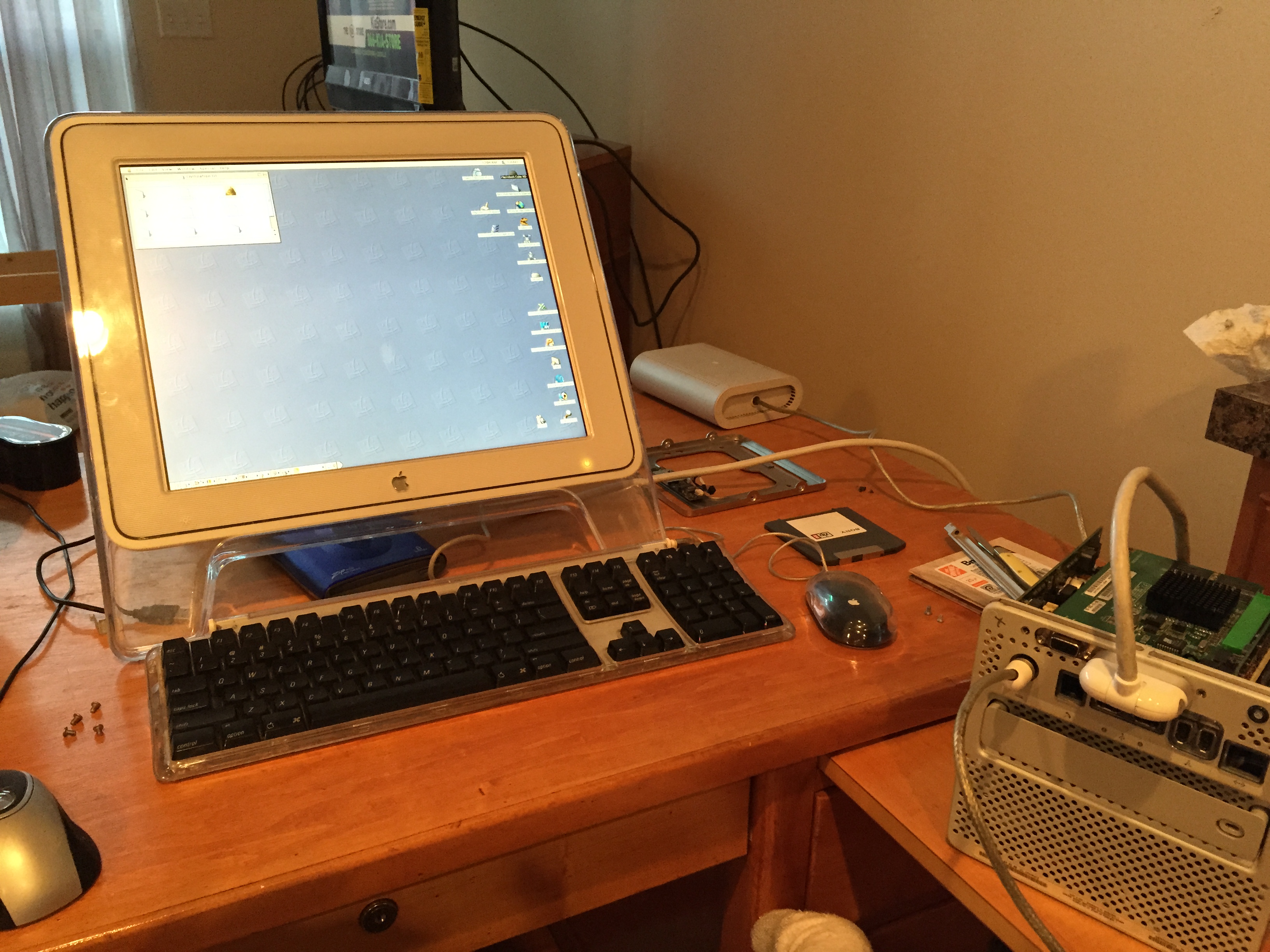

    It's alive thanks to Jbarley!

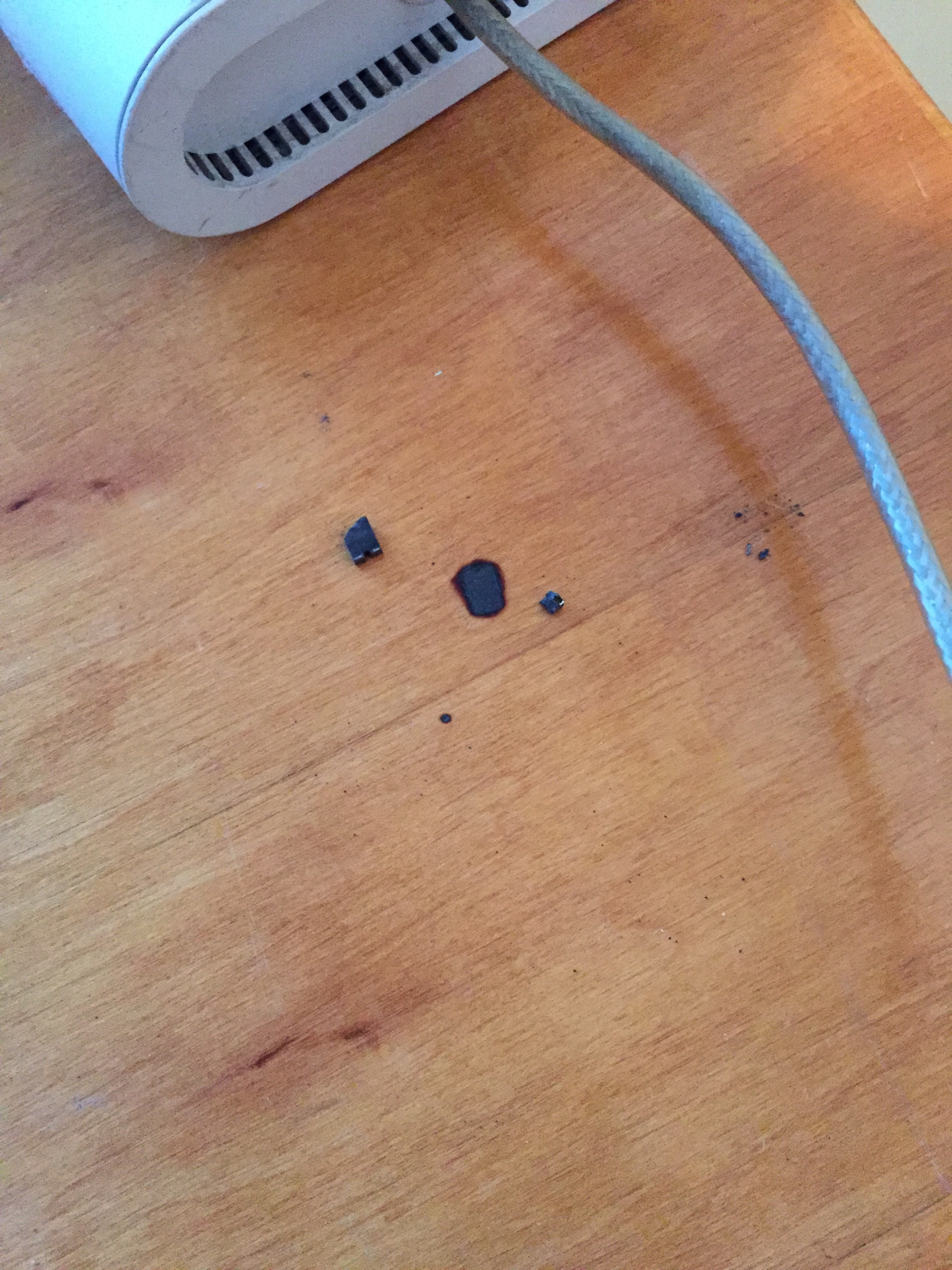

    BTW, I'm not sure how it took me so long to find the problem. When whatever part blew, it REALLY blew. Aside from soot inside the top of the case, I found the below on my desk this evening


    Apparently when the part popped, it either shot flames out the bottom or the part that fell out was hot enough to do it. I'm NOT happy about the burn mark in the top of my antique white oak desk, but no use crying over spilt milk.

  16. flyrod macrumors 6502

    flyrod

    Joined:
    Jan 12, 2015
    #16
    I'm glad you got it back up and running, without (?) collateral damage besides the desk.

    I guess it's good that it wasn't near the drapes or something.

  17. MagicBoy macrumors 68040

    MagicBoy

    Joined:
    May 28, 2006
    Location:
    Manchester, UK
    #17
    Impressive! It adds character, and makes the desk unique... ;)

  18. flyrod macrumors 6502

    flyrod

    Joined:
    Jan 12, 2015
    #18
    I'd still be interested in tinkering with that fried board...
