Custom icons not recognised on Boot Selection screen

Discussion in 'OS X El Capitan (10.11)' started by winterquilt, Jun 13, 2017.

  1. winterquilt macrumors regular

    winterquilt

    Joined:
    Feb 18, 2008
    #1
    I have customised the icons for all my main HDDs (HDD and external) but noticed that only the internal HDD's icon shows on the boot selection screen on start up (hold Alt key) and not the external HDDs e.g.:

    http://cdn.osxdaily.com/wp-content/uploads/2013/06/boot-mac-external-drive.jpg


    Why are the custom icons not showing? It makes it easier to determine which volume I would like to boot from with the custom icons, over text (label) and placement, so how do I get the icons to be recognised with the other HDDs?

  2. winterquilt thread starter macrumors regular

    winterquilt

    Joined:
    Feb 18, 2008
    #2
    Anybody have an idea about this, it's still beating me, I don't understand why?

  3. BrianBaughn macrumors 601

    BrianBaughn

    Joined:
    Feb 13, 2011
    Location:
    Baltimore, Maryland
    #3
    Probably because the OS isn't actually running. The Startup Manager doesn't have access to files.

  4. winterquilt thread starter macrumors regular

    winterquilt

    Joined:
    Feb 18, 2008
    #4
    That's a good point. However, as mentioned, my internal HDD (which uses a custom icon) does show, while the external SSD which I can also boot from does not. So I'm still at a loss as to why?

    The image used is not my setup, but just something similar from the internet.

  5. DeltaMac macrumors 604

    DeltaMac

    Joined:
    Jul 30, 2003
    Location:
    Delaware
    #5
    What macOS versions are your internal, and external drives? Both the same?
    I am running Sierra, and have an external boot for Mavericks.
    I have another partition with High Sierra beta. The Mavericks drive won't show up in Startup Disk, but shows up fine in the boot picker screen. If I am booted to High Sierra, the Mavericks drive shows in Startup Disk, but I have to shut down completely before the Mavericks drive will appear on the Option boot pick screen --- doesn't show up on a simple restart. I think it is some kind of configuration that has changed when I first installed High Sierra, when it the installer updated the Boot ROM. My Mac is a 2012 mini, and the firmware changes might affect different Macs in different ways. I haven't really investigated this too much, just what changes I have noted on my own Mac. I'm not too bothered by it, and I know how to work around that when I reboot to another system.

  6. winterquilt thread starter macrumors regular

    winterquilt

    Joined:
    Feb 18, 2008
  7. Taz Mangus, Jun 27, 2017
    Last edited: Jun 27, 2017

    Taz Mangus macrumors 68040

    Taz Mangus

    Joined:
    Mar 10, 2011
    #7

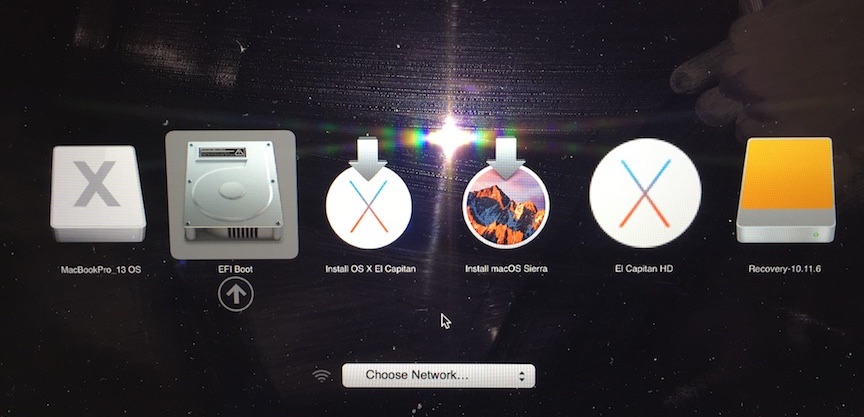

    I have 10.11.6 installed on a 2015 MacBook Pro 13" and my internal HD has a custom icon. The custom icon shows up for me on the boot selection screen. The same for my external hard drives which also have custom icons.


    Maybe try SMC reset or reset PRAM.

  8. BrianBaughn macrumors 601

    BrianBaughn

    Joined:
    Feb 13, 2011
    Location:
    Baltimore, Maryland
    #8
    I'm trying to get it to show one for me but no go. It may take the reset to get it to work. Haven't had a chance to try.

  9. winterquilt thread starter macrumors regular

    winterquilt

    Joined:
    Feb 18, 2008
  10. Taz Mangus macrumors 68040

    Taz Mangus

    Joined:
    Mar 10, 2011
    #10
  11. winterquilt thread starter macrumors regular

    winterquilt

    Joined:
    Feb 18, 2008
    #11
    external SSD: v10.11.6 (15G1510)
    internal HDD: v10.11.6 (15G1421)

  12. Taz Mangus macrumors 68040

    Taz Mangus

    Joined:
    Mar 10, 2011
    #12
    Just verify something, when you connect the external hard drive to your Mac and they mount, the hard drives show the custom icon? How did you change the hard drive icon?

  13. winterquilt thread starter macrumors regular

    winterquilt

    Joined:
    Feb 18, 2008
    #13
    I copied and pasted to the icon in the Get Info pane, at the top left.

  14. Taz Mangus macrumors 68040

    Taz Mangus

    Joined:
    Mar 10, 2011
    #14
    This is very odd. The icons show up when mounted when logged in but not other wise. Do you have another Mac that you can try the hard drive on?

  15. winterquilt thread starter macrumors regular

    winterquilt

    Joined:
    Feb 18, 2008
    #15
    No, it's a smart idea though, I wish that I did and it is portable.

  16. Taz Mangus macrumors 68040

    Taz Mangus

    Joined:
    Mar 10, 2011
    #16
    Try it at the Apple Store.

  17. winterquilt thread starter macrumors regular

    winterquilt

    Joined:
    Feb 18, 2008
    #17
    I'm not comfortable with that, I have to say.

    It'll be a software issue no matter what, likely something that just needs resetting, or is in the wrong order, which would be fixed by resetting it, but I'm unsure what?

  18. Taz Mangus macrumors 68040

    Taz Mangus

    Joined:
    Mar 10, 2011
    #18
    You could try this, create a new partition on your internal hard drive and install a clean copy of 10.11 on the new partition. Reboot to the new partition. Boot to the clean install. After that restart the computer to the boot selection.

  19. FrancoisC macrumors 6502

    FrancoisC

    Joined:
    Jan 27, 2009
    Location:
    Montreal, Qc
  20. winterquilt thread starter macrumors regular

    winterquilt

    Joined:
    Feb 18, 2008
    #20
    Taz Mangue: It's maybe getting a little out of hand now, a little bit too much for just an icon that could one day just appear! I am sure there is a simple process to take that would get it recognised, I'm just not sure what it is.

    Thanks for contributing FrancoisC, but I'd feel better just sticking with the standard method from Apple.


    Thanks guys.
