Dead GPU 6750M 512M

Discussion in 'MacBook Pro' started by A7ibaba, Nov 26, 2016.

  1. A7ibaba macrumors regular

    A7ibaba

    Joined:
    Apr 19, 2012
    Location:
    Sweden
    #1
    I need help guys. My GPU in MacBook Pro died and now i need to buy AMD BGA IC Graphic Chipset 216-0810028 or AMD BGA IC Model number 216-0810005 but im not sure is it compatible with my MacBook Pro model which is:

    Chipset Model: AMD Radeon HD 6750M
    Type: GPU
    Bus: PCIe
    PCIe Lane Width: x8
    VRAM (Total): 512 MB
    Vendor: ATI (0x1002)
    Device ID: 0x6741
    Revision ID: 0x0000
    ROM Revision: 113-C0170L-573
    Automatic Graphics Switching: Supported
    gMux Version: 1.9.23
    EFI Driver Version: 01.00.573

    MacBook Pro late 2011 i7 2.2 Ghz
    Order MD318LL/A Model A1286 (EMC 2563*)
    Family Late 2011 15" ID MacBookPro8,2
    RAM 4 GB VRAM 512 MB

    If any one have experience in this case i would be most grateful. I have a friend who can do reballing and replacing GPU on motherboard and I'm currently working on Intel HD3000.
    Thank you

  2. Patrick-Photo macrumors regular

    Joined:
    Mar 22, 2012
    #2
    The extended repair program os valod untill the 31st of december... What you're saying could/should be covered I guess?

    Try the AHT/VST

  3. A7ibaba thread starter macrumors regular

    A7ibaba

    Joined:
    Apr 19, 2012
    Location:
    Sweden
    #4

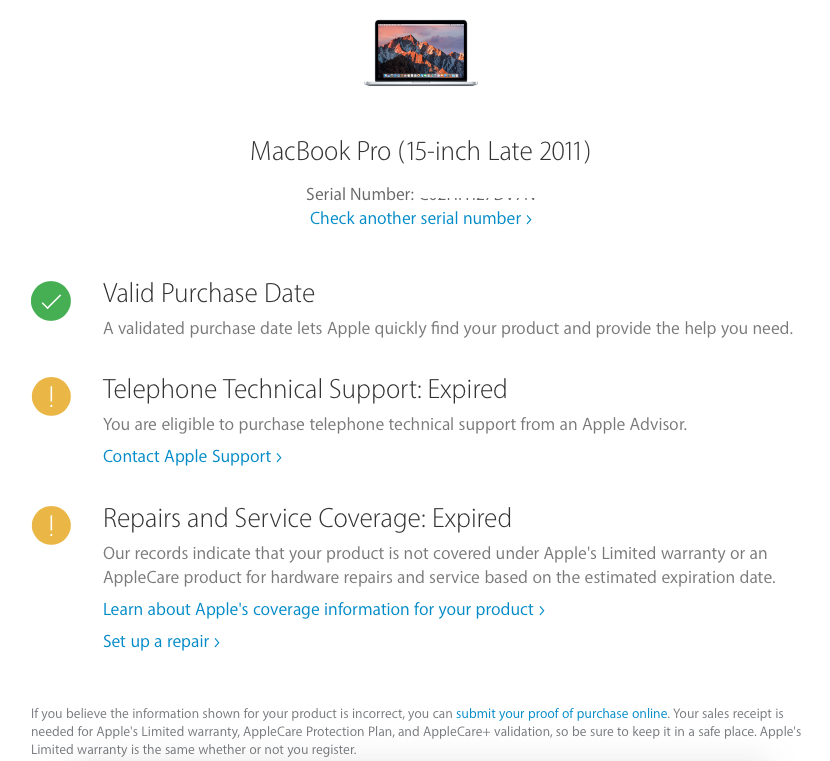

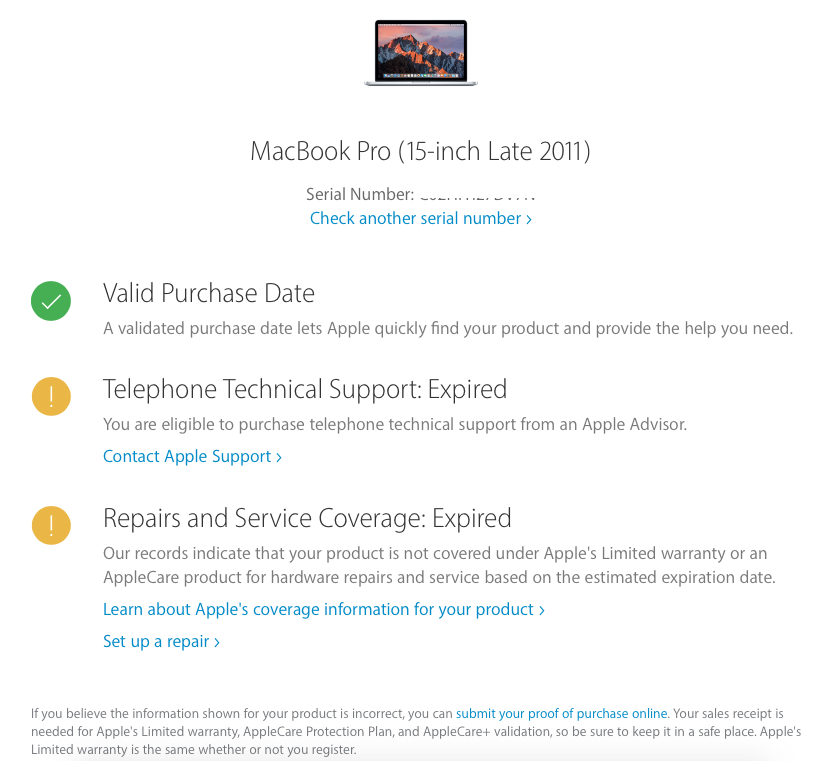

    I guess i don't have :(


    Attached Files:

  4. karbim macrumors regular

    Joined:
    Oct 11, 2016
    Location:
    London, UK
    #5
    You don't have what? The link I quoted is a special repair which has nothing to do with AppleCare or Warranty. You take an appointment with a Genius at an Apple Store and you show them your issue, the run a diagnostic tool they have to make it fail. In case of failure, they take it in for repair for free and you have it back within 10 days with a new logic board.

    This repair programme expires the 31st of December 2016. So don't wait, just go.

  5. A7ibaba thread starter macrumors regular

    A7ibaba

    Joined:
    Apr 19, 2012
    Location:
    Sweden
    #6
    Omg,thank you so much,i just now realised i have right to fix it.Would there be a problem because i have installed 16gb OWC memory and SSD inside with owc data doubler ?

  6. karbim macrumors regular

    Joined:
    Oct 11, 2016
    Location:
    London, UK
    #7
    There's no problem as this doesn't void anything related to the dGPU failure. I even sent mine with NO HDD/SSD and NO RAM and it came back working fine as soon as I've put back my SSD/RAM.

  7. A7ibaba thread starter macrumors regular

    A7ibaba

    Joined:
    Apr 19, 2012
    Location:
    Sweden
    #8
    Thank you very much. I guess after repair i must stress GPU with some kind of program to see if is reliable

  8. karbim macrumors regular

    Joined:
    Oct 11, 2016
    Location:
    London, UK
    #9
    The repair is reliable in the sense where it took years for the issue to show with lots of people. You should not stress tests it because after Dec 31st, you're by yourself. And the issue won't appear before a year or two. My repair has been good so far, but I'm going to get my new Macbook Pro and sell this one while it's working :D.

  9. A7ibaba thread starter macrumors regular

    A7ibaba

    Joined:
    Apr 19, 2012
    Location:
    Sweden
    #10
    Ok,i thought that i have 90 days warranty after repair.

  10. karbim macrumors regular

    Joined:
    Oct 11, 2016
    Location:
    London, UK
    #11
    Yes, you have 90 days. However, the problem will happen again in 1-3 years. The 90 days will just show you they've done the work correctly, not that it's not defective anymore (they put again the same chip, the logic board is a bit different though).

    I'm glad I could help and share my experience on this one. Good luck, and let us know when it's sorted!

  11. A7ibaba thread starter macrumors regular

    A7ibaba

    Joined:
    Apr 19, 2012
    Location:
    Sweden
    #12
    I will,im going in the morning to Apple service to give them laptop.Its 15 min from my apartment

  12. A7ibaba, Dec 9, 2016
    Last edited: Dec 9, 2016

    A7ibaba thread starter macrumors regular

    A7ibaba

    Joined:
    Apr 19, 2012
    Location:
    Sweden
    #13
    Apple store accepted mac for graphic problem,and im still waiting for phone call. I have been reading a little bit about this issue,and im not really confident that this replacement program will solve anything. From what i read on internet,they are using refurbished logic boards as replacements, which usualy fail withing weeks or months. Unfortunatly , there is no "new" boards, just repaired or reflowed on high temperatures,atleast from what i read on apple forums. In USA they have repair depots which repair boards,i dont know is it the same in europe.

    Reason for this is just to gain time until the extended period ends.

  13. A7ibaba, Dec 22, 2016
    Last edited: Dec 22, 2016

    A7ibaba thread starter macrumors regular

    A7ibaba

    Joined:
    Apr 19, 2012
    Location:
    Sweden
    #14

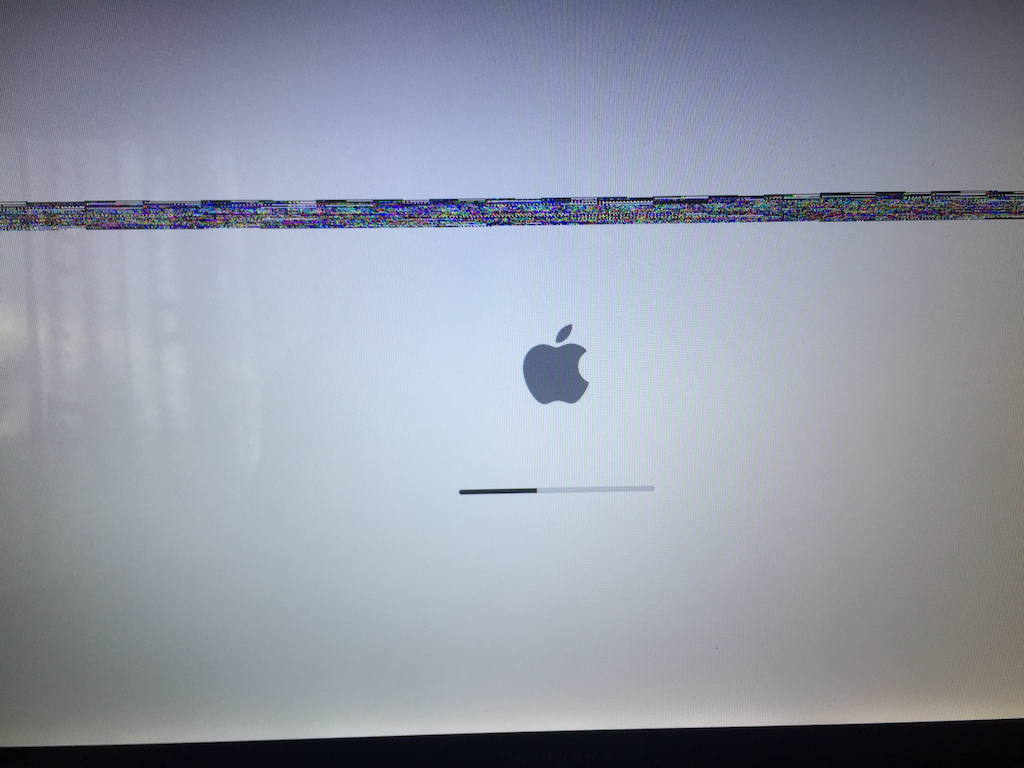

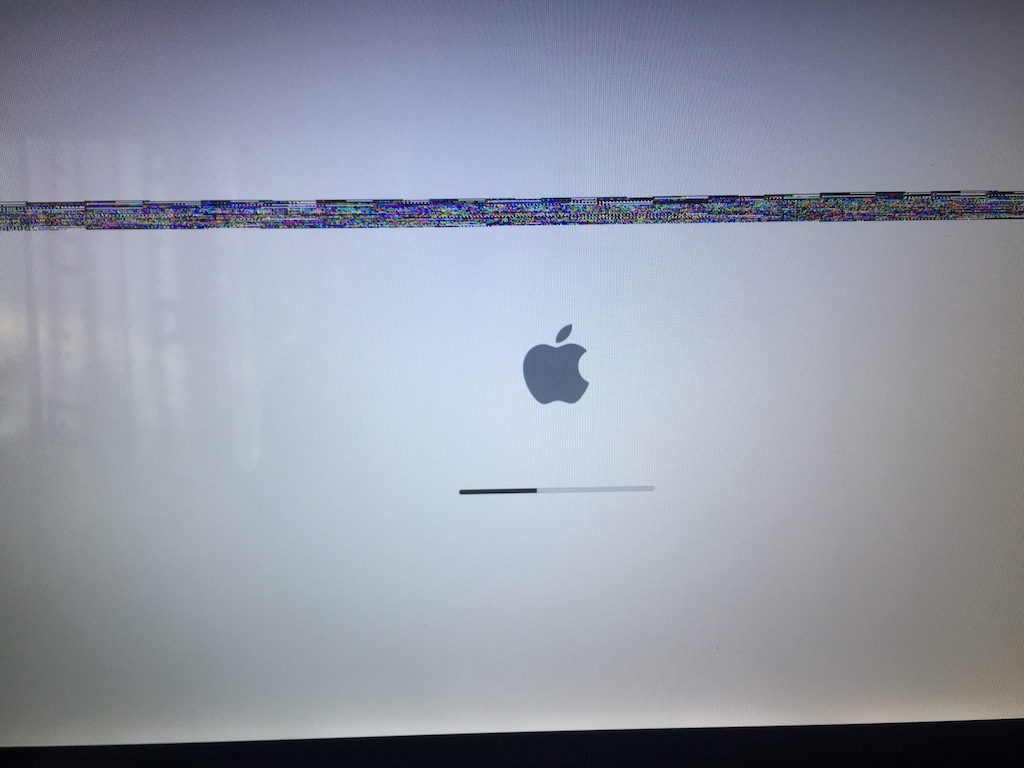

    I received laptop,and as i thought so. Logic board is refurbished. They put some black tape over serial number which clearly belonged to someone else because its noticeable they worked on the are around GPU,because smd's are all yellow on the other side of the board which indicate they heated that area. And now i have this artefacts when I'm booting into MacOS. S/N is the same but HW ID is different


    Attached Files:
