Delidding a Xeon X5690 with only a Vice (video)

Discussion in 'Mac Pro' started by SolidCake, Aug 8, 2016.

  1. SolidCake macrumors member

    SolidCake

    Joined:
    May 20, 2016
    #1
    Hey guys,

    I made a video about delidding a Xeon X5690 using only a vice! The results where perfect! After cleaning up and successfully testing the first one I went on to the second. Both turned out great and my Mac Pro 4,1 is quite and blazingly fast.



    The reason why I chose this method is that I did not want to tamper with the Mac itself. I did not like the idea of blades coming near the capacitors and applying heat to the chip so I opted for this method. Not to mention I found this method rather cost-effective.

    I hope this video helps you guys out with upgrading your Mac Pro 4,1!

  2. flowrider macrumors 601

    flowrider

    Joined:
    Nov 23, 2012
  3. AidenShaw, Aug 8, 2016
    Last edited: Aug 8, 2016

    AidenShaw macrumors P6

    AidenShaw

    Joined:
    Feb 8, 2003
    Location:
    The Peninsula
    #3

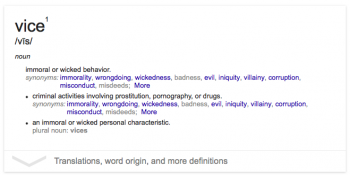

    Maybe to show that it wasn't a typo the first time - she can't spell "vise"? ;)

  4. flowrider macrumors 601

    flowrider

    Joined:
    Nov 23, 2012
  5. richgoga macrumors regular

    Joined:
    Oct 11, 2013
    #5
    Depends on if you use proper English or "American". Personally, I prefer proper English. Vise is an Americanism, like "Aluminum", which isn't actually a word.

    https://en.m.wikipedia.org/wiki/Vise

    Treat this spelling/grammar police lesson as an elongated version of my favourite saying... "Don't be a dick to people"

  6. box185 macrumors member

    box185

    Joined:
    Sep 12, 2013
    #6
    Gives me motivation to make a video as well . . .

  7. flowrider macrumors 601

    flowrider

    Joined:
    Nov 23, 2012
    #7
    Who brought Aluminum into this?
    [​IMG]

    Lou

  8. AidenShaw macrumors P6

    AidenShaw

    Joined:
    Feb 8, 2003
    Location:
    The Peninsula
    #8
    Didn't you catch that the winking smiley was a clue that the post was a joke? Read your saying out loud.

  9. SolidCake thread starter macrumors member

    SolidCake

    Joined:
    May 20, 2016
    #9
    I don't live in the US so I chose to go with "the rest of the world" spelling for the clamping tool ;)

    Thanks! Would love to see the video!

  10. richgoga macrumors regular

    Joined:
    Oct 11, 2013
    #10
    Nope... Because it's not funny.

  11. AidenShaw macrumors P6

    AidenShaw

    Joined:
    Feb 8, 2003
    Location:
    The Peninsula
    #11
    The "rest of the world" uses terms like "tornillo de banco" or "étau" or ...
    Why not?

  12. dmylrea macrumors 68020

    dmylrea

    Joined:
    Sep 27, 2005
    #12
    that's a pretty cool video. Sure beats heating the hell out of the solder to loosen the heatsink then have all that solder to clean up off the die.

  13. frou macrumors regular

    frou

    Joined:
    Mar 14, 2009
    #13
    Nice. I would be inclined to acquire some super-cheap crappy CPU to do a practice run with first.

  14. golip macrumors newbie

    Joined:
    Dec 19, 2015
    #14
    Yeah I'd be petrified of breaking the cou , you have to be very precise , I'm amazed the plastic takes such force without cracking

  15. ActionableMango macrumors 604

    ActionableMango

    Joined:
    Sep 21, 2010
    #15
    I am amazed that the PCB held up and it was the solder that broke. This adjusts my apparently incorrect perception of how strong solder is.

    Now that I've seen it work, twice, it does seem better than the razor method. The razor method seems way too risky and has definitely damaged many processors--so many that there's actually an Ebay repair service for replacing the damaged components for shaved processors.

  16. theunderseaclub macrumors newbie

    Joined:
    May 22, 2008
    #16
    Great vid, that seems less risky to me than heating up the head spreader with a torch/heat gun, then putting razer blades under the lid to pop it off. When I finally get ahold of a dual cpu tray for my single CPU 4.1, I'll probably use the vise method (with cheap cpus for practice of course).

  17. ActionableMango macrumors 604

    ActionableMango

    Joined:
    Sep 21, 2010
    #17
    Any other success or failure stories from using the vice method? I have two x5690's on the way and I'm waffling on whether I will delid them or not. Right now the vice method is at the top of my list though.

  18. DPUser macrumors 6502a

    Joined:
    Jan 17, 2012
    #18
    Unlike alternative facts, alternative spelling is, on occasion, acceptable. :)

  19. natjonesart macrumors newbie

    natjonesart

    Joined:
    Jan 22, 2017
    Location:
    Canada
    #19
    Just delidded two 5675 last night using this video as my guide. Took my time and everything went well. I am typing to you on my 2009 cMP with those same X5675's installed right now :)

  20. ActionableMango macrumors 604

    ActionableMango

    Joined:
    Sep 21, 2010
    #20
    Thanks, I've decided that I will try this method. I have two x5690s coming next week to delid. I have a spare w3630 to do a practice delidding with.

  21. fhturner macrumors regular

    Joined:
    Nov 7, 2007
    #21
    Worked for me x 5. I tested 2.66GHz quad chip first, which worked. Then delidded my 2010's pair of 2.66GHz 6-cores to move to an 8-core 2.26. Then delidded a pair of 3.46 hex-cores to go into a 2009 machine build-up for a client. All chips worked fine. Just be very methodical and careful. The 2010 machine of mine also got 3.46s, but they obviously didn't need to be delidded.

  22. SolidCake thread starter macrumors member

    SolidCake

    Joined:
    May 20, 2016
    #22
    All I can say is that I have experienced zero issues so far. Please let us know what method you decided on and how it went!

  23. ActionableMango, Feb 6, 2017
    Last edited: Feb 6, 2017

    ActionableMango macrumors 604

    ActionableMango

    Joined:
    Sep 21, 2010
    #23
    I did a practice run with an old w3630 from my 2010 MP (worth about $5 on Ebay). I have to say that it came off quite easily. In the video it appears that you had to use a heck of a lot of pressure but in my case it took hardly any and it popped right off.

    What do you do about the solder remaining on the CPU? Nobody seems to talk about this. I happened to have a razor window scraper that was perfect for the job and left a very smooth surface, but I wonder what others have tried.

  24. rueyloon macrumors regular

    Joined:
    Sep 24, 2013
    #24
    I scrapped it off with a cut up credit card. But I protected the rest of the processor with tape first because I don't want to slip and pop a resistor off. I just scrape until I reach the hard metal surface.

  25. natjonesart macrumors newbie

    natjonesart

    Joined:
    Jan 22, 2017
    Location:
    Canada
    #25

    I used a standard single-edged razor blade. I worked slowly and was very careful, paying special attention to not damage the capacitors. A clean work area and light are a good idea, I used a magnifying lamp.
