Diagnosing An Error

Discussion in 'Mac Pro' started by LuthersBoots, Oct 26, 2011.

  1. LuthersBoots macrumors member

    Joined:
    Nov 12, 2010
    Location:
    Lake District, Cumbria UK
    #1
    Hi all, i have a problem with my MAC PRO that seems to be getting a little worse.

    I get the dreaded black box "You need to retort your computer" when I attempt the following:

    Lengthy Video Conversion
    Exporting of multiple images from Lightroom (200+)

    I am also getting a strange problem now where the spinning ball comes in whilst using UTorrent.

    I have upgraded uTorrent to the latest version and that didn't help.

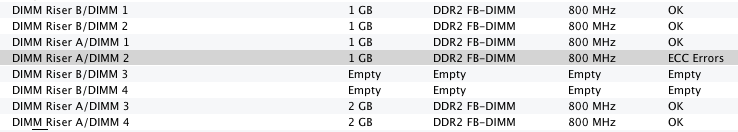

    I have done a little research and it may well be down to my Memory? I looked at the diagnostic and noticed my Riser A Dimm2 has an error.
    Have I laid out my memory in the correct manner?

    how do Isolve this problem?

    Thanks again for your help.

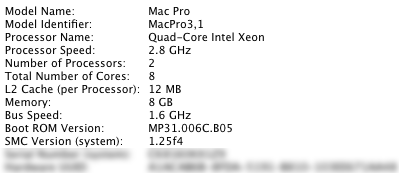

    Attached Files:

  2. Vylen macrumors 65816

    Joined:
    Jun 3, 2010
    Location:
    Sydney, Australia
    #2
    If the ECC error is always there, then the stick is bad. Take it out before more problems arise, then replace it.

  3. LuthersBoots, Oct 26, 2011
    Last edited: Oct 26, 2011

    LuthersBoots thread starter macrumors member

    Joined:
    Nov 12, 2010
    Location:
    Lake District, Cumbria UK
    #3
    I switched it to another DIMM and the error message seems to have gone.

    I'll try and convert the video again and see if it crashes.

  4. LuthersBoots, Oct 27, 2011
    Last edited: Oct 27, 2011

    LuthersBoots thread starter macrumors member

    Joined:
    Nov 12, 2010
    Location:
    Lake District, Cumbria UK
    #4
    Looks like the reseating of the memory worked. 8 video conversions later and its fine.
    I guess it crapped out when there was a problem with the memory.

    UPDATE:

    SPOKE TO SOON< Just crashed:


    Interval Since Last Panic Report: 1215744 sec
    Panics Since Last Report: 6
    Anonymous UUID: B435E342-9F78-4B3A-8BB7-CD8F7B538EB3

    Thu Oct 27 16:06:53 2011
    Machine-check capabilities (cpu 1) 0x0000000000000806:
    family: 6 model: 23 stepping: 6 microcode: 1547
    Intel(R) Xeon(R) CPU E5462 @ 2.80GHz
    6 error-reporting banks
    threshold-based error status present
    Machine-check status 0x0000000000000004:
    machine-check in progress
    MCA error-reporting registers:
    IA32_MC0_STATUS(0x401): 0xf200000410000800 valid
    MCA error code: 0x0800
    Model specific error code: 0x1000
    Other information: 0x00000004
    Threshold-based status: Undefined
    Status bits:
    Processor context corrupt
    Error enabled
    Uncorrected error
    Error overflow
    IA32_MC1_STATUS(0x405): 0x0000000000000000 invalid
    IA32_MC2_STATUS(0x409): 0x0000000000000000 invalid
    IA32_MC3_STATUS(0x40d): 0x0020000000000000 invalid
    IA32_MC4_STATUS(0x411): 0x0000000000000011 invalid
    IA32_MC5_STATUS(0x415): 0xf200001040100e0f valid
    MCA error code: 0x0e0f
    Model specific error code: 0x4010
    Other information: 0x00000010
    Threshold-based status: Undefined
    Status bits:
    Processor context corrupt
    Error enabled
    Uncorrected error
    Error overflow
    panic(cpu 1 caller 0xffffff80002c2c95): "Machine Check at 0xffffff7f818c7c76, registers:\n" "CR0: 0x000000008001003b, CR2: 0x00000001139f3000, CR3: 0x0000000000100000, CR4: 0x0000000000000660\n" "RAX: 0x0000000000000000, RBX: 0x0000000000000000, RCX: 0x0000000000000001, RDX: 0x0000000000000000\n" "RSP: 0xffffff80f2533c90, RBP: 0xffffff80f2533cc0, RSI: 0x0000000000000001, RDI: 0xffffff80e9625148\n" "R8: 0xffffff8013adf800, R9: 0x0000000000000000, R10: 0x0000000000000000, R11: 0xffffff800063a094\n" "R12: 0x0000000000000001, R13: 0x0000000000000148, R14: 0xffffff8013adf800, R15: 0xffffff8013966c40\n" "RFL: 0x0000000000010046, RIP: 0xffffff7f818c7c76, CS: 0x0000000000000008, SS: 0x0000000000000010\n" "Error code: 0x0000000000000000\n"@/SourceCache/xnu/xnu-1699.24.8/osfmk/i386/trap_native.c:278
    Backtrace (CPU 1), Frame : Return Address
    0xffffff80e9630ec0 : 0xffffff8000220702
    0xffffff80e9630f40 : 0xffffff80002c2c95
    0xffffff80e96310a0 : 0xffffff80002d83ef
    0xffffff80f2533cc0 : 0xffffff7f818c0863
    0xffffff80f2533da0 : 0xffffff7f818c238d
    0xffffff80f2533e50 : 0xffffff80002c41d4
    0xffffff80f2533e70 : 0xffffff800022d2e5
    0xffffff80f2533eb0 : 0xffffff800022dfd0
    0xffffff80f2533f10 : 0xffffff800022f383
    0xffffff80f2533f70 : 0xffffff8000638578
    0xffffff80f2533fb0 : 0xffffff8000820057
    Kernel Extensions in backtrace:
    com.apple.driver.AppleIntelCPUPowerManagement(167.0)[C29A54C1-C6C9-3830-81EC-3E0D6B35AC96]@0xffffff7f818be000->0xffffff7f818e7fff

    BSD process name corresponding to current thread: kernel_task

    Mac OS version:
    11C73

    System uptime in nanoseconds: 98490752941138
    last loaded kext at 86105510062868: com.apple.iokit.IOAVBFamily 1.0.0d22 (addr 0xffffff7f807a3000, size 36864)
    last unloaded kext at 86179500078959: com.apple.iokit.IOEthernetAVBController 1.0.0d5 (addr 0xffffff7f80799000, size 20480)
    loaded kexts:
    com.vmware.kext.vmnet 3.1.2
    com.vmware.kext.vmioplug 3.1.2
    com.vmware.kext.vmci 3.1.2
    com.vmware.kext.vmx86 3.1.2
    com.radiosilenceapp.nke.filter 1
    com.apple.filesystems.smbfs 1.7.0
    com.apple.filesystems.afpfs 9.8
    com.apple.nke.asp_tcp 6.0.1
    com.apple.filesystems.autofs 3.0
    com.apple.driver.AppleHDA 2.1.3f7
    com.apple.driver.AppleUpstreamUserClient 3.5.9
    com.apple.driver.AppleMCCSControl 1.0.26
    com.apple.driver.AudioAUUC 1.59
    com.apple.kext.ATIFramebuffer 7.1.2
    com.apple.iokit.IOUserEthernet 1.0.0d1
    com.apple.Dont_Steal_Mac_OS_X 7.0.0
    com.apple.driver.AppleMCEDriver 1.1.9
    com.apple.driver.AudioIPCDriver 1.2.1
    com.apple.driver.ACPI_SMC_PlatformPlugin 4.7.5d4
    com.apple.ATIRadeonX2000 7.1.2
    com.apple.driver.AppleLPC 1.5.3
    com.apple.iokit.SCSITaskUserClient 3.0.1
    com.apple.AppleFSCompression.AppleFSCompressionTypeDataless 1.0.0d1
    com.apple.AppleFSCompression.AppleFSCompressionTypeZlib 1.0.0d1
    com.apple.BootCache 33
    com.apple.iokit.IOAHCIBlockStorage 2.0.1
    com.apple.driver.AppleAHCIPort 2.2.0
    com.apple.driver.AppleIntelPIIXATA 2.5.1
    com.apple.driver.AppleIntel8254XEthernet 2.1.3b1
    com.apple.driver.AppleUSBHub 4.5.0
    com.apple.driver.AppleFWOHCI 4.8.9
    com.apple.driver.AppleEFINVRAM 1.5.0
    com.apple.driver.AppleUSBEHCI 4.5.0
    com.apple.driver.AppleUSBUHCI 4.4.5
    com.apple.driver.AppleACPIButtons 1.4
    com.apple.driver.AppleRTC 1.4
    com.apple.driver.AppleHPET 1.6
    com.apple.driver.AppleSMBIOS 1.7
    com.apple.driver.AppleACPIEC 1.4
    com.apple.driver.AppleAPIC 1.5
    com.apple.driver.AppleIntelCPUPowerManagementClient 167.0.0
    com.apple.nke.applicationfirewall 3.2.30
    com.apple.security.quarantine 1
    com.apple.driver.AppleIntelCPUPowerManagement 167.0.0
    com.apple.security.SecureRemotePassword 1.0
    com.apple.kext.triggers 1.0
    com.apple.iokit.IOBluetoothSerialManager 4.0.1f4
    com.apple.iokit.IOSerialFamily 10.0.5
    com.apple.driver.DspFuncLib 2.1.3f7
    com.apple.iokit.IOFireWireIP 2.2.4
    com.apple.iokit.IOSurface 80.0
    com.apple.driver.AppleHDAController 2.1.3f7
    com.apple.iokit.IOHDAFamily 2.1.3f7
    com.apple.iokit.IOAudioFamily 1.8.3fc11
    com.apple.kext.OSvKernDSPLib 1.3
    com.apple.driver.ApplePolicyControl 3.0.16
    com.apple.driver.AppleGraphicsControl 3.0.16
    com.apple.driver.AppleSMC 3.1.1d8
    com.apple.driver.IOPlatformPluginFamily 4.7.5d4
    com.apple.iokit.IONDRVSupport 2.3.2
    com.apple.kext.ATI2600Controller 7.1.2
    com.apple.kext.ATISupport 7.1.2
    com.apple.iokit.IOGraphicsFamily 2.3.2
    com.apple.driver.AppleUSBHIDMouse 170.4
    com.apple.driver.AppleHIDMouse 170.4
    com.apple.driver.AppleUSBHIDKeyboard 152.3
    com.apple.driver.AppleHIDKeyboard 152.3
    com.apple.iokit.IOUSBHIDDriver 4.4.5
    com.apple.driver.CSRUSBBluetoothHCIController 4.0.1f4
    com.apple.driver.AppleUSBBluetoothHCIController 4.0.1f4
    com.apple.iokit.IOBluetoothFamily 4.0.1f4
    com.apple.driver.AppleUSBMergeNub 4.5.3
    com.apple.iokit.IOSCSIBlockCommandsDevice 3.0.1
    com.apple.iokit.IOUSBMassStorageClass 3.0.0
    com.apple.driver.AppleUSBComposite 3.9.0
    com.apple.iokit.IOSCSIMultimediaCommandsDevice 3.0.1
    com.apple.iokit.IOBDStorageFamily 1.6
    com.apple.iokit.IODVDStorageFamily 1.7
    com.apple.iokit.IOCDStorageFamily 1.7
    com.apple.driver.XsanFilter 403
    com.apple.iokit.IOATAPIProtocolTransport 3.0.0
    com.apple.iokit.IOSCSIArchitectureModelFamily 3.0.1
    com.apple.iokit.IOAHCIFamily 2.0.7
    com.apple.iokit.IOATAFamily 2.5.1
    com.apple.iokit.IONetworkingFamily 2.0
    com.apple.iokit.IOUSBUserClient 4.5.3
    com.apple.iokit.IOFireWireFamily 4.4.5
    com.apple.driver.AppleEFIRuntime 1.5.0
    com.apple.iokit.IOUSBFamily 4.5.3
    com.apple.iokit.IOHIDFamily 1.7.1
    com.apple.iokit.IOSMBusFamily 1.1
    com.apple.security.sandbox 165.3
    com.apple.kext.AppleMatch 1.0.0d1
    com.apple.security.TMSafetyNet 7
    com.apple.driver.DiskImages 331
    com.apple.iokit.IOStorageFamily 1.7
    com.apple.driver.AppleKeyStore 28.18
    com.apple.driver.AppleACPIPlatform 1.4
    com.apple.iokit.IOPCIFamily 2.6.7
    com.apple.iokit.IOACPIFamily 1.4

  5. LuthersBoots thread starter macrumors member

    Joined:
    Nov 12, 2010
    Location:
    Lake District, Cumbria UK
    #5
    BUMP - Sorry to be a pain, but can anyone diagnose this error?

  6. FrankHahn macrumors 6502a

    Joined:
    May 17, 2011
    #6
    From these lines
    "MCA error-reporting registers:
    IA32_MC0_STATUS(0x401): 0xf200000410000800 valid
    MCA error code: 0x0800
    Model specific error code: 0x1000
    Other information: 0x00000004
    Threshold-based status: Undefined
    Status bits:
    Processor context corrupt
    Error enabled
    Uncorrected error
    Error overflow
    IA32_MC1_STATUS(0x405): 0x0000000000000000 invalid
    IA32_MC2_STATUS(0x409): 0x0000000000000000 invalid
    IA32_MC3_STATUS(0x40d): 0x0020000000000000 invalid
    IA32_MC4_STATUS(0x411): 0x0000000000000011 invalid
    IA32_MC5_STATUS(0x415): 0xf200001040100e0f valid
    MCA error code: 0x0e0f
    Model specific error code: 0x4010
    Other information: 0x00000010
    Threshold-based status: Undefined
    Status bits:
    Processor context corrupt
    Error enabled
    Uncorrected error
    Error overflow",

    I can say definitely that the crashes were caused by bad RAM sticks. I had this experience with the 16 GB memory kit from OWC for my 2010 Mac Pro. I had to RMA twice to get the RAM sticks that do not give rise to kernel panics.

    You can check the memory using Apple Hardware Test. After you find the faulty stick(s), replace it (them). However, you have to be very careful when choosing ECC RAM sticks since the faulty ones cause kernel panics.

  7. LuthersBoots thread starter macrumors member

    Joined:
    Nov 12, 2010
    Location:
    Lake District, Cumbria UK
    #7
    Thanks Pal. I will run hardware test tonight and see what goes down.

    Cheers,

    D.
