Distribute lines evenly around a circle in Illustrator?

Discussion in 'Design and Graphics' started by NStocks, Oct 18, 2011.

  1. NStocks macrumors 65816

    Joined:
    Apr 3, 2008
    Location:
    England
    #1
    Hi,

    I've created a load of lines by duplicating them around a origin (Presses 'R' and 'alt' then copy until I have enough - 188 lines)

    Although they were initialled spaced evenly (rotates by n angle: 360/ 188 = 1.91 degrees).

    I have now changed the line weights of some of the lines, so the spacing is no longer even.

    How can adjust the spacing across all the lines, but fast and accurate?

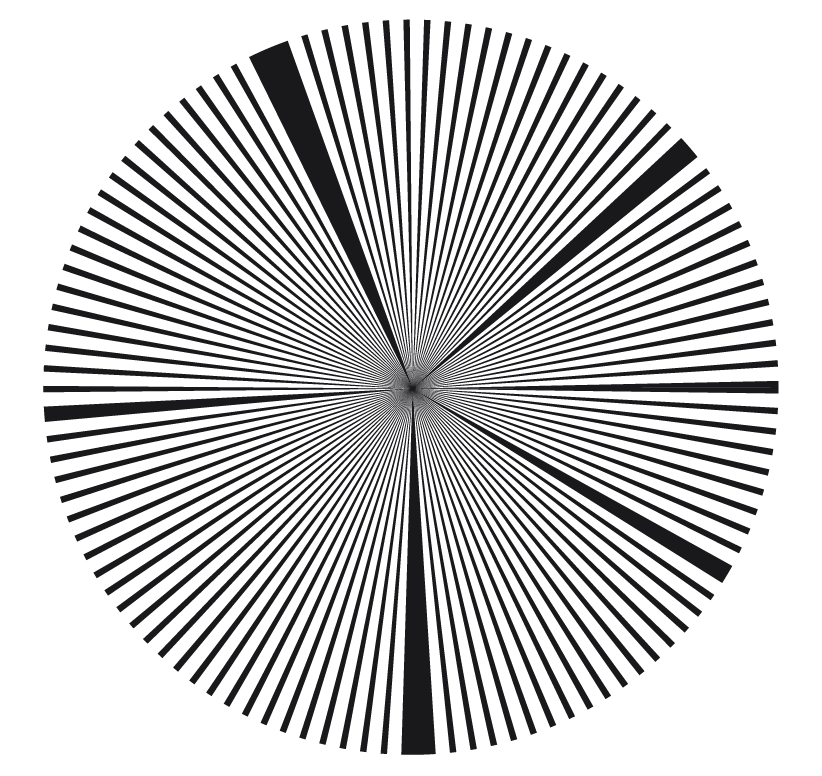

    Referring to the attached you can see that the spaced are not even, due to changing the line weights.

    Thank you


    Attached Files:

  2. davedee65 macrumors regular

    davedee65

    Joined:
    Apr 7, 2010
    Location:
    UK
    #2
    Did you mean something like this?

    D


    Attached Files:

  3. NStocks thread starter macrumors 65816

    Joined:
    Apr 3, 2008
    Location:
    England
    #3
    Exactly like that!

    How did you do it? I don't really want to start from scratch...

    Thank you

  4. davedee65 macrumors regular

    davedee65

    Joined:
    Apr 7, 2010
    Location:
    UK
    #4
    Ah well there's the problem! As far as I can work out there is no way to evenly distribute objects around a circle or common point, only horizontally or vertically.

    I'll tell you how I did mine and you can decide whether to follow!

    1. Essentially what you need to do is arrange a series of boxes in a horizontal line, the same length as the circumference of your circle, that correspond to the number and thickness of lines you have in your design.

    2. The first and last box need to be at the beginning and end of your line. Select all boxes and use the Align Tool>Horizontal Distribute Space button to evenly space the boxes along the line.

    3. Then create an Art Brush out of the line of boxes.

    4. Draw a circle at the correct circumference with a stroke and no fill. Apply the brush to that circle.

    5. Select the circle and Expand it to give you a series of boxes in a circle.

    6. Now for the boring bit! Using the Direct Selection Tool you need to select all points on the inner circumference of the boxes.

    7. With these point selected use alt-cmd-j>both and hit return and bingo it's done!

    I expect there will be a bit of trial and error involved to get it just how you want it. Mind you I don't doubt that someone much cleverer than me will come up with a very elegant simple solution!!

    Leave it with ya!

    D

  5. anotonin macrumors member

    Joined:
    Oct 19, 2011
    #5
    I'm going to try this. It seems simple enough for me to try. :)
