DIY protecting the AC adaptor

Discussion in 'MacBook Pro' started by macstatic, Aug 19, 2014.

  1. macstatic, Aug 19, 2014
    Last edited: Aug 22, 2014

    macstatic macrumors 6502a

    Joined:
    Oct 21, 2005
    #1
    Having seen one too many damaged AC power adaptors around I wasn't going to let that happen when I first got my MacBook Pro, so here's a simple, cheap and dare I say professional looking DIY solution I came up with.

    The problem
    A common problem with these AC adaptors is that the cable ends (near the Magsafe connector and where the cable comes out from the AC adaptor itself) are very prone to breaking if not handled very carefully (i.e. not bent/folded or twisted).
    [​IMG]

    A damaged AC-adaptor is useless because of Apple's proprietary Magsafe connector (I believe a replacement is near impossible to find due to Apple's patent on it), and even with just a broken cable at the AC-adaptor end it's very hard to open it up in order to cut/resolder the cable at that end. Apple's solution: spend your hard earned $$$ and buy a new one!
    My solution: be proactive to ensure the adapter doesn't get damaged in the first place ;)

    What needs to be done?
    We want to prevent the cable from being bent too much, which is hard to avoid in the long run when you wind up the cable for traveling or whatever. The most fragile sections are the areas around the Magsafe connector and the immediate area where it comes out of the AC adaptor. We need to stiffen up those areas so there's less chance of bending the wire.
    The solution is heat shrink tubing.
    Heat shrink tubes are inexpensive plastic tubes which shrink when heat is applied. They're ideal for covering electrical wires etc.

    The challenges
    The heatshrink tubes need to slide over the Magsafe connector but also have to shrink down to the diameter of the cable, for a tight fit in the end. Most tubes don't shrink more than 50% but I found a 9.5mm diameter type with a 3:1 shrink ratio which did the trick at eBay. It cost me around US$ 2.50 in total.

    The second challenge was to heat up the tube without melting the cable, AC adaptor or Magsafe connector. I solved this by covering the exposed areas around the tubes by several layers of paper tape (painter's tape). In hindsight I see that I could probably have used several layers of aluminum foil as removing the sticky residue from the tape (especially on the cable) turned out to be a real hassle. I think aluminum foil, as thin as it is, both takes up heat easily but also lets go of it quickly so the next layer/fold won't receive that much heat. Your mileage may vary and there are probably better solutions around -please do share if you come up with something better!

    Tools needed
    • Heatshrink tube (suitably sized for your particular AC adapter)
    • Hot air gun or hairdryer (I tried both but found best resuts with the former)
    • Scissors (for cutting the tube to suitable lengths)
    • Tape, aluminum foil etc. to cover the exposed AC adaptor/cable from the heat



    The procedure itself
    [​IMG]
    Figure out how long a tube you need for the AC-adaptor end. You'll want it to cover the critical area which easily gets bent but not over do it as that'll defeat the purpose (making it easier to bend/break again). Check the length by placing the tube next to the cable, then cut it to the length you need.

    [​IMG]
    Now slide the pre-cut tubing over the Magsafe connector and over to the AC-adaptor end, as close to the AC-adaptor as you can get.

    [​IMG]
    Check the length of the tubing at the Magsafe connector end in order to cut it.

    [​IMG]
    Slide the pre-cut tubing over the Magsafe connector to where it should be.

    [​IMG]
    [​IMG]

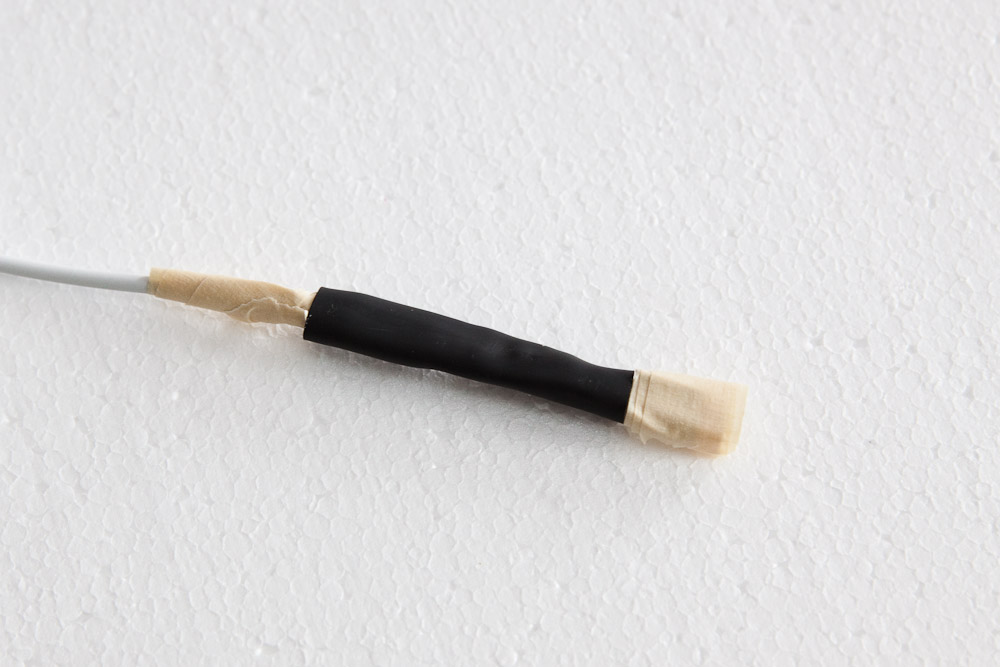

    Cover the exposed areas around the heatshrink tubing with something that'll keep the heat away. I used paper tape (regular plastic tape will just melt) but later in the process switched over to several layers of aluminum kitchen foil to avoid the sticky tape mess. A combination of the two might be a better solution.

    When that's done it's time to heat up the tubing using hot air (a hair dryer or a hot air gun). Ensure the tubing is placed where you want it and start blowing hot air onto it. Try to heat it from both front and back sides so it'll shrink as much as possible. Try to avoid heating up the AC adaptor and cable if you can and do regular checks to see it's not getting too hot. Take your time and let it cool down now and then. You don't want to melt the cable nor the AC adaptor itself!
    The heatshrink tubes should (depending on the shrinkage ratio) ideally hug the cable tightly. Here's the end result (the transparent goo at the end of the tube close to the Magsafe connector is melted adhesive from the inside of the tube which keeps it in place and ideally should make it waterproof as well:

    [​IMG]
    [​IMG]
    [​IMG]
