DNS issue

Discussion in 'Mac OS X Server, Xserve, and Networking' started by stuarta99, Jan 28, 2015.

  1. stuarta99 macrumors newbie

    Joined:
    Mar 18, 2014
    #1
    Hi guys,

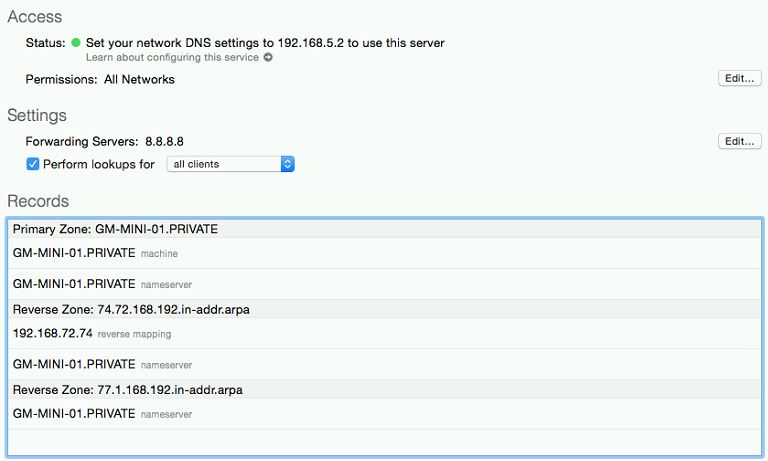

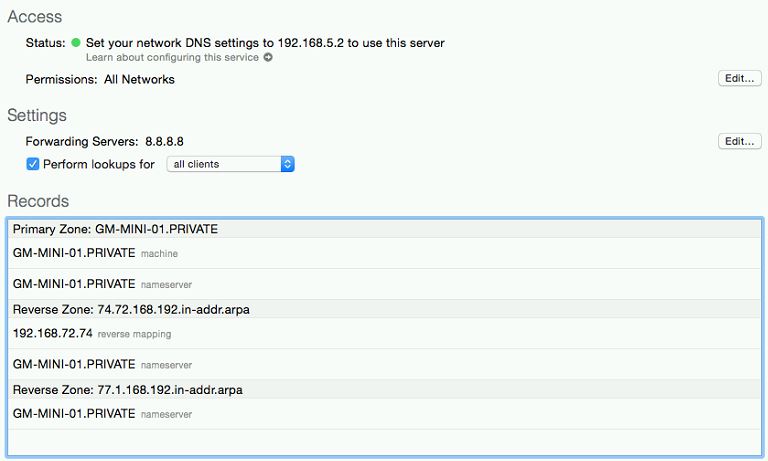

    I'm not sure if I have a DNS issue or misconfiguration but a new install of Yosemite server doesn't seem to be able to resolve itself. I've attached a screenshot if someone can please advise if it's set correctly.

    There is a reverse zone which I think is incorrect because it was originally setup on 192.168.1.77 but the new IP is 192.168.5.2

    Some clients have issues of being disconnected and I'm not sure if this is causing a problem. I'd be grateful if someone could advise


    Attached Files:

  2. DJLC macrumors 6502a

    DJLC

    Joined:
    Jul 17, 2005
    Location:
    Mooresville, NC
    #2
    Looks to me like you have two incorrect reverse lookup zones that would resolve GM-MINI-01.private to 192.168.72.74 and 192.168.1.77 respectively. You'll want to wipe out both of those and create a new one for the updated internal IP address.

  3. stuarta99 thread starter macrumors newbie

    Joined:
    Mar 18, 2014
    #3
    Yep I've fixed them today I think and created from scratch from the host name option. The workstations can now resolve the server but the server not the workstations, not sure if that important. Also it seems to have broken the open directory and its showing no replica servers in the main window. Got issue where got several clients ranging from snow leopard to Yosemite are having a mixture of issues ranging from slow connection and disconnections. I just need to find a happy os and protocol to use

  4. DJLC macrumors 6502a

    DJLC

    Joined:
    Jul 17, 2005
    Location:
    Mooresville, NC
    #4
    Haven't used Yosemite server yet; I'm on Mavericks on the Xserve at work.

    But ideally you want to have DNS golden before enabling OD. Not sure what steps you need to take to make OD happy with your corrected DNS.

    Clients should be able to resolve the server; I don't think the server typically needs to be able to resolve clients. I think that's more of an Active Directory thing over in Windows land/

  5. stuarta99 thread starter macrumors newbie

    Joined:
    Mar 18, 2014
    #5
    Yep that's what I'm thinking as long as clients can see server. Hoping the DNS was why there was some disconnections and hopefully that resolved and not sure if OD is vital. You using SMB or AFP and connecting via network pane in browser or connect to server? Had some issues when I forced shares to SMB, connecting via finder page didn't work see them, but once I had initially connected using connect to server using smb://nameofserver the pane then worked

  6. Zjef macrumors newbie

    Joined:
    Feb 4, 2008
    #6
    Not claiming to be an expert, but what is odd to me:
    1. Looking on top of the screenshot, the DNS settings to be used by your clients are not reflecting the IP of the DNS server
    2. I also noticed that you've got differences in the reverse zones

    When I look at my server settings, the IP is always the same.

    Recalling my installation, I've got issues when I tried to set up DNS as a "local" server. Setting up the server as "private" resulted in correct DNS setting.
    To be as complete as I can be, prior to install the server app I made sure that the server's IP was correct (the setting it must have when operational). Including a DNS lookup to itself in the Network DNS settings.

    I'll hope it helps.

  7. stuarta99 thread starter macrumors newbie

    Joined:
    Mar 18, 2014
    #7

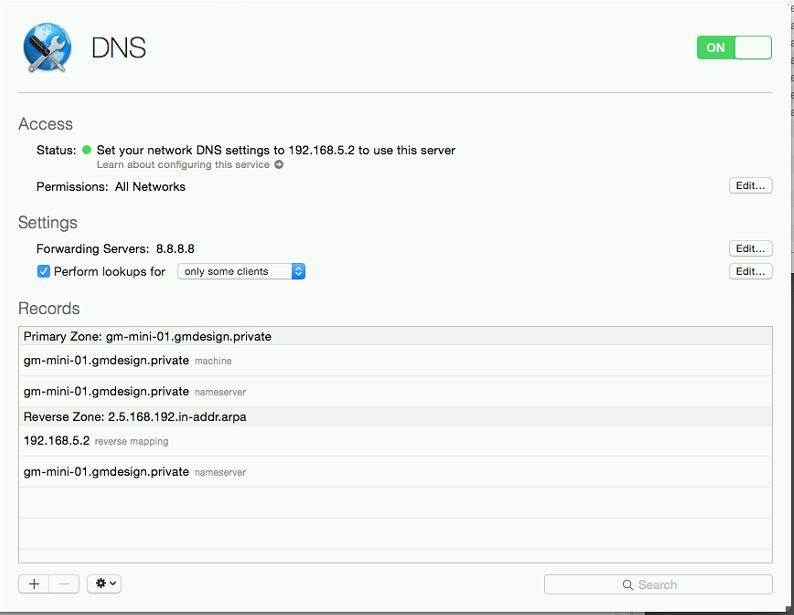

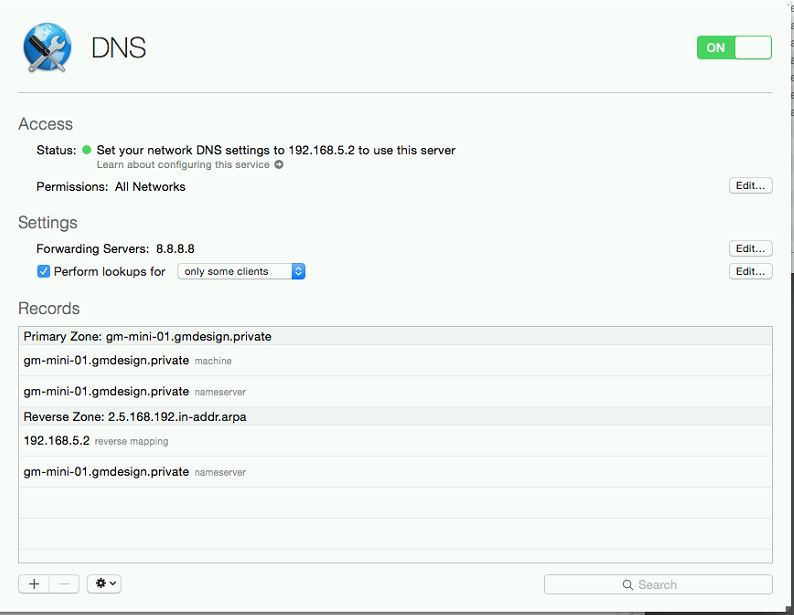

    Sorry just an update to this I think I have resolved the DNS issues but in the process killed Open Directory. This morning users weren't able to access data with the Local Network User account so I had to create them Local User accounts.

    I'm hoping to rebuild with this fix tonight and hopefully OD will be ok. Although they do seem to be working well today and not sure if I really need the OD



    Attached Files:

  8. stuarta99 thread starter macrumors newbie

    Joined:
    Mar 18, 2014
    #8
    Ok the above fix seems to have worked and Open Directory is now reporting correctly. I've removed the user accounts and re-entered them as Network accounts. Not sure what the benefit however is though between the local and network as network seemed to be working fine.

    What I have noticed however is that when I click on the user the 'change password' option is greyed out, not sure why

  9. chrfr macrumors 603

    Joined:
    Jul 11, 2009
    #9
    At the top of the Users pane in the Server window, select "local network users" and at the bottom, a padlock will appear. Click the padlock (if locked) and enter your Open Directory admin user credentials.

  10. stuarta99 thread starter macrumors newbie

    Joined:
    Mar 18, 2014
    #10
    Ok thanks will give that a whirl Monday. So better to use network over local?
