Hey all,

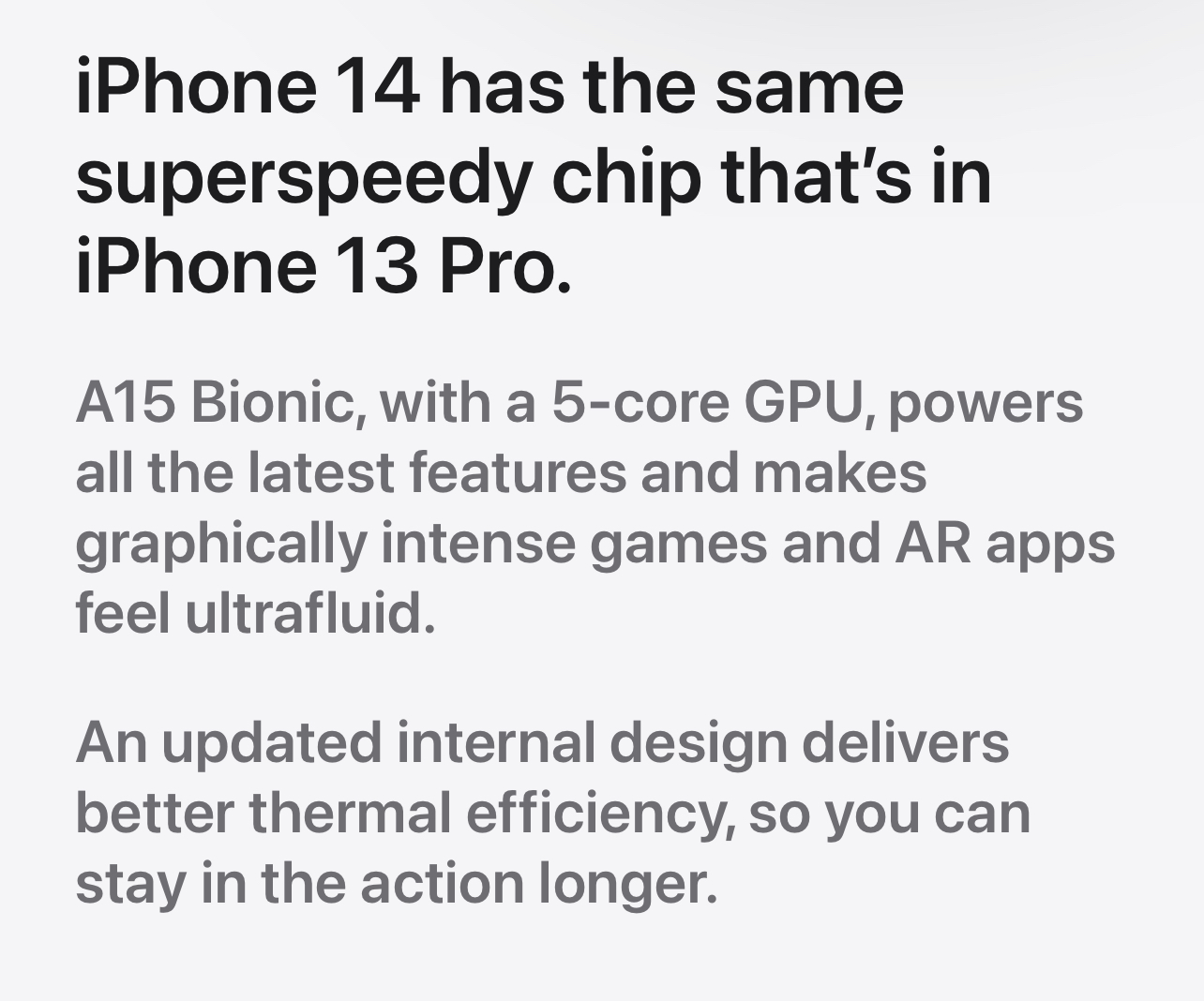

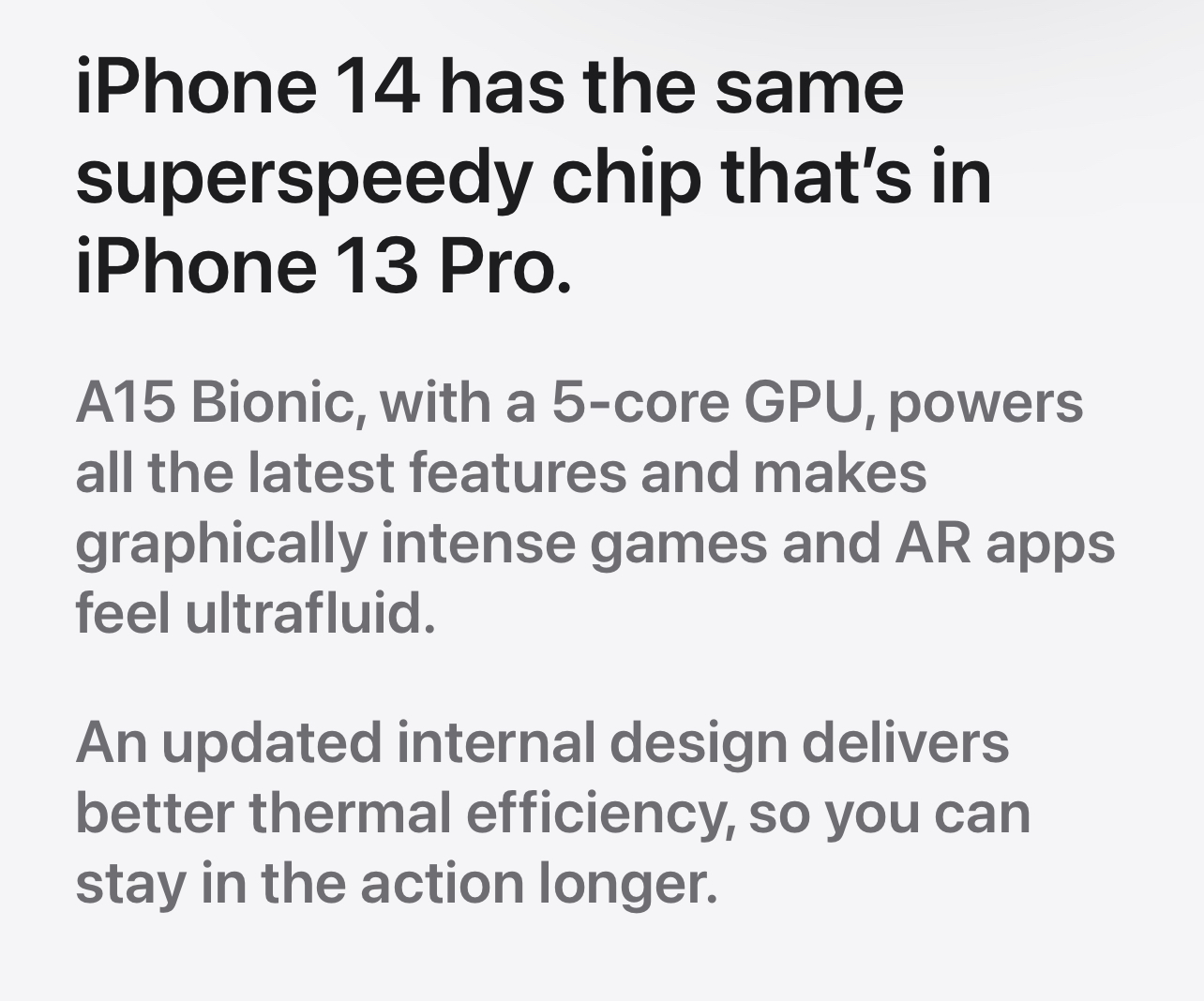

I noticed during the keynote that the 14 and 14 Plus have an “updated thermal design”. Does this come to the 14 Pro/PM?


Attachments

  • 82016E05-9CB3-481C-9355-D70E2880795D.jpeg
    356.4 KB · Views: 703
  • Like
Reactions: 5105973

MaxHerman11

macrumors newbie
Aug 27, 2019
5
22
Wondering the same thing, one of the features I was really hoping for was a vapor chamber cooling solution. My 13 Pro gets so hot when doing anything remotely intensive.

  • Like
Reactions: 5105973

JPack

macrumors G5
Mar 27, 2017
12,893
24,429
I hope it doesn't mean the 14 just gets the additional graphite pads from the Pro.


byron_hinson

macrumors 6502
Jun 3, 2003
364
42
Yeah its a shame if not - one of the problems the 13 pro had with games was throttling when the temp rose up.


zelativity

macrumors newbie
Sep 12, 2022
28
61
Exactly. Apple would tout a new thermal cooling system.
I thought I was going crazy when after seeing it not being mentioned anywhere, I'm pretty sure I heard them talk about it in the keynote(albeit super short). I looked again at the keynote to find it - and they did.

It's very easy to miss, but exactly at 49:43 in the keynote is where the iP14 is claimed to have "updated internal design that improves thermal performance". So, I guess we'd get to see full A15 performance if it had proper cooling in the first place.

Last edited:
  • Haha
Reactions: Smoovejayy

luigi.lauro

macrumors member
Jun 18, 2012
81
48
Milan, Italy
My guess is a slightly improved thermal design for better sustained perfomance, but nothing completely different/innovative (ie. vapor chamber, etc..).

If they would do something like that, IMHO they would spend a bit more time on it during the keynote and maybe even give it a fancy name (Koolaid :p)

  • Haha
Reactions: zelativity

ericg301

macrumors 68020
Jun 15, 2010
2,280
2,473
bumping this. Wondering if anybody found anything in the reviews today. My last several iPhones
throttle the screen down to almost nothing here in the Texas heat. Hoping for improvement in this area.


JPack

macrumors G5
Mar 27, 2017
12,893
24,429

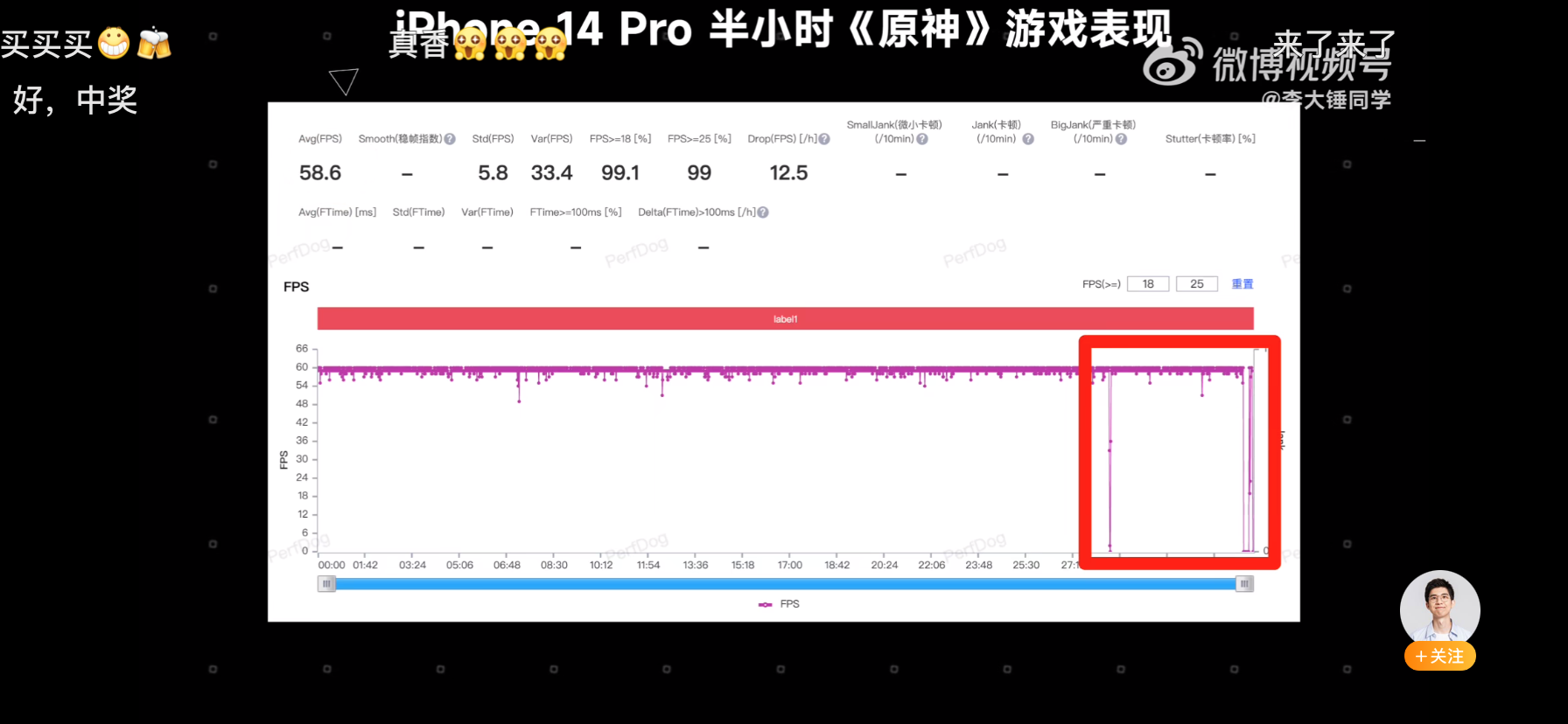

Thermal imaging shows the 14 Pro runs a couple degrees cooler than 13 Pro.

A 30 minute gaming runs show it's much more stable.





jm31828

macrumors 65816
Sep 28, 2015
1,394
895
Bothell, Washington
Thermal imaging shows the 14 Pro runs a couple degrees cooler than 13 Pro.

A 30 minute gaming runs show it's much more stable.

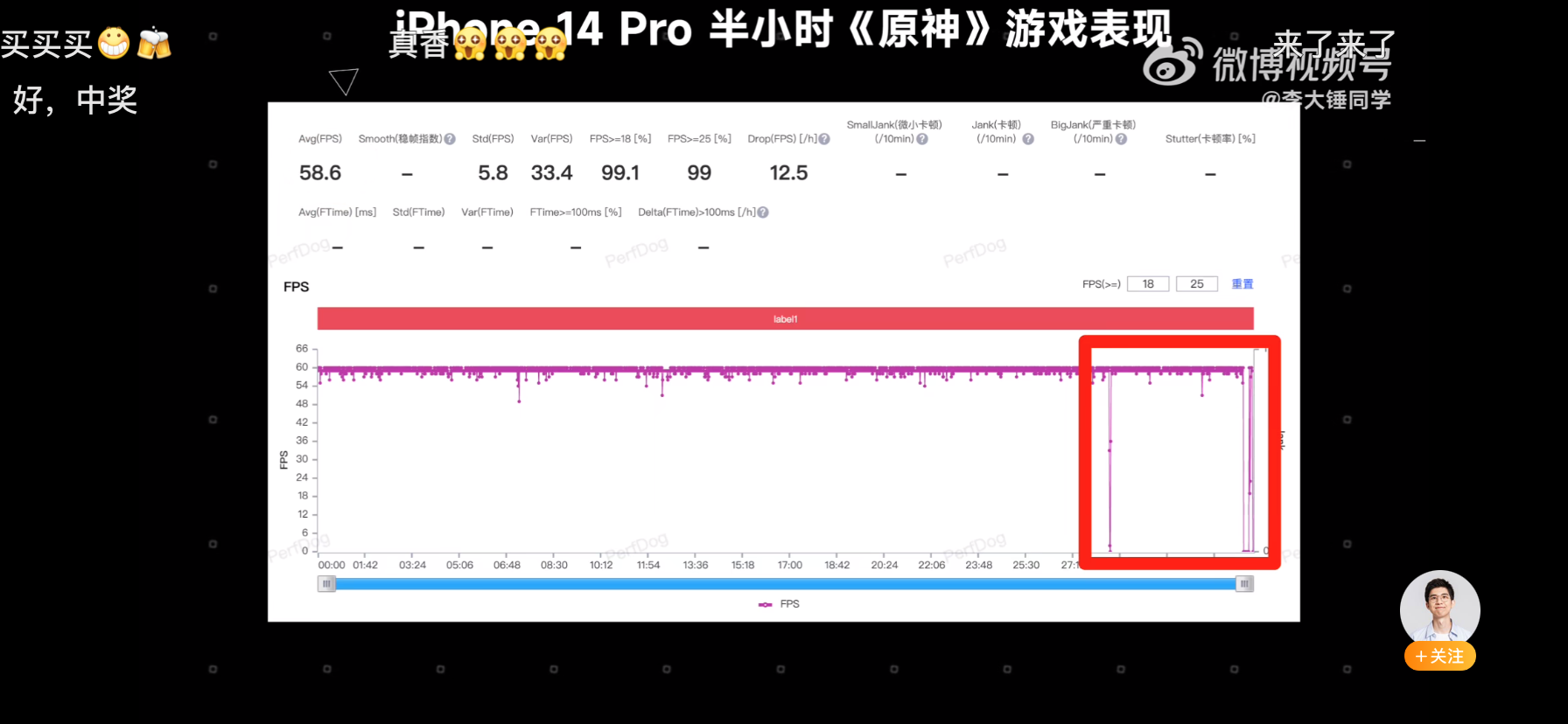

View attachment 2062422

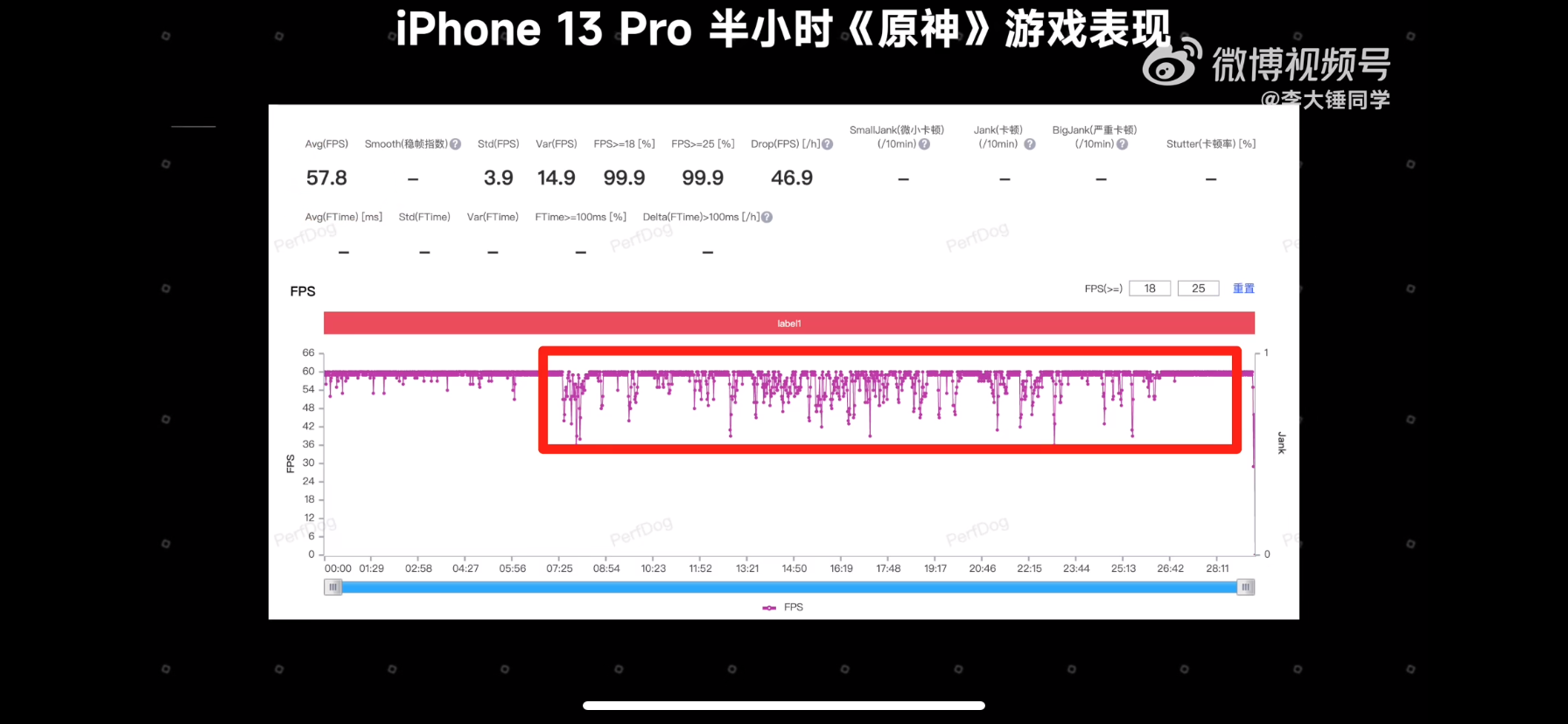

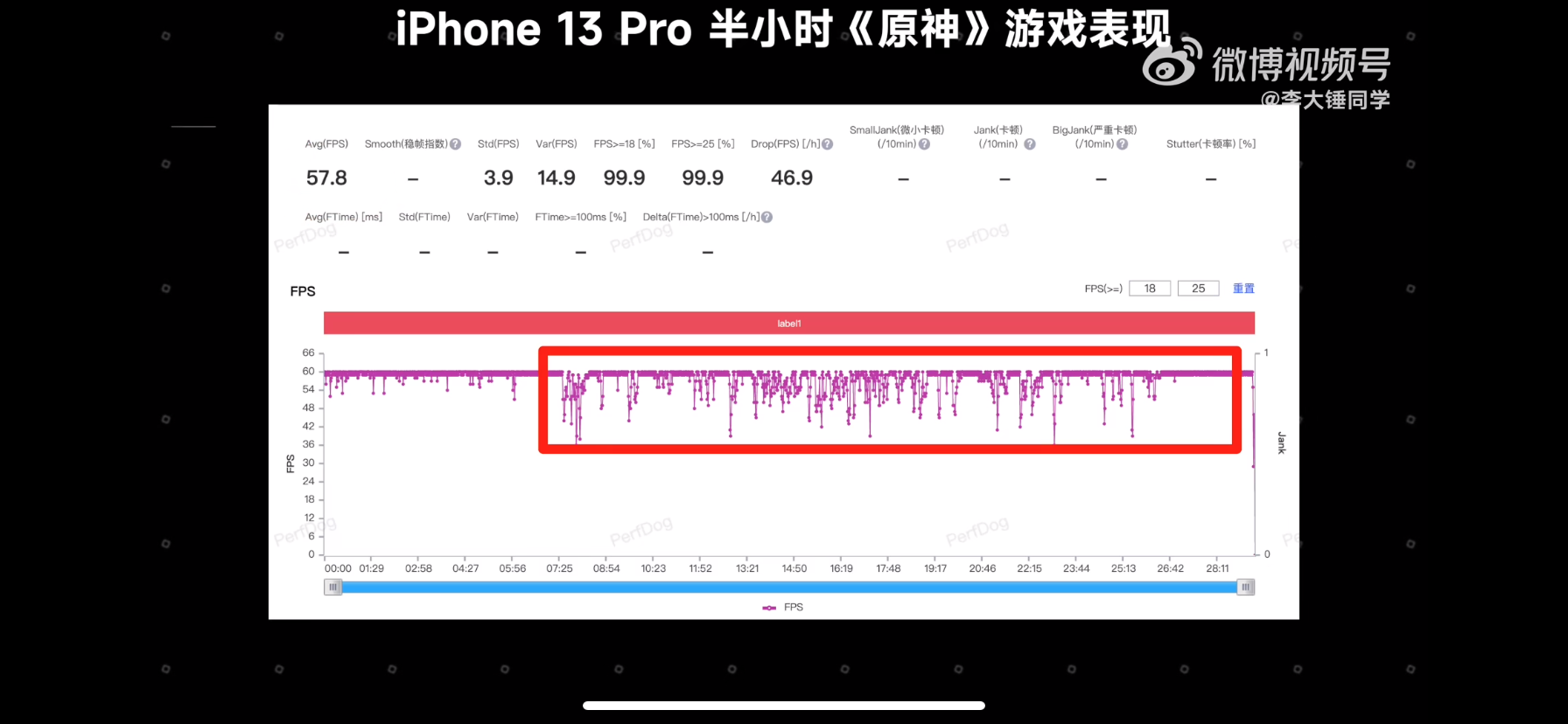

View attachment 2062433

I noticed that my iPhone 13 Pro gets really hot to the touch when simply browsing this forum on Tapatalk- I imagine it's all the ads. Even doing that, the screen will dim at times.
I assume from what we see here, that it's not going to be noticeably different on the 14 Pro, given that it's only a couple of degrees difference?


JPack

macrumors G5
Mar 27, 2017
12,893
24,429
I noticed that my iPhone 13 Pro gets really hot to the touch when simply browsing this forum on Tapatalk- I imagine it's all the ads. Even doing that, the screen will dim at times.
I assume from what we see here, that it's not going to be noticeably different on the 14 Pro, given that it's only a couple of degrees difference?

This forum has a known bug that heats up iPhone. But yes, the iPhone 14 is still a hot device if stressed. Fundamentally, these processors are getting hotter each year due to the increasing number of transistors Apple is packing into the chip.


vijaymisir

macrumors newbie
Sep 2, 2022
6
4
There is a teardown now:

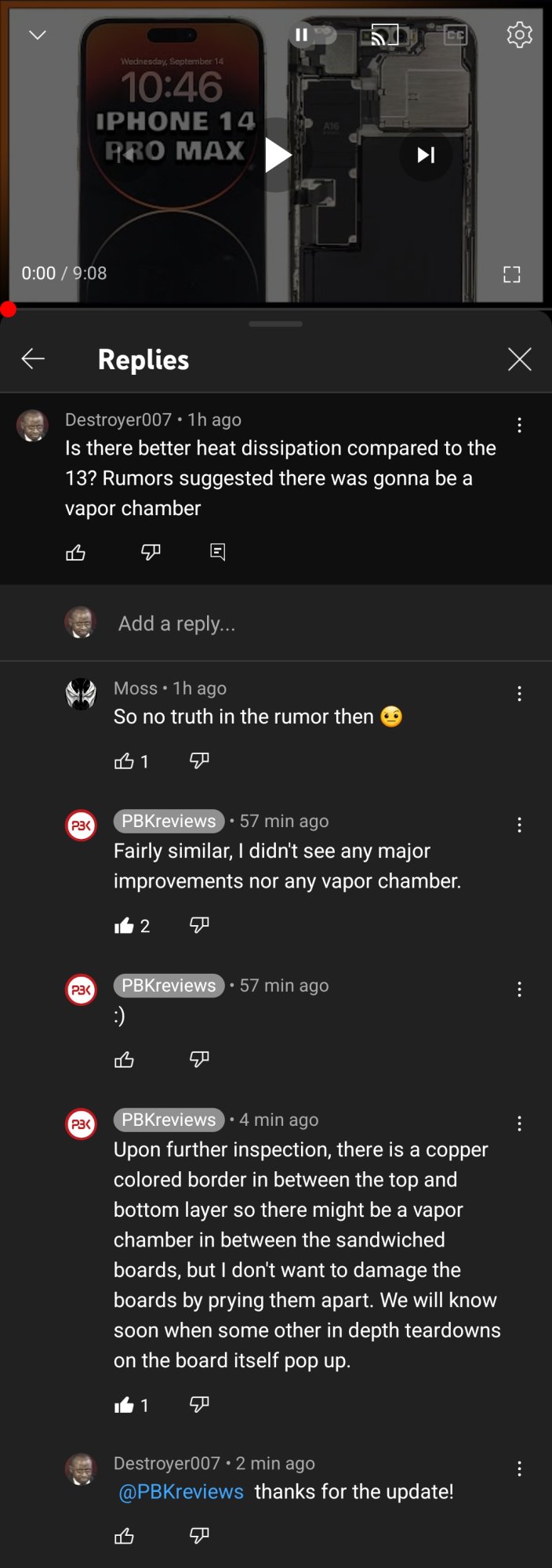

See attached image of comments in the video. May be some sort of copper suggesting a vapor chamber but we have to wait for a more in depth tear down.


Attachments

  • Screenshot_20220915-033348_YouTube.jpg
    150.8 KB · Views: 144
  • Like
Reactions: Hitmanbbq59

JPack

macrumors G5
Mar 27, 2017
12,893
24,429
See attached image of comments in the video. May be some sort of copper suggesting a vapor chamber but we have to wait for a more in depth tear down.

A vapor chamber is designed to spread the heat and would be useless if it's sandwiched inside the stacked logic board. I'd say it's a definite no at this point.

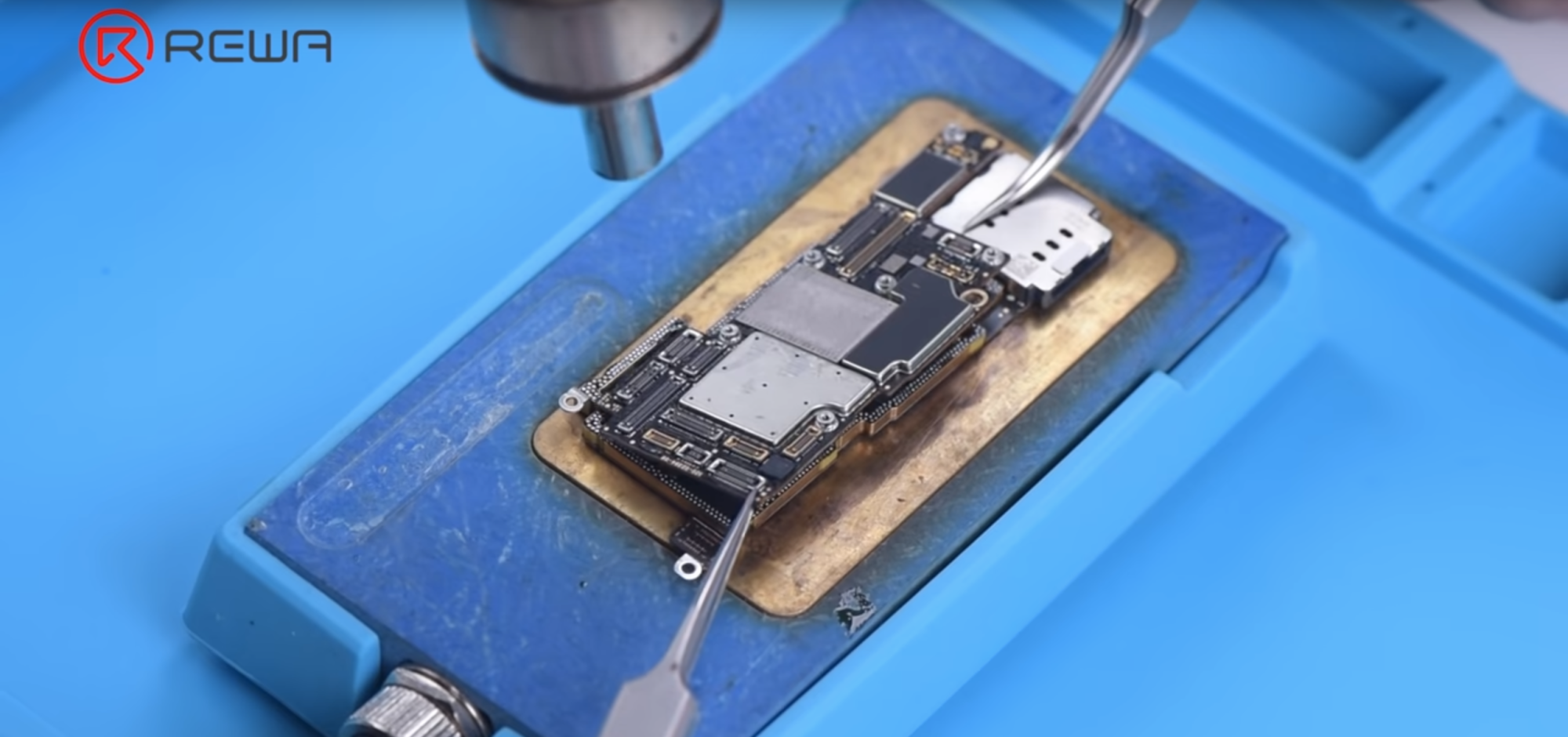

The iPhone 13 Pro logic board already has a similar copper colored edge.

Screen Shot 2022-09-15 at 12.43.54 AM (2).png

  • Like
Reactions: Hitmanbbq59

Solid_Snake

macrumors member
Sep 21, 2021
33
28
Wondering the same thing, one of the features I was really hoping for was a vapor chamber cooling solution. My 13 Pro gets so hot when doing anything remotely intensive.
Really? I used to play COD high brightness on my 13 Pro Max it doesn’t get too hot for me. Whatever it is it will improving the heat so it’s good. Also Apple needed to do this as the Pro phoned can go to 2,000 mitts at peak outdoor brightness.


Solid_Snake

macrumors member
Sep 21, 2021
33
28
It was speculated but given that there was no mention in the keynote, I don’t believe so.
Apple doesn’t mention third party things on their phones Eg they use Qualcomm 5G chip they never mention that even tho it’s probably using the X65. Whatever it is it won’t make the phone hot as Apple said the thermals have been improved they needed to become the Pro models can go up to 2,000 nitts outdoor brightness without some sort of cooling you wouldn’t be able to do this.


MayaUser

macrumors 68030
Nov 22, 2021
2,912
6,319
On all my scenarios that my 11pro max and former 13 pro max where the display got dim and the device got very warm...the 14 pro max didnt

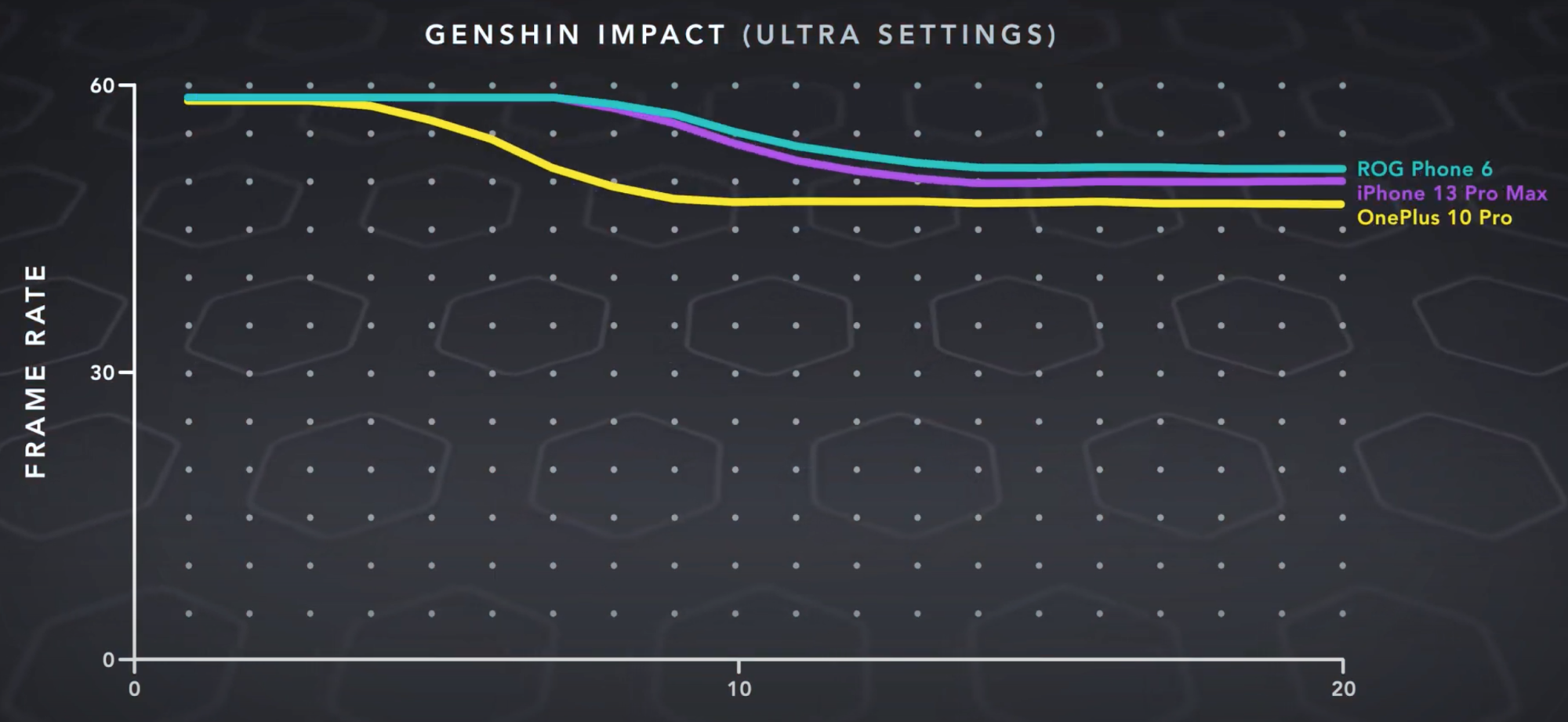

And as far as i can see, in gaming too if im reading this photo right
If Its the thermals inside or anything else i dont know..but its clear a difference


Attachments

  • Screenshot 2022-09-17 at 12.22.35.png
    Screenshot 2022-09-17 at 12.22.35.png
    712.4 KB · Views: 159
Last edited:

ericg301

macrumors 68020
Jun 15, 2010
2,280
2,473
Bumping this old thread

Here in the summer my 14 pro screen dims to almost nothing on longer car trips (as gps in a mount)

But my spare android phone? (Samsung a32) no issues. So now I resort to that on long trips. Any reason why my $1200 can’t handle the what but my free android can?!
