dual charging watch/iPhone in standard box

Discussion in 'Apple Watch Accessories' started by MartinSk, May 23, 2015.

  1. MartinSk macrumors member

    Joined:
    May 3, 2015
    #1
    I decided that even though I liked the previous stand I'd made, the standard box that comes with the watch deserves to be used as it is such a nice simple design.

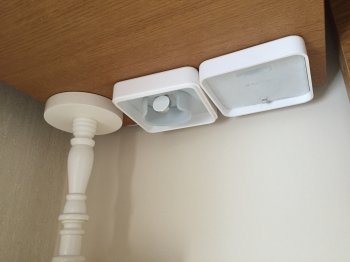

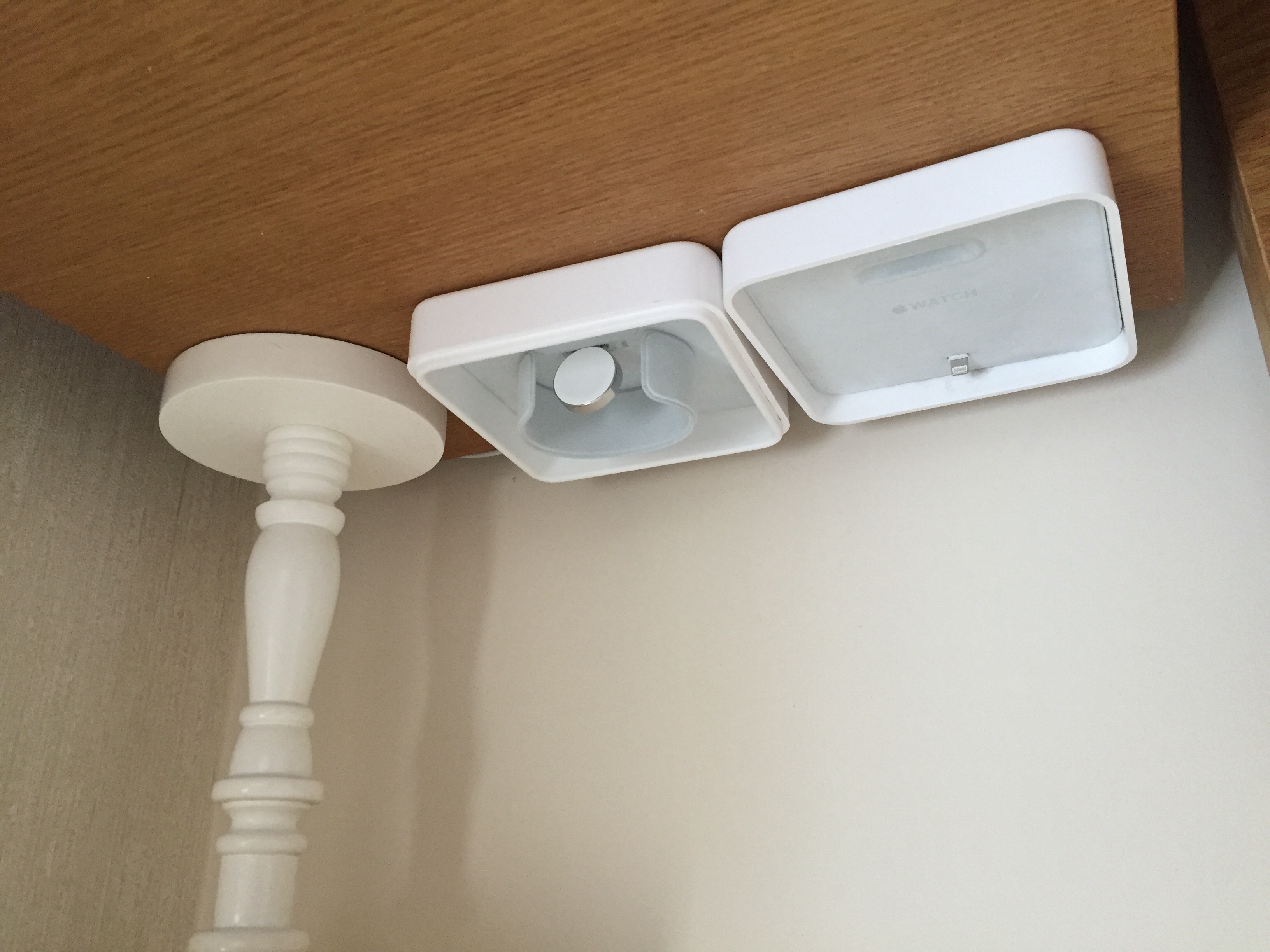

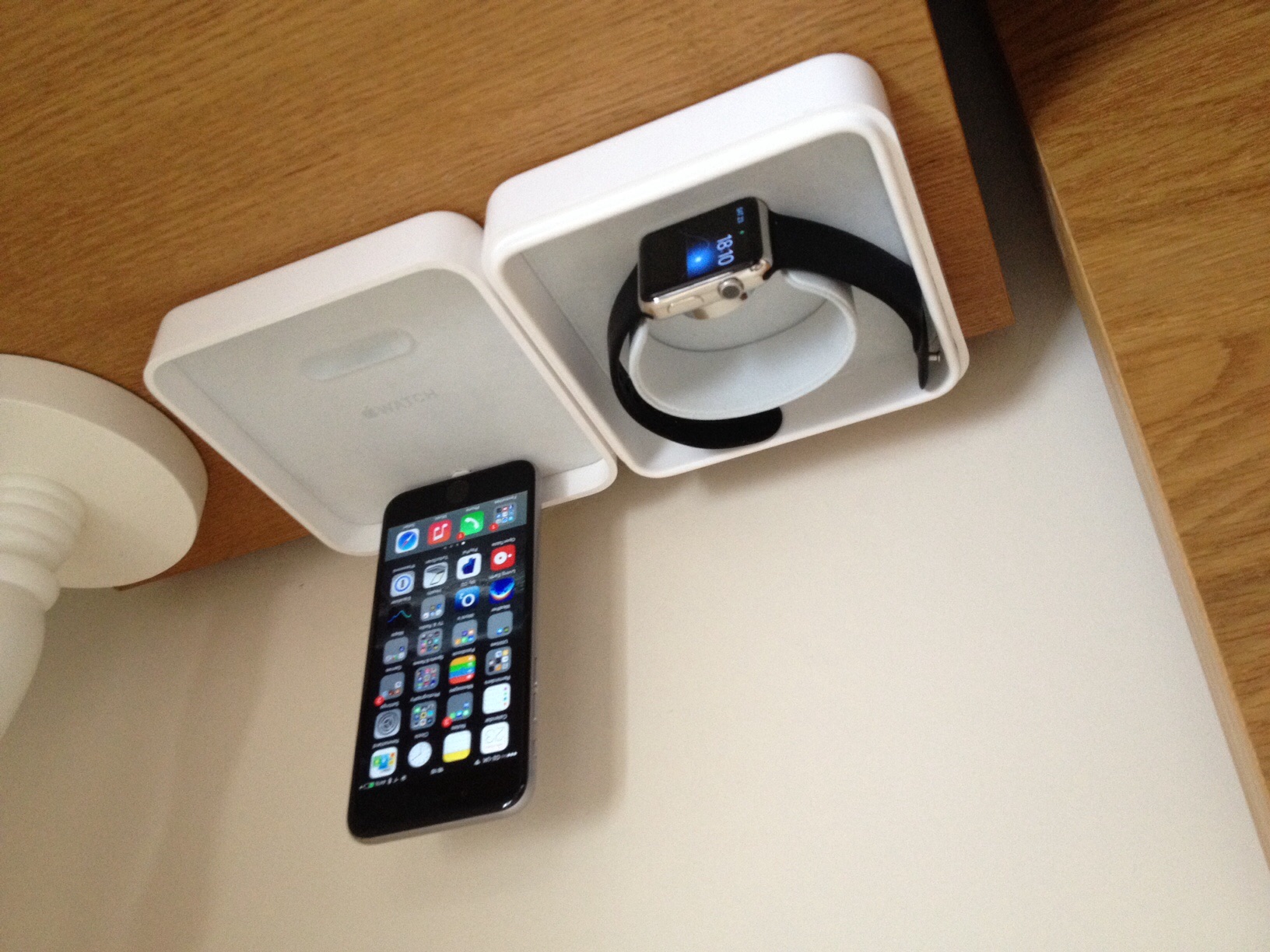

    After plenty of fiddling I now have a box that charges both my iPhone and watch with a built in female lightning connector for the iPhone charger and the watch cable exiting at the rear of the case so it can sit flush.

    I can take this away with me if needed and there are no unsightly bits of tape or feet to manage the cables. I'm quite pleased with it although if I'd have took more time I could have made it even better.


    Attached Files:

  2. MartinSk thread starter macrumors member

    Joined:
    May 3, 2015
    #2
    Empty....


    Attached Files:

  3. dwfaust, May 23, 2015
    Last edited: May 23, 2015

    dwfaust macrumors 68040

    dwfaust

    Joined:
    Jul 3, 2011
    Location:
    I am here =>[*]
    #3
    Cool. And even works upside down! :)

  4. MartinSk thread starter macrumors member

    Joined:
    May 3, 2015
    #4
    :D I'm using an iPad mini and it seems this site doesn't like it!

  5. dwfaust macrumors 68040

    dwfaust

    Joined:
    Jul 3, 2011
    Location:
    I am here =>[*]
    #5
    Sorry, wasn't trying to be snarky or critical. It's a bit annoying when that happens - and can't really determine why photos get flipped upside down at times.

    Would like to see shots of the details - the "no ... tape or feet" thing is interesting. Would like to see how you did it.

    Thanks for sharing.

  6. MartinSk thread starter macrumors member

    Joined:
    May 3, 2015
    #6

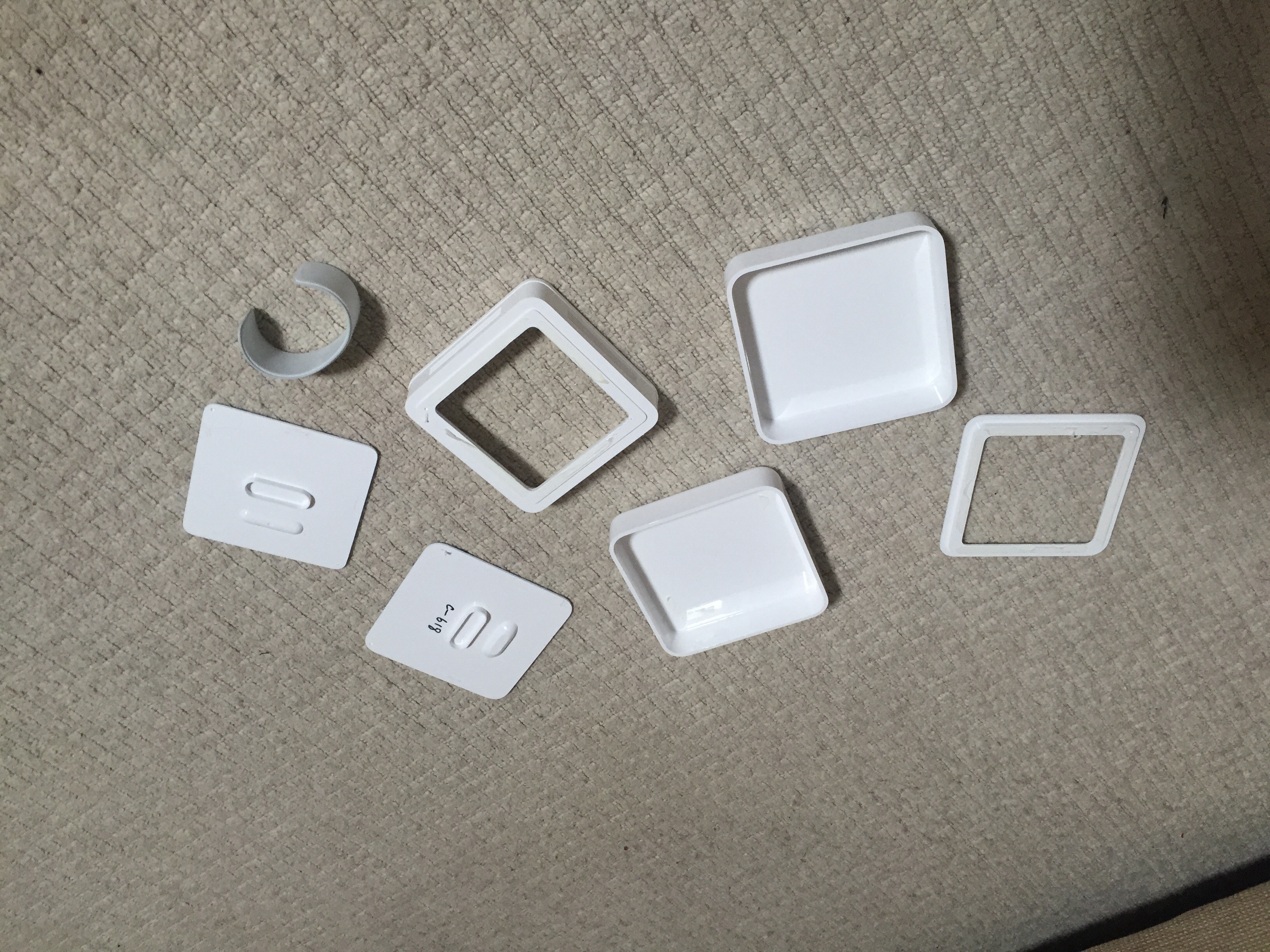

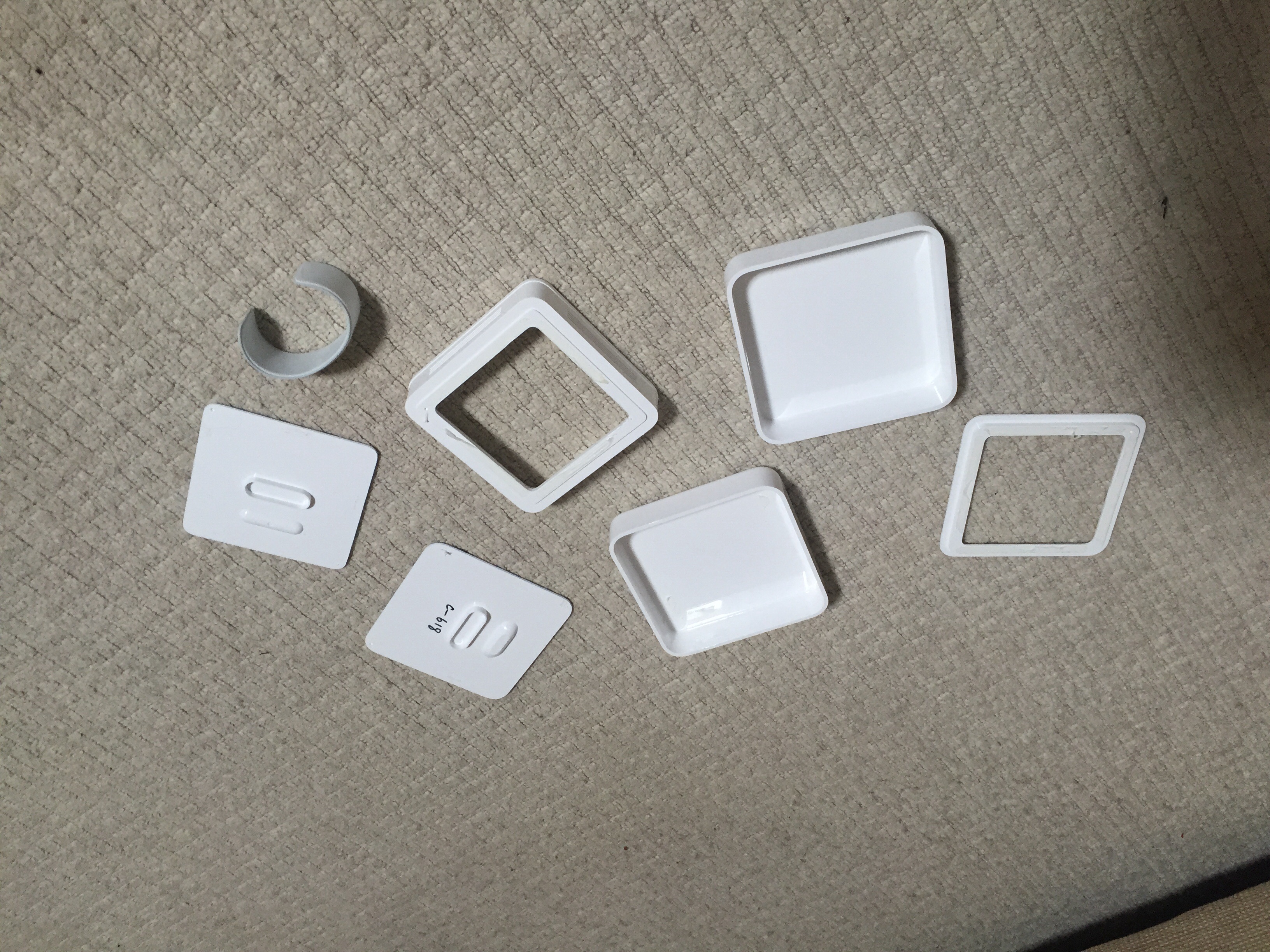

    I don't have many pics but I discovered the entire thing comes apart...which makes it easier :)


    Attached Files:

  7. JT2002TJ macrumors 6502a

    Joined:
    Nov 7, 2013
    #7
    If you want pictures to always show the correct way, you have to take them with the volume buttons down. If you put the volume buttons up, windows based (and hosting sites) will post them upside down.

    I HATE taking pictures this way, because of old days habit of having a camera button on the top right.

  8. dwfaust macrumors 68040

    dwfaust

    Joined:
    Jul 3, 2011
    Location:
    I am here =>[*]
    #8
    Interestingly, when you click on either of the first two upside down photos, the larger version opens with the correct orientation. No so, for the third photo (disassembled box photo).

  9. akonikui macrumors regular

    Joined:
    Jun 30, 2007
    #9
    Great deconstruction photos. Do you have any of the process you went through to build in the chargers?

  10. MartinSk thread starter macrumors member

    Joined:
    May 3, 2015
    #10
    Unfortunately not sorry. The biggest problem was trying to fit a 1m lightning cable underneath where the felt lined base sits.

    Aside from that it was just a case of drilling holes just big enough to fit the various connectors through.

    It was one of those spur of the moment things where I just dived straight In without any prep. It turned out ok though and works a treat so I'm happy.

    I could probably do a step by step if somebody wanted me to but it'd be without pics.

  11. Mymosa macrumors regular

    Mymosa

    Joined:
    Apr 13, 2015
    Location:
    SoCal girl living in Jersey
    #11
    Excellent job. This is why parents and guardians shouldn't punish the kids for taking things apart!:D

  12. irentamac macrumors regular

    irentamac

    Joined:
    Mar 10, 2014
    Location:
    Tempe, AZ
    #12
    Looks good. I'm waiting on a few parts to come in the mail, but I've got a neat idea for the sport case.

    How did you secure the charging puck? Did you use glue or anything or does it just sit in that position freely?

  13. MartinSk thread starter macrumors member

    Joined:
    May 3, 2015
    #13
    By good fortune, once I'd secured the cable and placed it where it is, it was a good fit. I didn't want to glue it as I'm likely to change my mind in the future so made sure I could undo any changes bar the obvious drilling of holes.

  14. JonHimself macrumors 68000

    JonHimself

    Joined:
    Nov 3, 2004
    Location:
    Toronto, Ontario
    #14
    What was the process for pulling everything apart? Pliers? Knives? Hopefully you can provide a bit more detail on that part as it's the main reason why I haven't try to take my box apart yet.

    ----------

    Follow-up: Where did you get the female lightning adapter from and can you post any pictures of the back of the cases?

  15. MartinSk thread starter macrumors member

    Joined:
    May 3, 2015
    #15
    The different sections are glued in, so best bet would be to use a hairdryer/heatgun to soften the glue and then from underneath you can squeeze on the outside of the box and flex it a little until you hear some movement of the felt lined piece. I used a very fine butter knife and slid it down the edge and then carefully applied force until it came unstuck. Once you have the 2 felt sections out you can then repeat for the stepped section underneath but you can be a little more forceful here as it's not going to be visible if you nick it at all.

    The section that's used to seat the two halves together needed plenty of careful manipulation but eventually it does come out.

    I would advise covering the whole thing in some tape or similar so that you don't scratch or mark it at all. Being white it's easy to spot any discoloured gouging.

    Hope that helps a little

  16. MartinSk thread starter macrumors member

    Joined:
    May 3, 2015
    #16
    Ebay for the adapter, was about £5 from memory.

    Pics attached - as you can see it's a little rough, one section needs a final layer of filler and smoothing over. If I were to do it again it would be much simpler and neater I'm sure but I got carried away...


    Attached Files:

  17. Gav2k macrumors G3

    Gav2k

    Joined:
    Jul 24, 2009
    #17
    Nice idea. Would be nice if both were in the watch side

  18. MartinSk thread starter macrumors member

    Joined:
    May 3, 2015
    #18
    That was the original plan but there just isn't enough room under the felt to hide the wiring unless you cut it right down to 20cm lengths. I originally wanted to splice together the magnetic charger cable and lightning cable and just have one power source at the back but my home insurance wouldn't be too happy with that I expect #

  19. GrindedDown macrumors 6502a

    Joined:
    Jun 4, 2009
    Location:
    Las Vegas
    #19
    Honestly I think this is one of the better DIYs I have seen especially from a traveling and functionality perspective. I am certain if you did a step by step guide with pics, it would be a hit here.

    I would love to have something like this and would be perfect for traveling with.
