Dual drive solution for 2012 iMac from Micro SATA Cables

Discussion in 'iMac' started by theaero, Jun 26, 2013.

  1. theaero, Jun 26, 2013
    Last edited: Jun 26, 2013

    theaero macrumors 6502

    Joined:
    Mar 5, 2008
    #1
    I've been talking and working with Drew from Micro SATA Cables for the last few months about an alternative solution to the rather expensive 2012 iMac dual drive kit from Maxupgrades.

    I first reached out to Drew after the launch of the new iMacs and seeing the demand for the option of a 2nd internal drive. The result of the his hard work the last few months work is a prototype kit that should be much cheaper and more simple than the Maxupgrades alternative.

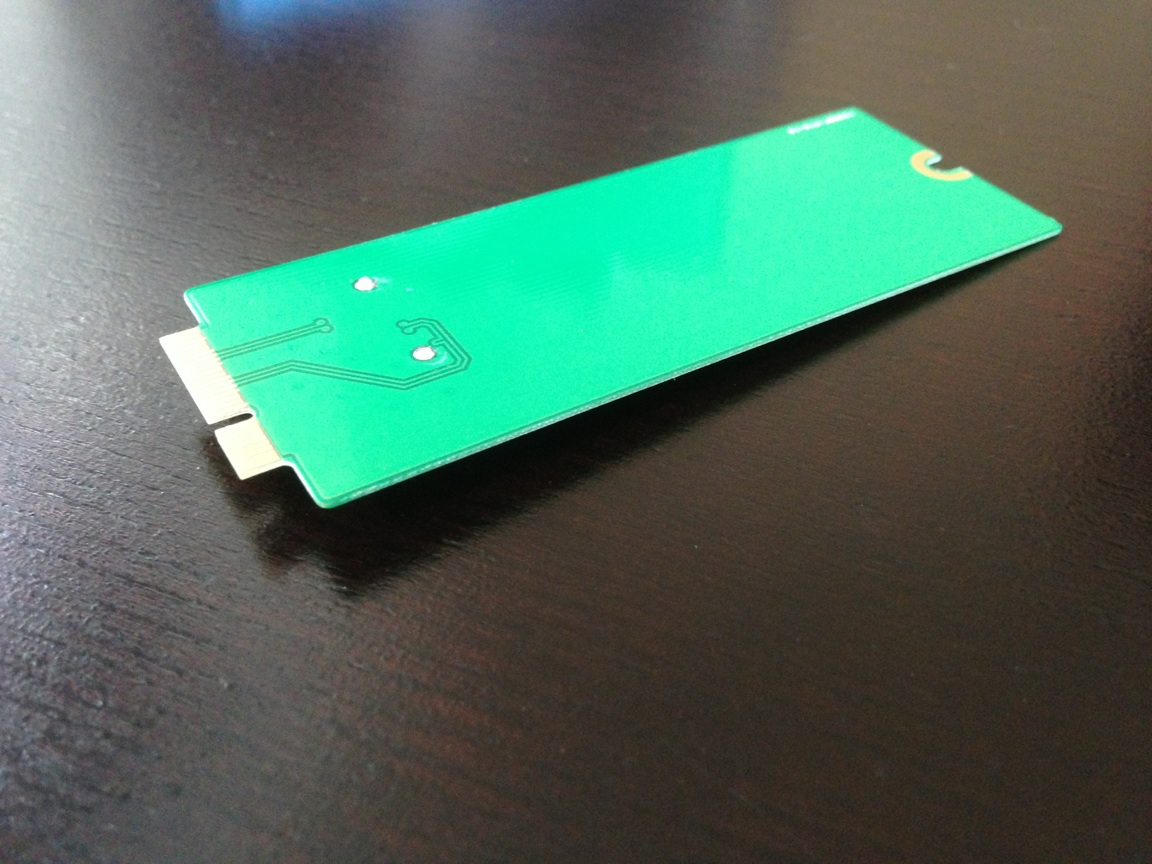

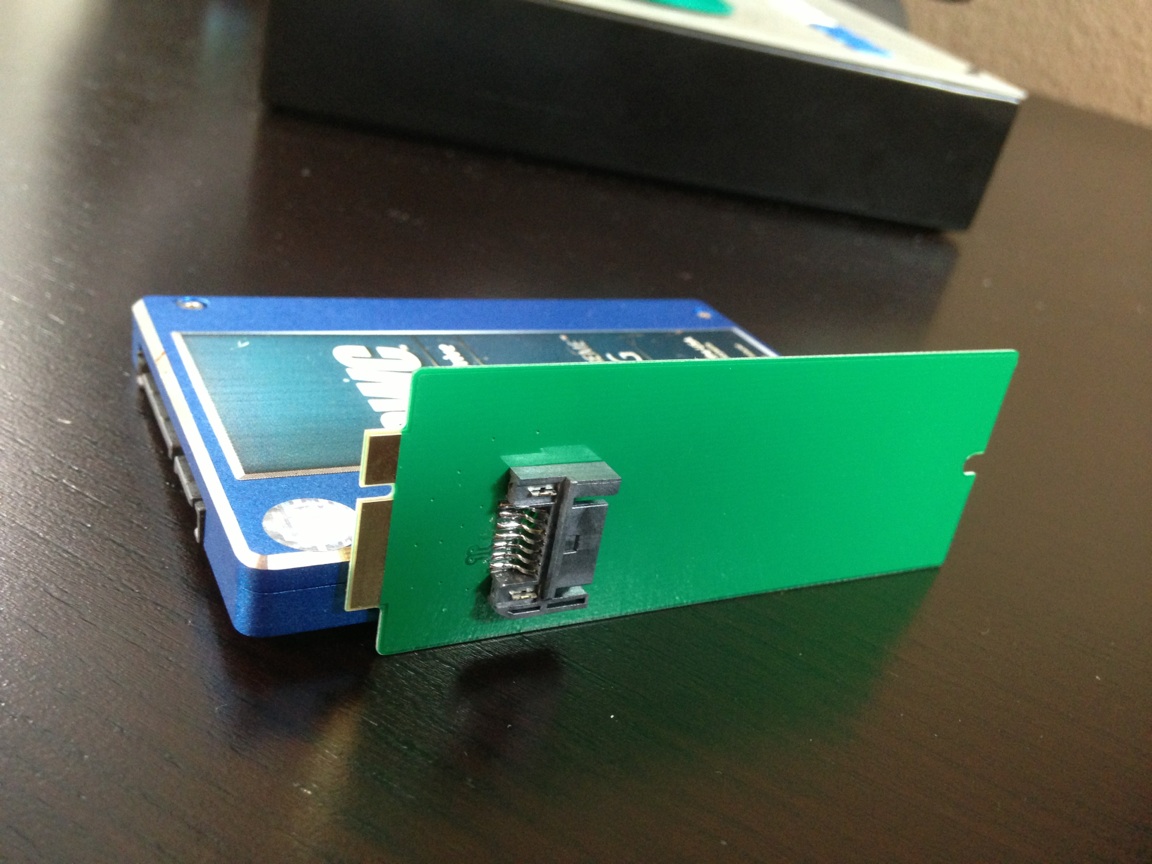

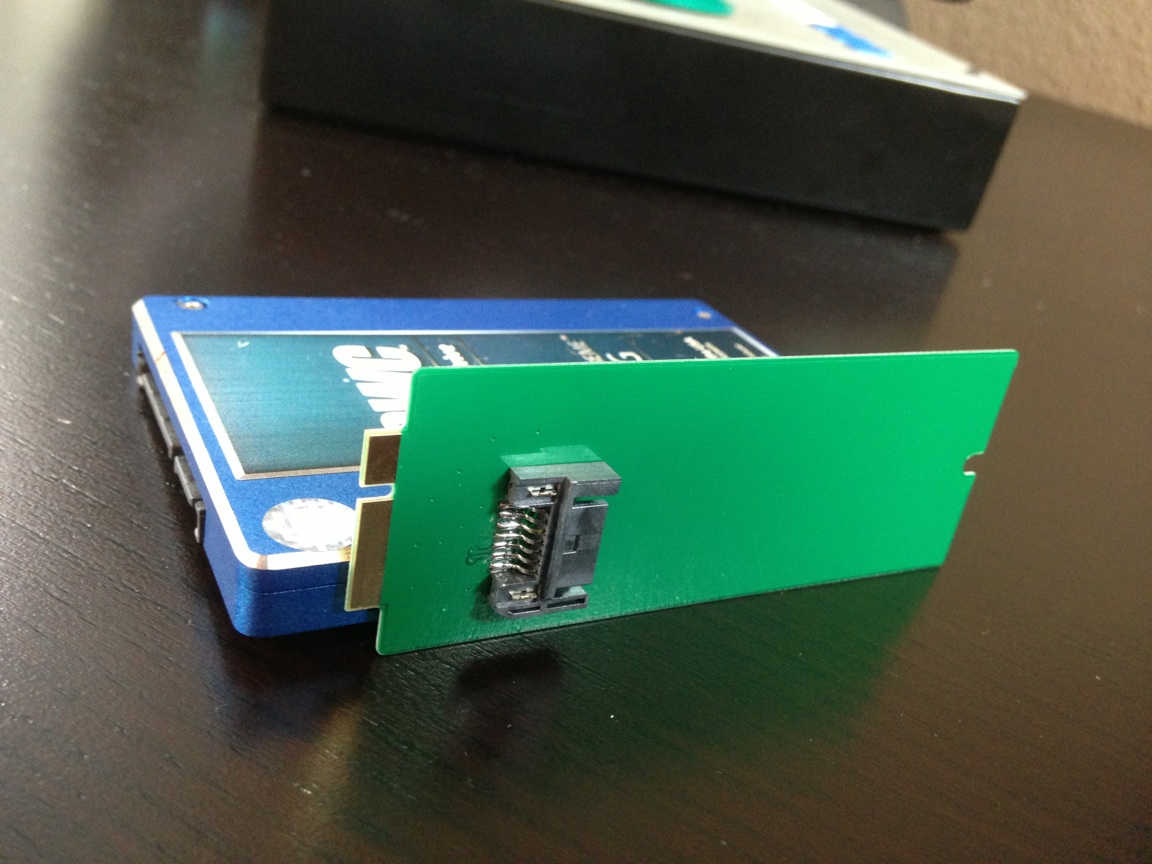

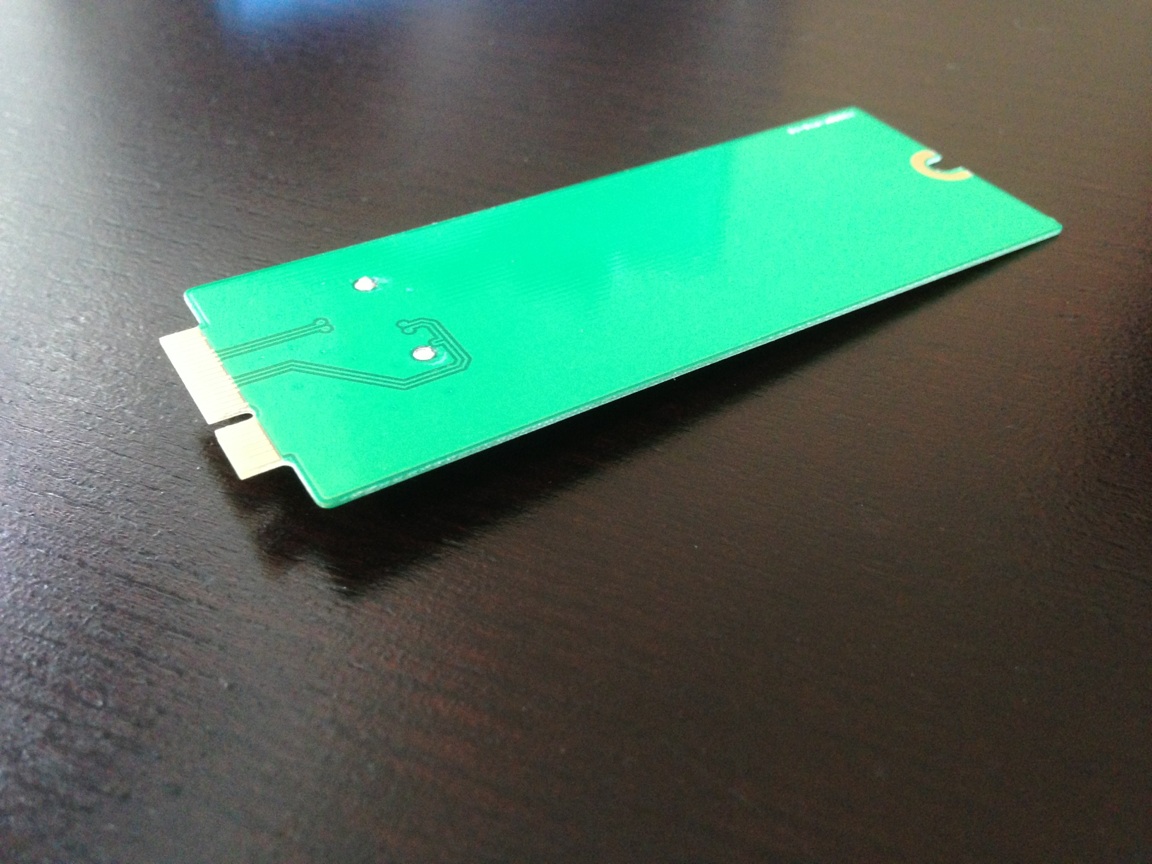

    I just received my prototype kit, and was surprised by the size. Very barebones and basic. To my knowledge, there will be no mounts, tape, or fancy extras included, and the price should reflect that. Just the standard cabling and adapters allowing the 2nd drive share power from the single SATA port, and the Blade SATA Adapter.

    I will be doing some testing with it this week, and reporting back with results, and pictures. I will also post some pictures of the kit later tonight or tomorrow.

    This is great news for those of us who have been waiting for a dual drive kit for the new iMacs, but haven't been able to swallow Maxupgrade's $120+ price tag. :)

    More info to come soon!

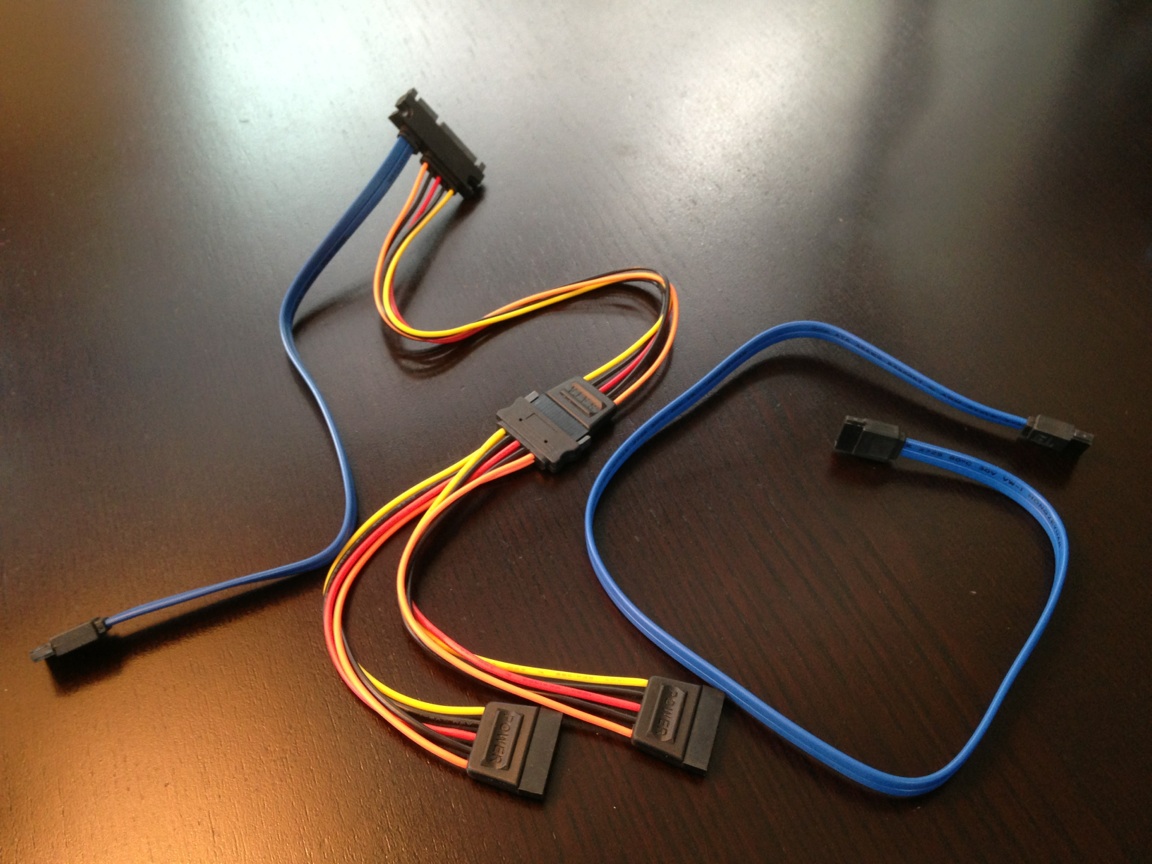

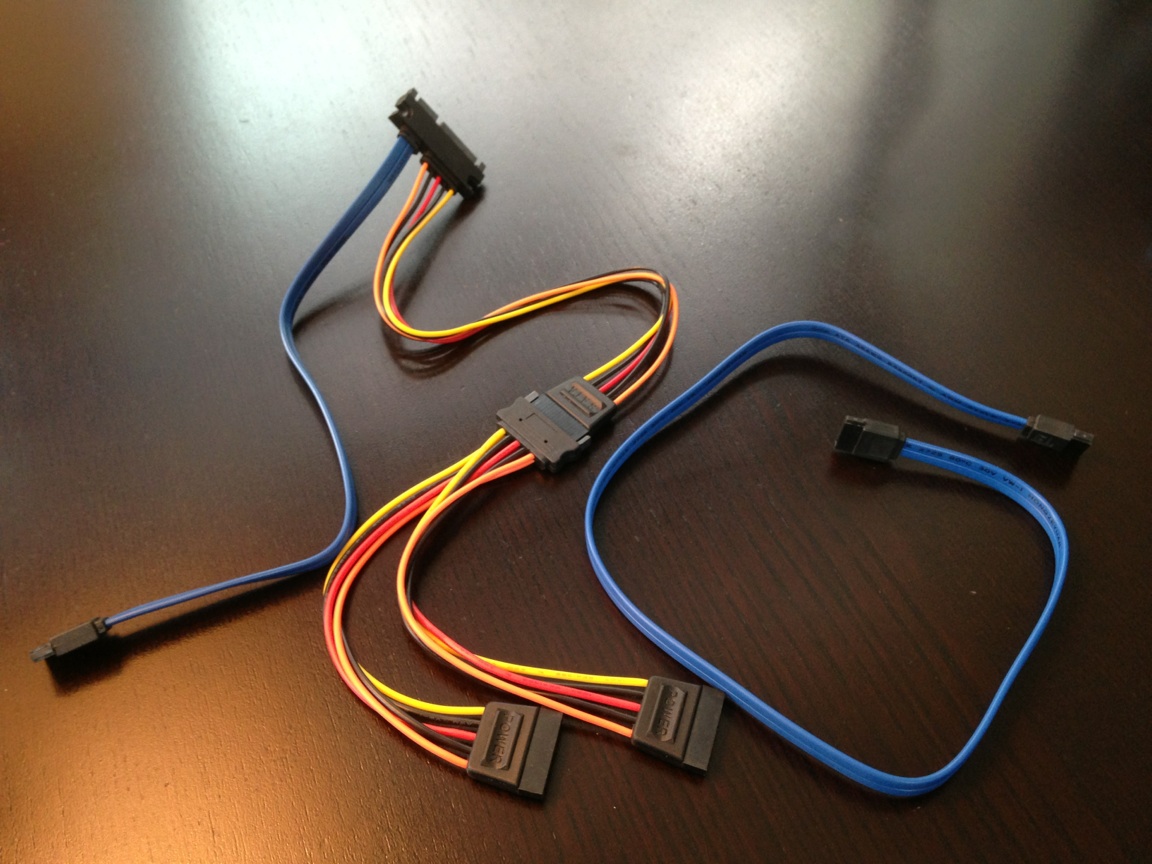

    EDIT: Here are some photos of the kit. Very simple. Only potential problem I could imagine is whether or not there will be sufficient power for two separate drives. With two efficient 2.5" SSDs or HDDs, I don't see it being that much of a problem, but the stock drive plus an additional drive may be underpowered. I suppose we will find out soon!


    Attached Files:

  2. VideoBeagle macrumors 6502a

    Joined:
    Aug 17, 2010
    Location:
    App Q&A testing by request.
    #2
    Wouldn't installation be a huge, warranty voiding, pain?

  3. theaero thread starter macrumors 6502

    Joined:
    Mar 5, 2008
    #3
    For the average user, adding a second internal drive (or any internal modification) may be unnecessary.

    This modification is more directed towards power users, and people who enjoy/don't mind tinkering with their computers.

  4. gixxersixxer macrumors member

    Joined:
    Mar 18, 2013
    #4
    Awesome news! When will it be available for purchase?

  5. theaero thread starter macrumors 6502

    Joined:
    Mar 5, 2008
    #5
    There is no definite date, but I would imagine fairly soon.

  6. VideoBeagle macrumors 6502a

    Joined:
    Aug 17, 2010
    Location:
    App Q&A testing by request.
    #6
    i guess my question is...isn't opening the current iMacs something that can't be done?

  7. ssdaytona macrumors member

    Joined:
    Apr 20, 2011
    #7
    I got my prototype earlier in the week also. Will be installing it this weekend. I'll be using a 4TB seagate 5900RPM drive and a Samsung SSD. Let's see how it goes

  8. KaraH macrumors 6502

    Joined:
    Nov 12, 2012
    Location:
    DC
    #8
    Well, apple certified engineers can. Others can but of course if they break anything ... well, oops. For either one though it is not exactly a walk in the park.

    OWC evangelizes doing upgrades yourself on prior macs. Even THEY recommend for people not to open the 2012.

  9. theaero thread starter macrumors 6502

    Joined:
    Mar 5, 2008
    #9
    The 2012 iMac is actually one of the easiest to open, but does require buying a new tape kit.

    The glass and screen and no longer seperated, eliminating a lot of the risk in getting dust trapped between them. You just take a guitar pick, work it around the screen, and pop it off.

    Very simple, and many of us have already done it. Check the 40+ page thread "Rip Those iMacs Open!" for more details.

  10. jprokos macrumors newbie

    Joined:
    May 5, 2011
    #10
    Waiting for you results…

    I am assuming there was an issue, but would still like to hear about your installation. :)

  11. theaero thread starter macrumors 6502

    Joined:
    Mar 5, 2008
    #11

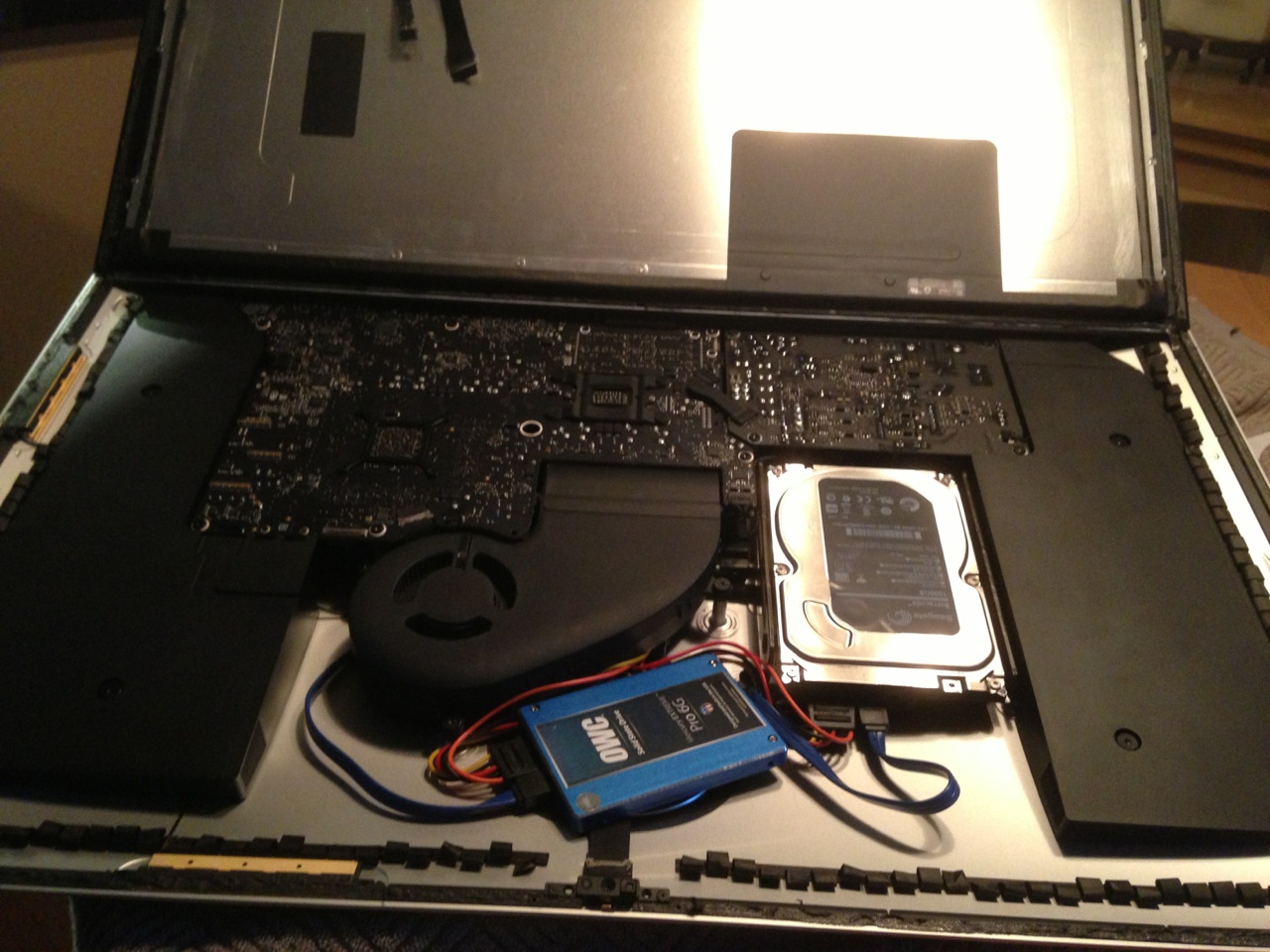

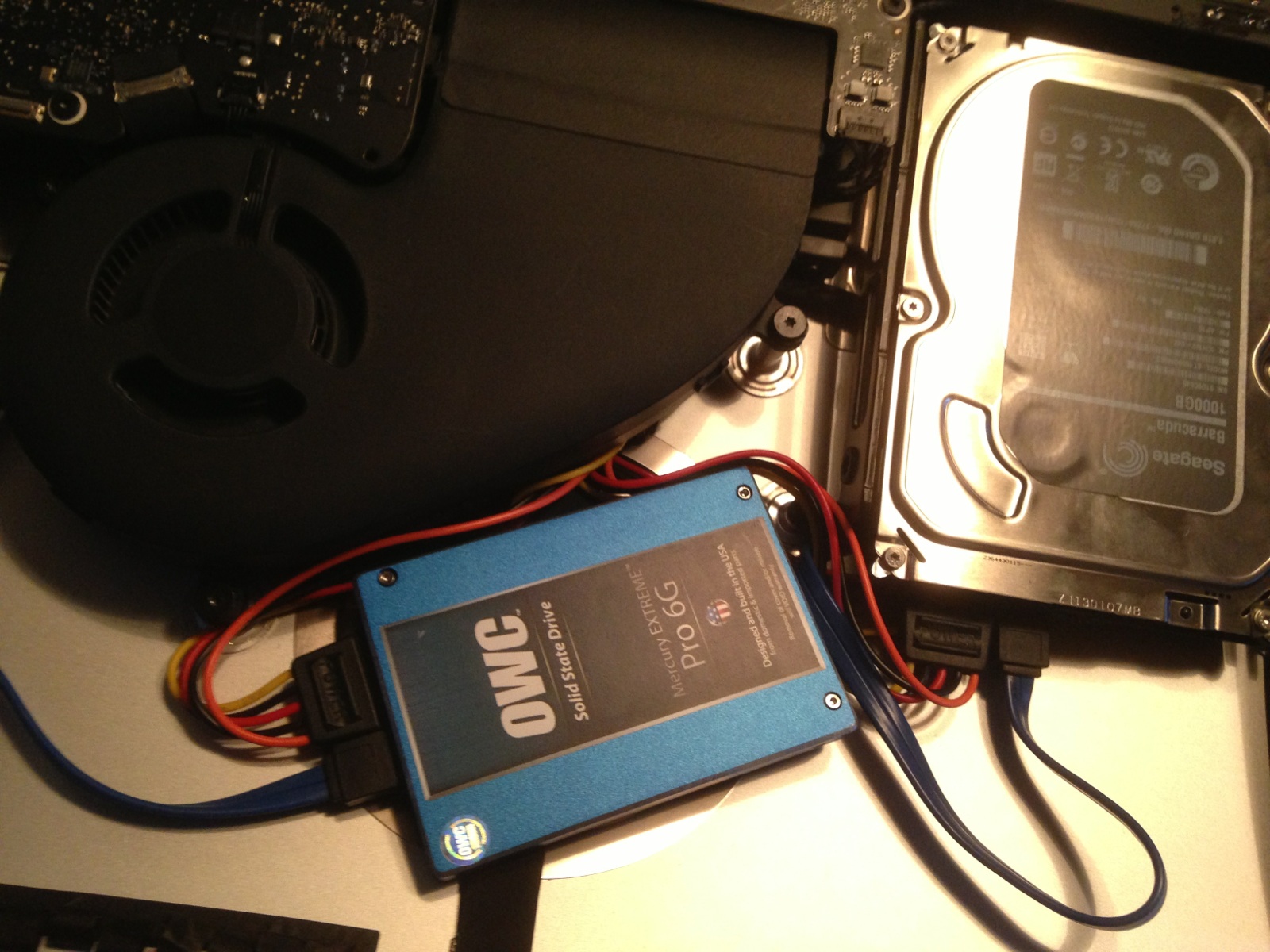

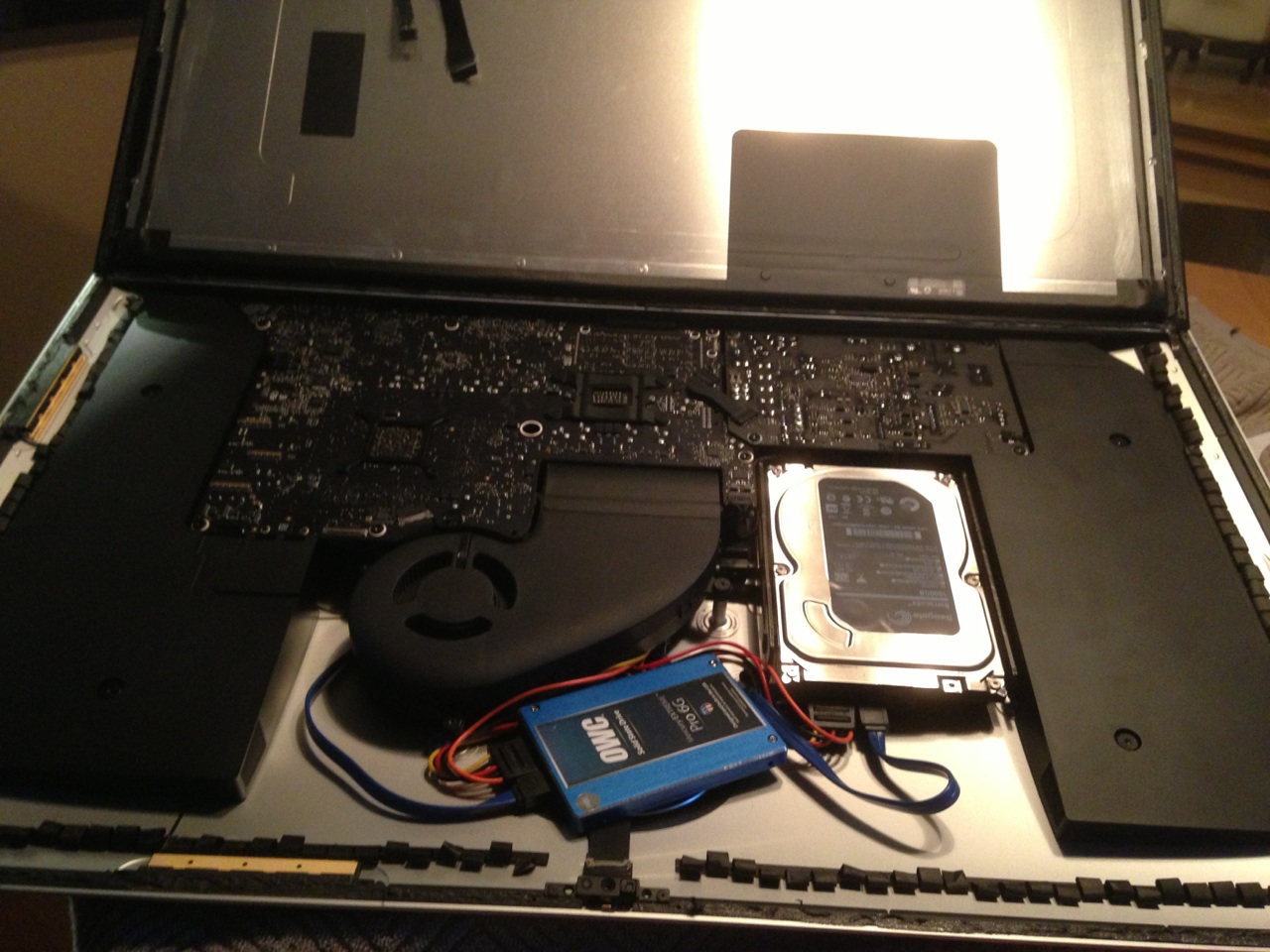

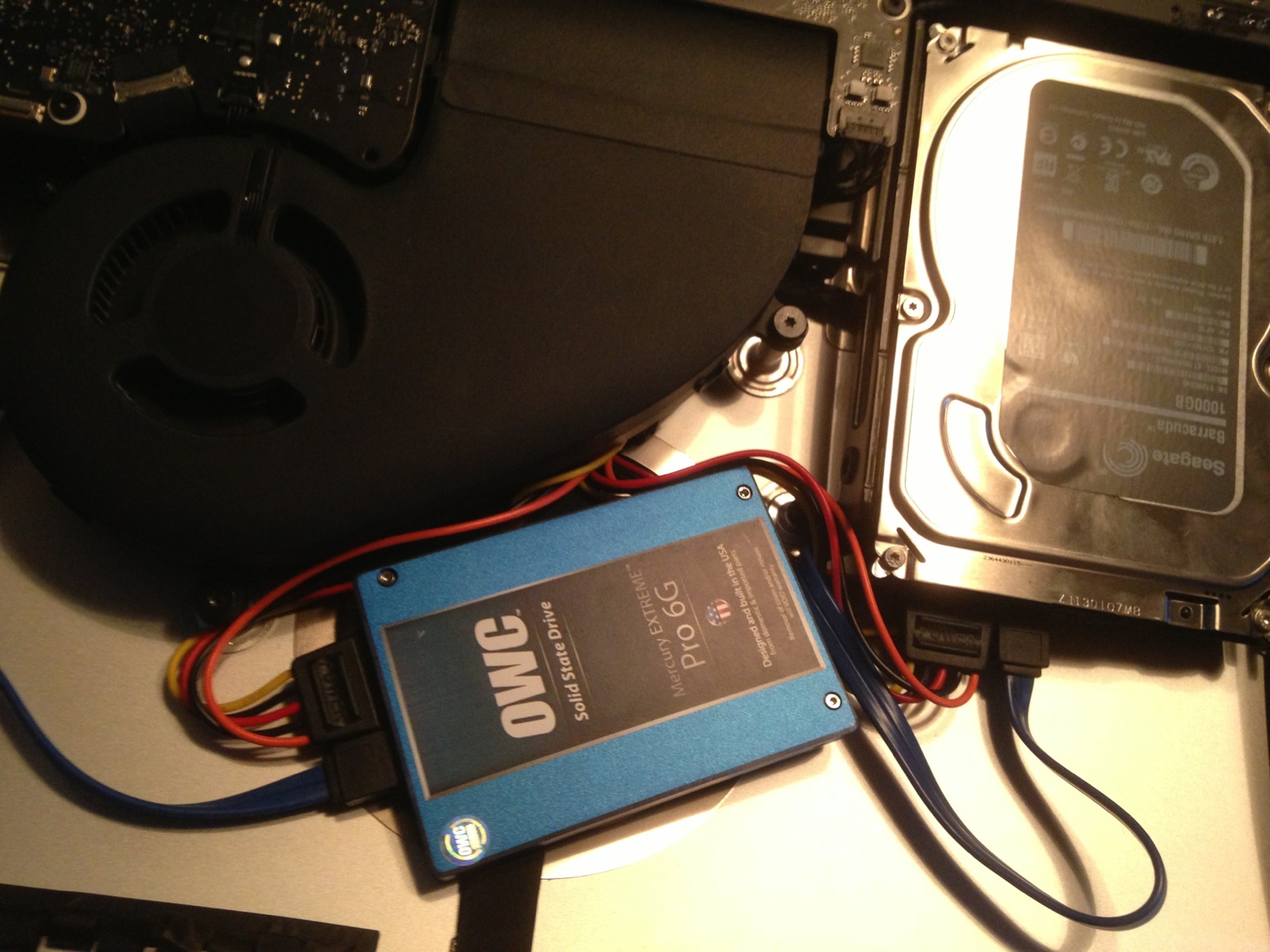

    No issues for me, apart from trying to figure out where to put the SSD, and where to route the cables :p

    However, I did notice one of the drives runs at SATA2, not SATA3 speeds. I've inquired about this, and will update this thread when I get more information.


    Attached Files:

  12. theaero thread starter macrumors 6502

    Joined:
    Mar 5, 2008
    #12
    Just got confirmation that the final version will have SATAIII speeds for both drives, and will ship for around $40.

    The cables have also been changed to make them more clean and workable within the unit.

  13. thedeske macrumors 6502a

    Joined:
    Feb 17, 2013
    #13
    Very nice & Thanks for sharing with us.

  14. CoinOP macrumors member

    Joined:
    May 11, 2013
    Location:
    Amsterdam
  15. theaero thread starter macrumors 6502

    Joined:
    Mar 5, 2008
    #15
    No problem! I will be updating this thread with more info as I receive it

  16. timothevs macrumors 6502

    timothevs

    Joined:
    Nov 17, 2007
    Location:
    FL
    #16
    Very interesting indeed! Any idea when these might be up for sale on the site?

  17. theaero thread starter macrumors 6502

    Joined:
    Mar 5, 2008
    #17
    I'm not quite sure yet, but I believe it will be fairly soon. Will keep this thread updated!

  18. iSayuSay macrumors 68030

    iSayuSay

    Joined:
    Feb 6, 2011
    #18
    So much unused room on the new iMac internal layout. I would rather Apple uses regular SATA III SSD rather than the proprietary blade connector and use up all that empty spaces.

    Great job for the cable, anyway.

  19. lightchi8 macrumors newbie

    Joined:
    Sep 13, 2013
    #19
    Hows the performance on this setup so far?

    I am thinking about doing dual ssd on raid 0

  20. Fried Chicken macrumors 6502

    Fried Chicken

    Joined:
    Jun 11, 2011
    #20
    It looks like it's retailing for $80 now :/
