Dual Xeon Cpu A and Cpu B

[MacManu77]

Good morning,
the CPU A that shows IstatMenus is the left one or the right one in the figure?
Thanks.



[mikas]

You've got a 2010 model?
I believe it's the right one, like it is in a 2009 model.



[MacManu77]

You've got a 2010 model?
I believe it's the right one, like it is in a 2009 model.

Yes, 2010 model I had not specified



[adam9c1]

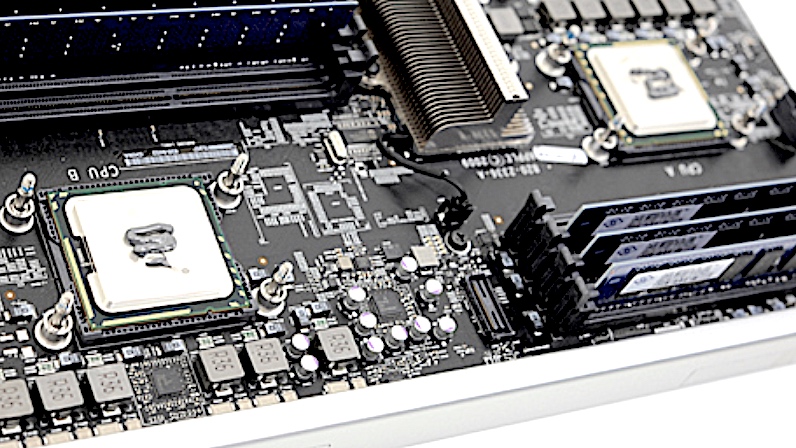

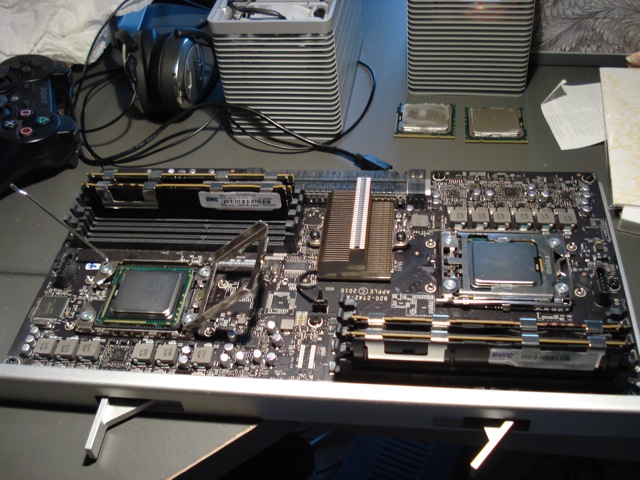

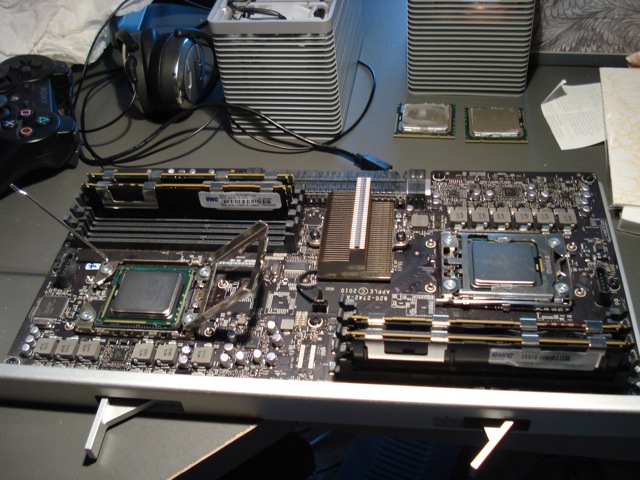

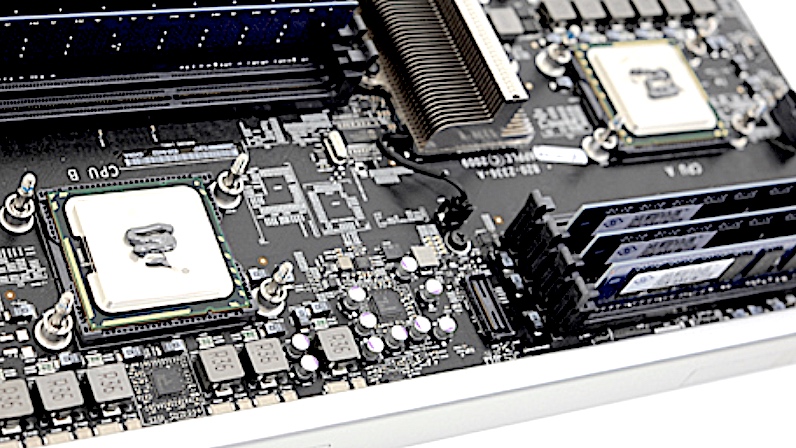

When you look at the CPU tray and have the two locking tabs facing you, the processor A is on the right, processor B is on the left.

This does look like a 2010-2012 tray.



[h9826790]



[adam9c1]

that's a cool pic, do you have a link to the rest of the doc?



[h9826790]

that's a cool pic, do you have a link to the rest of the doc?

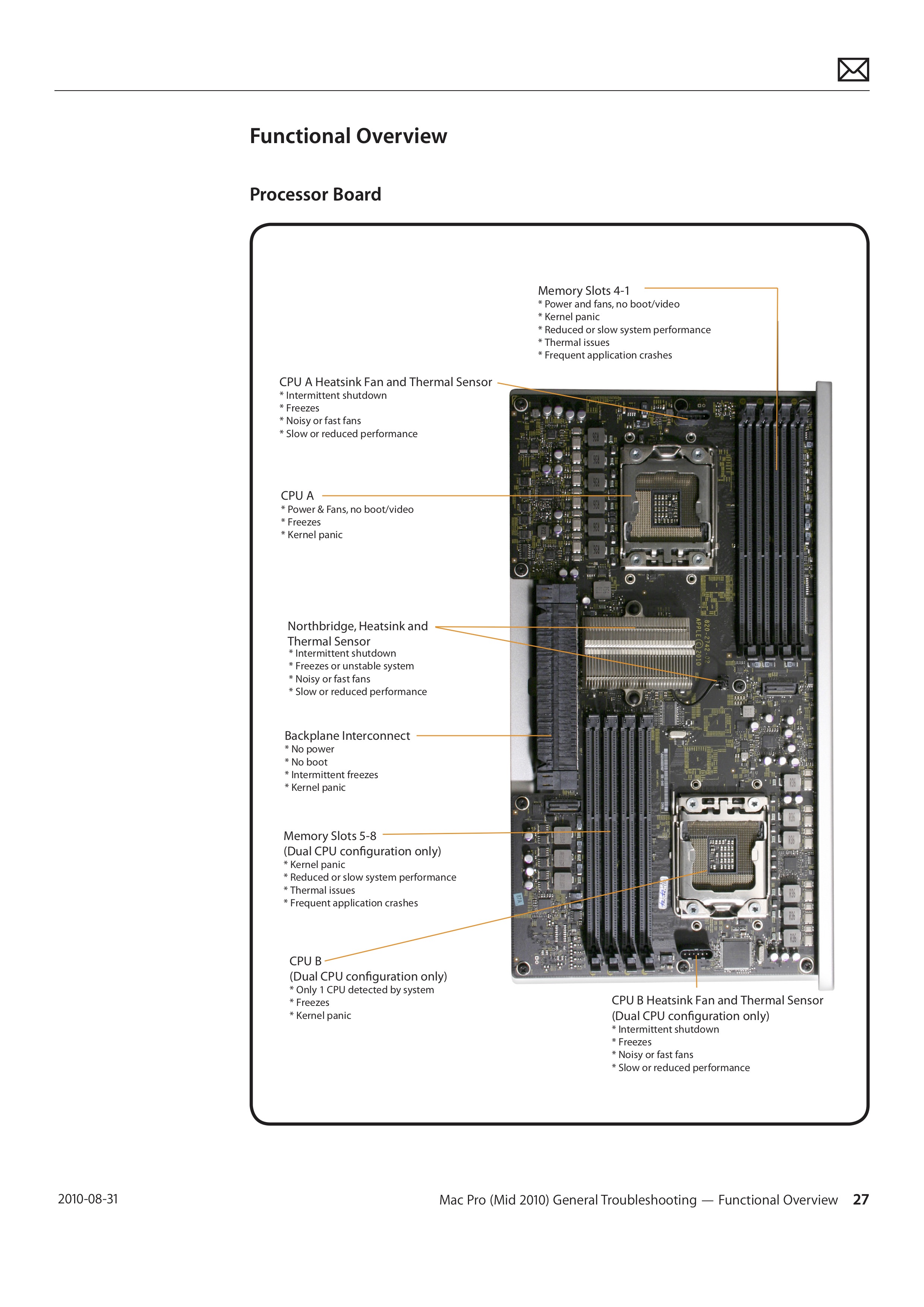

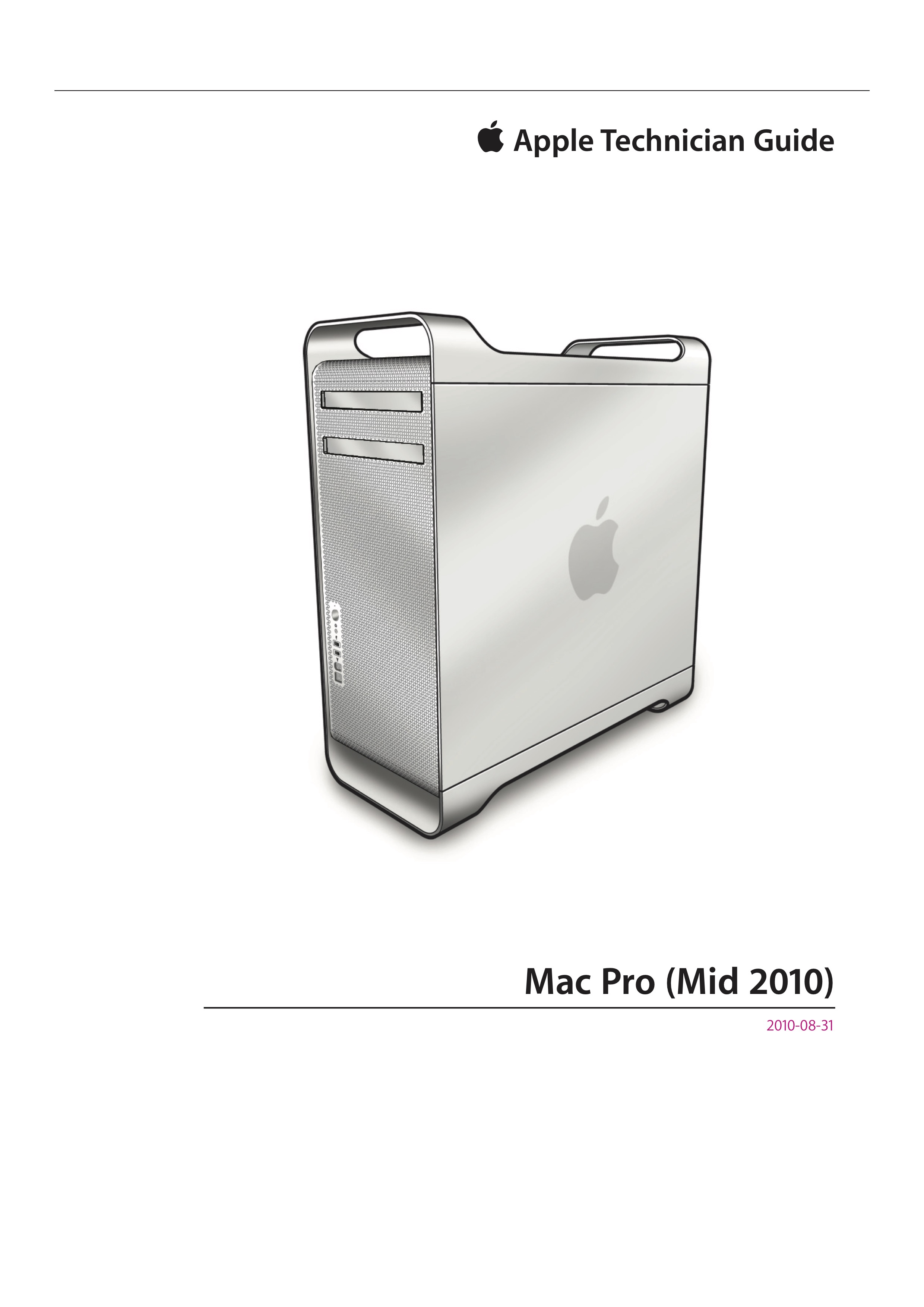

I don't have the link, but this document is called "Apple Technician Guide".



[flowrider]

that's a cool pic, do you have a link to the rest of the doc?

I have posted the link a few times, and the mods always remove it. I believe it relates to the copyright law.

Lou



[kohlson]

Still available if you search for "Mac Pro 2010 Apple Technicians Guide" The 2009 version (4,1) is also available.
