Emac - Airport card

Discussion in 'PowerPC Macs' started by redhatcode29, Jul 29, 2014.

  1. redhatcode29 macrumors 6502

    redhatcode29

    Joined:
    Jul 21, 2014
    Location:
    Kuala Lumpur
    #1
    Hi Guys,

    I have an Emac which has an Airport card in it. The card was added a couple of years ago by the previous owner.

    I also have a Mac Mini G4, which i am using as an iTunes base for my music. The mini is connected to the home network via ethernet. I am thinking of transferring the airport card from the emac to the m/mini g4.

    right now, i am not sure of the specs of the airport card, though i had in the past peeked into the emac. Would the the card be useable on the M/Mini G4... any ideas ...opinions ... thank you..

  2. gavinstubbs09 macrumors 65816

    gavinstubbs09

    Joined:
    Feb 17, 2013
    Location:
    NorCal boonies ~~~by Reno sorta
    #2
    The mini can't utilize the AirPort card in your eMac.

    In order to have WiFi in the mini, you need an Apple Airport/Bluetooth upgrade kit which is the special card and the required antennas.

  3. redhatcode29 thread starter macrumors 6502

    redhatcode29

    Joined:
    Jul 21, 2014
    Location:
    Kuala Lumpur
    #3
    Hi, thanks for your reply. Too bad I can't use it. So, the airport card for the mini would be 2 in 1....wifi & bt. Hmm HV to hunt for it now.....

  4. DeltaMac macrumors 604

    DeltaMac

    Joined:
    Jul 30, 2003
    Location:
    Delaware
    #4
    Gavinstubbs is mostly correct here.
    The oldest minis take the same Airport Extreme card that you find in your eMac.
    The later G4 mini, AKA Late 2005, takes the combo card.

    If you have a mini, either 1.25 or 1.42 GHz processor, then you can use the eMac AE card.
    If the newer 1.33 or 1.5 GHz, then you need the combo card.
    Apple used to sell an upgrade kit to add wireless to the mini. I don't know if those kits are available anywhere.
    As Gavinstubbs09 said, you likely need the antennas, too, which would be part of that kit.

  5. redhatcode29, Aug 13, 2014
    Last edited: Aug 13, 2014

    redhatcode29 thread starter macrumors 6502

    redhatcode29

    Joined:
    Jul 21, 2014
    Location:
    Kuala Lumpur
    #5
    Error sorry.

    ----------

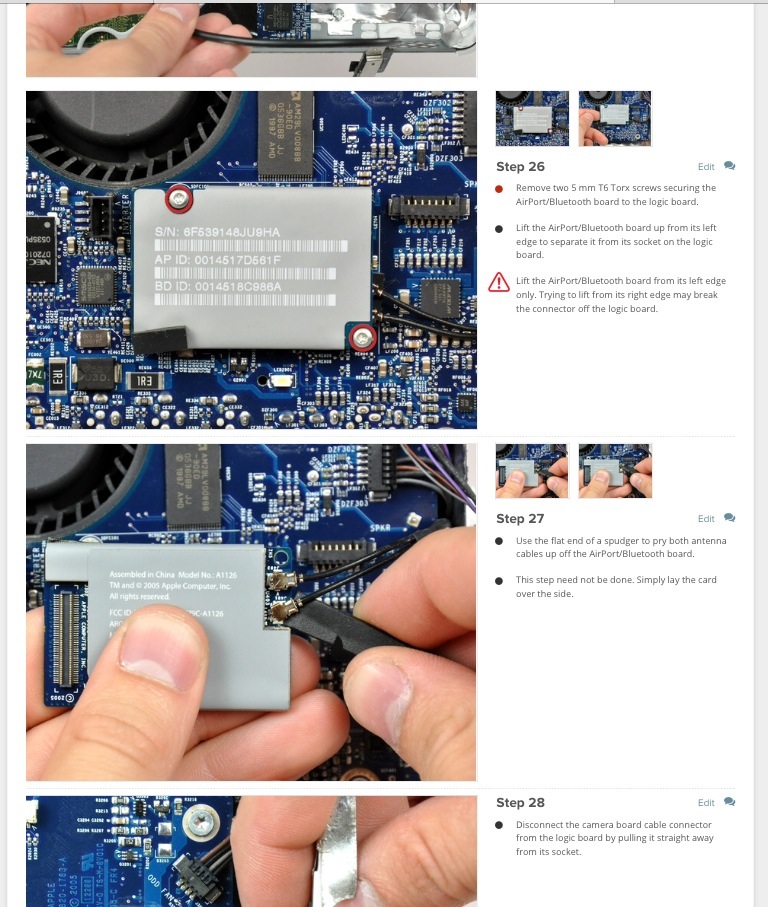

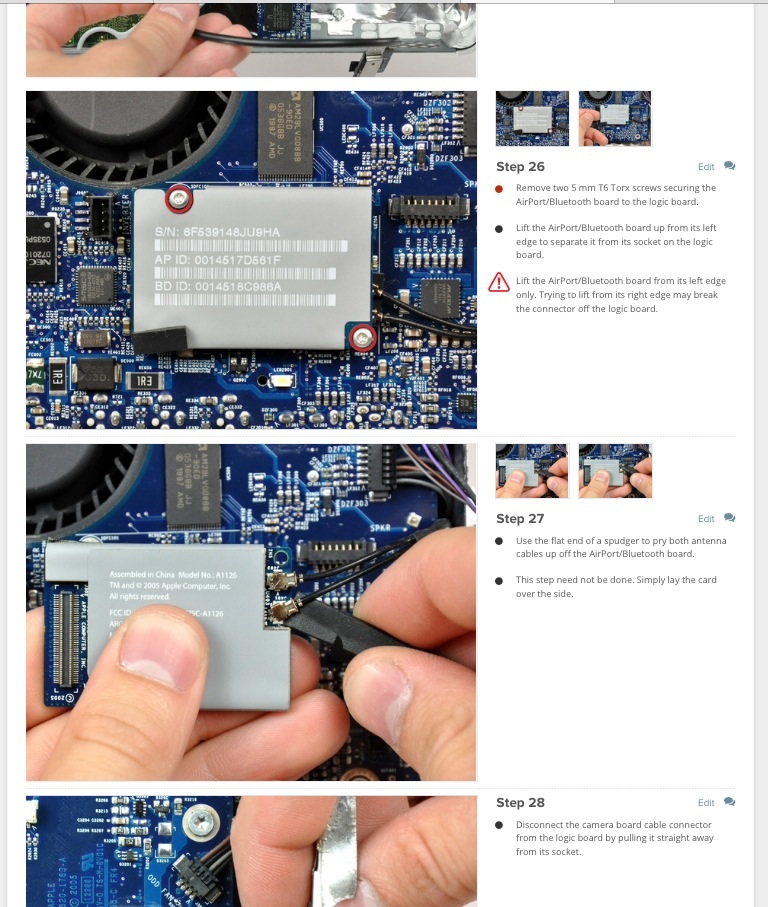

    This is from an I sight imac g5 17" Do you think that this might work on the mini?..


    Attached Files:

  6. DeltaMac, Aug 13, 2014
    Last edited: Aug 13, 2014

    DeltaMac macrumors 604

    DeltaMac

    Joined:
    Jul 30, 2003
    Location:
    Delaware
    #6
    According to what I can find, that card you have pictured (from an iSight iMac G5) should be OK in a mini that will accept it.

    As I already posted - depends on which mini G4 you have….
    Older G4 uses the Airport Extreme card, and newer G4 mini uses a combo card like the one that you show.

    added - I do see in your other thread that you say you have a 1.25GHz mini G4. That's the oldest model (different from the Late 2005 mini), and will NOT take the card that you picture. The Airport Extreme (same as used in the newer eMacs) is correct.

  7. redhatcode29 thread starter macrumors 6502

    redhatcode29

    Joined:
    Jul 21, 2014
    Location:
    Kuala Lumpur
    #7
    Hi, thx for your reply. Thanks for the research. As such, I gather that this card from an eMac should fit my 1.25ghz. True enough, EveryMac states that it is a 2005 model.

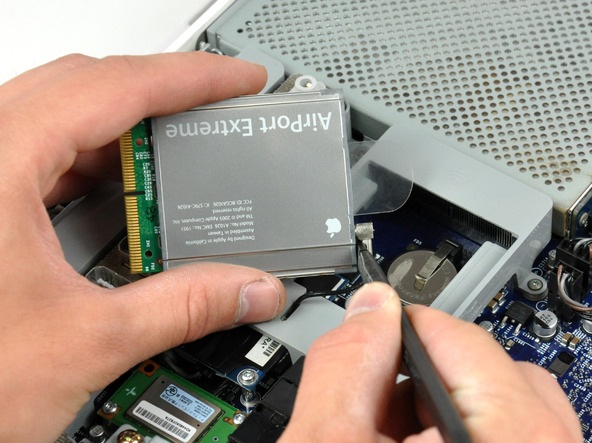

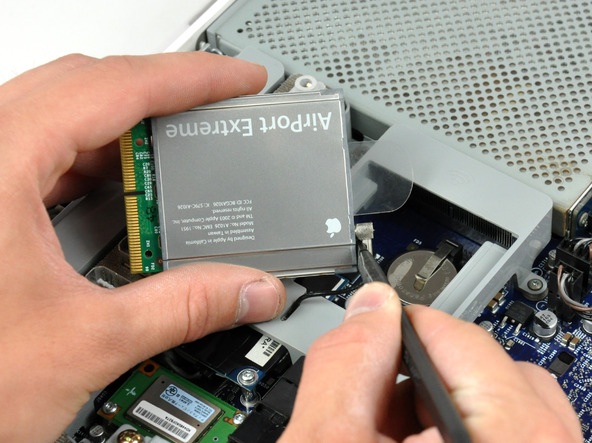

    Here is a pic of the Emac's card. The cable which was attached to A/e is the antenna right ? I do have the cable as well.


    Attached Files:

  8. DeltaMac macrumors 604

    DeltaMac

    Joined:
    Jul 30, 2003
    Location:
    Delaware
    #8
    Yes, the cable is the antenna wire.

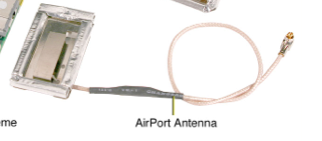

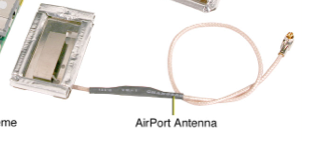

    The antenna for the mini will be different - with the antenna at the other end (about 1/2-inch in size, and padded edges, looks just like this:


    Attached Files:
