error SDK "iphoneos5.1" - newbie ask help

Discussion in 'iOS Programming' started by mambu, Apr 7, 2014.

  1. mambu macrumors newbie

    Joined:
    Apr 7, 2014
    Location:
    milan, italy
    #1
    Hi everybody, i'm mambo from italy(sorry for my english), i'm working for a italian company and few day ago my boss have gave me the responsibility of our apple App.
    Now i have to test the app and maybe modified it when occurs, but i don't nothing of Xcode. For now i want start the application on simulator, but when i run the build fallied and the only message is:

    Code:
    xcodebuild: error: SDK "iphoneos5.1" cannot be located.
    mv: rename CorePlot.zip to /Users/xxx/Desktop/CorePlot.zip: No such file or directory

    i'm sorry if the question is so stupid that are basically, but if you can, give me a hand:)
    Thank you very much:)

  2. waterskier2007 macrumors 68000

    waterskier2007

    Joined:
    Jun 19, 2007
    Location:
    White Lake, MI
    #2
    Is it possible that the person developing the app had stored a CorePlot.zip file on their desktop and referenced it in the project? You may need to get a hold of that zip and figure out where it is referenced in the project and re point it

    also: https://code.google.com/p/core-plot/

  3. PhoneyDeveloper macrumors 68030

    PhoneyDeveloper

    Joined:
    Sep 2, 2008
    #3
    The base SDK setting for the project should be set to Latest iOS, not to SDK 5.1.

  4. Menneisyys2 macrumors 603

    Joined:
    Jun 7, 2011
    #4
    The problem is as follows: you most probably created the original project in Xcode 4.4, which has 5.1 as the then-current, default SDK.

    When you create a project in any new (Xcode 4+) Xcode, it'll compile against, by default, the latest available SDK, which is, as of Xcode 4.4, iOS 5.1. As newer Xcodes have newer SDK's as default, when you opne the same project in, say, Xcode 4.6.3, it'll compile the project against iOS 6.1 (the default SDK for Xcode 4.6.3) and, when opening in Xcode 5.1, it'll be compiled against iOS 7.1 as it's the default SDK in Xcode 5.1.

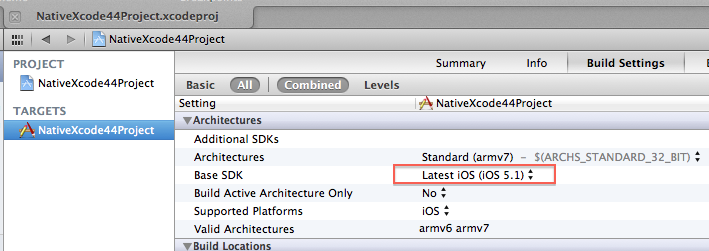

    You can easily check out whether the default "latest" is the "Base SDK" setting by double-clicking the project name in the upper-left window and, in the default target, navigating to Build Settings tab and, then, look for "Base SDK". In the following screenshot, I've annotated the default setting in Xcode 4.4 for you:

    [​IMG]

    As you can see, it contains "Latest iOS (iOS 5.1)", the first part of which means any (newer) Xcode will always use the latest iOS available in that particular Xcode, independently of its version. The second part (iOS 5.1) states the current Xcode, 4.4, has iOS 5.1 as its default SDK.

    If, for some reason, you want to change this "Base SDK" (you, in most cases, shouldn't as Xcodes always come with one SDK only and, instead of "hacking" old SDK's under new Xcodes, it's cleaner to just use older Xcode versions to compile against older iOS SDK's) to the currently available SDK in the particularly Xcode version, you can do this:

    [​IMG]

    (above is a thumbnail; I haven't embedded the original image in here as it's too wide. It's available at https://dl.dropboxusercontent.com/u...Xcode44Project-settingToWiredIn51-xcode44.png )

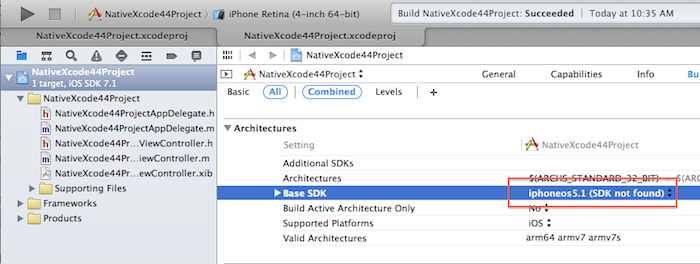

    If you try to open the same project, now hard-wired to iOS5.1, in an Xcode version with different default iOS version, you'll see this in the same Build Settings tab (here, in the latest (5.1) Xcode):

    [​IMG]

    (full image: https://dl.dropboxusercontent.com/u/81986513/032014/xcode51-notfound.png )

    As you can see, Xcode displays the same error message as you've cited.

    The solution is simple: as I've shown you in the 2nd screenshot, just set "Base SDK" back to "Latest iOS".
