extended desk top? possible?

T

Toss55

macrumors newbie
Original poster
Apr 6, 2016
7
0
Hallo.
I'm a newbie on this site.
I have a old eMac from 2003. 700 MHz and running OS X 10.2.8.
I want to extend my desk top with an extra monitor so that I can open more windows. I heard this is not possible on this computer...... is that true?

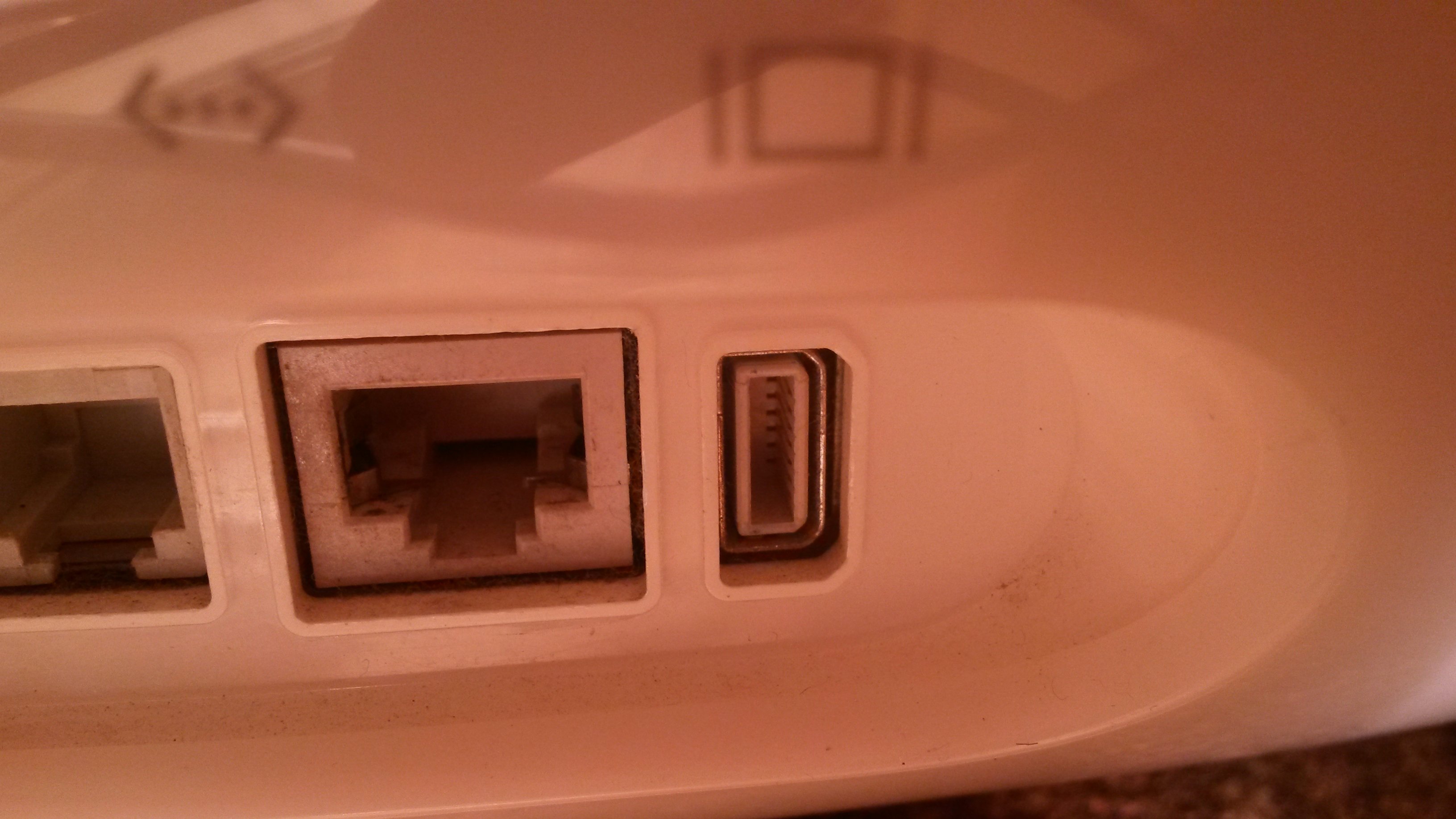

If it is possible, I need to get a video adaptor. I can't find it anywhere in the manual, so maybe some of you may know the name of the connector I need. The Apple store says Display port, and others say mini DVI. It's pretty vague. Anyway I will need it to go to a VGA female connector.
Hopefully someone on this forum can advise me.
Greetings,
Toss55

Last edited:
bunnspecial

bunnspecial

macrumors G3
May 3, 2014
8,340
6,475
Kentucky
There MAY be a hack that allows you to do it, although I'm not positive.

The connector on this generation is Mini-VGA, not mini DVI and most certainly not mini Display Port

  • Like
Reactions: Toss55
Hrududu

Hrududu

macrumors 68020
Jul 25, 2008
2,305
648
Central US
The eMac has a mini VGA port. The adapters still exist, but OS X won't do extended desktop, just mirroring. Maybe someone knows of a hack for that?

  • Like
Reactions: Toss55
T

Toss55

macrumors newbie
Original poster
Apr 6, 2016
7
0
Thanks guys. Do I need to post a new thread asking for a hack?

T

Toss55

macrumors newbie
Original poster
Apr 6, 2016
7
0
No, My eMac does not hava a mini display port, thx anyway

eyoungren

eyoungren

macrumors Penryn
Aug 31, 2011
29,383
27,946
imhereareyou said:
Cant you just use this? http://www.amazon.com/Belkin-Displa...le-20&linkId=a13458570b82121b063397f1ae94a7a2
Click to expand...
I believe there is a difference between a Mini-VGA port and a Mini-Display port.

My wife has a 12" PowerBook G4 with a mini-vga port. My Mac Pro at work has two mini display ports. There is a total difference between the two.

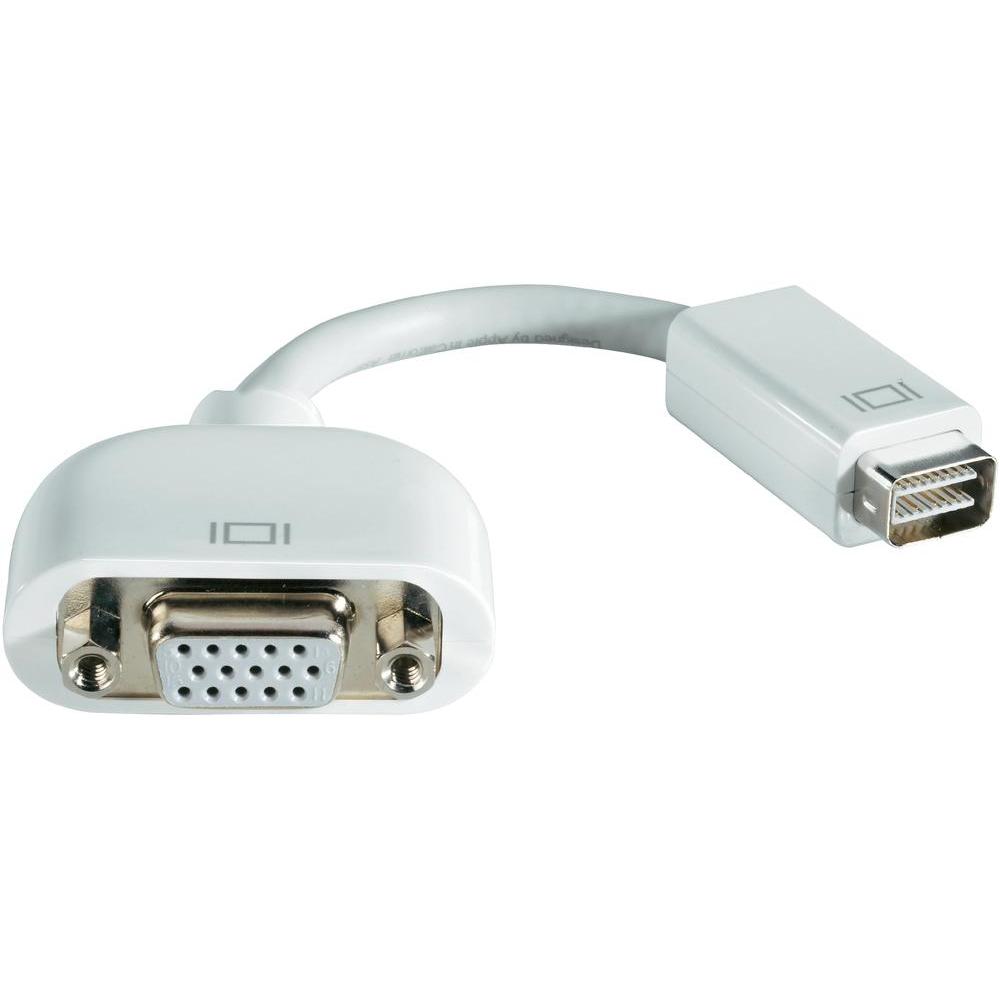

Mini-VGA port…

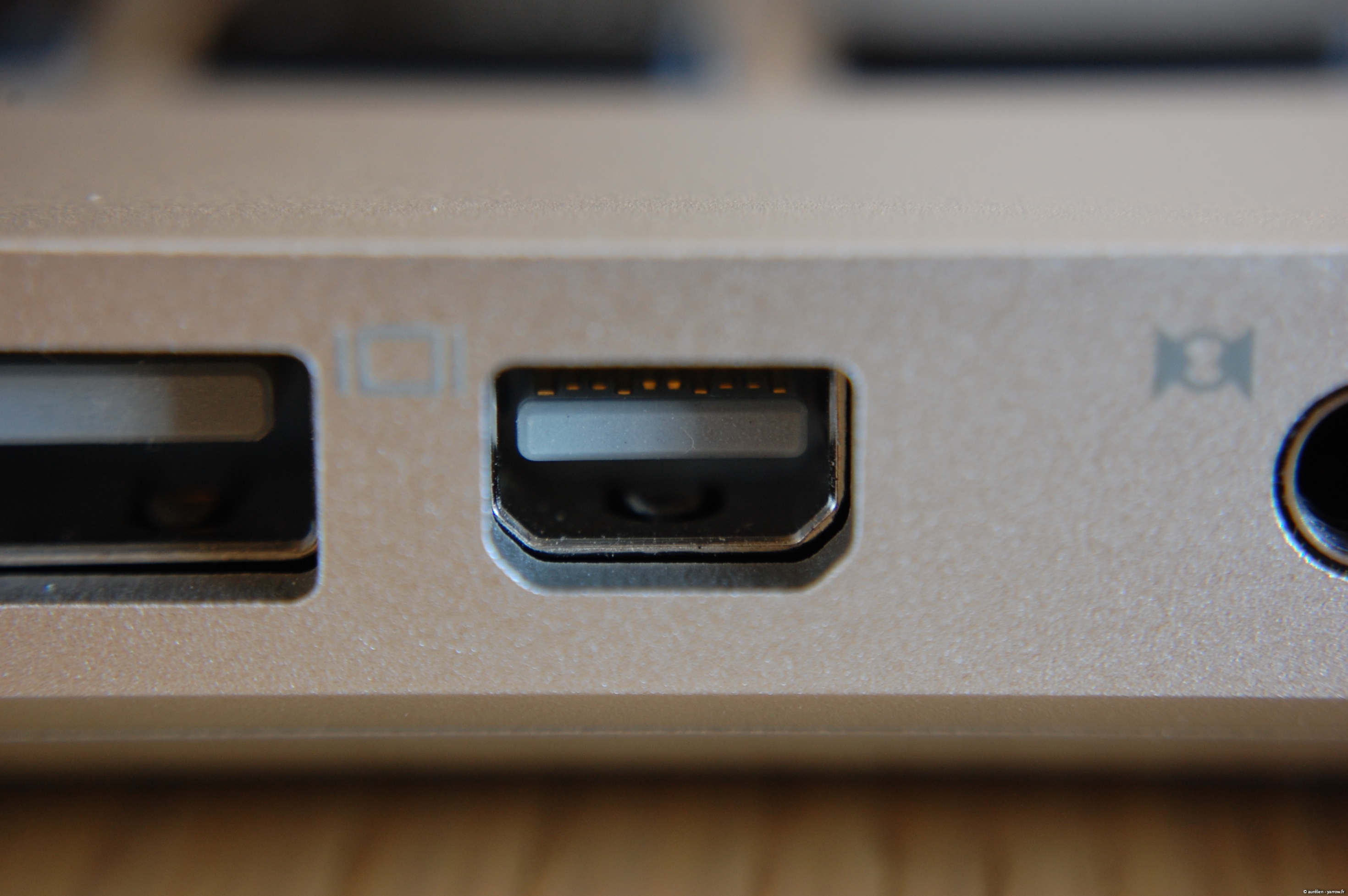

Mini Display port…

eyoungren

eyoungren

macrumors Penryn
Aug 31, 2011
29,383
27,946
Toss55 said:
Hallo.
I'm a newbie on this site.
I have a old eMac from 2003. 700 MHz and running OS X 10.2.8.
I want to extend my desk top with an extra monitor so that I can open more windows. I heard this is not possible on this computer...... is that true?
If it is possible, I need to get a video adaptor. I can't find it anywhere in the manual, so maybe some of you may know the name of the connector I need. The Apple store says Display port, and others say mini DVI. It's pretty vague. Anyway I will need it to go to a VGA female connector.
Hopefully someone on this forum can advise me.
Greetings,
Toss55
Click to expand...
Once you get the adapter, this will probably help.

http://www.macupdate.com/app/mac/15401/screen-spanning-doctor

eyoungren

eyoungren

macrumors Penryn
Aug 31, 2011
29,383
27,946
Hrududu

Hrududu

macrumors 68020
Jul 25, 2008
2,305
648
Central US
eyoungren said:
I believe there is a difference between a Mini-VGA port and a Mini-Display port.

My wife has a 12" PowerBook G4 with a mini-vga port. My Mac Pro at work has two mini display ports. There is a total difference between the two.

Mini-VGA port…



Mini Display port…
Click to expand...
That's a mini DVI on the PowerBook. The original 867 12" had mini VGA but the later models all had mini DVI like the MacBooks had. The mini VGA adapters only support standard 15 pin VGA and composite & Svideo output. There should still be a decent number of those adapters out there because the Mini VGA was on nearly all the iBooks as well.

  • Like
Reactions: eyoungren
eyoungren

eyoungren

macrumors Penryn
Aug 31, 2011
29,383
27,946
Hrududu said:
That's a mini DVI on the PowerBook. The original 867 12" had mini VGA but the later models all had mini DVI like the MacBooks had. The mini VGA adapters only support standard 15 pin VGA and composite & Svideo output. There should still be a decent number of those adapters out there because the Mini VGA was on nearly all the iBooks as well.
Click to expand...
…annnddd STRIKE three. I'm out. :D

LOL!

T

Toss55

macrumors newbie
Original poster
Apr 6, 2016
7
0
Hrududu said:
That's a mini DVI on the PowerBook. The original 867 12" had mini VGA but the later models all had mini DVI like the MacBooks had. The mini VGA adapters only support standard 15 pin VGA and composite & Svideo output. There should still be a decent number of those adapters out there because the Mini VGA was on nearly all the iBooks as well.
Click to expand...

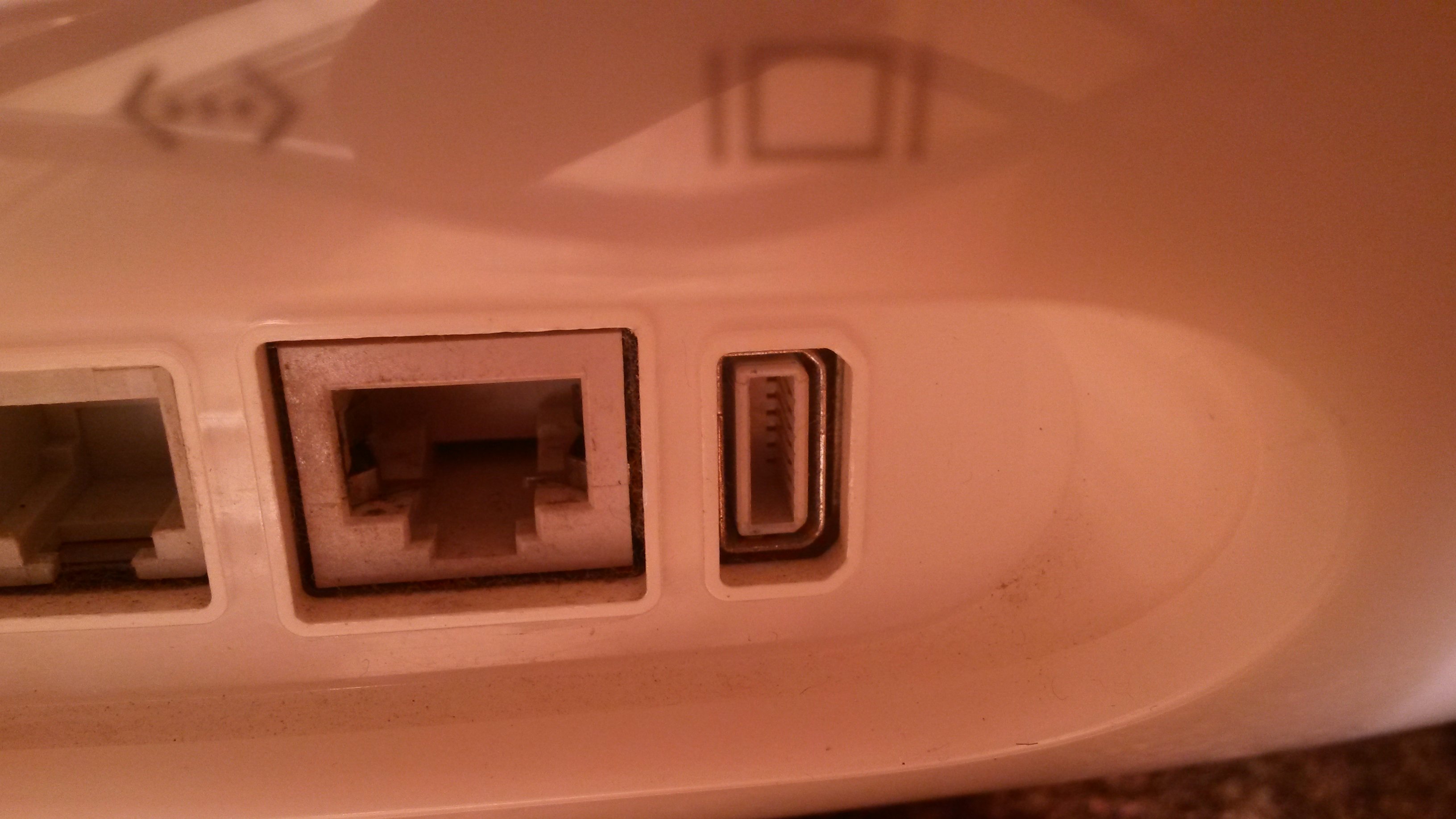

So Hrududu, just to get it straight, you are refering to my eMac photo ?...... its a mini dvi connector that I need then ?

WalnutSpice

WalnutSpice

Suspended
Jun 21, 2015
456
92
Canton, Oh
Daniël Oosterhuis said:
Except that I already said that eMac is not listed in compatible devices on the Screen Spanning utility's site, only 800MHz and up.
Click to expand...
It could still work, or there could always be a work around. I know I did this on my friends iBook G3 700MHz model a few years back, but unfortunately can't remember what method I used. I just know it worked
