External Graphics Card for Mac Book Pro 13'

Discussion in 'MacBook Pro' started by Synchro3, Jan 24, 2015.

  1. Synchro3 macrumors 68000


    Jan 12, 2014

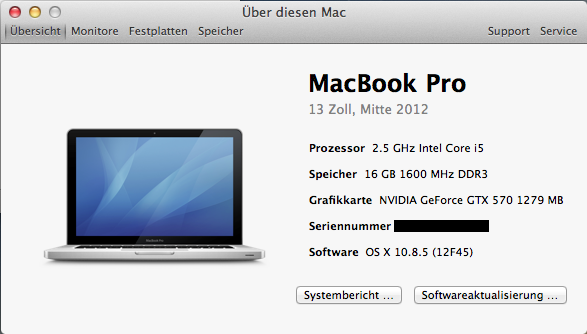

    Because i had a spare Nvidia GTX 570 Graphics card and power supply, i built an eGPU setup for my MacBook Pro 13' 2012. The eGPU is connected to the Mac Book Pro via a Thunderbolt 2m cable.

    Thunderbolt to PCI Express: http://www.sonnettech.com/product/echoexpresscard34thunderbolt.html

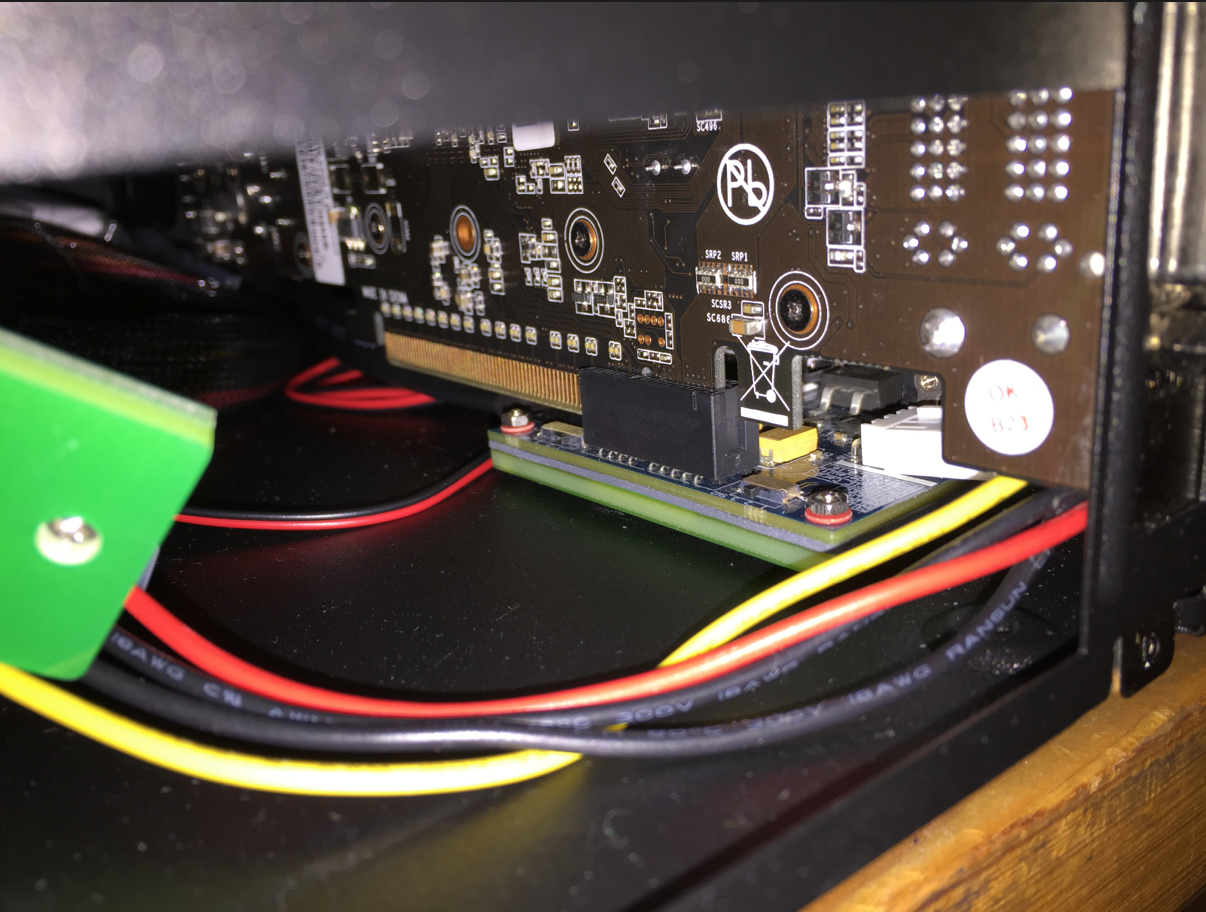

    PCI-Espress to PCI (important: only PE4L v2.1 supports PCI E 2.0):
    http://www.hwtools.net/Adapter/PE4L V2.1.html

    All parts are PCI Express 2.0 x1 (5 Gbit/s), that's what Thunderbolt 1 supports.

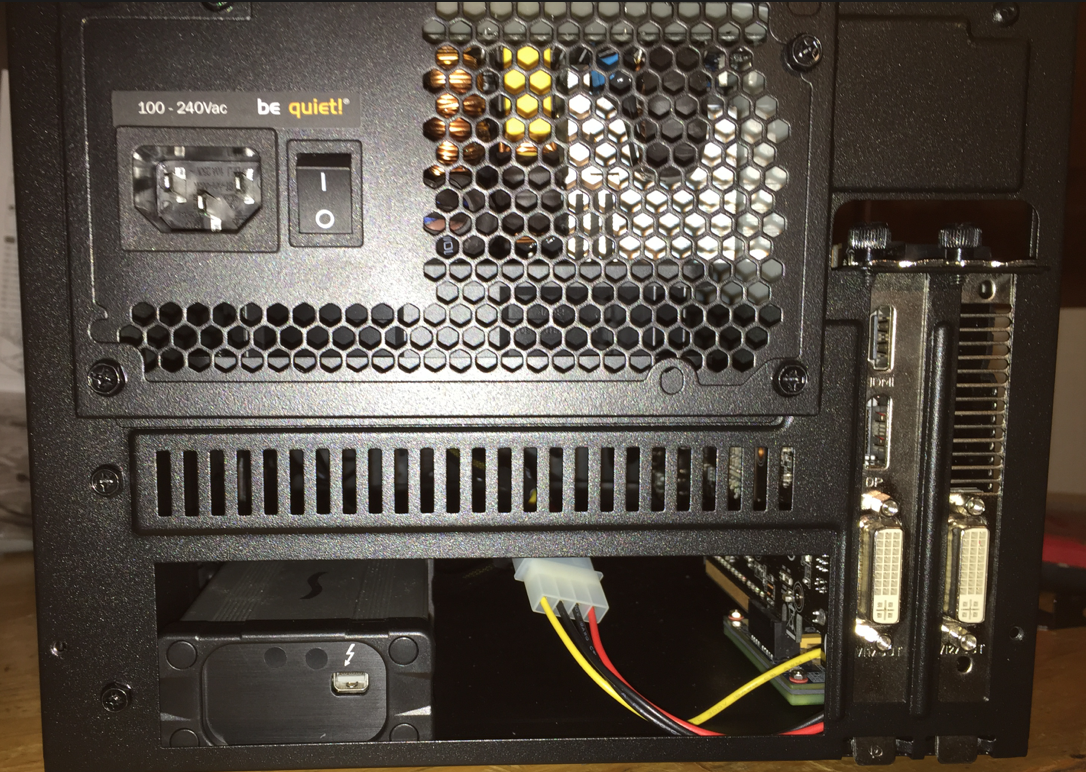

    The case is a Cooler Master Elite 130.

    Some Nvidia driver patching an KEXT editing: http://forum.techinferno.com/implem...ps-tb2-netstor-na211tb-win8-1-osx10-10-a.html and http://maxserve.blogspot.tw/2014/04/how-to-recognize-gpgpu-via-thunderbolt.html

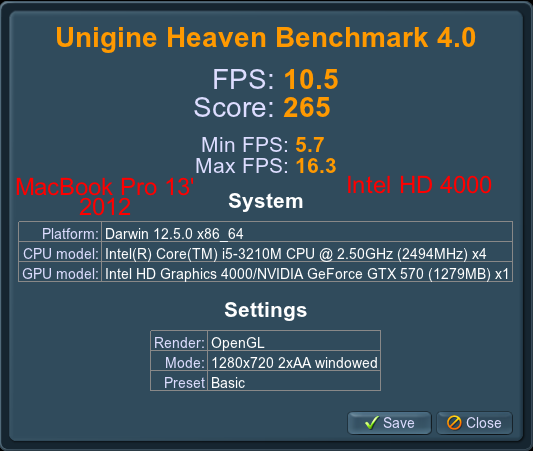

    … and it works! :) Got a signal at the display. OpenGL (Gaming) 561% faster than internal HD 4000 Graphics, GPGPU (OpenCL and CUDA) working. All fine, including playing HD movies from iTunes Store, DVDs etc.

    Attached Files:

  2. JamesMike macrumors demi-god


    Nov 3, 2014
    Interesting concept, thanks for the information.
  3. Freyqq macrumors 601

    Dec 13, 2004
    I'd really like to be able to buy the whole package from NVIDIA one day with official support. Missing a potential market.
  4. Synchro3, Jan 26, 2015
    Last edited: Jan 26, 2015

    Synchro3 thread starter macrumors 68000


    Jan 12, 2014
    Just ordered a GTX-770 4 GB card. When i receive the card i will test the eGPU setup again.

    If requested i can post detailed instructions how to edit Nvidia driver and KEXT's. It is the same procedure for OS X Mountain Lion, Mavericks and Yosemite (except in Yosemite you have to disable KEXT signing).
  5. ninja2000 macrumors 6502

    Dec 16, 2010
    So you can output the 570 to the internal screen as well as a monitor?

    I think this is an amazing idea and would love to also do this but I would want a tiny compact egpu that I could move with me, the itx case idea works great but you may as well just build an itx rig!
  6. e270889o macrumors member

    Jul 9, 2012
    Aprox 300$ without the card.

    I think its not worth it. You can buy a Fx6300+4gb+cheapboard+case for that price and have entirely computer
  7. yjchua95 macrumors 604

    Apr 23, 2011
    GVA, KUL, MEL (current), ZQN
    Minus the Mac hardware and a properly functioning OS X experience.

    Hackintosh isn't the same.

    I've got a Sonnet IIID with a GTX 780 Ti, hooked up via TB2 to my Mac and it's smooth in Boot Camp. Just plug and play.
