gjm87

macrumors regular
Original poster
Mar 17, 2014
127
27

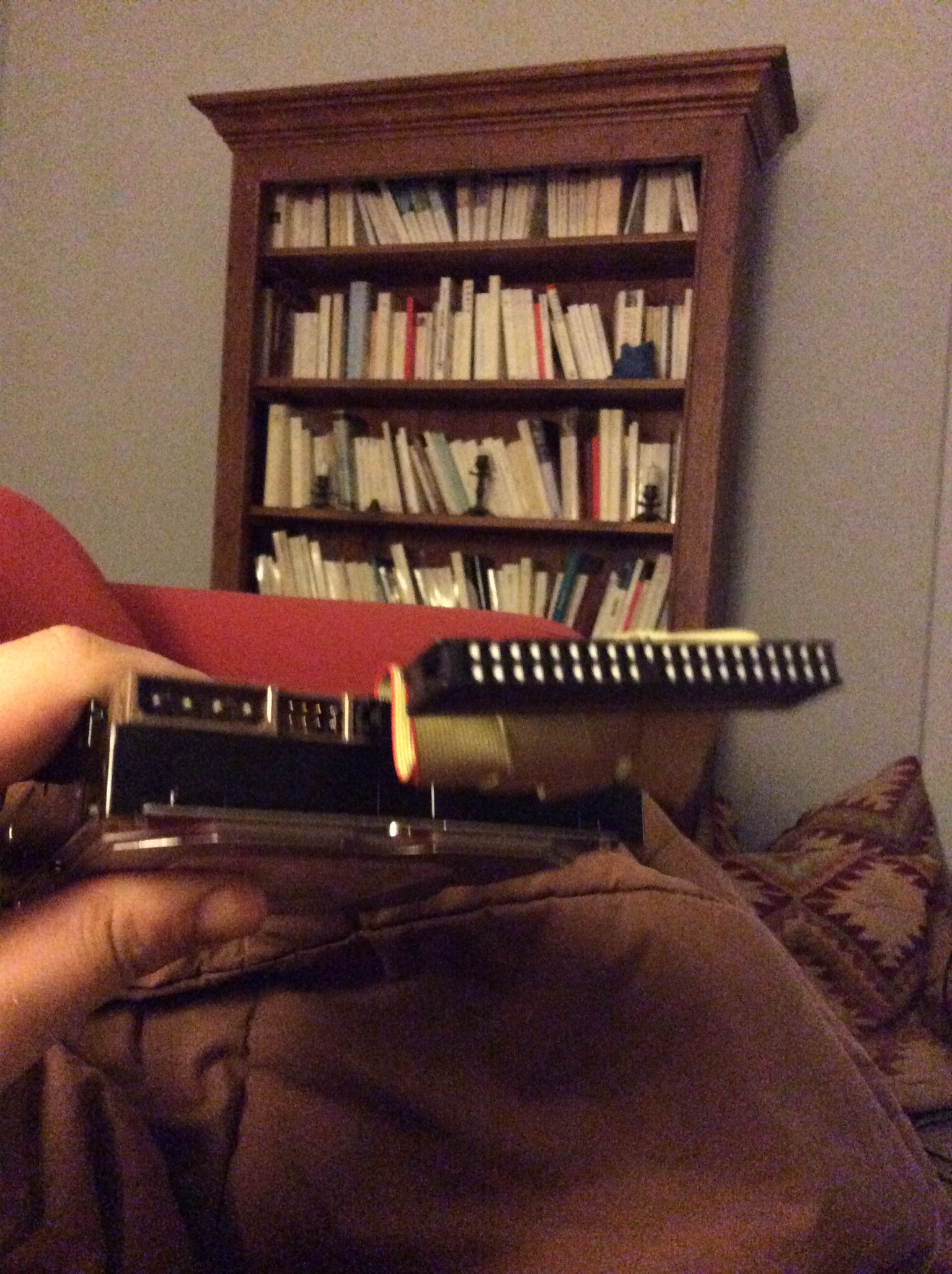

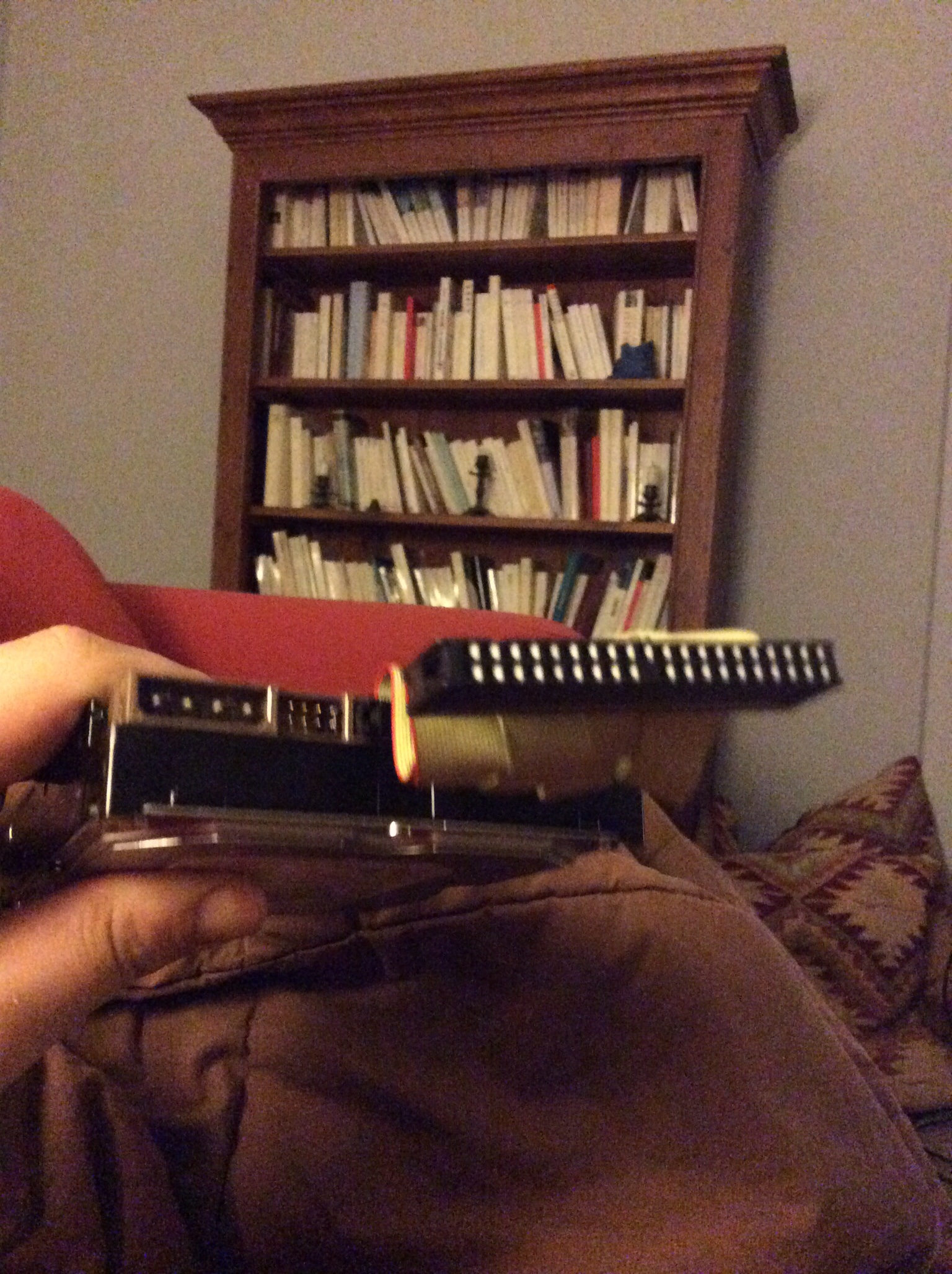

My USB connector on my old external hard drive. I need a new enclosure and have no clue which one to get. Attached are pictures of the hard drive pulled out of the enclosure. Any help would be great!


Attachments

  • image.jpg
    993 KB · Views: 106

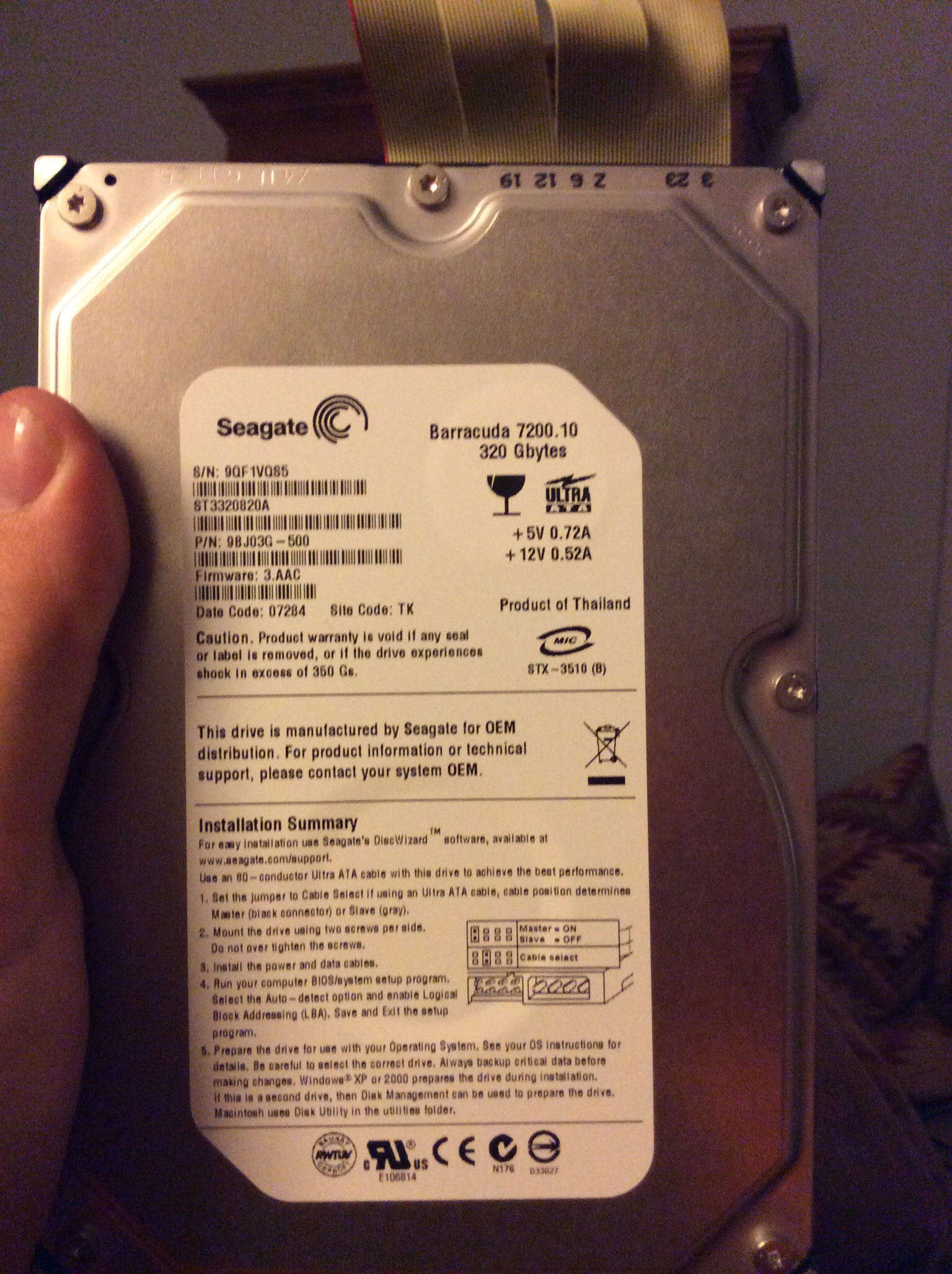

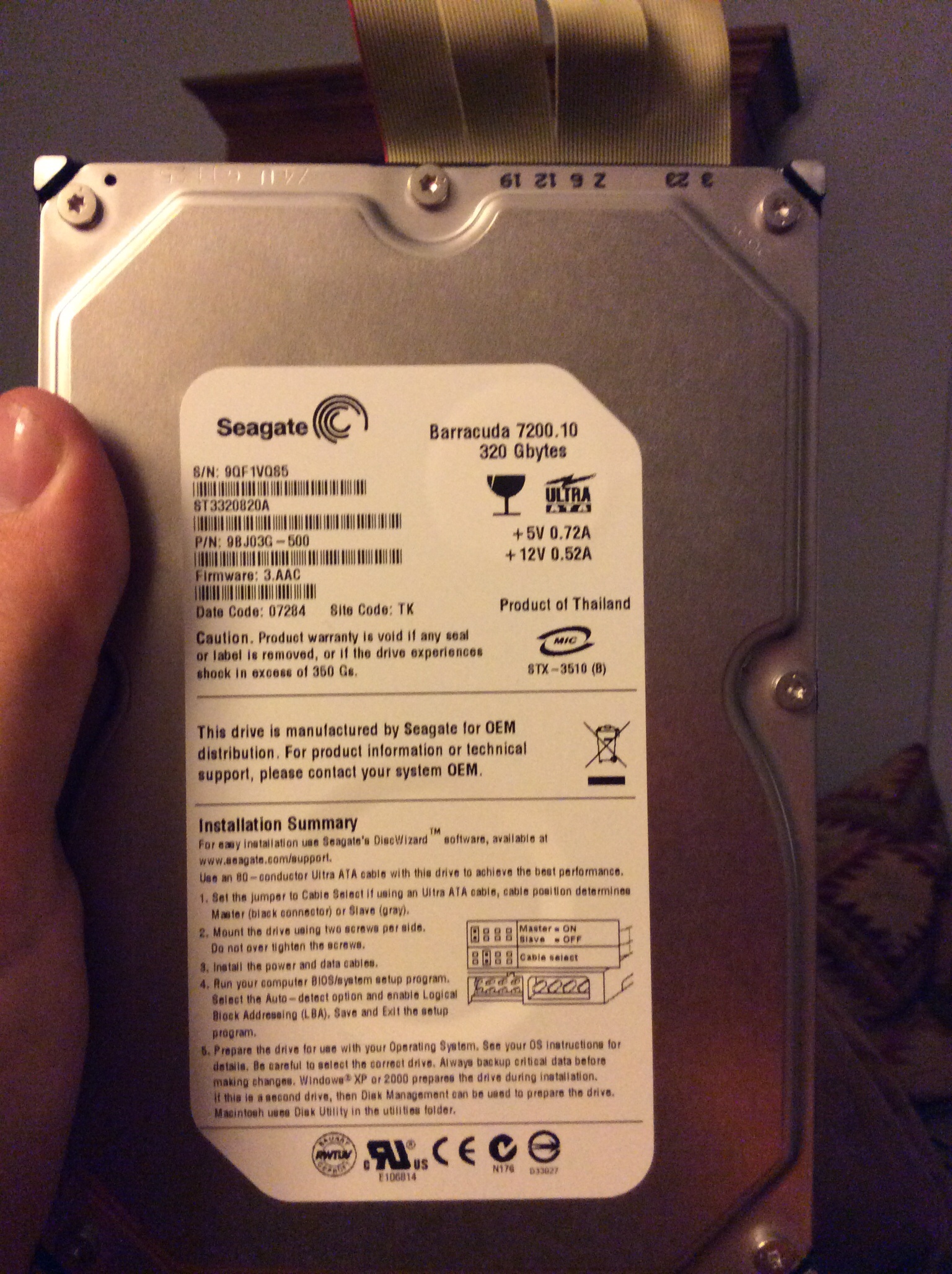

Here is the label


Attachments

  • image.jpg
    932.7 KB · Views: 83
It's a lowish capacity IDE/ATA/PATA relic and isn't really worth pursuing unless you're trying to retrieve data from it, in which case your options are...

a) buy the cheapest USB2 / 3.5" ATA enclosure you can find – like this.

b) buy a naked adaptor kit – like this.

Advantage of the enclosure is that it allows you to continue to use the drive, albeit at USB2 speed. Advantages of the adaptor kit are that 1) it's a useful weapon to have in your arsenal, 2) it impresses the laydeez. If you want to go down this route then I'd strongly recommend getting a USB3 device.

If this is *not* a data retrieval job then throw the disk away and buy a modern 2.5" bus-powered USB3 SATA drive. A decent 500GB can be had for <$40; a 1TB for another $20.

Last edited:
In the States you can find good prices on external drives from WD or Seagate at Costco or Sams. Frys, MicroCenter, and the Apple stores will also have them....just maybe at as good a price.

I think these days you can get a 3TB drive for around $100 and maybe 4TB for around $125.

There's no reason to throw that drive away, ignore what others are saying.

If you want to find an enclosure to put it into, you need a 3.5" enclosure for PARALLEL ATA drives (NOT serial-ATA, or SATA, drives).

They can still be found "for cheap".

If you don't need an enclosure, but still would like to access the drive, you can find P-ATA adapters, like this:
http://www.newegg.com/Product/Product.aspx?Item=N82E16812119152

320gb is plenty of storage capacity for a "secondary backup drive" that contains essential files...
