I own a MacBook Air 13" (bought in 2012), and I have recently been given a computer screen which I would like to use my MacBook with. However, I did not get any cords with the screen, which is a HP 1825 (an 18" LCD), regulatory model P4830, product# P9021B. I also have Apple's Mini DisplayPort to VGA Adapter. I know I am missing cords to connect the screen to my laptop, but I am unsure as to what I have to buy. Any advice would be very appreciated (and I would be happy to provide more specific information if it is needed; I only noted what I thought would be relevant, but I am obviously no expert).
Got a tip for us?
Let us know
Become a MacRumors Supporter for $50/year with no ads, ability to filter front page stories, and private forums.
External Screen and Cords
- Thread starter skylights
- Start date
- Sort by reaction score
Since it is an old display (I saw HP references dating to 2002 and 2003), it has at least the standard of that time, VGA, and the newer interface called DVI.
See here:
As you already have a MDP to VGA adapter, all you needs is a VGA cable, it should cost about 5 USD in many thrift stores or maybe 10 USD at one of those very local electronic supermarket chain stores.
See here:
As you already have a MDP to VGA adapter, all you needs is a VGA cable, it should cost about 5 USD in many thrift stores or maybe 10 USD at one of those very local electronic supermarket chain stores.
Male, as the adapter is female and the display is also female.
Mini DisplayPort (MDP) / Thunderbolt
Mini DisplayPort is the current digital standard on all current Macs to transfer video to an external display or TV. It has been introduced in 10/2008 with the release of the Unibody MacBook and MacBook Pros and has gradually been adopted on all other Macs.
MDP is capable of transmitting video, and since 2010, audio too. MDP is a miniaturised version of DisplayPort. It is also license free and can support resolutions of up to 2560 x 1600, which Mini DVI and Micro DVI are not able to do.
Since 2011, all Macs come with a Thunderbolt port, which is meant for fast data transfer and also as means to connect to an external display device to mirror or extend the Mac's screen.
To learn more about Thunderbolt (TB) and its compatibility with Mini DisplayPort (MDP): Introducing ThunderboltMDP adapters and cables can be bought online from:
Apple Online Store (or the physical Apple Store)
Monoprice
- Mini DisplayPort + USB to Dual-Link DVI adapter
- Mini DisplayPort to DVI adapter
- Mini DisplayPort to VGA adapter
- Mini DisplayPort to HDMI adapter
- Mini Displayport Male and USB Male/Toslink Audio to HDMI Female Converting adapter
- Mini Displayport Male and USB Male Audio to HDMI Female Converting adapter - *NOTE* Will only support 2 channel stereo. Will not support 5.1 Dolby Surround like the above adapter.
Also of interest: "What is "Mini DisplayPort"? Is it an industry-standard? How is it different from or better than Mini-DVI and Micro-DVI?"
You can find the power cable in radio shack - it is just an ordinary cable that they use for powering PCs

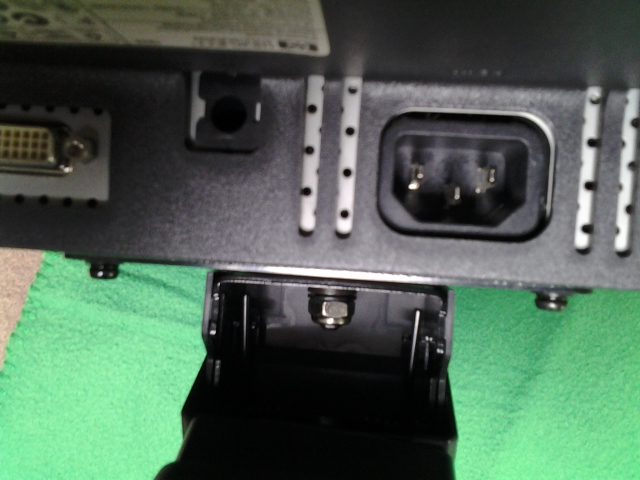

I am sorry for dragging this on, but the salespeople at RadioShack sold me the wrong cable, even after I've shown them a photo of what the plug in looks like on the monitor. I am attaching a photograph; could someone please tell me exactly what it is that I need to buy (or what it is called so I can order it online)? Thank you.
Attachments
Its a C13 lead, otherwise known as a kettle lead (at-least here in the UK).
You can see the different types of connection on http://en.wikipedia.org/wiki/IEC_60320.
You can see the different types of connection on http://en.wikipedia.org/wiki/IEC_60320.
You probably have one already. Check your printer or computer. Maybe even your kettle!
