External Speakers on new iMac

Discussion in 'iMac' started by wndzr, Feb 24, 2013.

  1. wndzr macrumors newbie

    Joined:
    Nov 10, 2012
    Location:
    Manchester, UK
    #1
    Hello,

    I'm having trouble connecting external speakers to my new iMac - it doesn't recognise them at all. When I plug them in, the small speaker icon at the top of the screen becomes greyed out and when trying to amend the volume, it shows a cross.

    I've tried resetting the SMC and VVRAM/PRAM. Speakers work absolutely fine on MacBook Air and iPhone 5.

    Any help much appreciated.

    Cheers


    Attached Files:

  2. Shadow2k macrumors member

    Joined:
    Apr 10, 2009
    #2
    Hi,
    open "System Preferences" and select "Audio". Then check the Output tab. With speakers (metal 3,5mm Jack) attached it should say something like "headphones".

    From your description (grayed out Speaker after plugging in the cable) it looks like your mac thinks that you have plugged in a (optical) Toslink Cable.

  3. wndzr thread starter macrumors newbie

    Joined:
    Nov 10, 2012
    Location:
    Manchester, UK
    #3

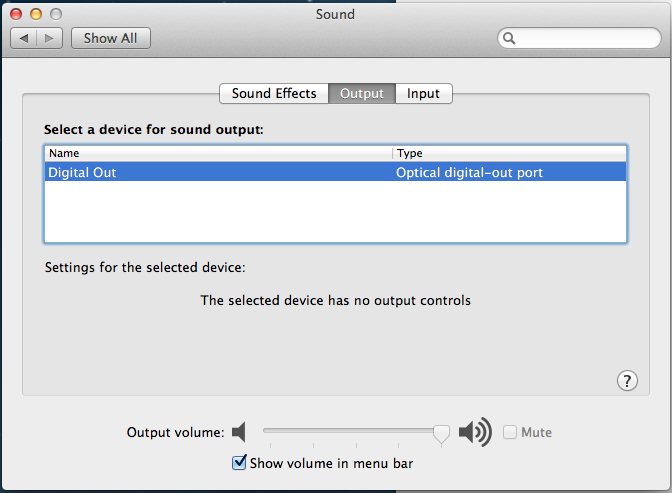

    Cheers for the reply, I've opened up system preferences but instead of seeing that, I get Digital Out.

    This is getting very annoying! :p


    Attached Files:

  4. Shadow2k macrumors member

    Joined:
    Apr 10, 2009
    #4
    According to several sites there is a small mechanical switch inside the audio jack. Suggestions range from repeatedly plugging the speakers in and out, to inserting a Q-Tip (with cotton removed) or a tooth pick inside the jack.
    With your iMac being new and under warranty, I would suggest to contact Apple's service instead.
