MP 6,1 Fan - Mac Pro A1481 (Late 2013) pinout

Coselmann

Coselmann

macrumors member
Original poster
Feb 4, 2023
52
31
Hello everyone,
This may be a strange question -
does anyone know what the connection for a 4-pin PWM cable for this fan looks like?
I would like to use it in my project, and it must be connected to a standard USB PWM controller.

Thank you in advance for your help and suggestions.

Regards,

Tom


Attachments

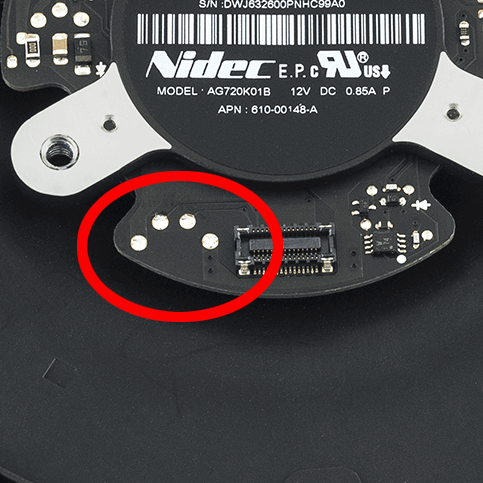

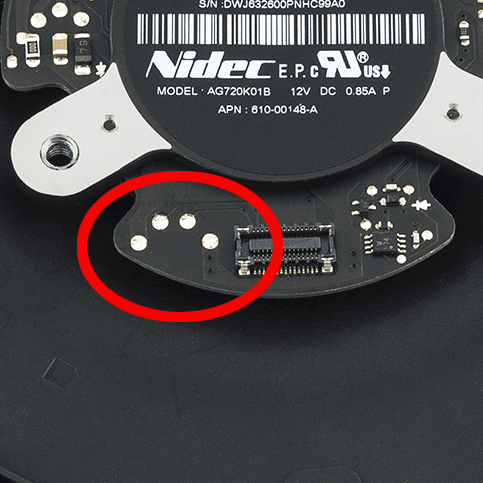

  • CMP-0431-UTW0_0_WEB.png
    309 KB · Views: 14

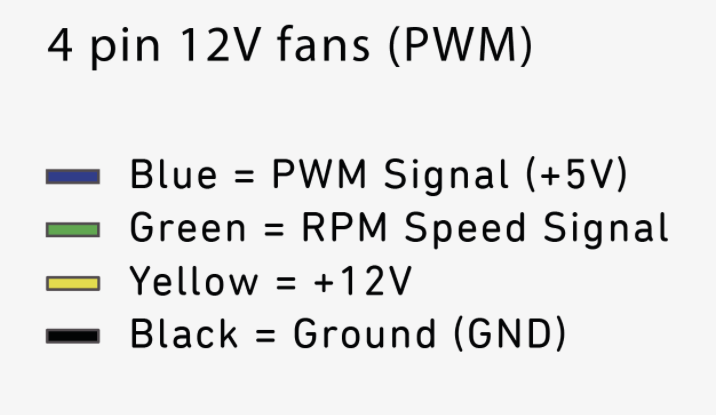

  • Screenshot 2025-09-01 at 20.29.27.png
    Screenshot 2025-09-01 at 20.29.27.png
    75.5 KB · Views: 4
