File transfer from SMB network slow in OSX

SDAVE

macrumors 68040
Original poster
Jun 16, 2007
3,381
435
Nowhere
Hi,
if anyone could help me out that would be great.

Basically I have a network shared SMB server, via gigabit lan (Windows 2008 server) and this machine serves to 2 machines. One is a Mac Pro (with Windows Vista as the second OS) and the other one a Vista machine.

I get about 120MB/sec per ethernet LAN under Vista (from the Mac Pro). Also get the same under the native second Vista machine.

But the problem is, once I use OS X, the speed jumps down to only about 50MB/sec, when I mount from the same LAN.

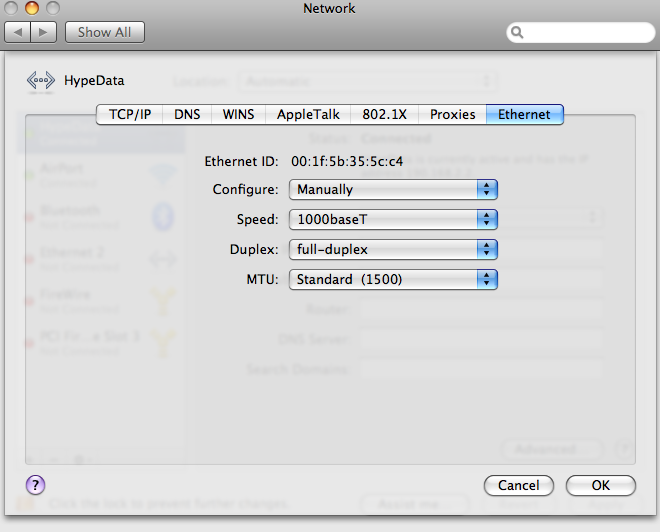

The screenshot is attached in this post.

The point is, OS X, with similar settings in Vista, reads the same network files slower than Vista on the Mac Pro. Very weird indeed. I don't think it's the LAN port on the Mac Pro nor my server, since on the Mac Pro, Vista reads it blazingly fast, but not OS X. What kind of bottleneck do you think I am running into?

Thanks


Attachments


belvdr

macrumors 603
Aug 15, 2005
5,660
1,001
No longer logging into MR
What if you set the NIC to auto negotiate in OS X?

If the link comes up at gigabit speeds, you'll have to be at full duplex, so auto negotiation works 99% of the time everywhere I have used gigabit.


1ne

macrumors regular
Jun 16, 2009
181
0
Canada Oil Country
I have the same problem with my Windows Home Server. It has nothing to do with speed and duplex. My Cisco Layer 3 switch is all hard coded. I was going to look into it. Got too many things on the go. :D


assembled

macrumors regular
Jan 12, 2009
116
0
London
Have you tried running iperf ?

I think you'll find that the network connection is fine, and its just the SMB stack on your Mac Pro

You could also try and compare FTP transfer speeds


belvdr

macrumors 603
Aug 15, 2005
5,660
1,001
No longer logging into MR
I have the same problem with my Windows Home Server. It has nothing to do with speed and duplex. My Cisco Layer 3 switch is all hard coded. I was going to look into it. Got too many things on the go. :D
Just because the switch is hard coded doesn't mean the device connected to it runs the same speed/duplex. Even the latest HP servers, when set to auto negotiate, will link at 100/Half to a switch hard coded at 100/Full.


1ne

macrumors regular
Jun 16, 2009
181
0
Canada Oil Country
Just because the switch is hard coded doesn't mean the device connected to it runs the same speed/duplex. Even the latest HP servers, when set to auto negotiate, will link at 100/Half to a switch hard coded at 100/Full.
Huh? Agreed and disagreed.

Yes you are correct just because switch is hard coded it does not mean the device will run the same speed and duplex. If your case, you should force the server to 100/full and hard code the swiitch to 100/full. What kind of switches does your company run?


belvdr

macrumors 603
Aug 15, 2005
5,660
1,001
No longer logging into MR
Huh? Agreed and disagreed.

Yes you are correct just because switch is hard coded it does not mean the device will run the same speed and duplex. If your case, you should force the server to 100/full and hard code the swiitch to 100/full. What kind of switches does your company run?
We use Cisco exclusively for switches. Yeah, I know about hard coding both ends. It's what I do. :)

What part did you disagree on?


SDAVE

macrumors 68040
Original poster
Jun 16, 2007
3,381
435
Nowhere
What if you set the NIC to auto negotiate in OS X?

If the link comes up at gigabit speeds, you'll have to be at full duplex, so auto negotiation works 99% of the time everywhere I have used gigabit.
Thank you!
You were absolutely correct, it seems that if I set it to auto, it uses the full speed. Weird, I've always set up the networks manually, but OS X seems to hate that.

Do you know of a way to test the speed of the network though? I only have one internal drive in my Mac Pro, and it only pushes 68MB/sec. Maybe once I get a RAID0 setup in here, I could fully see the high speed of the network.

Have you tried running iperf ?

I think you'll find that the network connection is fine, and its just the SMB stack on your Mac Pro

You could also try and compare FTP transfer speeds
Yeah, it seems that OS X doesn't like manual settings, for some odd reason.

But thank you for the help!


belvdr

macrumors 603
Aug 15, 2005
5,660
1,001
No longer logging into MR
Thank you!
You were absolutely correct, it seems that if I set it to auto, it uses the full speed. Weird, I've always set up the networks manually, but OS X seems to hate that.

Do you know of a way to test the speed of the network though? I only have one internal drive in my Mac Pro, and it only pushes 68MB/sec. Maybe once I get a RAID0 setup in here, I could fully see the high speed of the network.
No problem. The only way you'll really be able to nail the speed of the link is to have:

1. Very fast write devices on the other end. Reading data and pushing to the network is easy to overcome.
2. Many users hitting the same link all at once.

Check this out:

http://www.tomshardware.com/reviews/gigabit-ethernet-bandwidth,2321.html


1ne

macrumors regular
Jun 16, 2009
181
0
Canada Oil Country
We use Cisco exclusively for switches. Yeah, I know about hard coding both ends. It's what I do. :)
I am pretty sure when it comes to L3 switching and routing on Cisco switches and routers, I am very confident on what I am doing and my skillset. And it is what I do for a living. Purely Cisco Data and Wireless. I do have my CCNP. Unless you have your CCIE in R&S and Wireless don't make it sound like I am a idiot. Especially when it comes to networking and wireless. Thank u. Otherwise... :rolleyes:


belvdr

macrumors 603
Aug 15, 2005
5,660
1,001
No longer logging into MR
I am pretty sure when it comes to L3 switching and routing on Cisco switches and routers, I am very confident on what I am doing and my skillset. And it is what I do for a living. Purely Cisco Data and Wireless. I do have my CCNP. Unless you have your CCIE in R&S and Wireless don't make it sound like I am a idiot. Especially when it comes to networking and wireless. Thank u. Otherwise... :rolleyes:
So you're pretty sure you're very confident? It doesn't sound that way.

I have no idea why you are being overly sensitive, as all I said was I knew what you were talking about and that I have experience in this. I never once said or implied you had no clue what you're talking about. I said I knew about hard coding both ends and that I am a network engineer. If you took offense to that, you're reading too much into it and/or looking for something to argue about.


BoB64

macrumors newbie
Feb 26, 2015
2
0
Same issue still in 10.10.2 ?

On wired lan, I get around 19Mbits/s in and 900Mbits/s out between my new iMac and a Windows 8.1 pc with iperf.
No issues with download speeds from the internet. Only when transferring from pc/nas to mac through wired network.
I have searched the net for several days now, and found nothing that helps.
Also, if i turn my windows pc off, i get around 80Mbits/s in to my iMac from my NAS
Copying between windows pc´s and NAS have never been a problem.

Any ideas?


leman

macrumors G3
Oct 14, 2008
9,963
4,550
Try updating your OS X. From my experience, SMB support has been significantly improved in 10.10
