Fix Your iPhone screen without replacement!

Discussion in 'iPhone Tips, Help and Troubleshooting' started by Dheald, Nov 22, 2011.

  1. Dheald, Nov 22, 2011
    Last edited: Nov 22, 2011

    Dheald macrumors member

    Joined:
    Jun 29, 2010
    #1
    Alright, I'll start by saying I work in the automotive glass industry. We perform rock chips on cars to prevent the chip from spreading into a crack.

    This will only work for iPhones with a chip and not if it is already cracked.

    !!Disclaimer!!

    I AM NOT LIABLE FOR YOU DESTROYING YOUR PHONE. DO THIS AT YOUR OWN RISK. THIS IS PROVIDED AS REFERENCE ONLY.

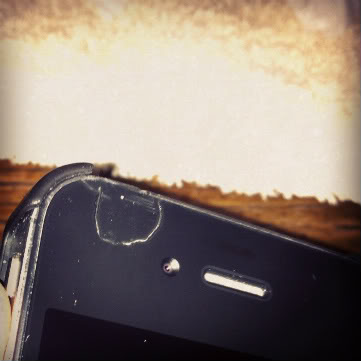

    Here is what we started with:

    [​IMG]

    Then, using a dremel with a very small bit, we roughed up the surface of the glass so the resin would adhere better. Similar to sanding a car before painting.

    We then poured a very small amount of UV-sensitive resin into the chip. After approx. 30 minute cure time, the chip is ready to be scraped.

    Using a small straight-razor, you make a sweeping motion back and forth along the now resin-filled chip.

    This scraping will continue for some time until it is flush with the original glass.

    Edit: Here's a quick video example http://bit.ly/vgUoFD

    Any plastic polish afterwards can be used to buff the hardened resin to a shine.

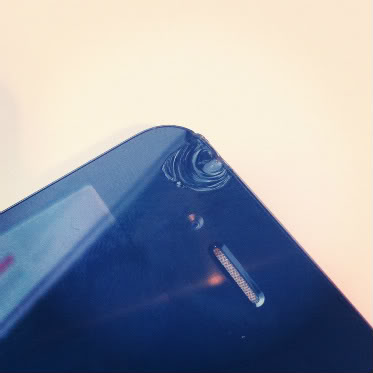

    Finalish (perfectionist:p) product:

    [​IMG]

    Let me know if you have any questions!

    PS: I'll be throwing up a video of the scraping process asap

  2. Crystal-RX macrumors 68030

    Crystal-RX

    Joined:
    Dec 22, 2008
    Location:
    Seattle, WA USA
    #2
    Thanks for the tutorial on how to do this. However, I do have questions though;

    1. How much time you spend on fixing this?
    2. What is the total cost of material involve in this?

    As I know, you can buy 3G/3GS digitizer from Amazon or other places for $10.00 or lower including shipping. It will take about 10 minutes to replace it and it looks brand new.

    So, spending so much time on fixing this chip while you can replacing the whole digitizer for cheap. :D

  3. CBR900RR macrumors 6502a

    Joined:
    Oct 11, 2008
    Location:
    Middle of Pacific
    #3
    Are you suppose to apply suction of the other side to get the resin into the crack? I think that's how I repair the rock chip on my windshield.

  4. Resist macrumors 68030

    Joined:
    Jan 15, 2008
    #4
    Every windshield I've ever had fixed by this method never looked right and I ended up replacing the entire windshield. From the picture, it doesn't look right on the iPhone either. Just saying.

  5. Dheald thread starter macrumors member

    Joined:
    Jun 29, 2010
    #5
    1. 45 minutes to an hour, I wasn't really keeping track.

    2. Free for me since I work at glass shop but the resin is itself is readily available online, a quick search for "windshield repair kit" will work.

    You don't need to use a dremel per se, just anything to rough up the surface. Just make sure the surface is clean afterwards.

    Razors are a couple dollars at a hardware store.

    UV light is free (hint: the sun) and as for the polishing, any wax or polish should do the trick with enough elbow grease.

    ----------

    More glass was flaking off each day so this is really more of a stop-gap until the cost of having the whole 4S face replaced by professional goes down. It's beyond my dexterity to do myself:p
