Flashing AMD 5770

[Antoni Nygaard]

Hi Everyone

Hope you can help me. I just got my hands on a 5770 MSI with 2x DVI, 1x DisplayPort & 1x HDMI

I just tried creating a rom but I get this error:

dd: bs must be between 1 and 9223372036854775807

How do I get around this? I'm uploading the rom if anyone is interested in giving it a shot, thanks

https://www.dropbox.com/s/zwbp3gi6nwsxct8/5770pc.rom?dl=0



[keysofanxiety]

Hi Everyone

Hope you can help me. I just got my hands on a 5770 MSI with 2x DVI, 1x DisplayPort & 1x HDMI

I just tried creating a rom but I get this error:

dd: bs must be between 1 and 9223372036854775807

How do I get around this? I'm uploading the rom if anyone is interested in giving it a shot, thanks

https://www.dropbox.com/s/zwbp3gi6nwsxct8/5770pc.rom?dl=0

Could you try this ROM and let me know how you get on?



[Antoni Nygaard]

Could you try this ROM and let me know how you get on?

I get nothing. it gives me no screen on both DVI ports. Not even th login screen shows up



[Fl0r!an]

And this is way you don't cross-flash ROMs from other GPUs.

You must have had a typo somewhere, I just ran the first two Terminal lines and it returned a valid $size.
Consider using my EFI from this thread to get digital boot screens: http://forum.netkas.org/index.php/topic,10827.0.html



[Antoni Nygaard]

And this is way you don't cross-flash ROMs from other GPUs.

You must have had a typo somewhere, I just ran the first two Terminal lines and it returned a valid $size.
Consider using my EFI from this thread to get digital boot screens: http://forum.netkas.org/index.php/topic,10827.0.html

Thanks. can you tell which page it is on? the first page lists some for the 5870. Reading the the pages now.

I got the card to work again doing the short circuit of pin 4 and 5 found an old thread on this site, for now it's reverted back to the standard rom
[doublepost=1469201607][/doublepost]Is the one you posted on page 5 called: 5770MOD2.efi.rom ?



[Fl0r!an]

Yep, that's looking fine



[Antoni Nygaard]

Yep, that's looking fine

Just tried that one, that makes the card go dead as the other one. So i had to do the short circuit again. Another rom i can try? or can you modify the one i uploaded?



[Fl0r!an]

Good luck!



[Antoni Nygaard]

Thanks. Gonna try it now
[doublepost=1469209985][/doublepost]Thank you!! it's working! DVI lower port gives boot screen. upper dvi working but no boot screen. don't know if Display port i working. Hope it does.



[mrkapqa]

Thanks. Gonna try it now
[doublepost=1469209985][/doublepost]Thank you!! it's working! DVI lower port gives boot screen. upper dvi working but no boot screen. don't know if Display port i working. Hope it does.

Hello Florian,

i used a ROM from you to flash a Juniper 5770 2DVI/HDMI/DP in Bootcamp (Windows7-64Bit) with WIN ATIFLASH; unfortunately now all screens remain black, i cannot see screen neither in osx nor in windows.
it was the 5770MOD2.efi.rom

guess i was a bit too early eager with the flashing, or did i make a mistake? tried to boot in Freedos previously, but could not get access to USB Stick, so i resorted to WINATIFLASH.

Hope there is a way out ; i currently don't have access to a PC with second FullLaneGraphics slot, so i used my MacPro1.1.

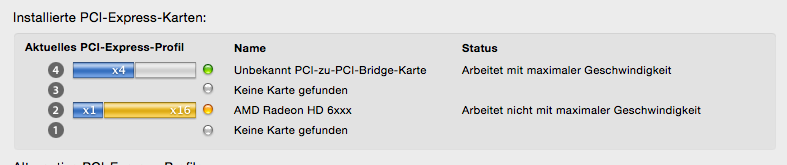

The 5770 is in slot 1 and is no more recognized in Bootcamp nor in OSX. In Slot 2 i have a 6450 HD


PS. i forgot to add: i did use a MP1.1/2.1, so maybe this is bricked now because the ROM is 64BIT EFI ONLY?

found this @netkas

"
It only works on 2008+ macpros, because efi is 64-bit now, not ebc anymore.

"

http://netkas.org/?p=503
