G3 not recognize screen

Discussion in 'PowerPC Macs' started by lhoffstadt, Oct 31, 2014.

  1. lhoffstadt macrumors member

    lhoffstadt

    Joined:
    Oct 15, 2014
    Location:
    Chile
    #1
    Hi all, I have bought a PowerPC G3 B&W desktop as a second hand and I have attach an LCD screen via the VGA port but is not showing any image.
    For what I was told, previous owner had it connected to a CRT monitor and I seems that I need to do the same to get an image and then change the resolution so I can hook a LCD monitor.

    Is this correct or is there another workaround for this?
    For the moment Im trying to get a CRT screen and try to make this work.

    Thanks for any help.

  2. Altemose macrumors G3

    Altemose

    Joined:
    Mar 26, 2013
    Location:
    Elkton, Maryland
    #2
    The Mac should automatically detect that a new display has been detected and adjust the settings to the appropriate resolution. Is this display confirmed working with other computers? Are you using any adapters in this mix?

  3. Hrududu macrumors 68020

    Hrududu

    Joined:
    Jul 25, 2008
    Location:
    Central US
    #3
    I'd say verify the card is seated properly, and do a PRAM reset when you boot the machine connected to your LCD.

  4. bunnspecial macrumors 603

    bunnspecial

    Joined:
    May 3, 2014
    Location:
    Kentucky
    #4
    I've used a variety of LCDs of various sizes and resolutions with my B&W and never had an issue getting any of them to work.

    As mentioned, check the LCD with another computer, and be sure it actually works. Make sure the cable you're using is good, and that all connections are seated securely.

    If you don't get anywhere with this, I'd suggest pulling the video card from the B&W, giving the contacts a good clean with denatured alcohol or some sort of electronics part cleaner, and then reseating.

  5. lhoffstadt thread starter macrumors member

    lhoffstadt

    Joined:
    Oct 15, 2014
    Location:
    Chile
    #5
    hi all, I have tried the LCD screen and is working correctly and I also get an CRT monitor and also is working.
    it is like the OS is not booting, when I turn on the MAC it gives the typical sound but just stays there, not led on the keyboard on or mouse.
    The first time I power it on and had this issue with the LCD screen I had to keep the power on button for a couple of seconds to power it off, but now when I want to power off the Mac I have to press the button only one time, is like the OS is not booting.

    I will take out the video card and check if everything is connected correctly and do the PRAM reset,

    thanks

  6. Altemose macrumors G3

    Altemose

    Joined:
    Mar 26, 2013
    Location:
    Elkton, Maryland
    #6
    I would double check that there is no dust near the slot. If there is, then I recommend that you blow compressed air in it.

  7. lhoffstadt thread starter macrumors member

    lhoffstadt

    Joined:
    Oct 15, 2014
    Location:
    Chile
    #7
    this is really strange, I was able to make the Mac to work, had it boot once, everything was working OK, then decided to reboot to see if the issue was solve and then didn't boot back again.
    I haven't even move a cable.
    I was thinking something loose inside (cable) or something, but during the reboot I have move a cable.
    really strange, still trying to figure out was going on here.

  8. Altemose macrumors G3

    Altemose

    Joined:
    Mar 26, 2013
    Location:
    Elkton, Maryland
    #8


    What happens when you do a PMU and PRAM reset?

  9. lhoffstadt thread starter macrumors member

    lhoffstadt

    Joined:
    Oct 15, 2014
    Location:
    Chile
    #9
    right after I did that, nothing. I left the Mac for a while unplug of every cable.
    Then connect all back again and just push the power button and start for the first time with me.

    Then I decided to do a reset to see if everything was working OK and then no luck, same issue has before.

  10. Altemose macrumors G3

    Altemose

    Joined:
    Mar 26, 2013
    Location:
    Elkton, Maryland
    #10

    Does reseating the card work?

  11. lhoffstadt thread starter macrumors member

    lhoffstadt

    Joined:
    Oct 15, 2014
    Location:
    Chile
    #11
    I took DIMM 1 & 3, a leave inside DIMM 0 & 2 in and now it start working, so one of those DIMMs is faulty.
    Took me a while narrowing the issue.
    On this type of Mac, the RAM goes in pairs?

  12. Altemose macrumors G3

    Altemose

    Joined:
    Mar 26, 2013
    Location:
    Elkton, Maryland
    #12

    It is not mandatory that the RAM be installed in pairs.

  13. lhoffstadt thread starter macrumors member

    lhoffstadt

    Joined:
    Oct 15, 2014
    Location:
    Chile
    #13
    thank you

  14. Altemose macrumors G3

    Altemose

    Joined:
    Mar 26, 2013
    Location:
    Elkton, Maryland
    #14

    You do however need to thoroughly test the RAM to determine the bad stick.

  15. lhoffstadt thread starter macrumors member

    lhoffstadt

    Joined:
    Oct 15, 2014
    Location:
    Chile
    #15
    I have found the faulty DIMM, now the G3 is working fine.

    Sorry for my ignorance on the next question, but a PC DIMM should work in the G3?
    My G3 has 4 DIMM 128MB 133MHZ and I have found a 256MB 133MHZ from a PC and I was wondering if I can used this DIMM or should I buy special DIMM for the G3?

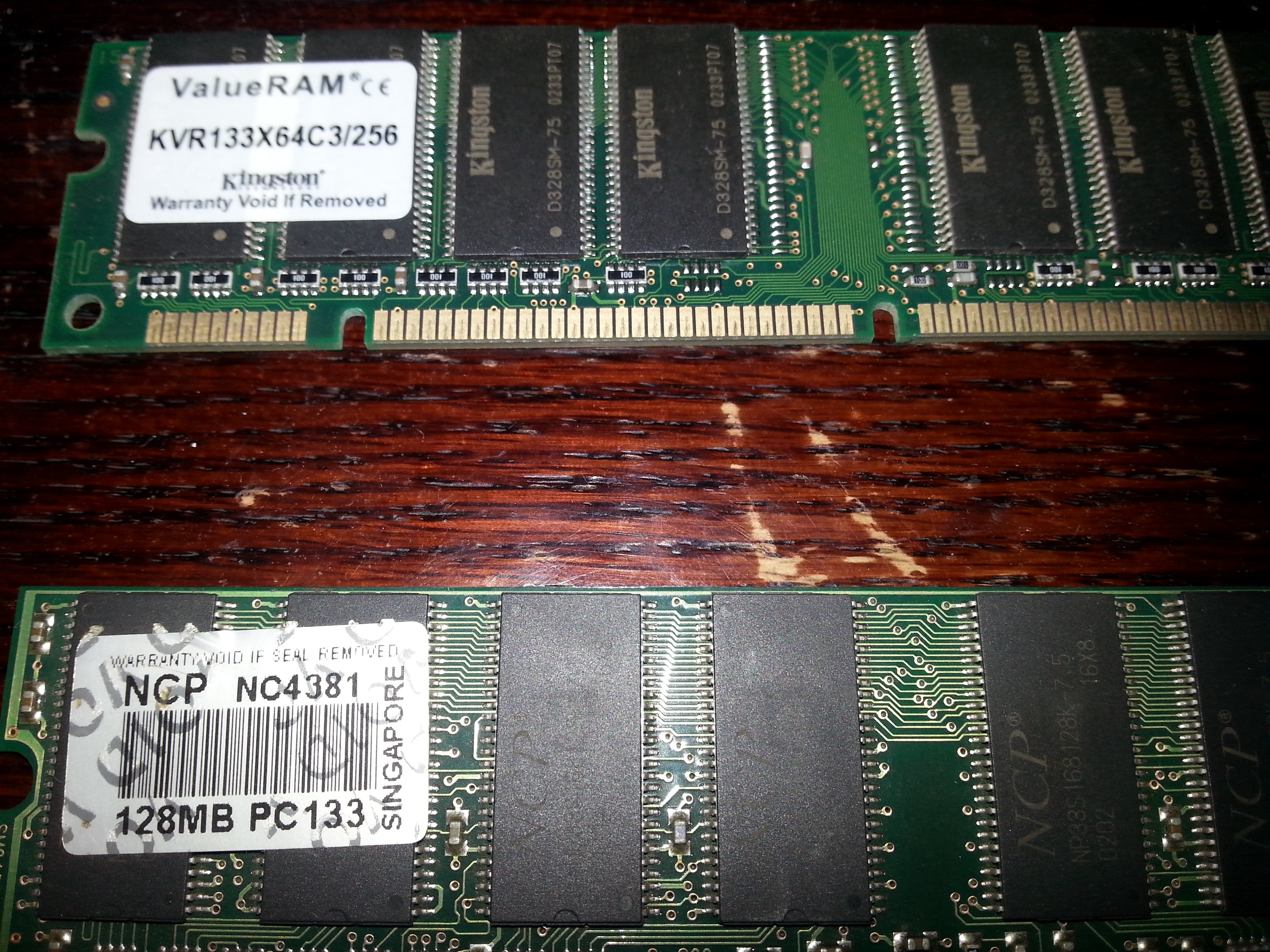

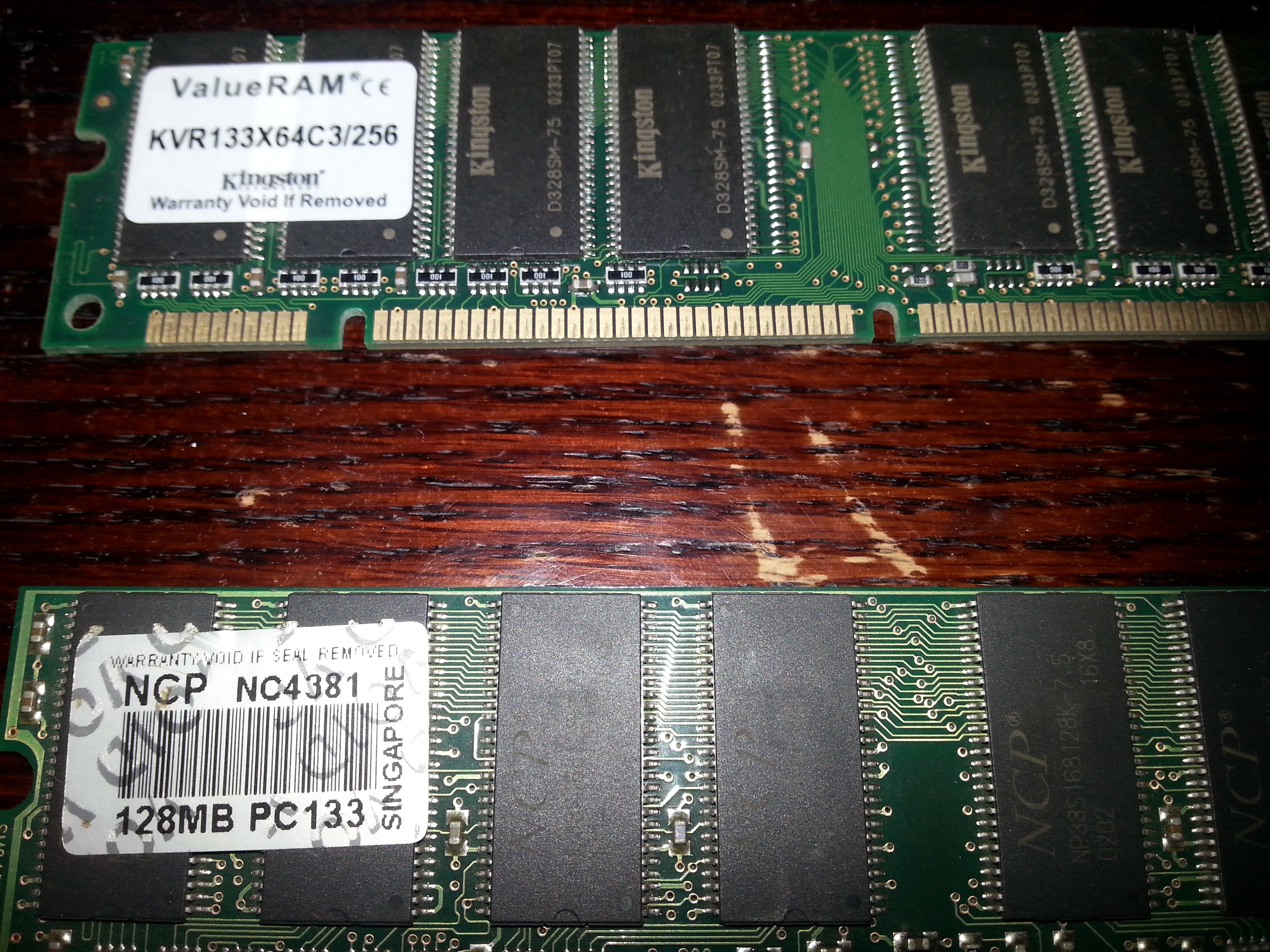

    Here I have attach a picture.

    Up is the PC DIMM and bellow the former and faulty G3 DIMM

    thanks again


    Attached Files:

  16. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #16
    There is no difference between memory types for Macs and non-Macs. Memory is memory. As long as the other stick is low density and fits in the slot, it will very likely work. The worst that will happen is your machine will beep/blink out an error code for faulty memory.

  17. weckart macrumors 68040

    Joined:
    Nov 7, 2004
    #17
    Not so sure about your first statement although in theory it should be correct. I bought a couple of sticks of PC133 recently and happened upon this local seller on Amazon UK. I am familiar with the brand but the ad clearly stated that the sticks were not compatible with Apple computers. The same seller had other PC133 ram that was Mac compatible and obviously cost a little more.

    Might be just a scam to upsell to the unwary but all the non-ECC PC133 desktop ram I have ever seen looked identical. The low/high density split seemed to be more of an issue for sodimms.

  18. Intell macrumors P6

    Intell

    Joined:
    Jan 24, 2010
    Location:
    Inside
    #18
    It's all an up sale. Just like buying a Mac external hard drive or internal hard drive. No different other than it come pre-formatted in HFS+.

  19. weckart macrumors 68040

    Joined:
    Nov 7, 2004
    #19
    I thought as much, although some of the low ranking reviews would indicate a problem with chip density with only half the ram recognised on both PCs and Macs and some computers not registering the ram at all.

    I know that my Wallstreet will deal with high density ram but only recognise half the registered total whereas the same sticks in my Pismos work without issue - but then again, they are laptops and those tend to be picky about ram.

  20. lhoffstadt thread starter macrumors member

    lhoffstadt

    Joined:
    Oct 15, 2014
    Location:
    Chile
    #20
    I have put the 256MB ram from the PC and works great.
    Many thanks for the all the help and advice provided to me, I have learn a lot from this issue
