G5 Quad CPU Issues
- Thread starter gavinstubbs09
- Start date
- Sort by reaction score
Very impressive, sir! I'm going to be demanding more updates from you as you get CPU's installed and I would love to see your temps and fan speeds if you get it up and running. If this is successful, I will try the same thing on my spare assembly and see if I can't get another quad up and running! Please keep us updated!!!!
This mess your having to sort out, is why I gave up on G5 Quads. I got a Late 2005 2.3dc, put my Quads accessories in it, and havent regretted it a bit. No more water, no more pumps, just simple air cooled reliability. Sure its not a Quad, but the headaches you get from them arent worth it when its just a hobby system.
Im my younger days we used Muriatic acid to clean old auto radiators. Used it right out of the bottle (full strength) to cook out the crud. You can buy it at Lowes / Home Depot and it's reasonably priced. When your done it's easily diluted with water to dispose of it.
Of course you should *always* read all the precautions and follow directions including wearing rubber gloves and eye protection. Otherwise how will you see the coolant flowing through those clear tubes
I am off work in ten minutes, when I get home I have to take that air bubble out then I'll be throwing it back in! Really hoping all goes well so I don't have to take it out again for the billionth time
So great news!!

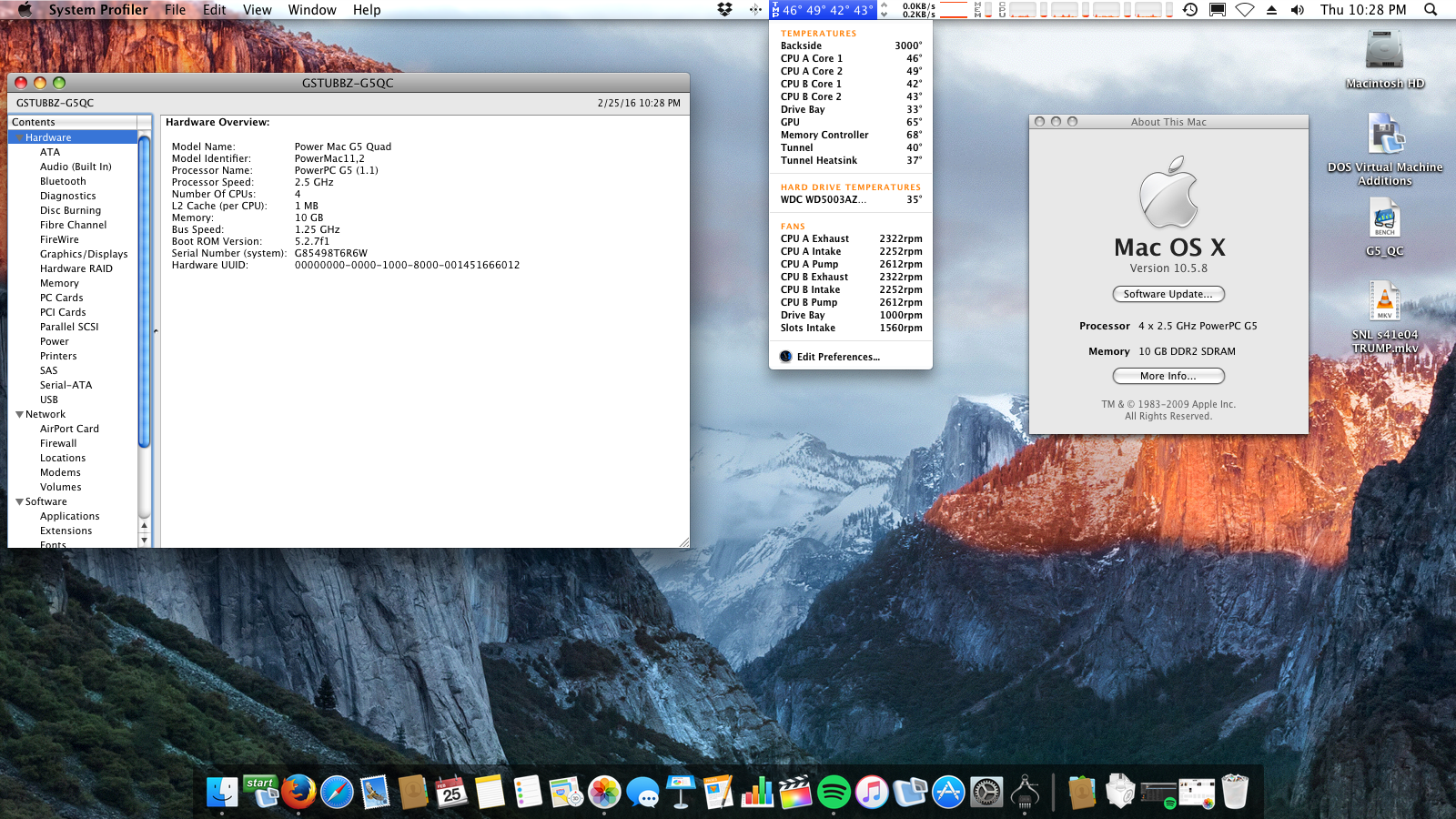

It boots and is usable. Booting ASD 2.6.3 as we speak. Temps are much lower, usually ranging from the 40-60*C range on both processors.
---

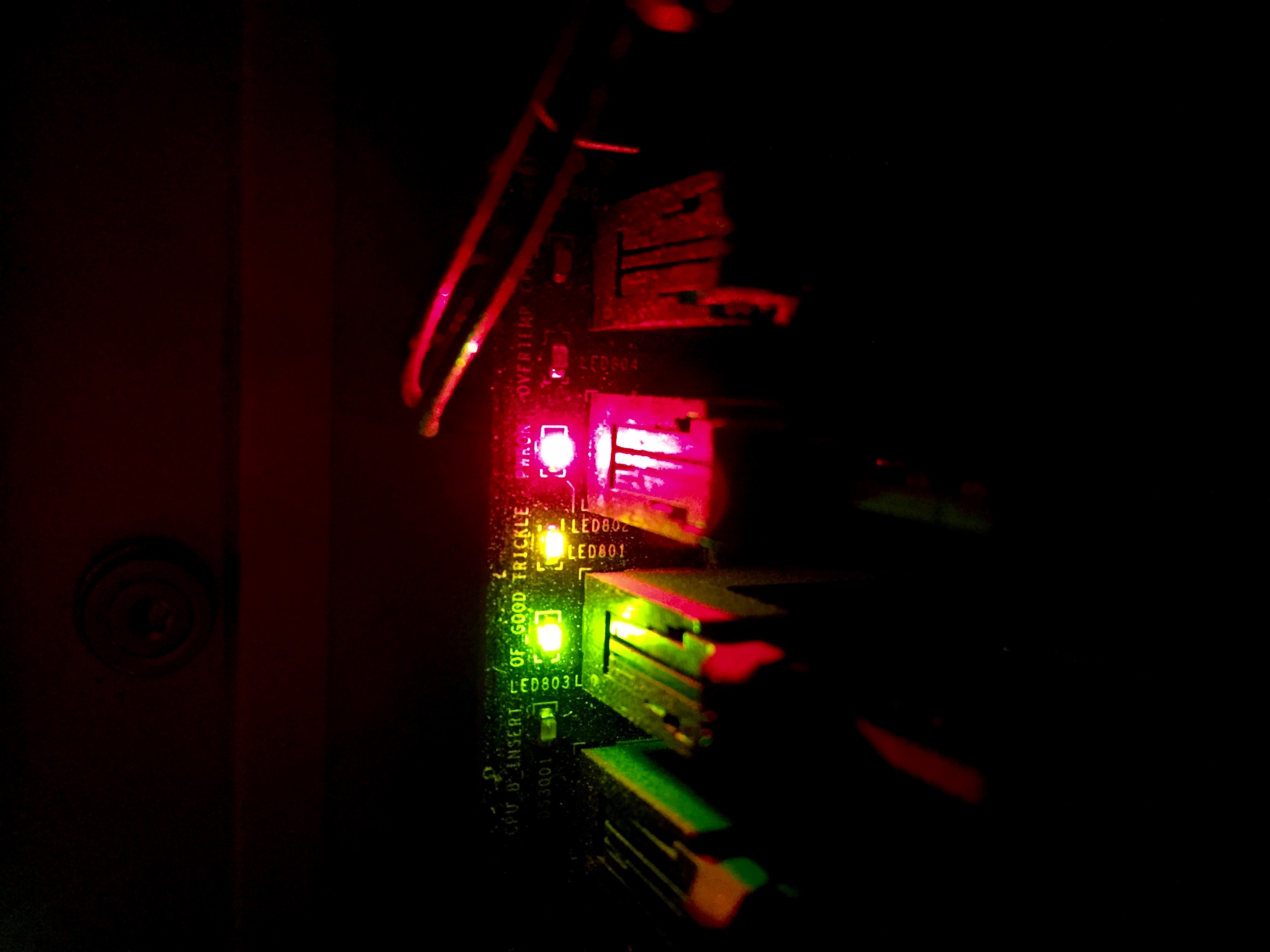

Welp as I was writing that it threw a checkstop, which is odd it didn't throw an overtemp light like every other time the LEDs lit up.
---
Removed all extra ram, sonnet PCIe USB card, unplugged the hard drive. ASD was attempting to boot into the OS side so I made it boot to the OF side like it should.
---

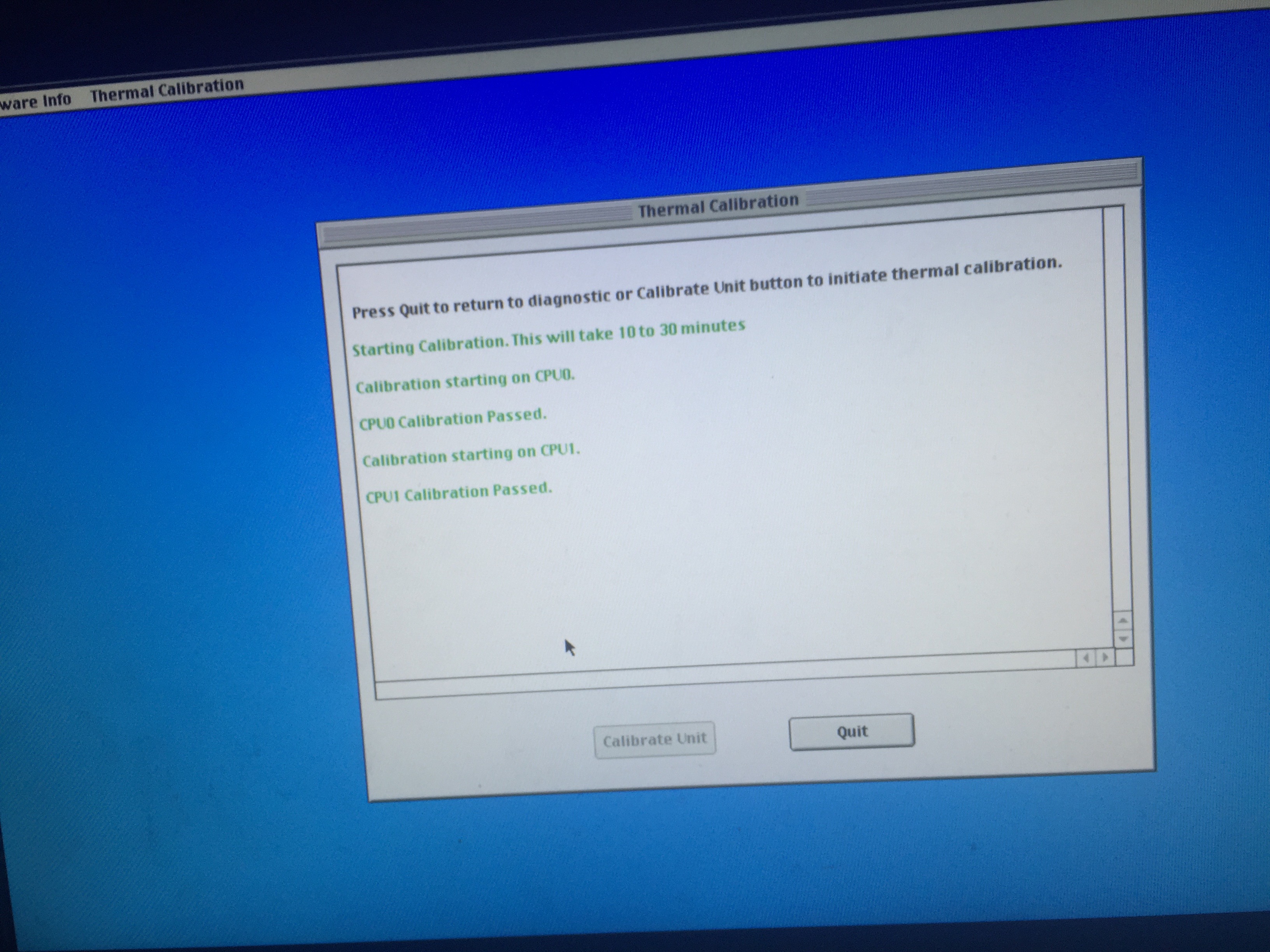

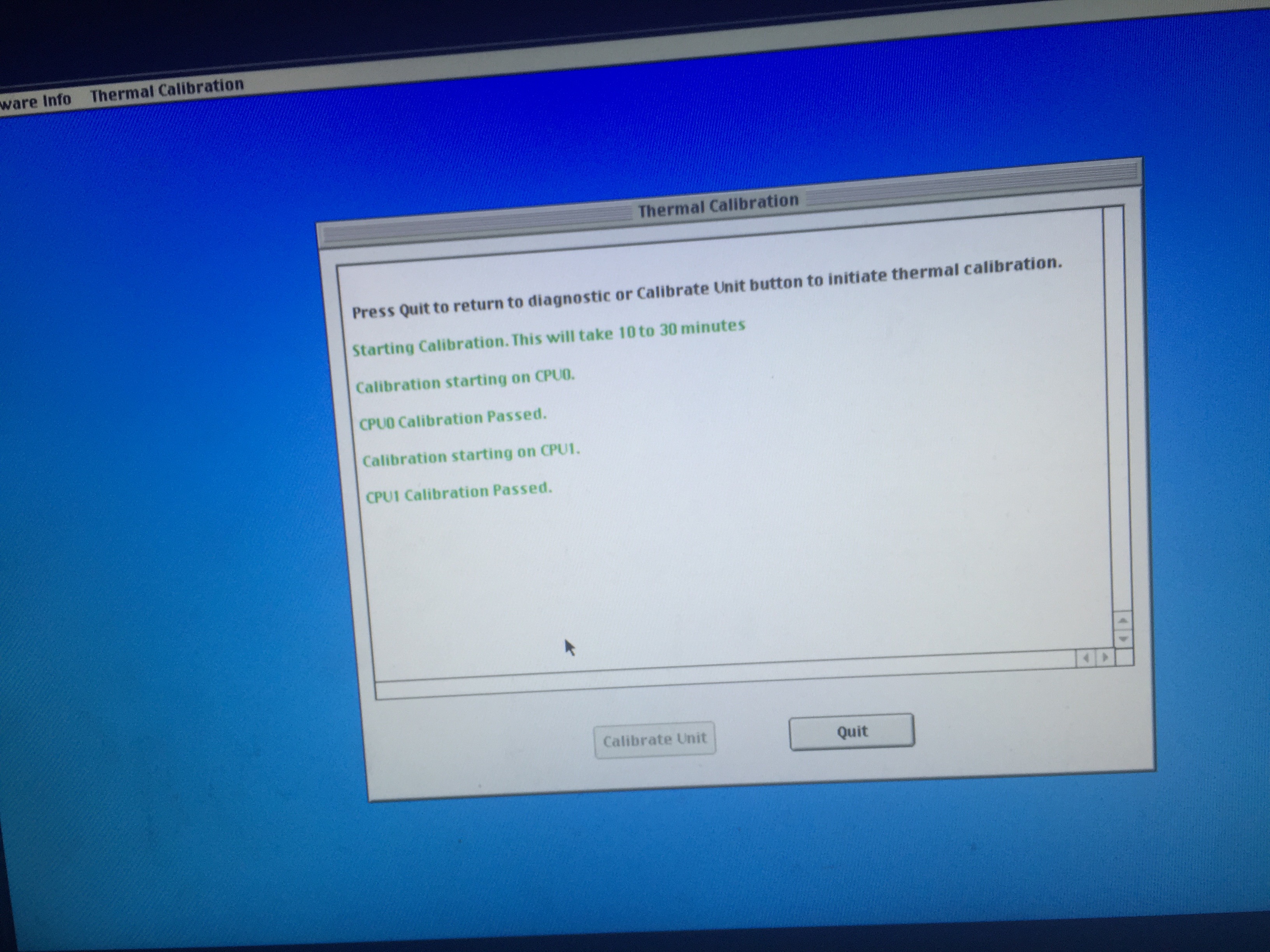

Here we go! Starting thermal calibration...
---
Both passed! Yay! Going to run the standalone tests on everything just to make sure everything else is okay.
It boots and is usable. Booting ASD 2.6.3 as we speak. Temps are much lower, usually ranging from the 40-60*C range on both processors.
---
Welp as I was writing that it threw a checkstop, which is odd it didn't throw an overtemp light like every other time the LEDs lit up.
---
Removed all extra ram, sonnet PCIe USB card, unplugged the hard drive. ASD was attempting to boot into the OS side so I made it boot to the OF side like it should.
---
Here we go! Starting thermal calibration...
---
Both passed! Yay! Going to run the standalone tests on everything just to make sure everything else is okay.
Last edited:
Here is my next update. Running stable for the hour and a half it's been booted into OS X! It's actually quieter than my 2.3GHz which has a super annoying issue where you open any program the fans would rev up. Both of my 2.7GHz G5s did the same. The only ones to not do that were my old 2GHz early 05 and my 2GHz dual core.
And I've thrown a good chunk at this already.
$150 for the G5; $45 for the processors; and $20 for the tubing/hose clamps. "Borrowed" coolant from work lol. I'll have to buy another bottle to replace that.
Thus far: $215. Still have plans to continue building it up, Quadro FX4500; 16GB Ram; and I'm thinking some SSDs to replace the brand-new WD Black 500GB hard drive
---
Now for a second I was ready to kill this thing but stuck with it and made it work. I was super tempted to find a 2.3 board and processor then just use that, but what fun is that when I bought a Quad for one reason, quad cores! So I made things happen. For the past two weeks the damn thing was stressing me out.

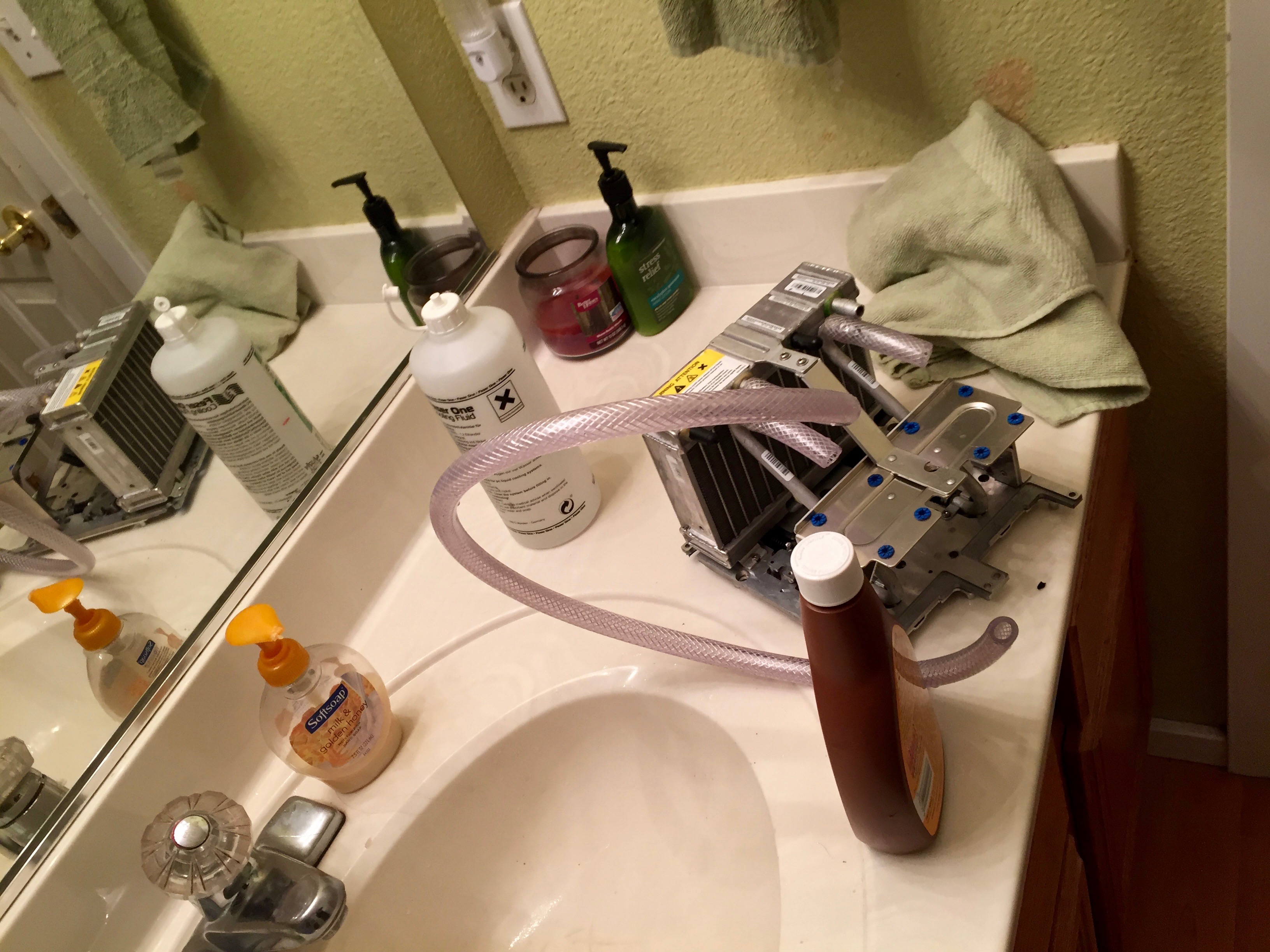

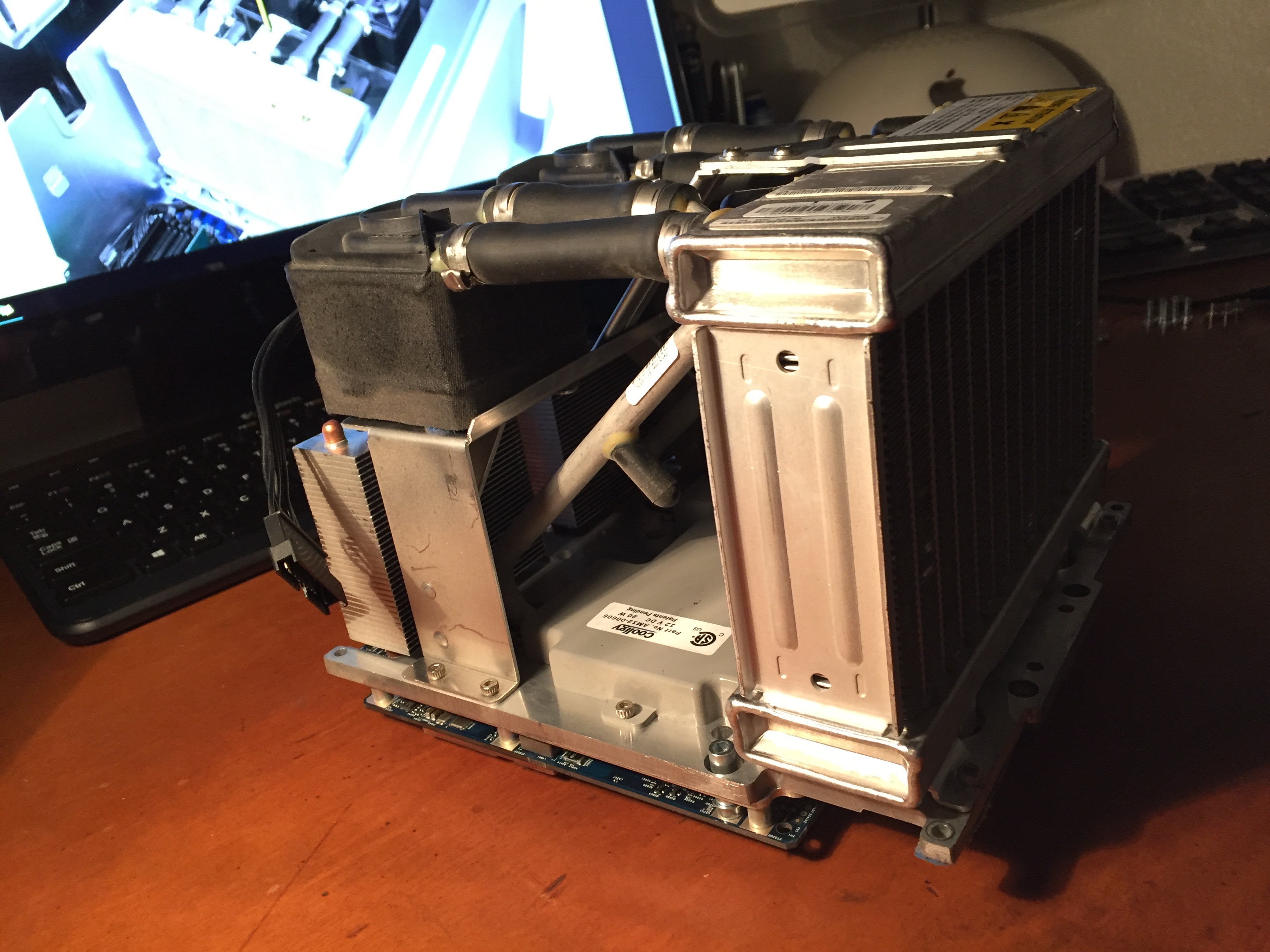

I'll write up a rebuild guide soon to add to the knowledge of other LCS rebuilds, how I bleeded it, materials, stressing, etc. This guide helped me a lot and is the dual pump G5.
So, what next? El Capitan Theme Pack. I was waiting until the Quad was going before I finished, so now I can do just that. I'm going to try selling my 2.3 as I no longer need it, although it would make a nice backup machine. I am currently using my Quad next to my MP2,1 running El Capitan, so it's nice to have both side by side!
And I've thrown a good chunk at this already.
$150 for the G5; $45 for the processors; and $20 for the tubing/hose clamps. "Borrowed" coolant from work lol. I'll have to buy another bottle to replace that.
Thus far: $215. Still have plans to continue building it up, Quadro FX4500; 16GB Ram; and I'm thinking some SSDs to replace the brand-new WD Black 500GB hard drive
---
Now for a second I was ready to kill this thing but stuck with it and made it work. I was super tempted to find a 2.3 board and processor then just use that, but what fun is that when I bought a Quad for one reason, quad cores! So I made things happen. For the past two weeks the damn thing was stressing me out.
I'll write up a rebuild guide soon to add to the knowledge of other LCS rebuilds, how I bleeded it, materials, stressing, etc. This guide helped me a lot and is the dual pump G5.
So, what next? El Capitan Theme Pack. I was waiting until the Quad was going before I finished, so now I can do just that. I'm going to try selling my 2.3 as I no longer need it, although it would make a nice backup machine. I am currently using my Quad next to my MP2,1 running El Capitan, so it's nice to have both side by side!
Last edited:
Im my younger days we used Muriatic acid to clean old auto radiators. Used it right out of the bottle (full strength) to cook out the crud. You can buy it at Lowes / Home Depot and it's reasonably priced. When your done it's easily diluted with water to dispose of it.
Of course you should *always* read all the precautions and follow directions including wearing rubber gloves and eye protection. Otherwise how will you see the coolant flowing through those clear tubes
If I (ever) pick up another LCS G5 I may have to try that stuff! Well I should also try it on the radiator on my truck since it needs to be flushed and have yet to do it lol.
And yes! I live the way I want to, not how they tell me to

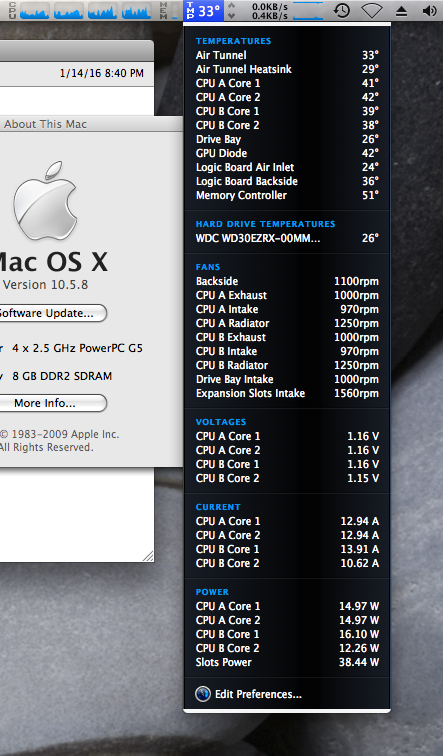

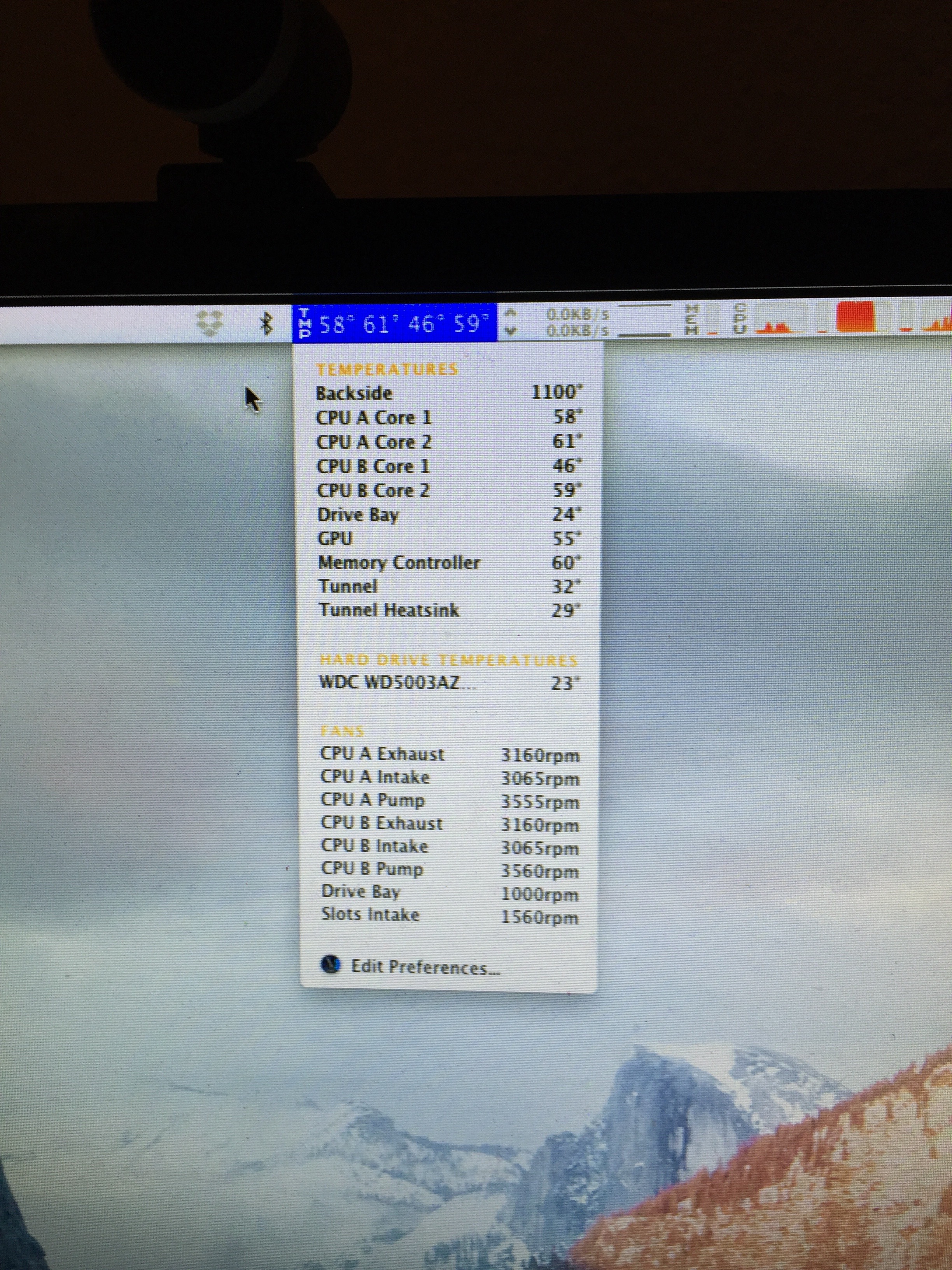

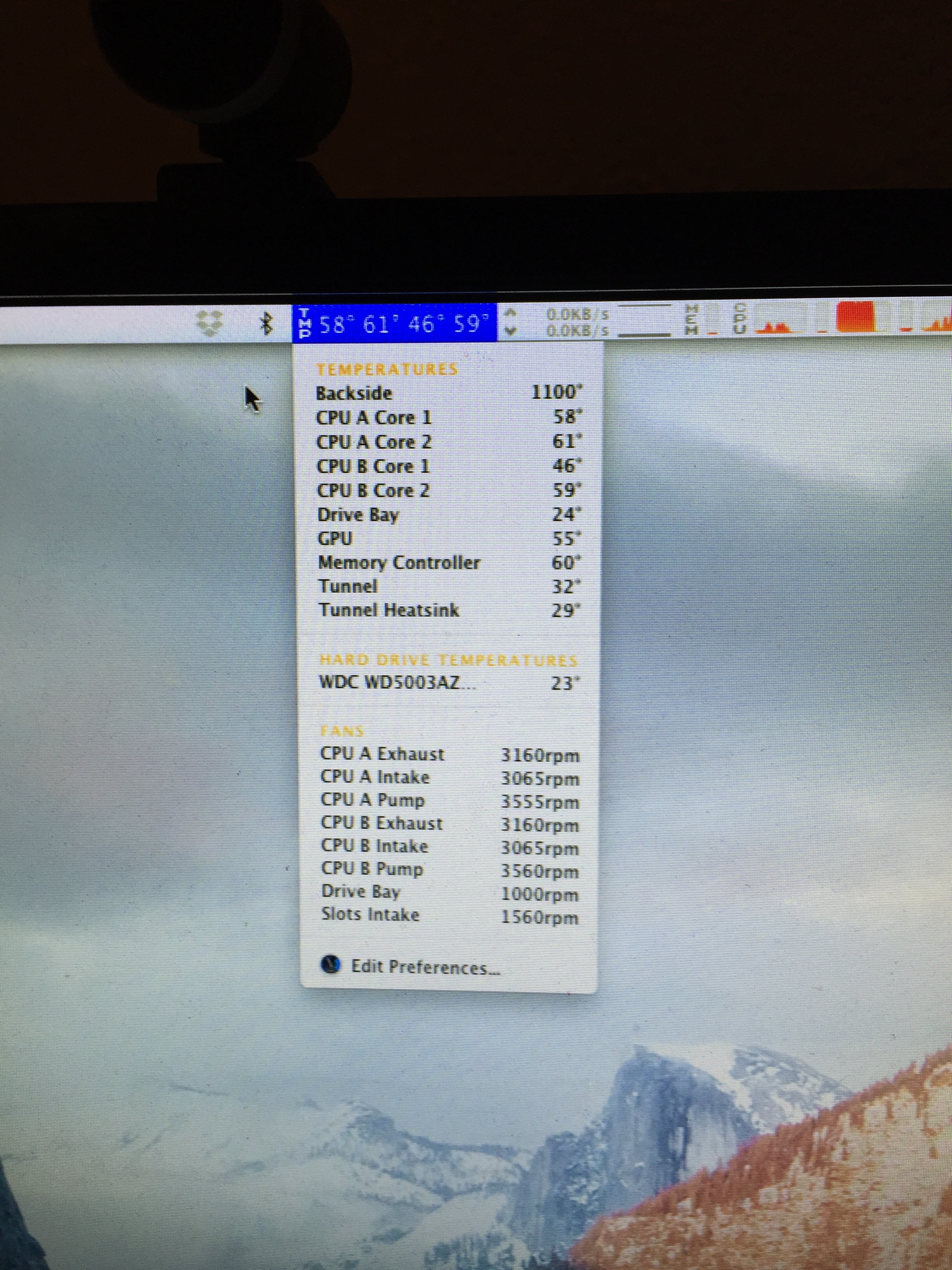

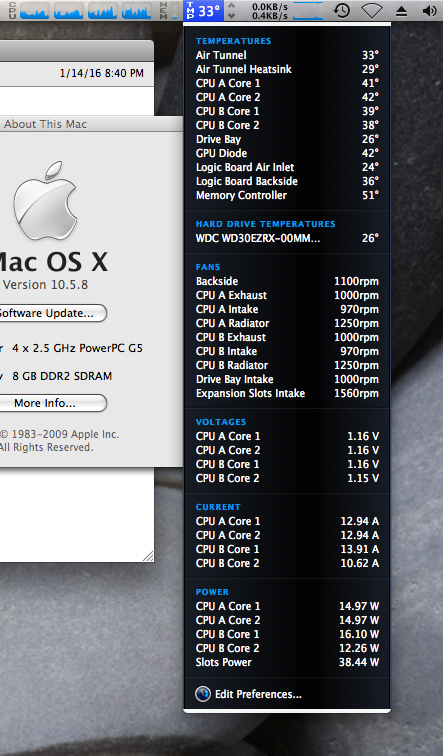

That was at idle. My MP runs about 30-35 when at idle too so the G5 is definitely pushing out more heat. I checked the coolant levels and the bottom one is perfect, top one has a teeny tiny air bubble at the top of the inlet tube for the fan.
Looking back it really wasn't too bad. Just take your time and don't rush it! Took me damn near two weeks.
The thing is, I'm the one with the prototype Quad, I don't know if leaving it original, or functioning better is the correct choice
Prototype Quad? You just perked my ears, elaborate!?
EDIT: just checked out a video you made on your website from your signature. Pretty neat computer!
Last edited:
I as well checked out your video after you said it was a prototype. Interesting where they said 2.5GHz QC instead of QUAD. Also noted the single pump LCS. I wonder when they went to the dual pump, mine was made in Dec. 2005
Fascinating sir, my dual pump is also a December '05 baby. Interesting if you think about both of our rmachines and the identical issue
Thanks for checking it out!! I bought it off of eBay for $90 back in June, and was elated to find that it was in fact a prototype! It was made in August of 05, as indicated by the serial number, so the swap to dual pumps happened probably close to December of 05. The Quads came out in October so it's interesting to see what had changed. I personally think that it was given to a software company to develop applications for the quad core processor. It came from Texas, anyone know of software companies that are based on Texas??
[doublepost=1456522652][/doublepost]Another thing, the orange tape that is usually on the LCS was missing. The screws on the bottom of the computer did seem off centered too. I think that I could have been a possibility that this computer was used in Apple's service manual take apart instructions
[doublepost=1456522652][/doublepost]Another thing, the orange tape that is usually on the LCS was missing. The screws on the bottom of the computer did seem off centered too. I think that I could have been a possibility that this computer was used in Apple's service manual take apart instructions
Interesting that in about 4 months time they appear to have switched to the dual pump method. I would love to get the inside scoop on all of that.
Dell is headquartered in Texas
hahaDell is headquartered in Texas
That explains a lot! Well from Dell attempting to copy Apple at least
Fascinating sir, my dual pump is also a December '05 baby. Interesting if you think about both of our rmachines and the identical issue

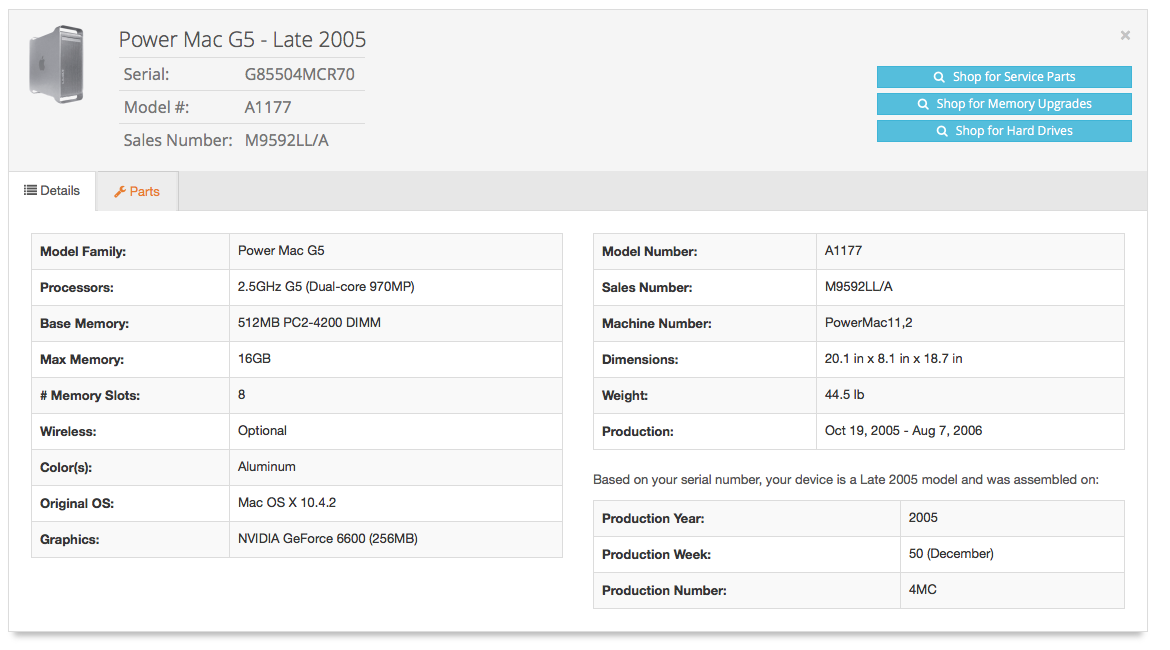

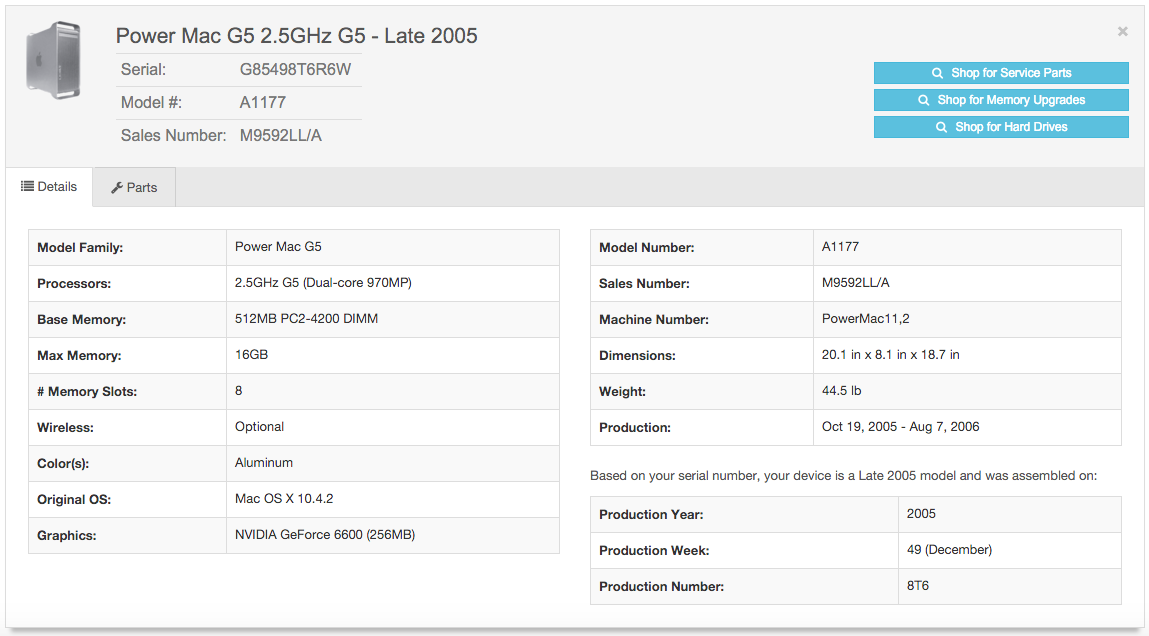

Here are the details on mine, I wonder how far off yours is
Certainly interesting. Too bad the service guides don't have a closeup pic of the serial number

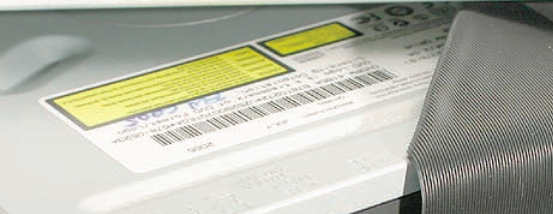

I wish to own a prototype of something at some point!Does it happen to say this on top of the optical drive? @MacCubed

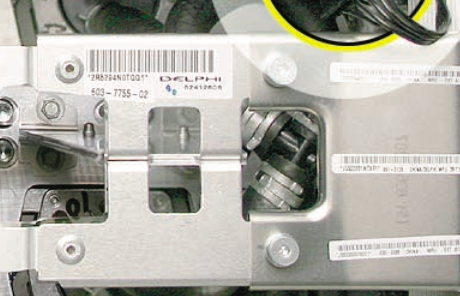

Then saw this on the LCS
Last edited:

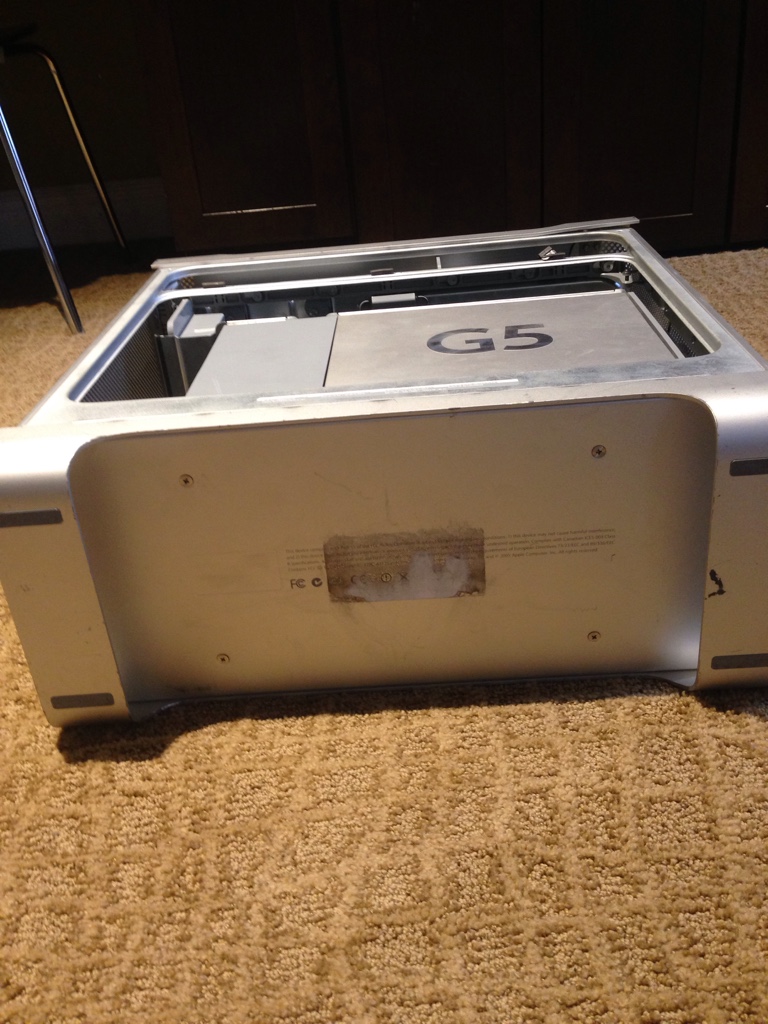

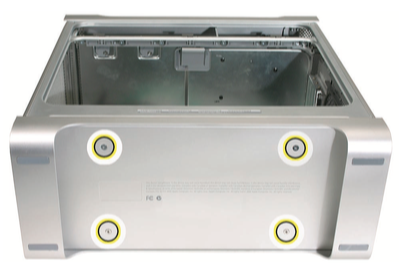

One thing I did notice, mine is missing the model number/emc sticker just like the one in the service manual
What site did you use to look that up?

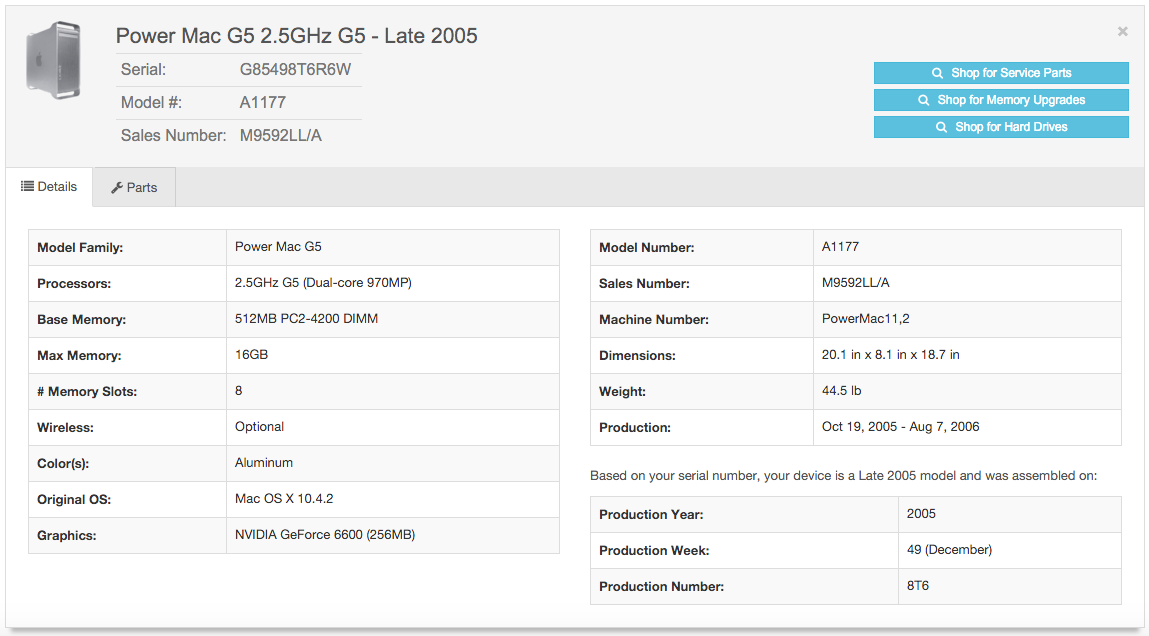

Here are the details on mine, I wonder how far off yours is
View attachment 618584
Certainly interesting. Too bad the service guides don't have a closeup pic of the serial number

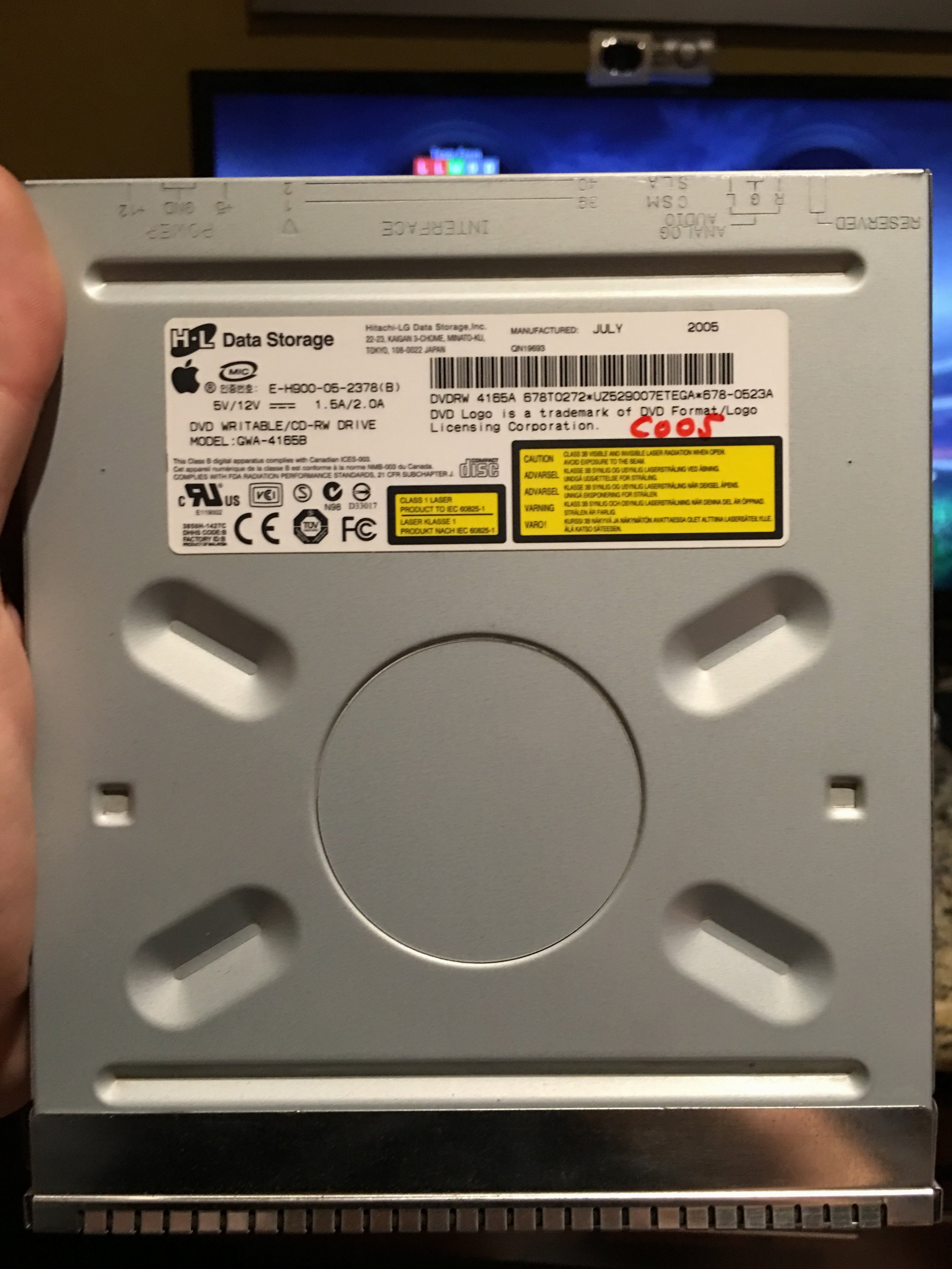

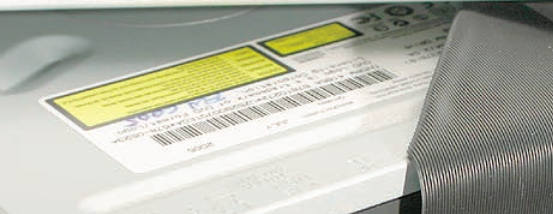

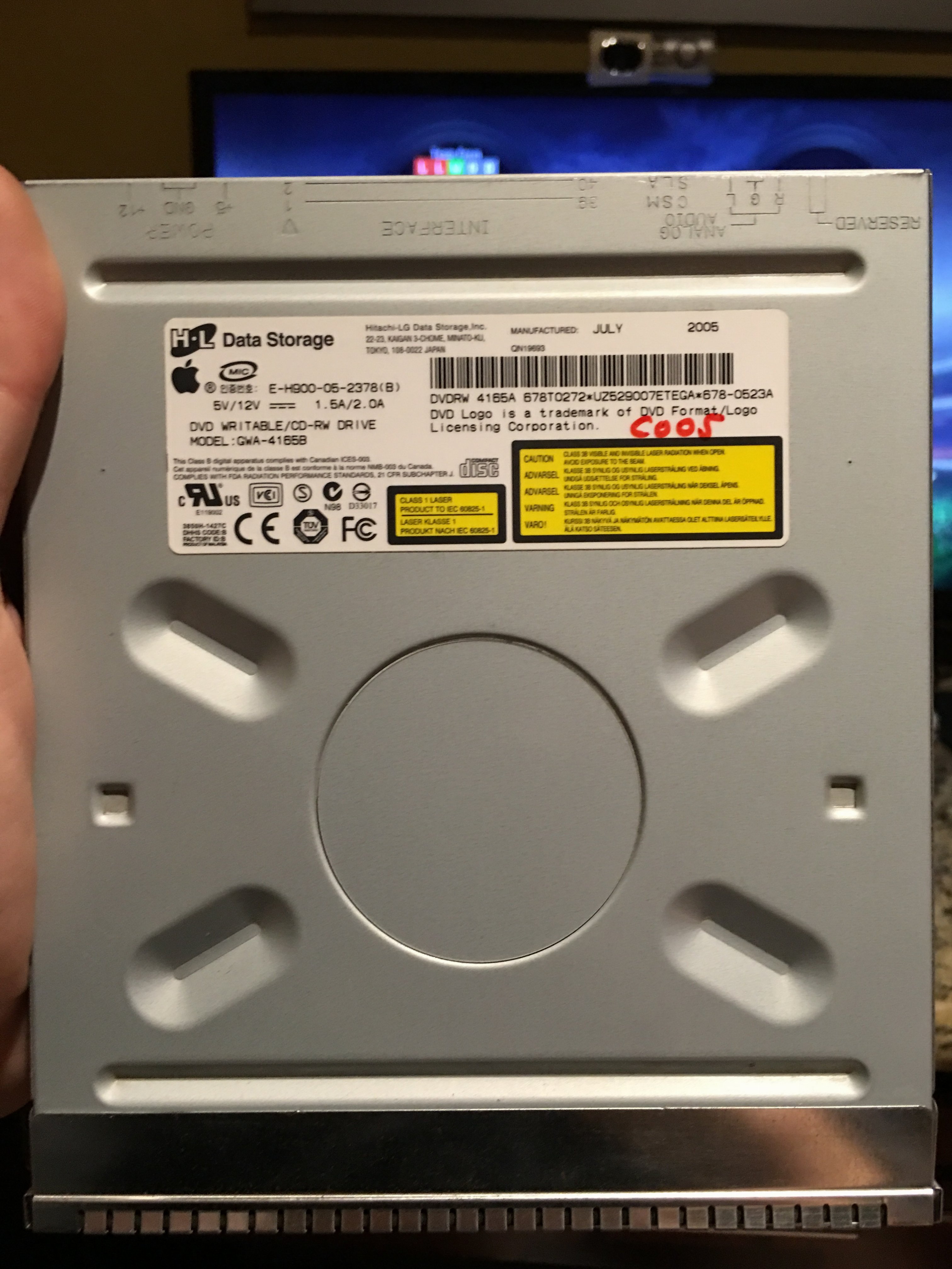

Does it happen to say this on top of the optical drive? @MacCubed
View attachment 618585

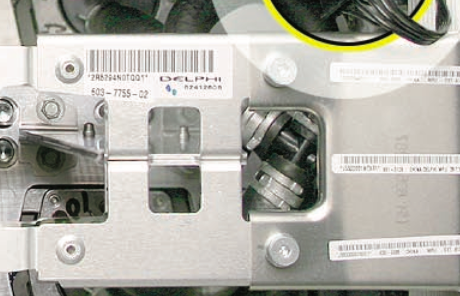

Then saw this on the LCS
View attachment 618586
Looks like they're cousins. Only one week apart.
