Hi,

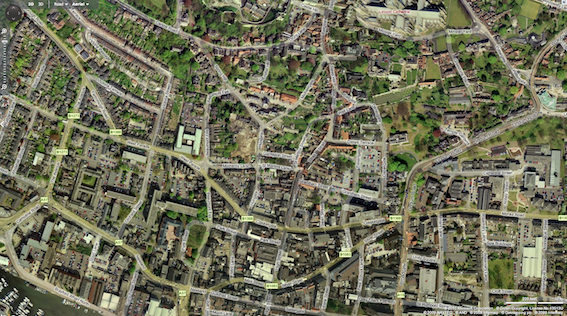

On google Maps ( or bing ) there is a scale bar at the bottom right corner that states the current zoom in feet and metres. How can I work out what it is to a actual scale?

For example 1:100, 1:500, 1:1000, 1:2000... I'm studying Architecture and we need to say what scale the Map is not but no use a scale bar.

Thank You !

Nathan


Attachments

  • Screen shot 2010-03-12 at 16.31.10.png
    Screen shot 2010-03-12 at 16.31.10.png
    8.4 KB · Views: 37,720

mkrishnan

Moderator emeritus
Jan 9, 2004
29,776
12
Grand Rapids, MI, USA
I'm not sure if you're looking for the Captain Obvious answer here, but...

When you take the map, scale it to whatever size you want it, and put it into whatever format you want it to be shown (i.e., lay it out on a printed page, or figure out how big it will be on the screen on which the map will be viewed), then you just measure the size of the scale bar and divide.

For instance, if the scale bar is 2cm long, and it represents 1000m, then the scale is 1:50,000 (because there are 100,000 cm in 1000m).

The problem with this, of course, is that if you make a powerpoint presentation (for instance), then the scale is different on your computer screen than it is on the projection screen, by a fairly large amount.

Comment

NStocks

macrumors 68000
Original poster
Apr 3, 2008
1,543
16
England
I'm not sure if you're looking for the Captain Obvious answer here, but...

When you take the map, scale it to whatever size you want it, and put it into whatever format you want it to be shown (i.e., lay it out on a printed page, or figure out how big it will be on the screen on which the map will be viewed), then you just measure the size of the scale bar and divide.

For instance, if the scale bar is 2cm long, and it represents 1000m, then the scale is 1:50,000 (because there are 100,000 cm in 1000m).

The problem with this, of course, is that if you make a powerpoint presentation (for instance), then the scale is different on your computer screen than it is on the projection screen, by a fairly large amount.

I see. In your example would the scale really be 1:50,000 ? I just printed my page and the bar is 25 Metres and is measures at 2cm. What would this be ? ( just to check my answer please )

Thank You

EDIT: My map is shows at 1:1250 which corresponds to a book I have which lists typical scale ratio's. 25(m)/2(cm) = 12.5 x 10 = 1250.

From the reference book :

1:100 - Building plans/layouts
1:500 - Site Plans/building Layouts
1:1000 - Urban scale for site location plans
1:1250 - Site Plans
1:2500 - City Plans.

At least I think this is correct...

Comment

mkrishnan

Moderator emeritus
Jan 9, 2004
29,776
12
Grand Rapids, MI, USA
I see. In your example would the scale really be 1:50,000 ? I just printed my page and the bar is 25 Metres and is measures at 2cm. What would this be ? ( just to check my answer please )

Thank You

25m = 25*100 cm = 2500 cm, so it would be 1:1250, unless I'm really suffering from sleep deprivation (which is possible!). :)

EDIT: Right... if you think about it that way, 25m is, what, close to the width of a typical North American house (or bigger)? And it's being squeezed into a size that's a little wider than your fingertip. So it'd work for site plans, but not for building plans.

Again, though, remember, if you print it out, you want to measure it on paper (or in software that accurately displays the printed page), because it might be different.

Comment

arkitect

macrumors 603
Sep 5, 2005
5,961
5,834
Bath, United Kingdom
25m = 25*100 cm = 2500 cm, so it would be 1:1250, unless I'm really suffering from sleep deprivation (which is possible!). :)
I would say you are correct. ;)

Kids these days, eh?
Calculators and computers and still not a clue about the basics…
In my day as a student we only had slide rules.

OP, just joking. ;) (kind of)

Comment

NStocks

macrumors 68000
Original poster
Apr 3, 2008
1,543
16
England
Well I'm just going by what the book states:

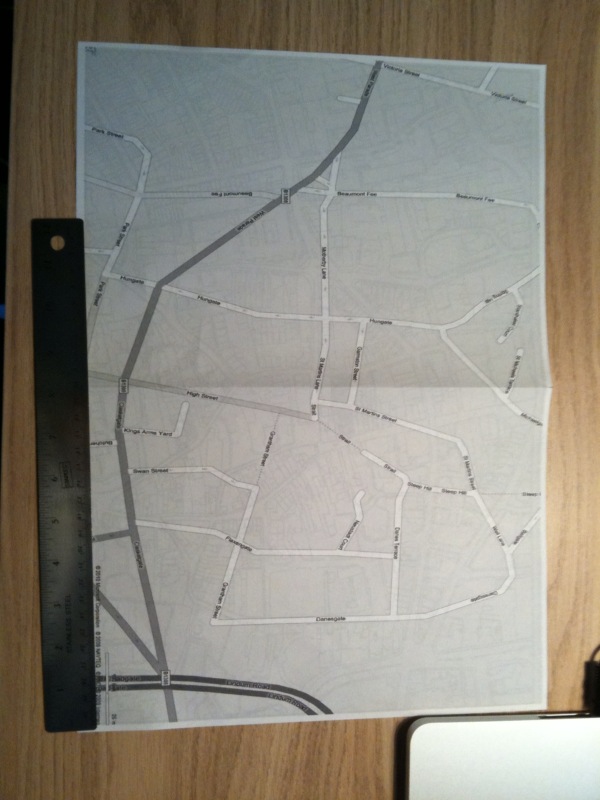

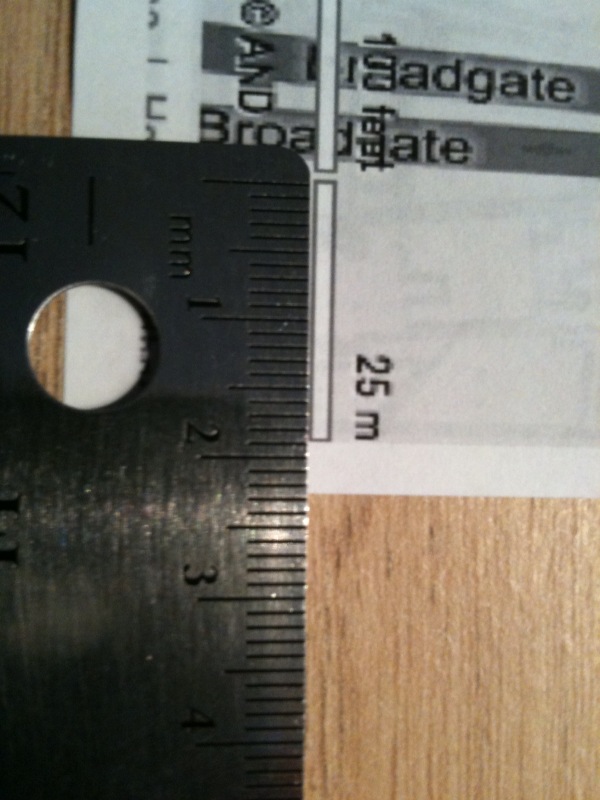

Attached are two images, one with the ruler and scale bar, the other with the map printer on A3 paper with a 30cm ruler next to it. And the screenshot I've used ( but as a Ariel map so you can see houses etc. )
