Got my my first Mac-pro 4.1!

Discussion in 'Mac Pro' started by DeezelP, Feb 4, 2015.

  1. DeezelP macrumors member

    Joined:
    May 26, 2014
    #1
    hi guys

    I bought an early Mac Pro 4.1 , 2.66 ghz, quad core with an 27 inch Apple cinema screen for a really good price ....what to do now..?

    It came with a fresh install of Mavericks which seems to work quite well, however the two things I have noticed is that the boot startup is quite slow and the screen keeps flashing on and off...

    I do have the original disc for Mavericks but it is scratched to hell and I'm not sure it will work. If I download Yosemite , will it be able to run ok on my specs?

    I would like to install it on a new ssd drive rather than the hd I have at the moment, is this possible to do? Any advice on these topics would be great

  2. flowrider macrumors 601

    flowrider

    Joined:
    Nov 23, 2012
    #2
  3. DeezelP thread starter macrumors member

    Joined:
    May 26, 2014
    #3

    Thanks for the advice Lou

    Looking at those suggested threads though they are not really specific for what I asking. In addition, if new threads are not created , there really is no forum.

    So, can anyone advise a solution as to why my screen might flashing in and off? Also, is Mavericks better than Yosemite on my machine? If not is it possible to just move the whole hdd to the new ssd?

  4. dmylrea macrumors 68000

    dmylrea

    Joined:
    Sep 27, 2005
    #4
    You don't mention how much memory your Mac has, but yes, Yosemite runs on a 2009 Mac Pro 4,1. There are many discussions here that relate that.

    Also, yes, you can install an SSD. There are many different options, which is what Flowrider was referencing. The thing is, your questions are not very specific to begin with. They are "yes/no" questions. Are you asking for step-by-step instructions on how to do it or ???

    As far as the screen flashing, have you performed all the updates (software and firmware) on the old 4,1 Mac Pro?

  5. ilikewhey macrumors 6502

    Joined:
    May 14, 2014
    #5
    yes its possible, make a yosemite boot drive on a usb, stick a ssd in there, and go about it.

  6. DeezelP thread starter macrumors member

    Joined:
    May 26, 2014
    #6
    Thanks for your reply

    Basically I bought it second hand. All that was done was afresh install of Mavericks. No additional updates were done. I haven't updated anything because I'm a bit nervous to. I currently don't have an ssd and my ram is 8gb

    Regarding firmware updates, is that possible to do without downloading the whole OS X platform ? I guess my main concern at this point is to stop my display from flashing

  7. Natzoo macrumors 65816

    Natzoo

    Joined:
    Sep 16, 2014
    Location:
    Not sure where i am
    #7
    Upgrade the ram, even though you may not need it. And also upgrade to an SSD, and should be really fast

  8. dmylrea macrumors 68000

    dmylrea

    Joined:
    Sep 27, 2005
    #8
    What kind/color is the connector on the end of the video cable?

  9. NorCalLights macrumors 6502a

    Joined:
    Apr 24, 2006
    #9
    I would make a fusion drive with an SSD + the HDD you already have.

    In fact... that's exactly what I did in my Mac Pro :)

  10. dmylrea macrumors 68000

    dmylrea

    Joined:
    Sep 27, 2005
    #10
    If the bootup is so slow, the drive could be very old and very slow and should be replaced with something of known reliability. SSD's and HDD's are very cheap and if the OP got such a great deal, a few hundred dollar investment is worth it.

  11. DeezelP thread starter macrumors member

    Joined:
    May 26, 2014
    #11
    Thanks for your reply.

    The display connects with a white hdmi and a whole power seperate power unit .with a connection that looks a lot like a small USB , not thunderbolt though.

    http://images.highspeedbackbone.net/itemdetails/T87-723001/T87-723001-out02-am.jpg

    These are the connections but like I say there is also a seperate power supply for one of the connectors to plug into.

    Regarding how I've plugged it in, all that is connected is the hdmi and this one other connection, leaving two of them unplugged...is this correct?

  12. dmylrea macrumors 68000

    dmylrea

    Joined:
    Sep 27, 2005
    #12
    I have to admit I'm no Cinema Display expert. But, the cable image looks to have a mini-displayport (the smallest one that isn't USB). Mini-displayport and Thunderbolt look the same. Does the video card in the Mac Pro have the mini-displayport jack?

  13. Macsonic macrumors 65816

    Macsonic

    Joined:
    Sep 6, 2009
    Location:
    Earth
    #13

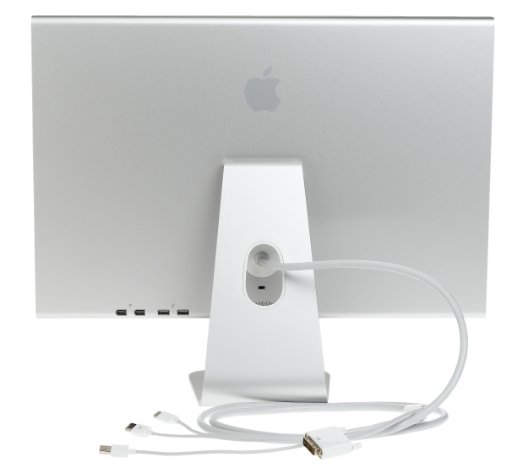

    Looking at your attached image on the Apple display cables, it looks like you have a 30" aluminum Apple Display, the older model released in 2005. As reading thru your description, it has a separate power supply, which could be the white block design though I could be mistaken.

    [​IMG]

    For the flickering problem mentioned from your first post, it could be a problem with either the power supply, or the video card or cables loosely connected.

  14. DeezelP thread starter macrumors member

    Joined:
    May 26, 2014
    #14
    Thanks guys

    Yes it does, but I'll have to set it up again to see exactly how I plug it in.

    If the connections are fitted ok etc, is there a test I can run to see what is causing the problem?

  15. rosario1990 macrumors regular

    Joined:
    Feb 1, 2015
    Location:
    Dhaka, Bangladesh
    #15
    Greetings for buying the Mac-pro 4.1. Enjoy your new device.

  16. MacVidCards Suspended

    Joined:
    Nov 17, 2008
    Location:
    Hollywood, CA
    #16
    Yes, to that list you might consider failing backlight on LCD or bad GPU

  17. scottsjack macrumors 68000

    Joined:
    Aug 25, 2010
    Location:
    Arizona
    #17
    Welcome aboard. I had a new 2010 3.2 quad, very similar to yours. I sold it, realized how stupid that was, and bought a used 2012 3.2 quad. While both machines had RAM upgraded to 24GB the thing that made the biggest difference was adding an SSD.

    The 960GB Crucial M500 SSD that I bought is now the previous generation but still available at B&H for a little over 400. Making the Mac boot disk an SSD made the biggest difference of anything I have done. In fact that SSD went into the 2010 MP, then on to a 2012 mini 2.3 quad, then to 2012 mini 2.6 quad then into my new-used 2012 MP. Both the SSD and I are tired!

    Just plugging the SSD into the available Lower Bay connector made each Mac Pro feel like a new machine. Putting the SSD on an Apricorn Velocity Duo x2 PCIe card made an even bigger difference. Even a 500GB SSD can now be had for not too much money. The Apricorn card is about $150.

  18. todesto macrumors member

    todesto

    Joined:
    Jan 5, 2015
    Location:
    Fullerton, CA
    #18

    Can you make fusion drive with SSD on Apricorn Velocity PCIe card and HDD on SATA port?

  19. ToroidalZeus macrumors 68020

    ToroidalZeus

    Joined:
    Dec 8, 2009
    #19
    don't bother with a fusion drive; its marketing more than performance.

  20. prowlmedia macrumors 68000

    Joined:
    Jan 26, 2010
    Location:
    London
    #20
    You possibly could... but I wouldn't. A fusion drive ( as in Apples version ) is a standard spinning disk with a SSD working in unison so A fusion drive is actually 2 serperate parts - a spinning Disk + an SSD

    It is a transparent mirroring of certain information to again the best speeds possible. This is done within OSX

    It is not directly a hybrid drive or cache drive.

    You can make your own but you have to remember if one fails you all data.
    http://blog.macsales.com/15617-creating-your-own-fusion-drive


    SSD then Ram will make all the difference - The PCIE options are great if you need the speed. You don't mention what you need the mac pro for?

    Video Card / Flashing
    Could be a Graphics card issue - remove and reseat it? What one is it? Get a new / better one from http://www.macvidcards.com/index.html

    Hard drive
    I have 2 x 500gb SSD in 3.5" docks in 2 slots and 2 x 4TB drives in the others.

    1: I have OSX / Applications and home folders on 1 and use the
    2: Current WORK drive. When I have finished a project I off load onto
    3: Archived work
    4: Dump drive - testing etc.

    All of this is backed up via time machine to a big synology NAS.

    A couple of the SSD on Apricorn Velocity PCIe card would give you even more space. But do you need much space?! You can even stick SSDs on the Optical drive channel - OWC do a kit.

    Yosemite - Yes no problem. I have it on a mac 2,1 2008 and works great.

    Ram - As much as you can afford - Crucial or OWC - make sure you follow the instructions when you insert them. All versions of the mac pro have different setups - some need matched pairs etc - http://support.apple.com/en-gb/HT4433 - mine is tricky as it's got 2 separate memory riser cards and you need to be really careful what slots they are in.

    Oh and above all Keep it clean inside... there are a lot of fans and they will suck in any dust. the amount of machines I've seen with crazy dust bunnies and gunk...

  21. Macsonic macrumors 65816

    Macsonic

    Joined:
    Sep 6, 2009
    Location:
    Earth
    #21
    You're most likely correct. A Mac technician once told me that with Fushion drive, you risk losing all the data when one drive fails.


    Yep. As far as I know, more dusts brings in more heat to the computer's interior. Sometimes when dust accumulates in the ram area, may also cause some rams not to be detected.

  22. DeezelP, Feb 5, 2015
    Last edited: Feb 5, 2015

    DeezelP thread starter macrumors member

    Joined:
    May 26, 2014
    #22

    Thanks guys this is great advice from all of you

    I've just checked the display and it all it says is 'Apple Cinema HD Display '. It has4 ports on the back aswell , two USB and two others that are the same connection used to link it to its power device/box

    Also there is a CD-ROM drive, I can see it but I can't figure out how to open it in Mavericks , is it possible Its installed correctly?

    In the meantime, is this the correct page to install firmware updates. Do I just choose the one applicable to me? Bit anxious about doing this...

  23. flowrider macrumors 601

    flowrider

    Joined:
    Nov 23, 2012
    #23
    ^^^^You open the Optical Drive by pressing the eject button on an Apple Keyboard (upward facing arrow, on the right of F12) or the F12 button on a non-Apple keyboard.

    Lou

  24. todesto macrumors member

    todesto

    Joined:
    Jan 5, 2015
    Location:
    Fullerton, CA
    #24
    The reason why I ask is I have only 250GB SSD and I'd like to use SATA III and fuse it with my 2TB HDD which I am doing right now (using default SATA port)

  25. ToroidalZeus macrumors 68020

    ToroidalZeus

    Joined:
    Dec 8, 2009
    #25
    again. fusion drive is more marketing than performance.

    You are better off leaving the OS and any important files on the SSD and using the HDD for extra storage.
