Got New Apple TV but older HDMI AV Receiver

GreenApple29

GreenApple29

macrumors regular
Original poster
Jun 8, 2008
204
4
Hello there
I just received my new Apple Tv and just finished setting it up
my only problem which actually is a big one is this:

The new apple tv (4) doesn't have an optical out like the previous model
my av receiver which is almost 10 years (a sony av receiver) has an HDMI 1.1 version which mean sounds doesn't get through the HDMI that is why i was using an optical out one previous apple tv

i know ideally would be to have a new receiver but is there a less expensive option?
i have tried connecting the audio through airplay to my previous apple tv3 but i can only listen to sounds of the older apple tv and not from the new one

any ideas/suggestions?

many thanks!

Audio has always been part of the HDMI spec, back to original 1.0.

Is your Sony broken?

GreenApple29 said:
any ideas/suggestions?
Click to expand...
There's always Google or Amazon searches -- have you tried that?


Menel said:
Audio has always been part of the HDMI spec, back to original 1.0.

Is your Sony broken?
Click to expand...
Some of the early receivers with HDMI could only pass through, but not decode the audio signal. In order to get sound out of the receiver in this case, you need to additionally connect the playback device via S/PDIF or analog audio.

OP: If your TV has an optical or analog audio *out* port, you can "loop back" the audio from the TV to the receiver:

1) Connect the TV to the receiver's HDMI OUT port
2) Connect the Apple TV to one of the HDMI IN ports
3) Connect the TV's audio OUT to the audio IN port on the receiver that corresponds to the HDMI port you used in step 2

Otherwise you need an audio extractor as mentioned above.

[/QUOTE]
Rigby said:
Some of the early receivers with HDMI could only pass through, but not decode the audio signal. In order to get sound out of the receiver in this case, you need to additionally connect the playback device via S/PDIF or analog audio.

OP: If your TV has an optical or analog audio *out* port, you can "loop back" the audio from the TV to the receiver:

1) Connect the TV to the receiver's HDMI OUT port
2) Connect the Apple TV to one of the HDMI IN ports
3) Connect the TV's audio OUT to the audio IN port on the receiver that corresponds to the HDMI port you used in step 2

Otherwise you need an audio extractor as mentioned above.
Click to expand...

thank you for the message
i actually have a video projector on the other side of the room which connects to that receiver via HDMI, so not sure cable wise how this will work :(

The good news is the Apple TV is expensive enough that the price of a new receiver won't seem so bad. :D

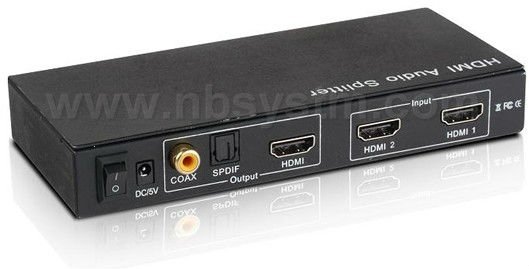

By the sounds of it your only option will be a hdmi audio extractor. I just got one myself a couple of days ago to use with my atv4 and works perfectly.

Amazon

mcdj said:
The good news is the Apple TV is expensive enough that the price of a new receiver won't seem so bad. :D
Click to expand...
a new av receiver is definitely on my mind it is just that i will have to actually decide on my best option for one
in the meantime i think i will get an HDMI audio extractor

GreenApple29 said:
a new av receiver is definitely on my mind it is just that i will have to actually decide on my best option for one
in the meantime i think i will get an HDMI audio extractor
Click to expand...
As someone who has wasted tons of cash on home theater band aids, I would recommend bypassing the band aid, which is what the audio extractor is. Another link in the chain. Another place for something to go wrong. Another source of signal noise.

My system really started to shine when I stopped buying dongles and adapters and switches, and plugged that money into the most future proof components I could afford.

  • Like
Reactions: phrehdd
mcdj said:
As someone who has wasted tons of cash on home theater band aids, I would recommend bypassing the band aid, which is what the audio extractor is. Another link in the chain. Another place for something to go wrong. Another source of signal noise.

My system really started to shine when I stopped buying dongles and adapters and switches, and plugged that money into the most future proof components I could afford.
Click to expand...
Thanks for the advice
see which model of av receiver i have posted that i use at the moment
it came with 6.1 speakers
do you have any recommendations on replacing that with a new one?
many thanks for your advice!

GreenApple29 said:
Thanks for the advice
see which model of av receiver i have posted that i use at the moment
it came with 6.1 speakers
do you have any recommendations on replacing that with a new one?
many thanks for your advice!
Click to expand...

Any mid-priced Yamaha, Pioneer, Onkyo, Harman Kardon, etc with plenty of HDMI inputs should work great.

Does your TV have optical? Could you connect your receiver to your TV via optical, and Apple TV to your TV via HDMI? My receiver is older and doesn't carry audio over HDMI either so this is what I've done. It does mean I no longer get 5.1 however.

GreenApple29 said:
Hello there
I just received my new Apple Tv and just finished setting it up
my only problem which actually is a big one is this:

The new apple tv (4) doesn't have an optical out like the previous model
my av receiver which is almost 10 years (a sony av receiver) has an HDMI 1.1 version which mean sounds doesn't get through the HDMI that is why i was using an optical out one previous apple tv

i know ideally would be to have a new receiver but is there a less expensive option?
i have tried connecting the audio through airplay to my previous apple tv3 but i can only listen to sounds of the older apple tv and not from the new one

any ideas/suggestions?

many thanks!
Click to expand...

What kind of HDMI's does the set have? You should be able to run an optical cable from the set to the receiver.
