Simple instructions here: https://forums.macrumors.com/thread...for-kernel-panic-of-macbook-pro-2010.2044304/
I figured I'd toss this here for people that want a convenient link for the cap. https://mailin.repair/d3-c7771-c9560-1-piece.html
Hi, UK-based 2010 MacBook Pro rebooting-due-to-to-GPU-kernel-panic long-time sufferer here...
It is a good capacitor. Correction: 2 negative lines.Hey bro, I got this one from UK ebay
Cap ebay
fabioroberto, one of the most important guys in this thread, who found the software fix, told me this is one of the good ones for the job. Plus, it has 2 positive lines, so it’s possible to use one of the lines without scraping the board, which I prefer. Haven’t installed mine yet, time, skills issues LOL.
Go for it, man.
Well, this is only possible if you use an hot air station to solder the capacitor.it has 2 negative lines, so it’s possible to use one of the lines without scraping the board, which I prefer.
Well, this is only possible if you use an hot air station to solder the capacitor.
If you use a soldering iron, you'll be unable to solder the central pad properly.
So you will have to scrape the board to solder the negative pad at the tip of the capacitor.
And if you use a soldering iron, I recommend to scrape also the positive pad of the motherboard by a few millimeters, it does help to solder the positive pole of the capacitor properly.

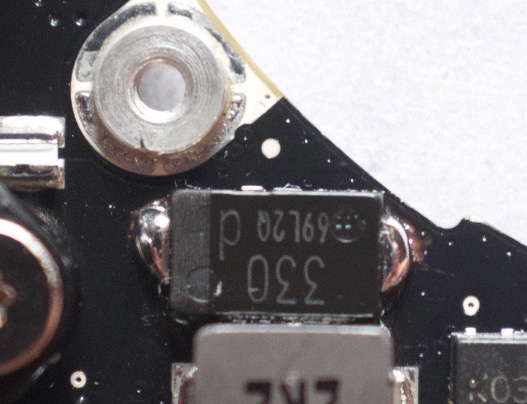

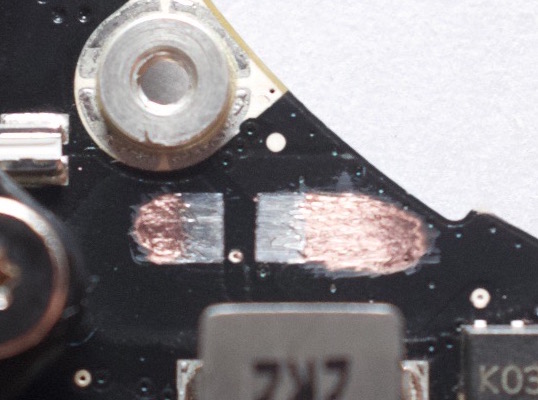

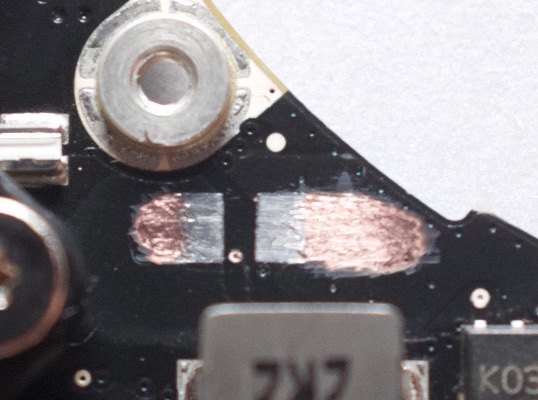

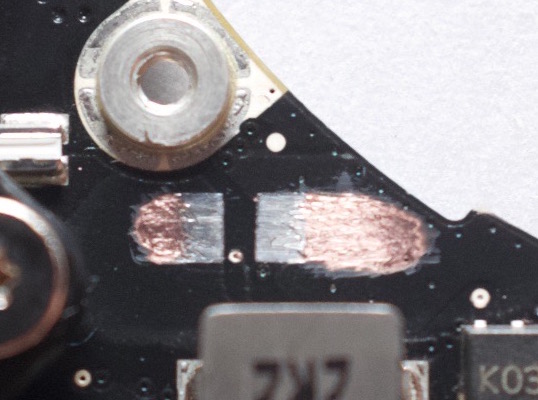

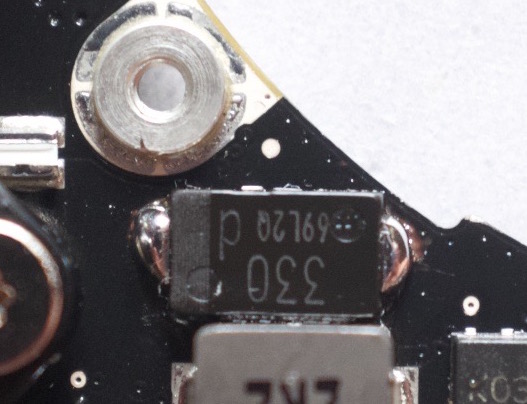

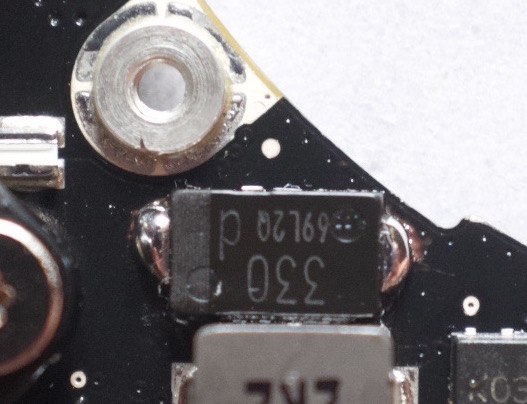

View attachment 715467 View attachment 715468
Just leaving a message to happily say I am another capacitor fix! Thanks to @fabioroberto and others for all the help.
The first cap I had soldered in must have been faulty. Second one worked the best. Persevere folks!
Cheers
I have tested all the Macbooks I have repaired (9 so far) with a 1200x1920 external monitor, no issue.
I have tested all the Macbooks I have repaired (9 so far) with a 1200x1920 external monitor, no issue.
(Eizo monitor, using a minidisplay to display port cable)
Yesfabioroberto, will be AppleGraphicsPowerManagement.kext for HiGH Sierra?
Hi everyone, I got OS X 10.12.6 and the solution by poidevin don't work for me. what did I do wrong ? Can they help me?, please
Is this the solution you tried: https://forums.macrumors.com/thread...for-kernel-panic-of-macbook-pro-2010.2044304/ ?Hi everyone, I got OS X 10.12.6 and the solution by poidevin don't work for me. what did I do wrong ? Can they help me?, please
Thanks so much, I think to replace the cap coming soon. While I will await an updateI had the patch working on 10.12.4 I believe. I don't know if it works onn releases after 10.12.4 because I had the capacitor replaced so I could use an external monitor and update the os without worrying about the patch.
Hello,
no sorry, south of France.
